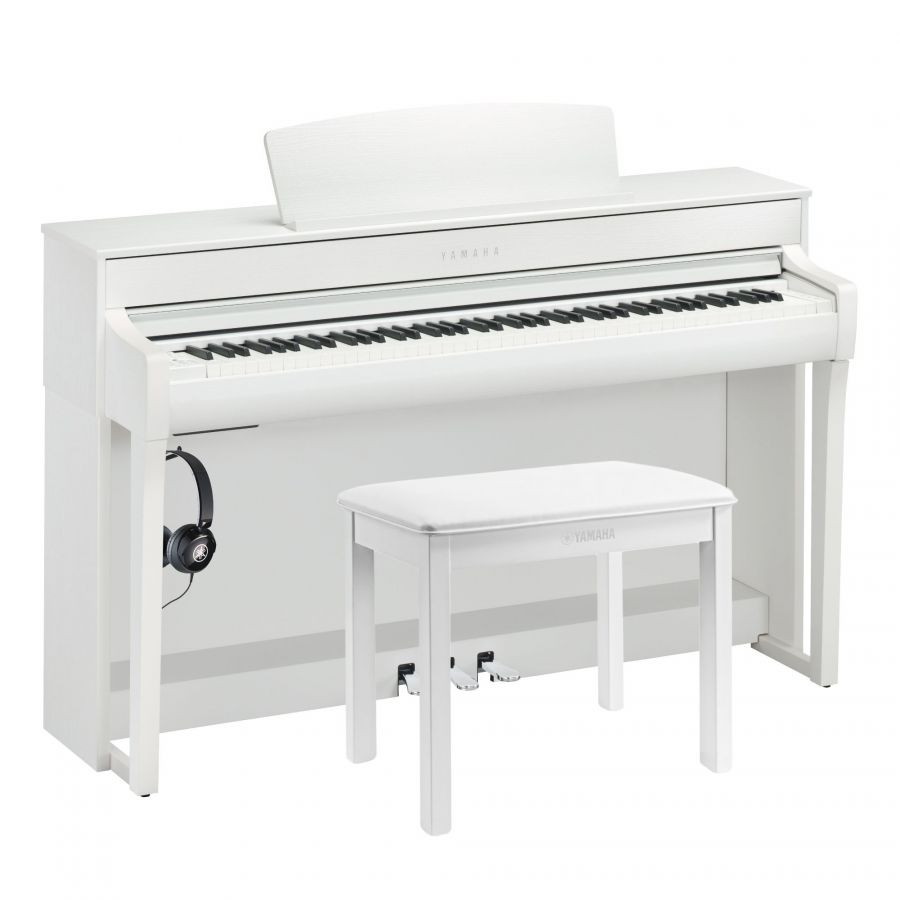

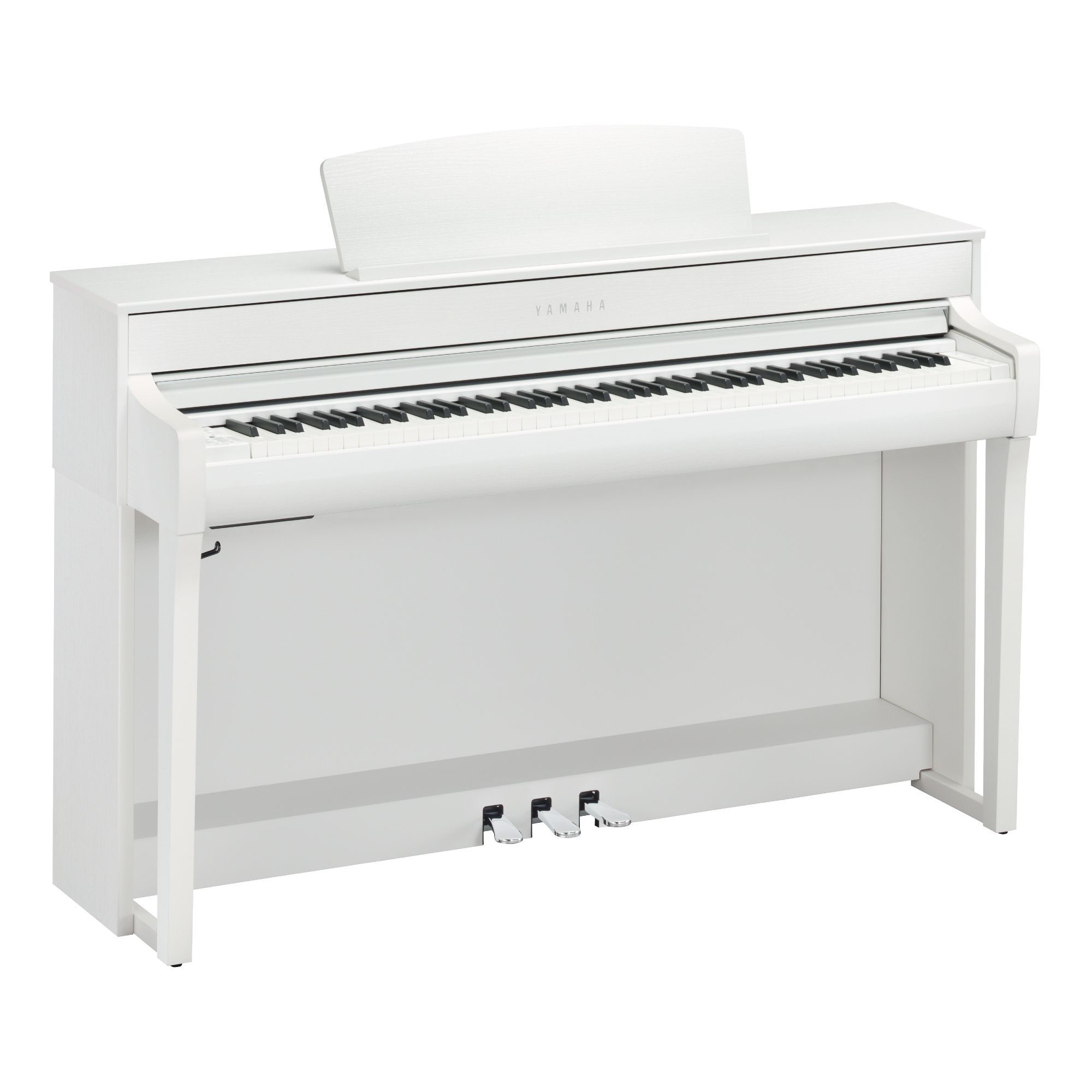

Yamaha CLP-745 Clavinova Digital Piano Essential Pack

Finance

Features

GrandTouch-S keyboard

• Difference in fulcrum position betweem white and black keys
• Expressive control to shape the sound from pp to ff
• Improved stability (guidance) when pressing the key
• Synthetic keytops
• Use of real wood elements

CFX Sample

New CFX sample recorded using the latest recording technology

• Sampled from three positions
• Additional dynamic levels added

Bosendorfer Imperial Sample

New Bosendorfer sample recorded using the latest recording technology

• Additional dynamic levels added

Binaural Samples

For pleasant music making with headphone

• New CFX binaural sample
• First Bosendorfer binaural sample
• Identical sound character when playing with headphones or over loudspeaker

Grand Expression Modelling

• Extremely refinded, nuanced expression
• Differentiated distinction between accompaniment and melody
• Multi-faceted sound like an acoustic grand piano

Advanced Virtual Resonance Modelling (VRM)

VRM simulates the variety of sounds that can be produced by the multitude of resonances of a grand piano's strings and body

• Damper resonance
• String resonance
• Duplex scale
• Damper noise

New Functions:

Tone Control
Tone control: Bass, mid-range and treble for individual sound

Rhythms with Bass Track
20 rhythms extended to include bass tracks

Bluetooth Audio + MIDI
Receiving of audio data, sending and receiving of MIDI

SmartPianist APP
The CLP-745 can be connect to the SmartPianist App

Audio
1 way system, 2 x 50 Watt. Wireless connection with accessories only

Specs

Size/Weight

• Width: 1,461 mm (57-1/2")
• Height:927 mm (36-1/2")
• Depth: 459 mm (18-1/16")
• Weight: 60 kg (132 lb, 4 oz)

Control Interface

• Keyboard
  • Number of Keys: 88
  • Type: GrandTouch-S™ keyboard: synthetic ebony and ivory keytops, escapement
  • Touch Sensitivity: Hard2/Hard1/Medium/Soft1/Soft2/Fixed
  • 88-key Linear Graded Hammers: N/A
  • Counterweight: N/A
• Pedal:
  • Number of Pedals: 3: Damper (with half-pedal function), Sostenuto, Soft
  • Functions: Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause

• Display

• Type: Full Dots LCD
• Size: 128 x 64 dots
• Language English, Japanese
• Panel
  • Type: Buttons
  • Language: English

Cabinet

• Key Cover Style: Sliding
• Music Rest: Yes
• Music Braces: Yes

Voices

• Tone Generation
  • Piano Sound: Yamaha CFX, Bosendorfer Imperial
  • Binaural Sampling: Yes (CFX Grand and Bosendorfer voice only)
  • Key-off Samples: Yes
  • Smooth Release: Yes
  • VRM: Yes
  • Grand Expression Modeling: Yes
• Polphony
  • Number of Polyphony (Max.): 256
• Preset
  • Number of Voices: 38

Effects

• Types:
  • Reverb: 6
  • Chorus: 3
  • Brilliance: 7+ User
  • Master Effect: 12
  • Intelligent Acoustic Control (IAC): Yes
  • Stereophonic Optimizer: Yes
• Functions
  • Dual/Layers: Yes
  • Split: Yes
  • Duo: Yes

Songs

• Number of Preset Songs: 21 voice demo songs + 50 classics + 303 lesson songs
• Recording
  • Number of Songs: 250
  • Number of Tracks: 16
  • Data Capacity: approx. 500 KB/Song
• Compatible Data Format
  • Playback: SMF (Format 0, Format 1)
  • Recording: SMF (Format 0)

Functions

• Piano Room: Yes
• USB Audio Recorder
  • Playback: .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
  • Recording: .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
• Overall Controls
  • Metronome: Yes
  • Tempo Range: 5 - 500
  • Transpose: -12 - 0 - +12
  • Tuning: 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
  • Scale Type: 7 types
• Rhythm: 20
• Bluetooth: Audio/MIDI (varies by country)

Storage and Connectivity

• Storage
  • Total maximum size approx. 1.4 MB
  • External Drives: USB flash drive
• Connectivity
  • Headphones: Standard stereo phone jack (x 2)
  • MIDI: [IN] [OUT] [THRU]
  • AUX IN: Stereo Mini
  • AUX OUT: [L/L+R] [R]
  • AUX Pedal: N/A
  • USB TO DEVICE: Yes
  • USB TO HOST: Yes
  • DC IN: 24V

Amplifiers and Speakers

• Amplifiers: 50W+50W x 2
• Speakers: 16cm + 8cm x 2
• Power Supply
  • Power Consumption: 40 W (When using PA-500C AC adaptor)
  • Auto Power Off: Yes
  • Power Supply:  PA-500V

Accessories:

Owner’s Manual, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500C *varies by area
