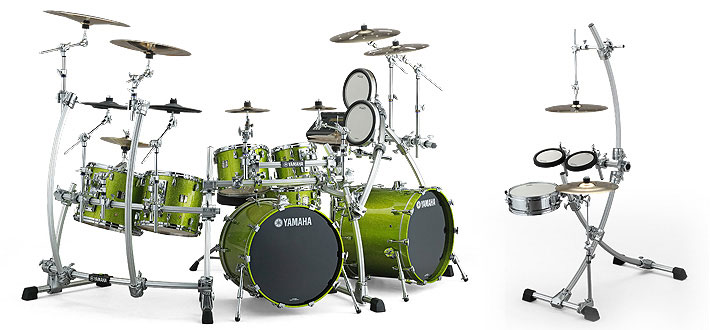

The HEXRACKII utilises a complex cross section design evolved from the original HEXRACK. The pipes are made from an aluminum alloy. This combination of design and material produces pipes that are significantly lighter in weight while providing greatly improved strength-as much as double that of conventional round pipe.
If you want to expand your HEXRACKII system, Yamaha offers a wide selection of individual add on parts that let you customize your system exactly the way you want to. The HEXRACKII is also compatible with 22.2-diameter hardware as well as the original HEXRACK system parts so you can add on to your new system with anything you might already have.
HEXRACKII clamps get a rock solid grip on the rails with a synthetic sleeve that fits between the clamp and the rail. As the clamp tightens, it compresses the sleeve to establish a solid grip. This gives the clamp a secure, slip-free hold on the rail when tightened, and allows easy adjustment when loosened, making the whole setup process quick, easy, flexible, and solid.
For as solid as the new HEXRACKII system is, it is amazingly light. Using a special aluminum alloy, the HEXRACKII design team created a six-sided, slotted rail that offers an optimum balance of light weight and strength. These rails are unmatched for rigidity and weight, and resist warping and compression.
The basic HEXRACKII set consists of two legs and is fully compatible with Yamaha System Hardware.

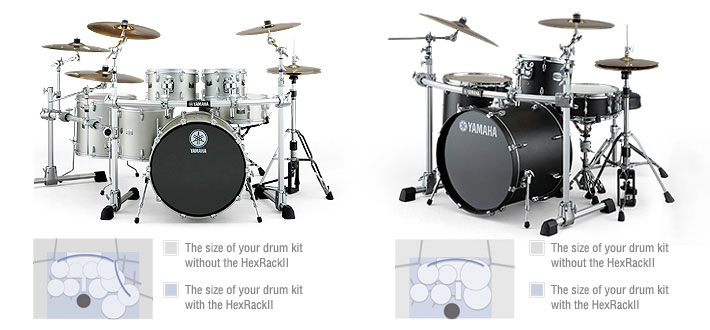

Compared to a typical hardware setup, the HEXRACKII uses less space and reduces floor clutter produced by stand legs, etc., around the kit. The system’s pipes and racks are made from aluminum, which makes the system lighter, transport and setup easier. And with a wide variety of optional clamps available, the rack system offers great expandability.
Several clamps for securing tubes of different thickness (φ”15 –φ”34, including hexagonal tubes) are connected to the extended arm. These clamps can be used to secure tubes positioned far from each other. Each clamp has a gear joint, enabling fine angle adjustment.
The cross clamp is used to connect two hexagonal tubes at 90-degree angles (for example, to connect a leg tube with a tube that has been horizontally set).
24-inch long x 34mm diameter hexagonal pipe made from aluminum.
Using a complex cross section design combined with the aluminum alloy creates pipes that are significantly lighter in weight while providing greatly improved strength—as much as double that of conventional round pipe.
36-inch long x 34mm diameter hexagonal pipe made from aluminum.
Using a complex cross section design combined with the aluminum alloy creates pipes that are significantly lighter in weight while providing greatly improved strength—as much as double that of conventional round pipe.
44-inch long x 34mm diameter hexagonal pipe made from aluminum.
Using a complex cross section design combined with the aluminum alloy creates pipes that are significantly lighter in weight while providing greatly improved strength—as much as double that of conventional round pipe.
The double bass is used to horizontally set two tubes at the same height -as in a double-bass configuration, Settings at various angles are possible when used with the clamp gear joint.
The Logo clip, with an integrated level, is a convenient way to set an accurate level for your cross-tube.
The open clamp is used to attach tubes having different thickness (diameter 15-34mm, including hexagonal tubes) to the hexagonal tube. Although fine angle adjustment is possible with the gear joint, more stable setting can be achieved by limiting the movement only to the vertical direction.
This clamp attaches a tom clamp (CL945B, etc.) or cymbal holder (CH755, etc.) to the hex-shaped pipe and is compatible with 22.2mm diameter pipes.
Its vertical angle is freely adjustable.
T-shaped leg for HexRackII (clamp and pipes are made from aluminum).
Vertical pipe length: 23 inches (approx. 58cm)
T-shaped leg for HexRackII (clamp and pipes are made from aluminum).
Vertical pipe length: 30 inches (approx. 76cm).
