Overview

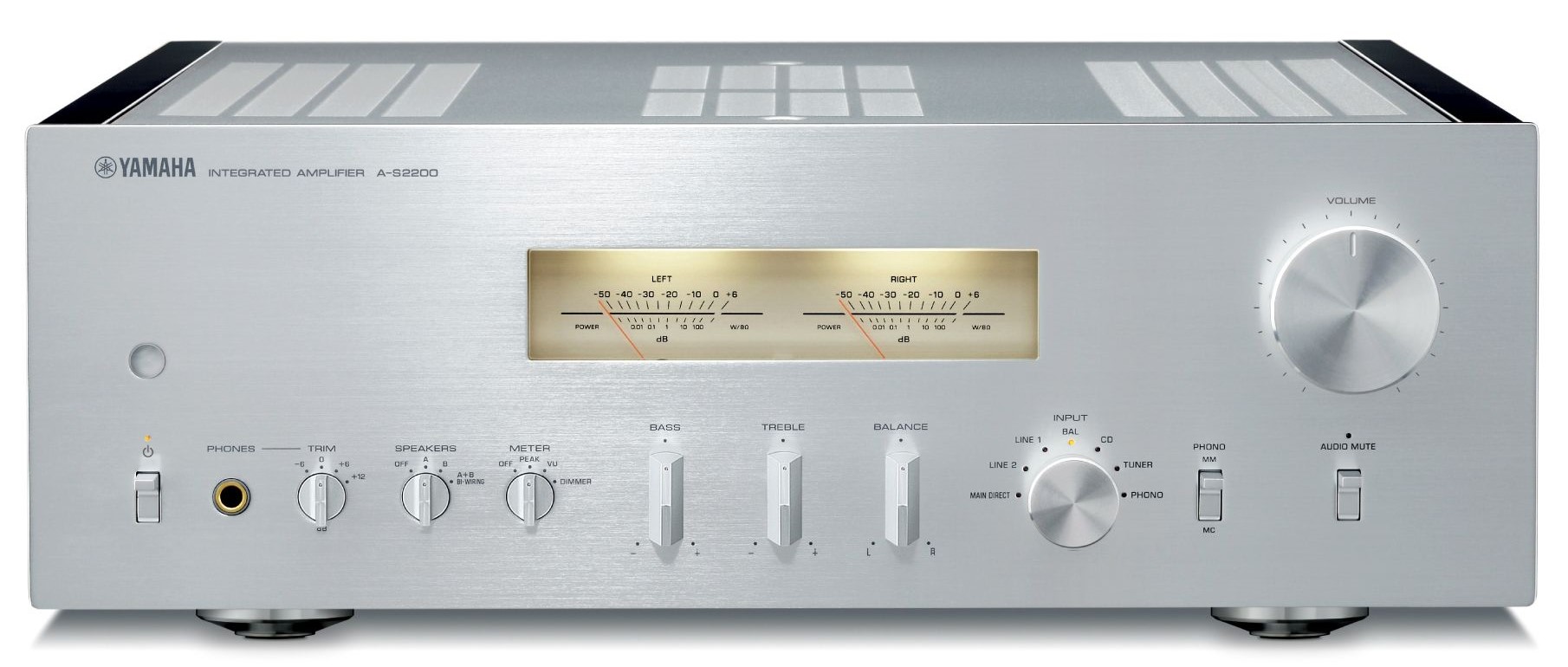

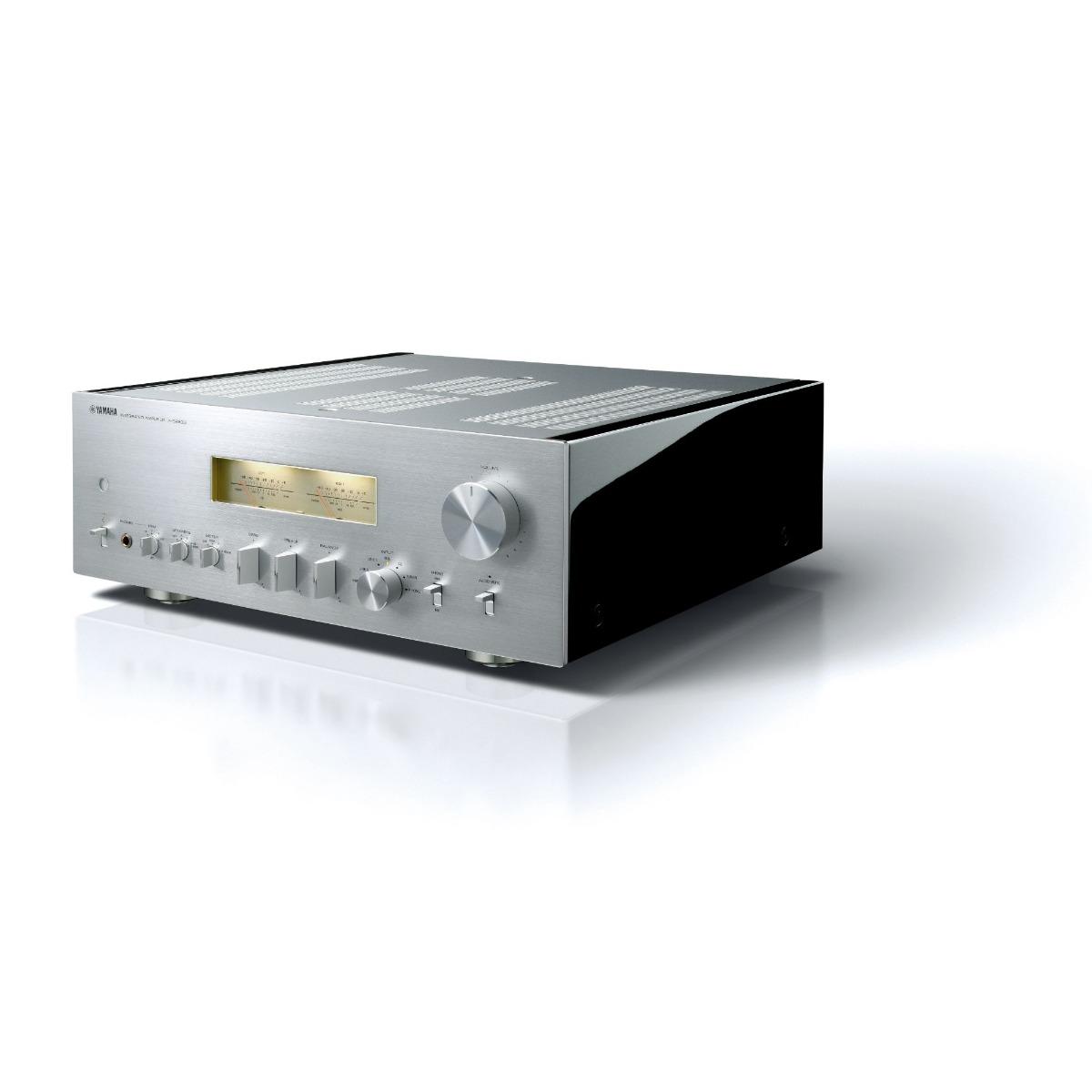

Yamaha A-S2200
A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotiona
l Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.
- Fully balanced circuit design from input to speaker out
- Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
- Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
- Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
- Mechanical ground concept maximises rigidity for expressive and rhythmic bass
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Emotion
Conveying the emotional story of artists can only truly be achieved with an intimate understanding of how music is created. This understanding is embedded in Yamaha’s DNA, developed particularly through working with artists to help them create music. It’s this understanding that enables Yamaha to truly convey all the emotion ingrained in the music to the listener.
Toroidal Transformer
Toroidal power transformers, renowned for their superior performance in Hi-Fi components has been appointed to power the A-S2200. Its ability to maintain energy when compared to substitutes aids the A-S2200 in delivering all the emotional energy of the artist infused in the music.
Gorgeous Level Meters
The level meters are both a nod to the nostalgic era of Hi-Fi while simultaneously demonstrating the importance of pure Hi-Fi for today’s discerning enthusiast. Visually presenting the dynamics and pulse of the music, the level meters imbue a warm feeling through their softly illuminated LED’s.
Openness
True Hi-Fi brings the artist to the fore and makes the listener forget where they are. Music listening becomes an active experience rather than a passive activity. The openness in Yamaha’s Hi-Fi range delivers this musical experience.
Thick Wires for Ground Connection by Low Impedance Concept
A naturally open sound stage is achieved through a culmination of design and component selection. Thick wires for ground connection were purposely selected, adding to the overall low impedance amplifier design, producing a wide and open sound stage for the listener. Consequently, the components disappear, leaving the artist in their place.

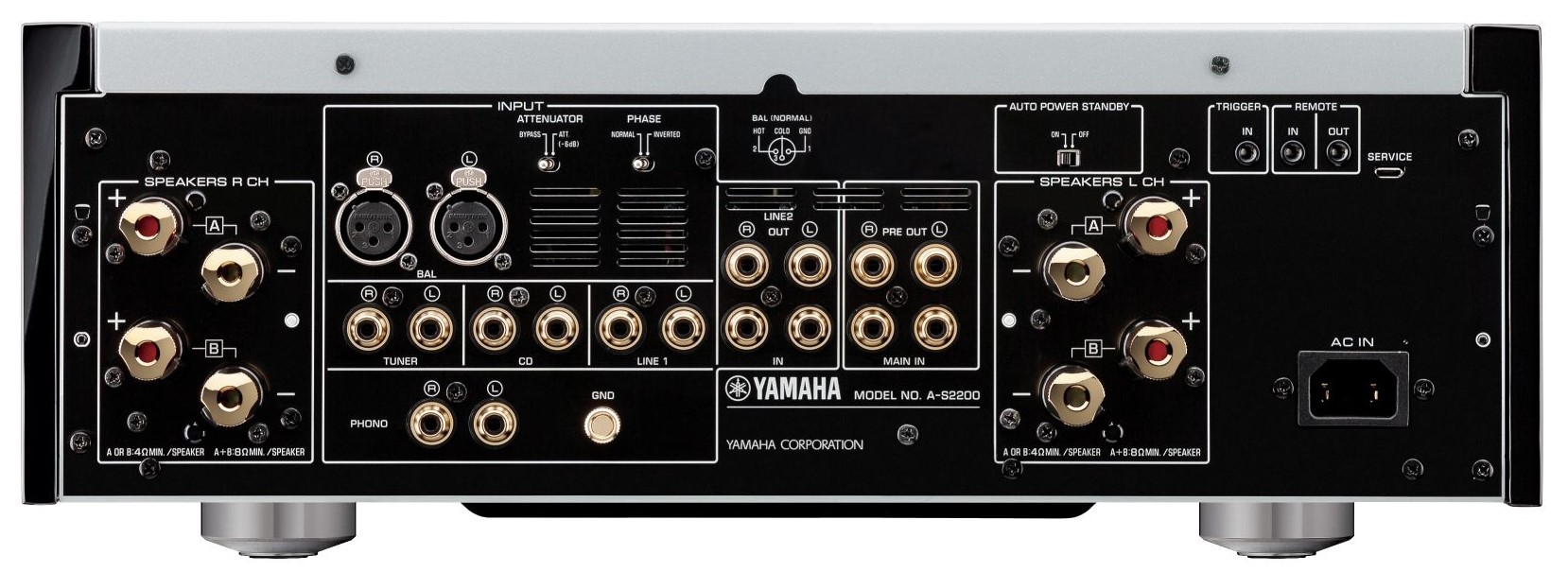

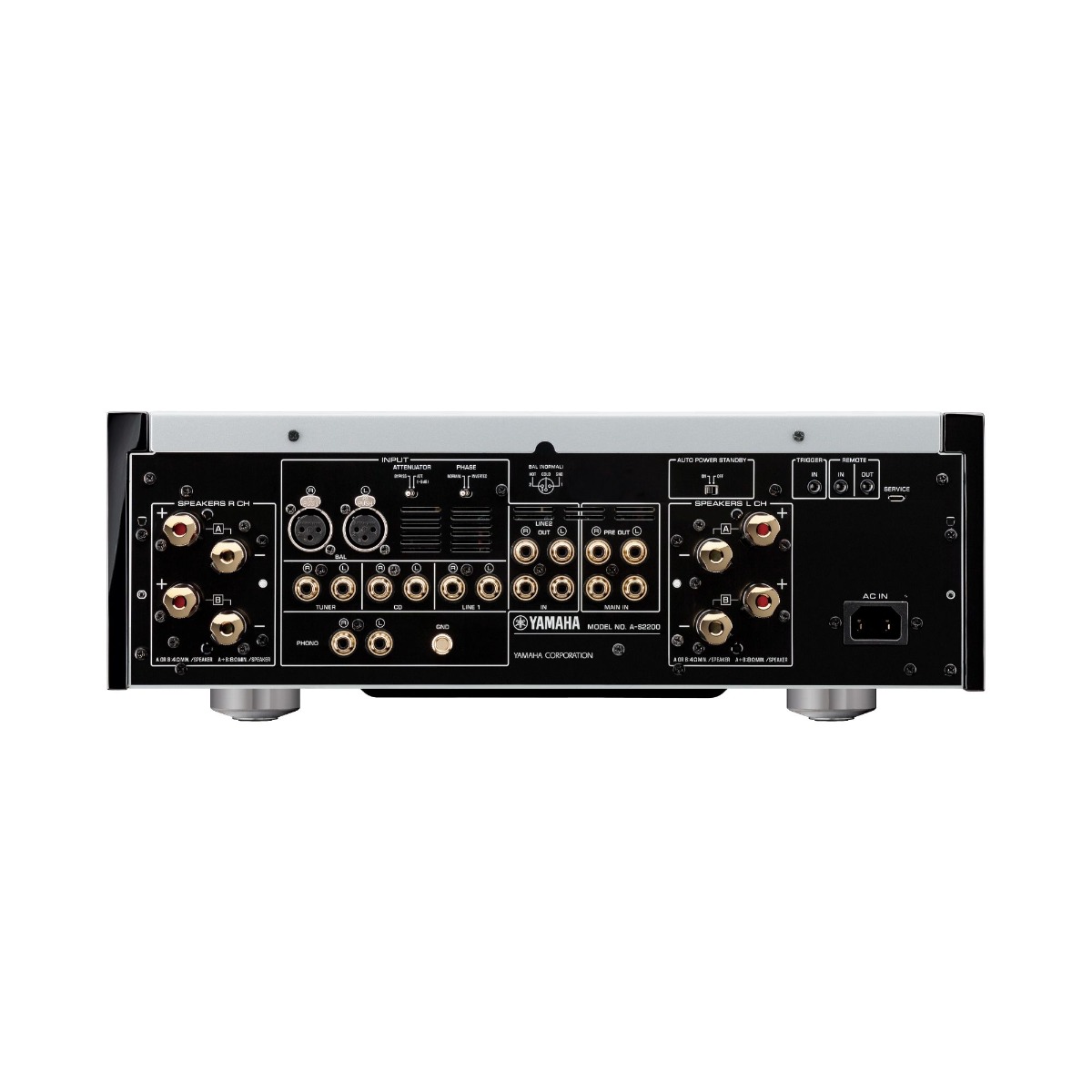

Original Speaker Terminals
Cut directly from pure brass, the luxurious speaker terminals effortlessly allowing tightening by the human hand achieving a highly secure connection.
Specs
| | A-S2200 |
| Specifications |
| Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) | 160 W + 160 W |
| High Dynamic Power/Channel (8/6/4/2 ohms) | 105/135/190/220 W |
| Damping Factor | ≧ 250 (1 kHz, 8 ohms) |
| Frequency Response | +0 / -3 dB (5 Hz-100 kHz) , ?0 / -0.3 dB(20 Hz-20 kHz) |
| RIAA Equalization Deviation | +/-0.5 dB (PHONO (MM/MC)) |
| Dimensions (W x H x D) | 435×157×463 mm; 17-1/8" x 6-1/8" x 18-1/4" |
| Weight | 22.7 kg; 50.0 lbs |
| Receiver / Integrated Amplifier |
| Rated Output Power | [20 Hz-20 kHz, 0.07% THD] 90 W ? 90 W (8 ohms), 150 W ? 150 W (4 ohms) |
| Total Harmonic Distortion (20Hz to 20kHz) | [Input 0.5 V] PHONO MC→LINE2 OUT: 0.02 % (1.2 mVrms), PHONO→LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL→SP OUT: 0.035 % (50 W/8 ohms? |
| Signal-to-Noise Ratio | PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB |
| Input Sensitivity | [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms |
| Transformer | 625VA (Toroidal) |
