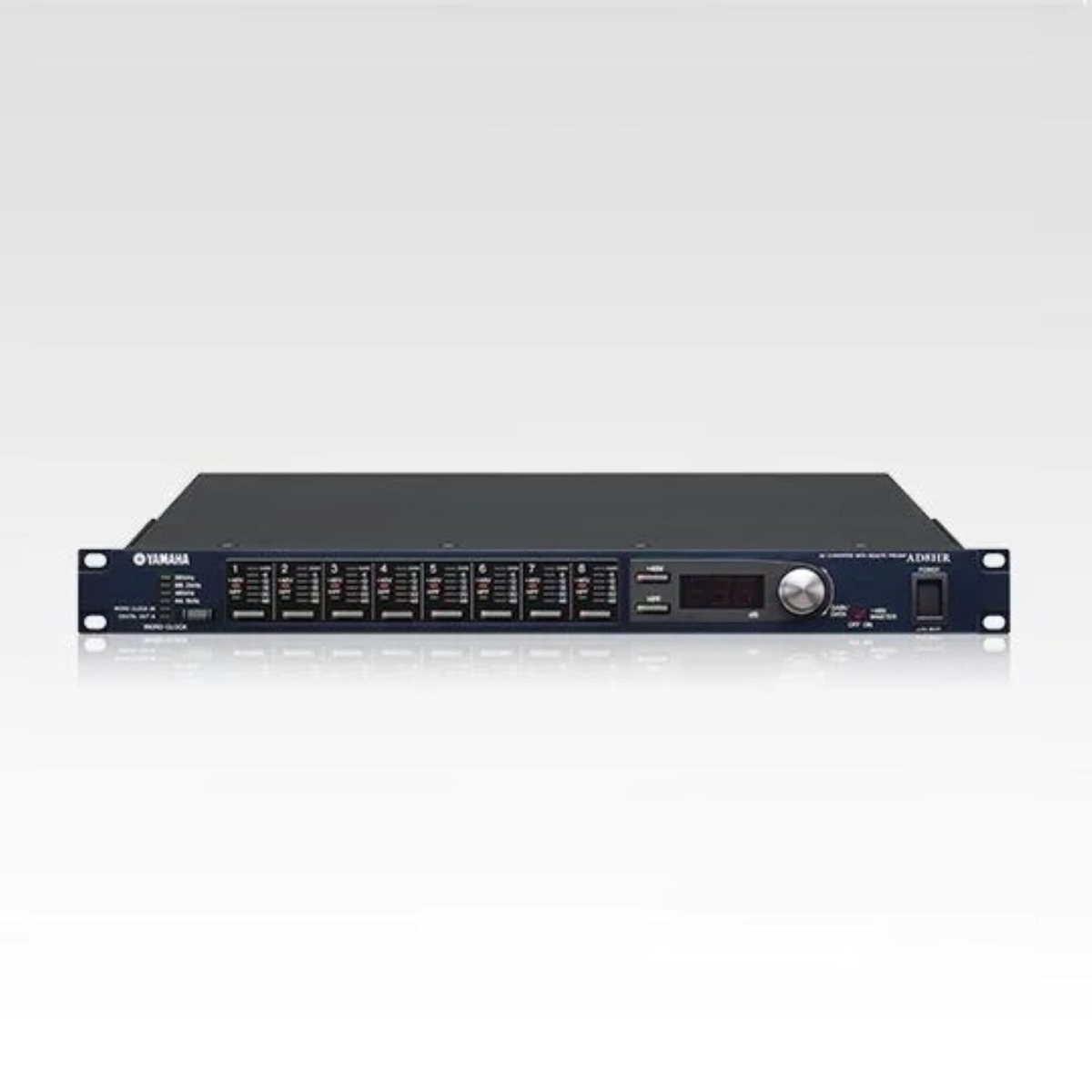

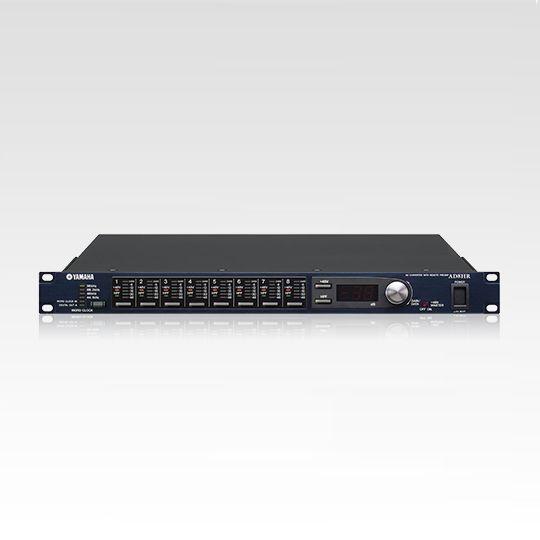

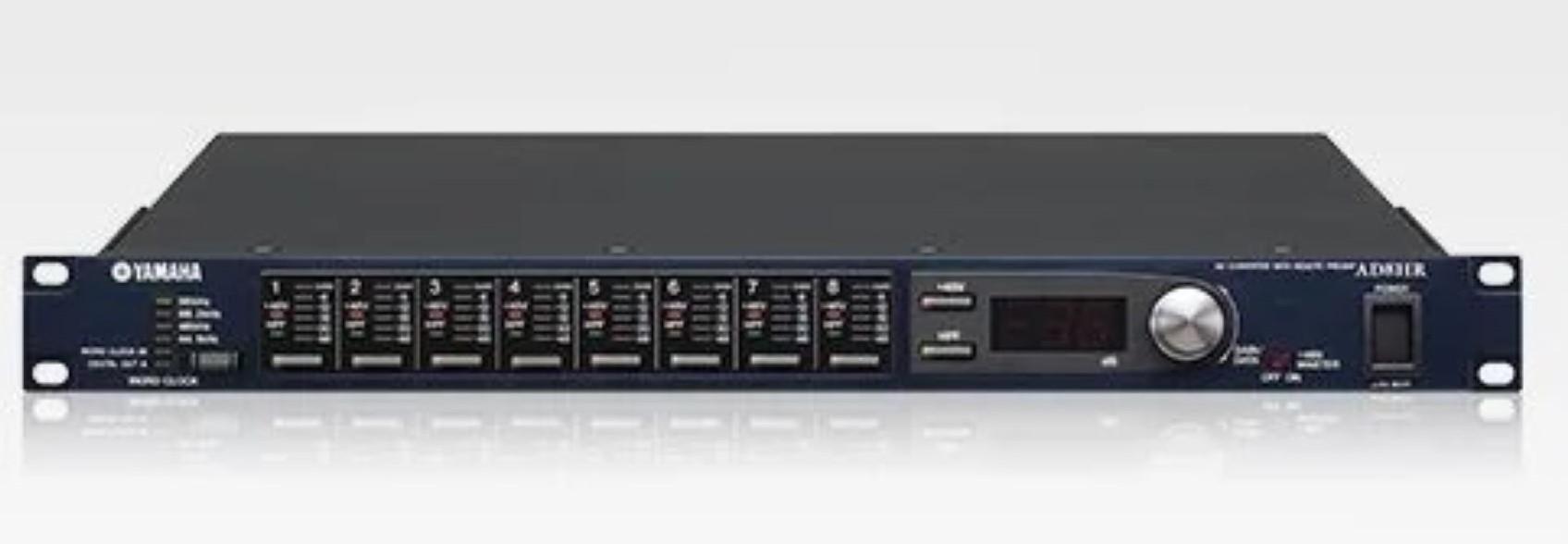

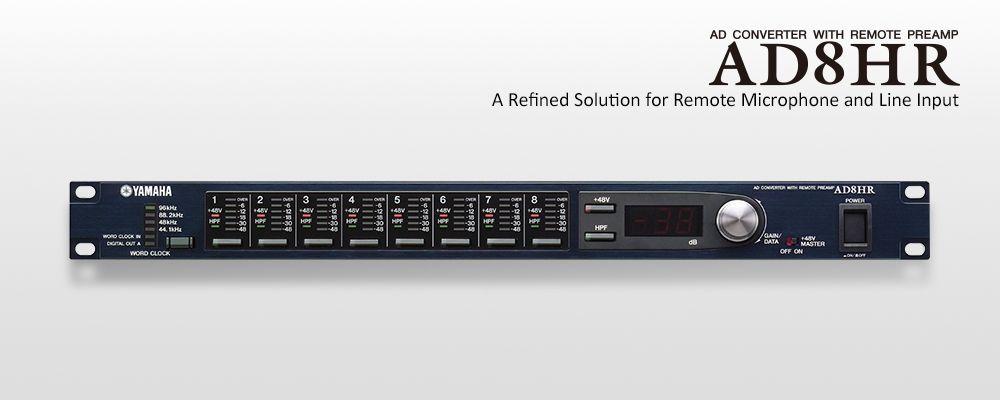

Yamaha AD8HR AD Converter with Remote Preamp - Remotely controllable 8-channel AD converter and preamplifier with 96 kHz processing
With the AD8HR, we've introduced a new generation of 8-channel remote microphone preamp/AD converters combining unparalleled sound quality with a host of innovative functions in a compact 1U rack size unit. The AD8HR can be used with Yamaha digital consoles such as the PM5D, DM2000 and DM1000, providing high-quality remote microphone preamps with analog circuitry derived from the extraordinary PM5000 analog console. The AD8HR provides digital audio output via high-performance 24-bit/96-kHz AD converters, and simple digital connection allows gain, filter, and phantom power control right from the console.
This remotely controllable 8-channel microphone preamp and 24-bit/96-kHz AD converter employs microphone preamp technology inherited from the PM5000.
- Microphone preamplifier technology inherited from the PM5000 analog live sound console for unsurpassed sound quality.
- Microphone preamplifier gain can be remotely controlled in steps of 1 dB from compatible Yamaha digital mixing consoles.
- High-pass filter with remotely controllable cutoff frequency on each channel.
- Remotely switchable phantom power supply.
- Up to 255 AD8HRs can be daisy-chained for massive input capacity.
- AES/EBU digital connection to digital mixing console minimizes the need for analog cabling.
- Eight XLR connectors and D-Sub AES/EBU terminals in a compact 1U design.
- Dual output connectors enable 2 x 8-channel digital audio output in the AES/EBU format.
- Remote control can be implemented via RS422 or switchable PC/RS422 nine-pin terminals
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Stunning Sound Quality with Sampling Rates Up To 96 kHz
Head amplifiers play a vital role in determining the final sound quality of any analog-to-digital converter, and that's why we chose the circuitry used in our state-of-the-art PM5000 analog mixing console for the AD8HR's eight microphone preamplifiers. Only the finest parts available have been selected and implemented to achieve immaculate reproduction backed up by 96-kHz digital processing. Sound quality depends on more than just specifications, so rigorous and impartial listening tests were carried out with the participation of leading professionals in order to perfect the design and ensure that only the input signal, with all of its most delicate nuances intact, will appear at the output.
Remote Control Facilitates Integration with Digital Mixers
The gain of the AD8HR's microphone preamplifiers can be remotely controlled in steps of 1 dB from digital mixing consoles such as the DM2000 and DM1000*. Each channel also includes a high-pass filter with remotely controllable cutoff frequency, and a phantom power supply that can be switched on or off in the same way. This makes the AD8HR an ideal choice for use as a remote stage box. In addition to the many practical advantages that this offers, digital connection between the AD8HR and digital mixing console via an AES/EBU cable reduces the need for analog wiring to an absolute minimum, keeping sound quality deterioration in check and simplifying wiring layout. Up to 255 AD8HRs can be daisy-chained for massive input capacity. * The DM2000 and DM1000 must be upgraded to version 2 in order to make full use of these functions. Version 1.xx of the DM2000 or DM1000 software provides support for gain control in 6 dB steps.
Eight XLR Connectors and D-Sub AES/EBU Terminals in a Compact 1U Design

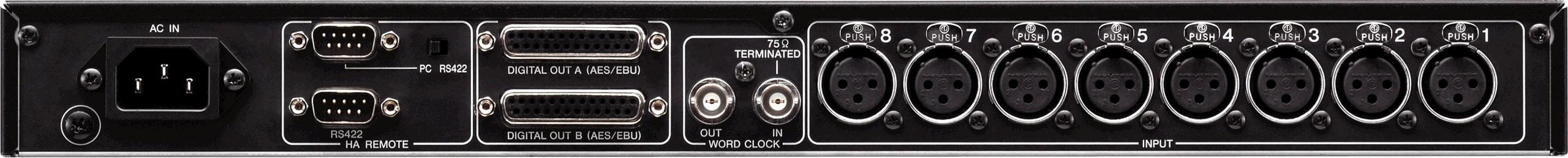

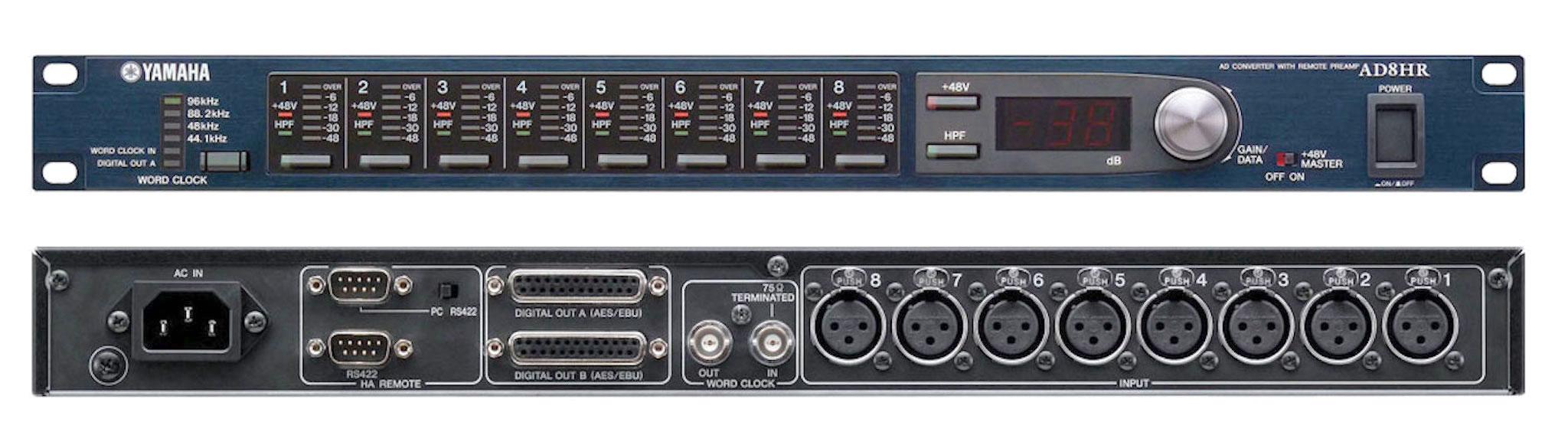

Packaged in a space-saving 1U unit, the AD8HR boasts a full range of analog and digital I/O connections. And with integrated high-pass filters and phantom power supplies this AD converter features all the functionality required for effective, flexible live mixing. The front panel and controls have been designed for speedy operation and instant identification that can be critical in live situations. Each of the rear panel's eight inputs features an XLR connector, and a pair of D-sub 25-pin AES/EBU digital output terminals are standard. BNC terminals provide word clock input and output. The AD8HR covers every base in terms of digital connectivity. Input signals can be separated into two parallel output lines using the two D-sub 25-pin AES/EBU digital output terminals, allowing one to be used for FOH and the other for monitoring or recording. In addition, remote control can be implemented via RS422 or switchable PC/RS422 nine-pin terminals.
Specs
- Internal processing: 32 bit
- Sampling frequency rates:
- Internal: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- External: 44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
- Total harmonic distortion: Less than 0.01% (20Hz-40kHz)
- Frequency response: 0, +1, -1.5dB 20Hz-40kHz
- Dynamic range: AD+DA: 110dB (Use DA824 for output)
- Hum & noise level - Equivalent input noise: -128dBu (Use DA824 for output)
- Crosstalk: -80dBu
- Power consumption: 35 W
- Dimensions:
- Width: 480mm
- Height: 45mm
- Depth: 383.5mm
- Net weight: 5kg
- Accessories: Owner's manual, AC Cable, 4x Rubber Foot
