Overview

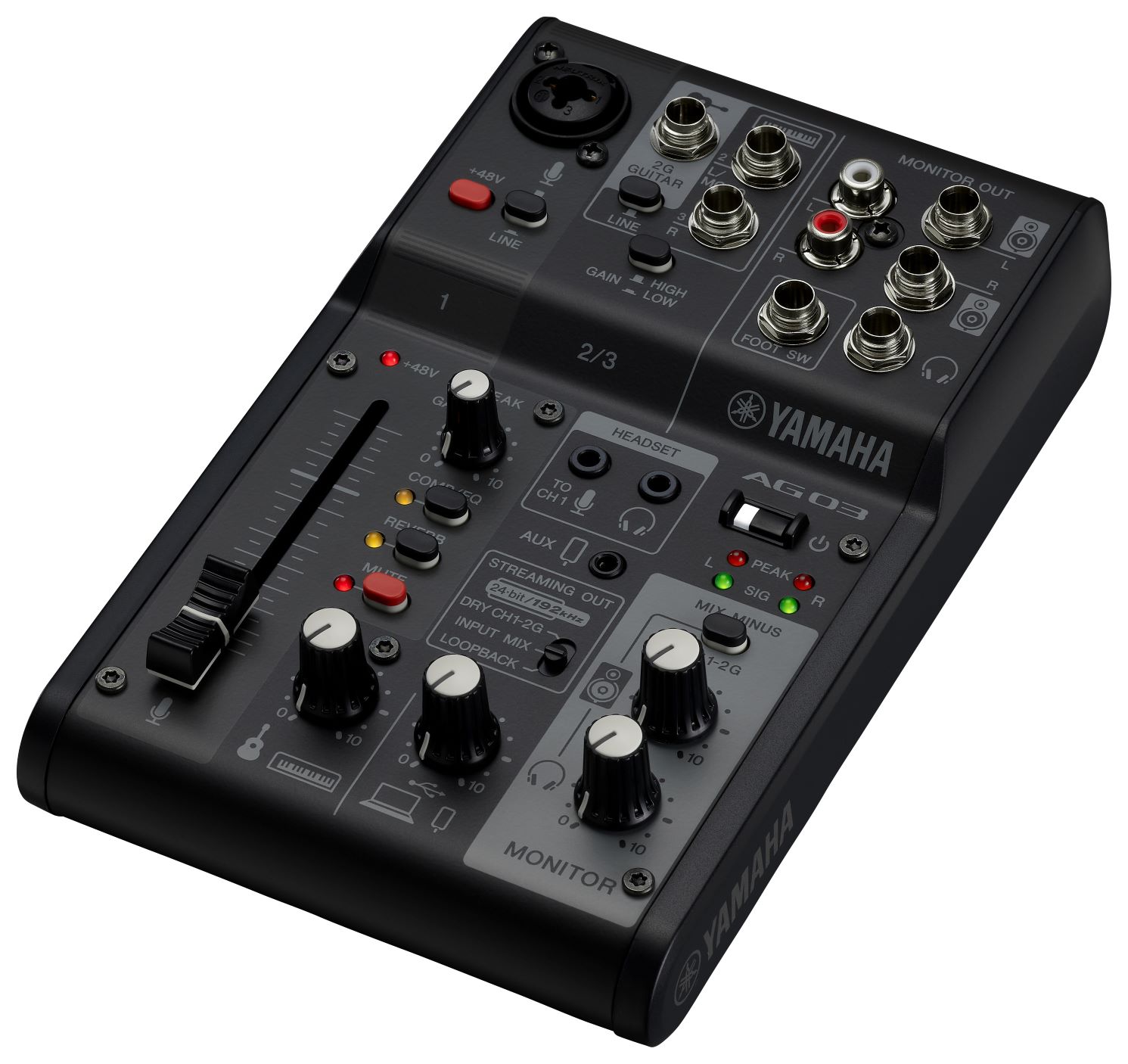

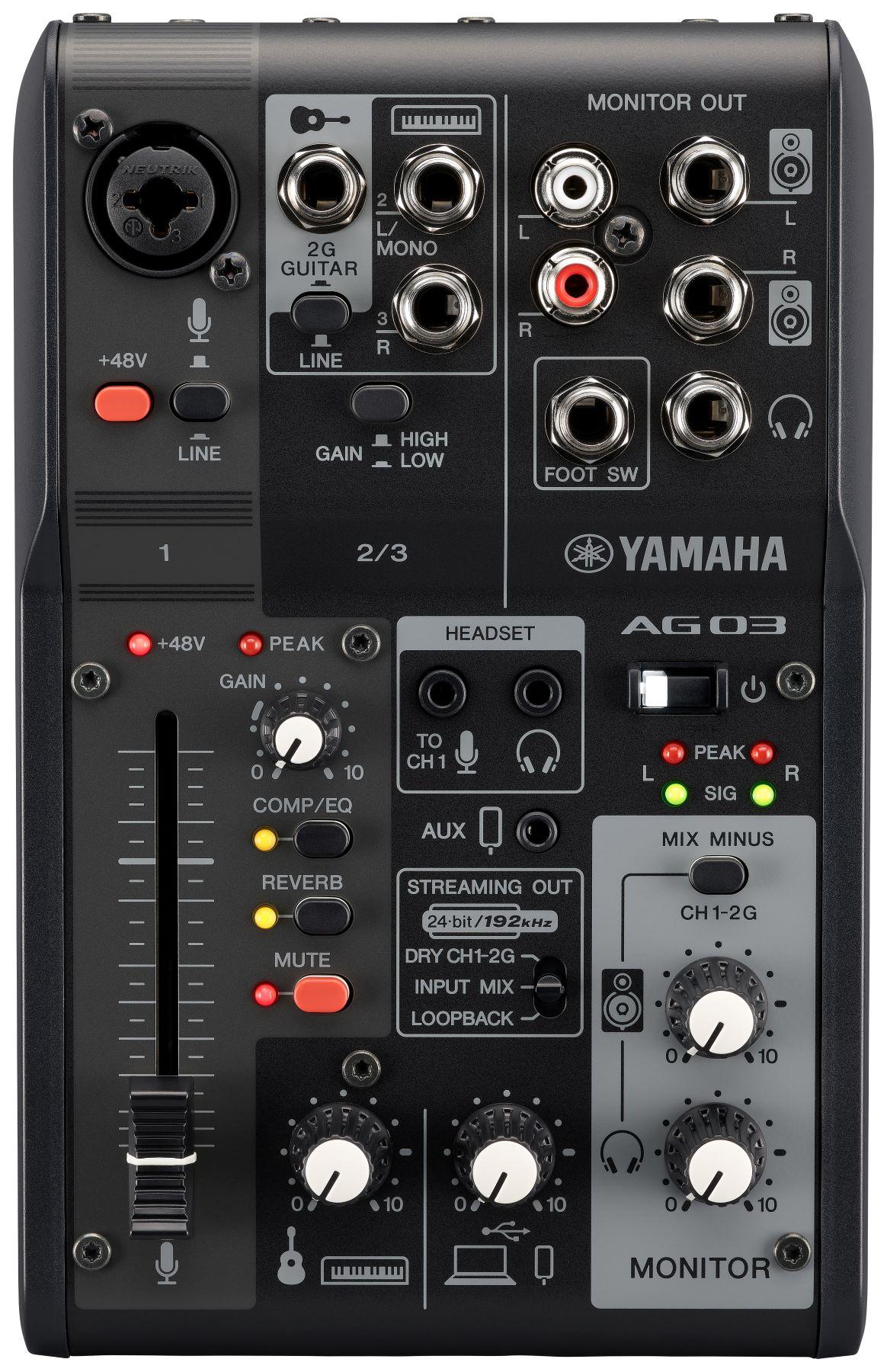

Yamaha AG03MK2 Black Live Streaming Mixer
Your Audience Awaits.
With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard that all others will be compared to.
Features
Fast, intuitive sonic control
The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.
Flexible connectivity and LOOPBACK function expand your streaming capabilities
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.
You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.
Improved internal circuitry for more professional sounding audio

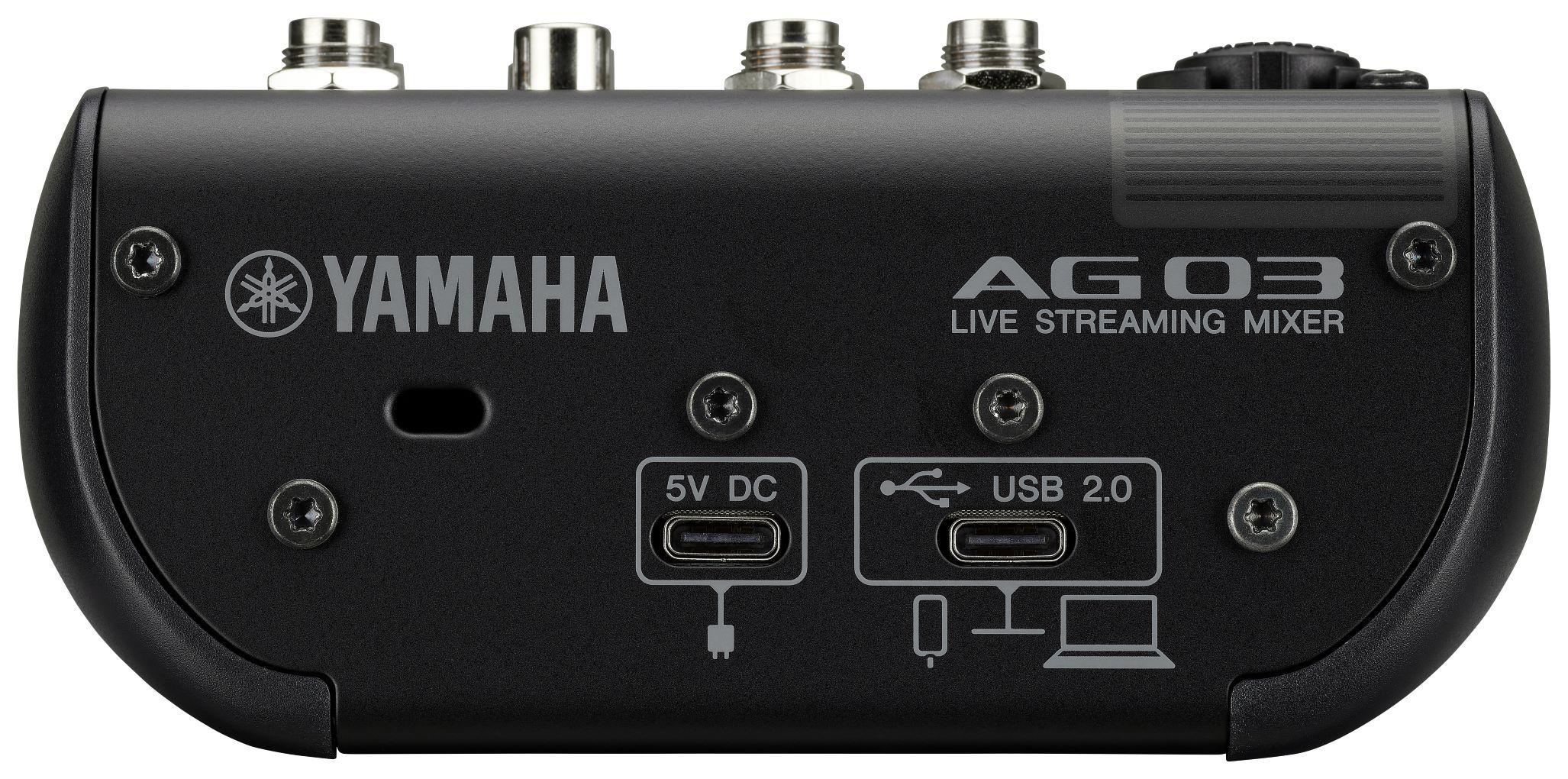

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.
Zero-latency DSP effects to shape your sound like a pro
Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.
All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.
You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.
"AG Controller" provides precise control
AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.
Adapt to your surroundings
The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.
By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.
*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.
*BMS-10A and mobile battery are sold separately.
Powerful bundled software
The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.
Specs
Input Channels
- Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
- Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- USB: 1
Output Channels
- PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 2 - L/R Stereo: Phone, RCA
- USB: 1
- Bus: 1 Stereo
- Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors
- DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
- USB
- USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
- USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
General specifications
- Power requirements: 5 V DC, 900 mA
- Power consumption: 4.5 W
- Dimensions: W 126 mm (5.0") H 63 mm (2.5") D 201 mm (7.9")
- Net weight:8 kg (1.8 lbs)
- Included Accessories:0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
- Others: Operating Temperature: 0 to + 40 ?
