Yamaha AG03MK2WH-LSPK Live Streaming Pack in White
Your Audience Awaits

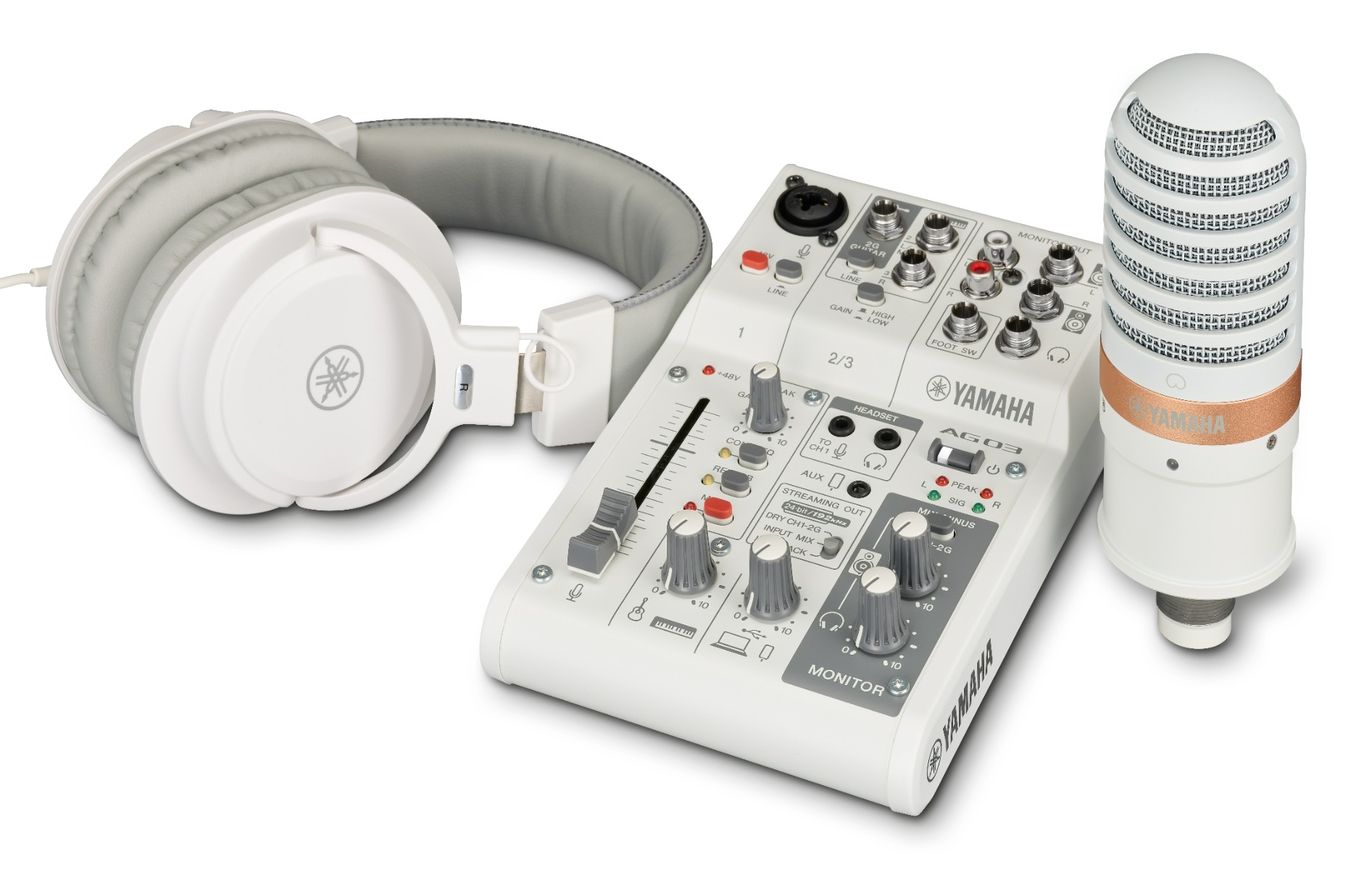

The AG03MK2 LSPK (Live Streaming Package) is a full streaming setup that includes, and centers around an AG03MK2 3-channel mixer— the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.
Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.
A comprehensive package of the AG03MK2 that includes all the products you need to get started with live streaming right away.
- New design with two models in black and white
- AG03MK2: 3-channel Live Streaming mixer with USB audio interface
- YCM01: Studio-quality condenser microphone (XLR, Cardioid type)

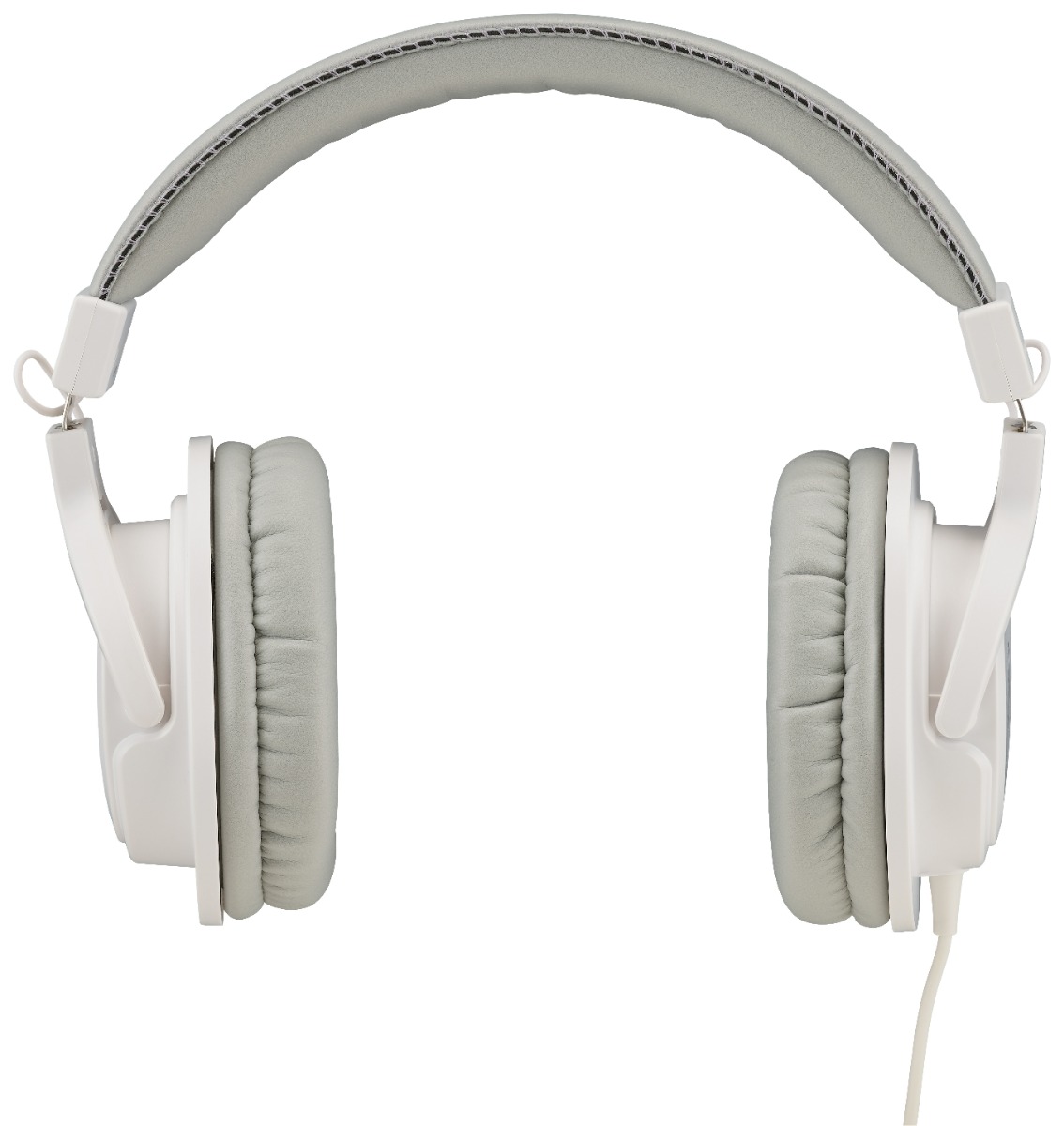

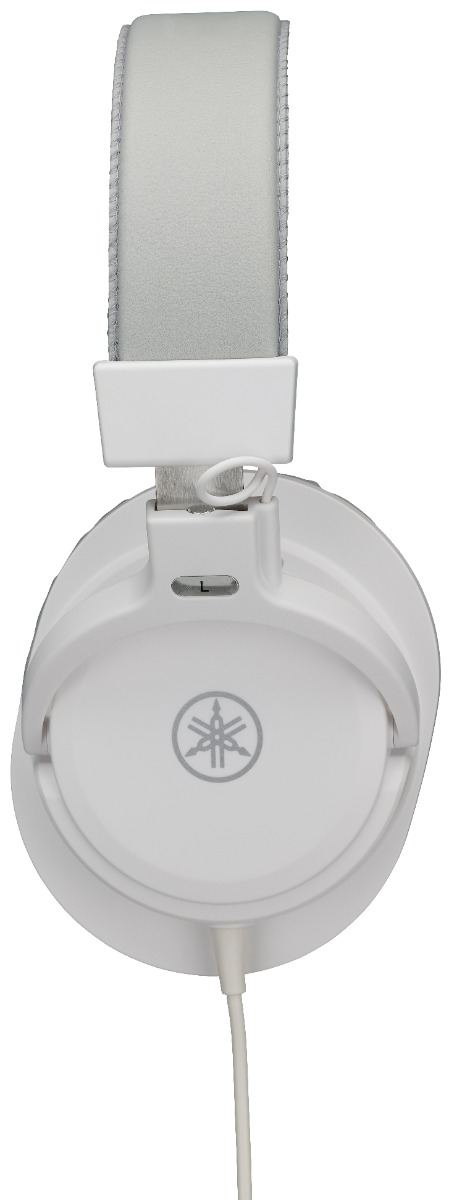

- YH-MT1: Studio-quality headphones
- XLR microphone cable (3 m, Black)
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features

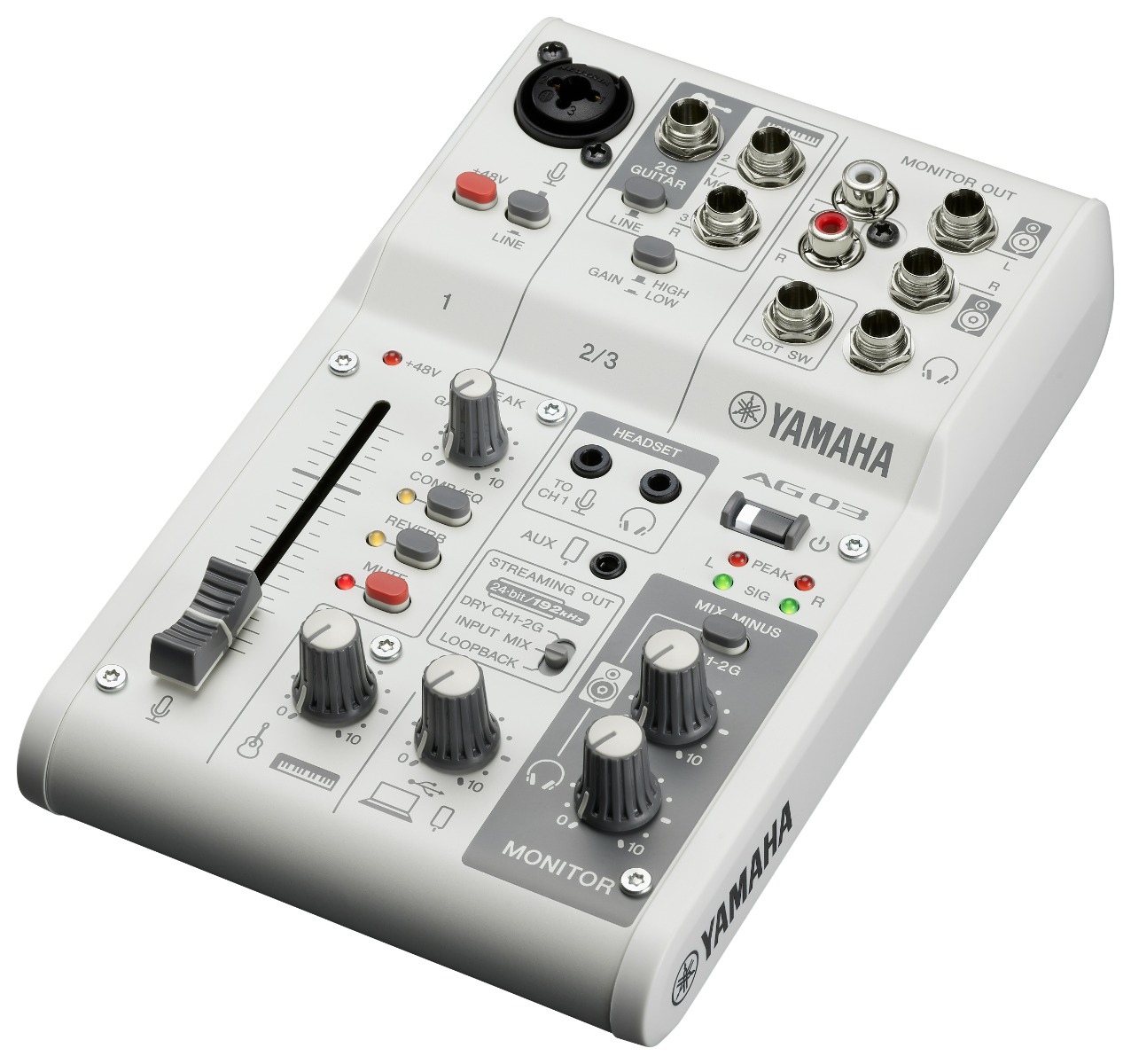

AG03MK2
Fast, intuitive sonic control

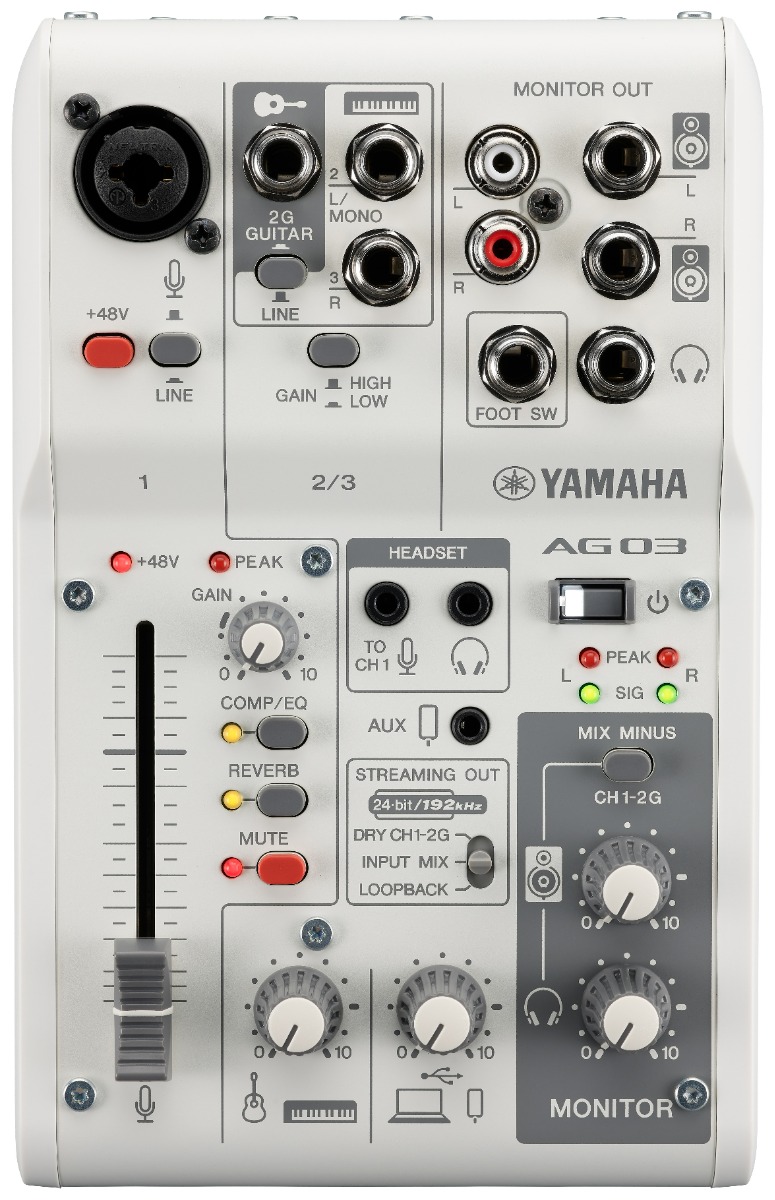

The AG03MK2 is equipped with a variety of physical controls including a large 60mm fader that helps you shape and manage the audio intuitively and quickly. The newly added mute button allows you to cut your mic input at a moment's notice if your situation demands it. Reverb and Mute can even be controlled by the optional FC5 foot switch, freeing up your hands for other tasks.
Flexible connectivity and LOOPBACK function expand your streaming capabilities
In addition to a microphone input for the condenser microphone of your choice, the AG03MK2 also features a 1/4 inch jack input for connecting a guitar or line instrument, and an upgraded 4-pole mini jack (TRRS) for smartphone input and output capabilities.
You can also use LOOPBACK function to play back the audio signal from a connected USB device to USB streaming output as with previous AG series mixers.
Improved internal circuitry for more professional sounding audio

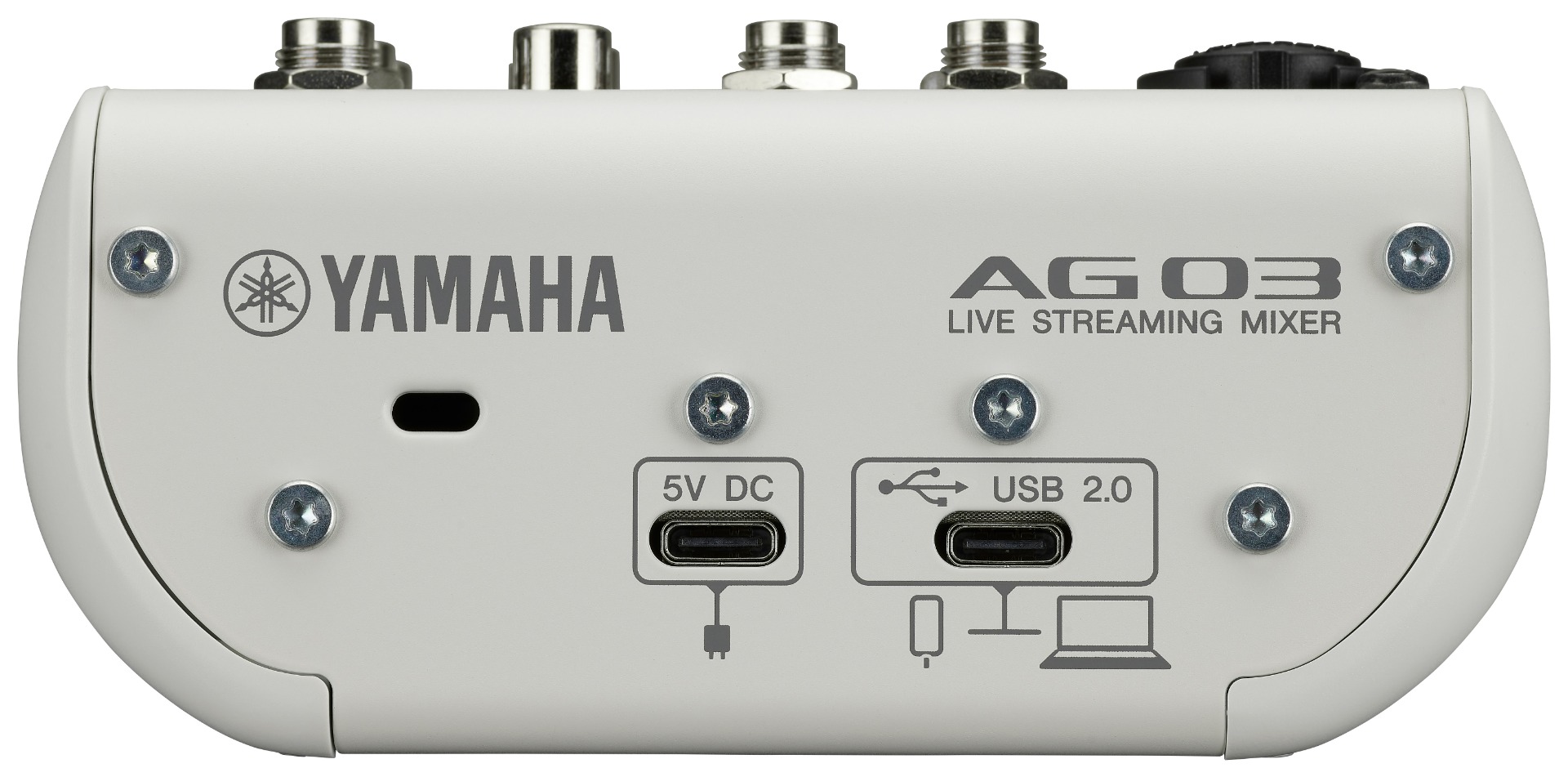

The AG03MK2 sees a marked improvement in sound quality as a result of adopting USB-C connectivity and enhanced internal circuitry that will take your streaming audio to a more professional level. The high transfer rate and power supply of USB-C provide more stable operation.
Zero-latency DSP effects to shape your sound like a pro
Regardless of your particular streaming application, you’ll likely want to add some depth and dimension to the audio you’re broadcasting to add professionalism to your streaming content. The AG03MK2 is equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style, and an amp simulator to add authenticity and punch to your guitar input.
All these tools are processed by the internal DSP chip so there is no delay, making it particularly valuable for live streaming when real-time accuracy is crucial.
You also have the option to turn these effects off completely to capture pure, raw recordings through your favorite microphone for music/audio production that will be edited by an engineer later.
"AG Controller" provides precise control
AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG. Offering two modes of operation, "Simple" and "Detail", AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG03MK2 via USB.
Adapt to your surroundings
The sleek, slim, and compact body of the AG03MK2 can be placed on virtually any flat surface.
By combining it with the optional BMS-10A adaptor, it can be installed on a microphone stand. It can also be connected to a mobile battery to configure a minimalistic, mobile streaming station anywhere.
*For stable operation of the AG03MK2, a power supply of DC 5V 900mA or more is required.
*BMS-10A and mobile battery are sold separately.
Powerful bundled software
The AG03MK2 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG03MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

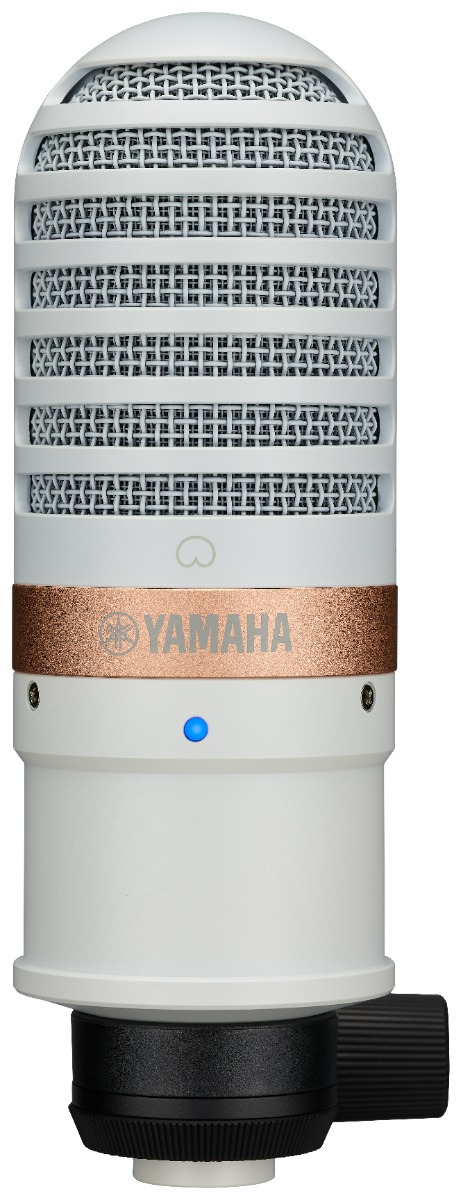

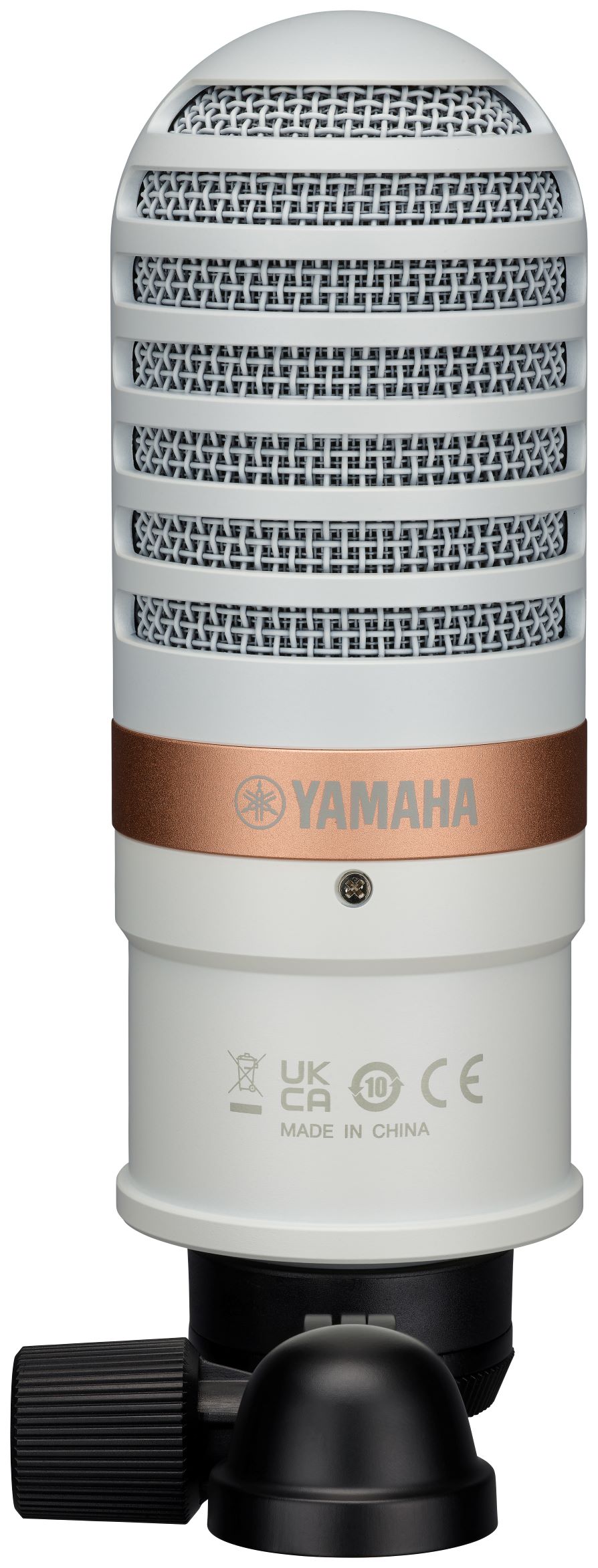

YCM01 Condenser Microphone
Raising the Bar
Condenser microphones have become a staple of most studio and broadcasting environments around the world for good reason. Their ability to capture the most subtle nuances of vocal and instrument performances has made them the preferred choice for a majority of studio and broadcast professionals.
The YCM01 is a studio-quality condenser microphone that adopts a cardioid polar pattern for more focused sensitivity, making it ideal for a broad range of applications, from live streaming or gaming voice chat, to remote meetings, and of course, music production. Offered in both black and white versions to adapt to your preferred streaming or recording environment, the stylish iconic design of the YCM01 will add a new level of professionalism to your creative content.
Hone in on your sound
The cardioid polar pattern of our condenser microphone ensures the highest sensitivity to sound directly in front of your mic while substantially reducing ambient noise from the rear and sides.
This allows the YCM01 to capture the distinct tones and timbre of your voice or instrument with stunning accuracy, giving your streaming audio an added quality and performance advantage.
*The YCM01 can also be mounted on a tabletop stand, a standard microphone stand, or a desk arm.
Specs
AG03MK2
Outline
Input Channels
- Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously
- Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- USB: 1
Output Channels
- PHONES: 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 2 - L/R Stereo: Phone, RCA
- USB: 1
- Bus: 1 Stereo
- Functions: MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
On-board processors
- DSP: COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller
- USB
- USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
- USB DC Power input: 1 - Type-C, 5 V DC, 900 mA
General specifications
- Power requirements: 5 V DC, 900 mA
- Power consumption: 4.5 W
- Dimensions: W 126 mm (5.0") H 63 mm (2.5") D 201 mm (7.9")
- Net weight:8 kg (1.8 lbs)
- Included Accessories:0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
- Others: Operating Temperature: 0 to + 40 ?
YCM01 Microphone
- Microphone Unit: Back electret condenser type
- Polar Pattern: Cardioid
- Address Type: Side
- Frequency Response: 30 Hz - 20 kHz
- Max Input SPL: 130 dB (THD ? 1.0 ? at 1 kHz)
- Sensitivity: -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz)
- Connector: XLR
- Dimensions (Microphone Only): Ø55 x 166 mm (Ø2.2" x 6.5")
- Weight (Microphone Only): 0.4 kg (0.9 lbs)
- Included Accessories: Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications
