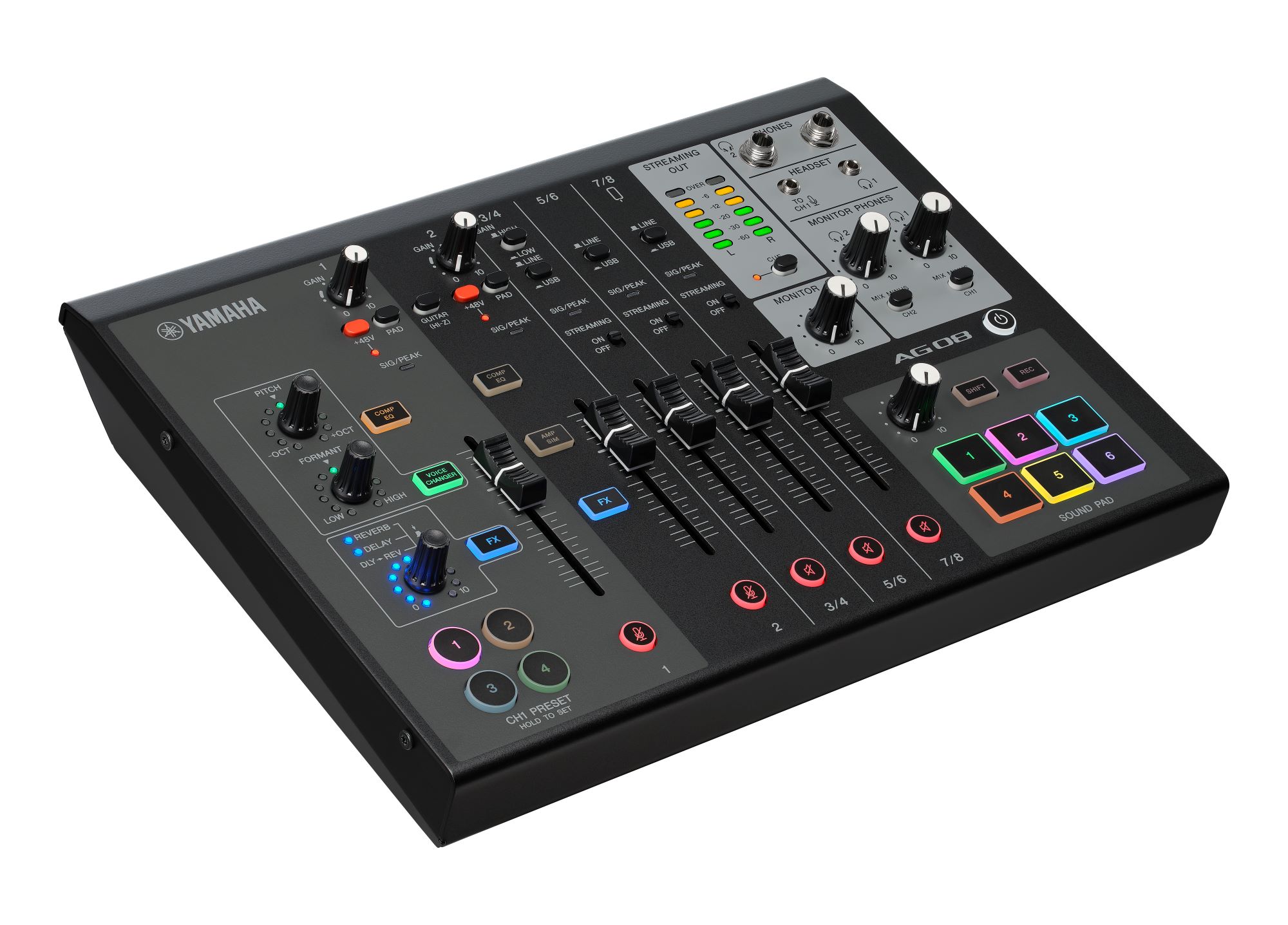

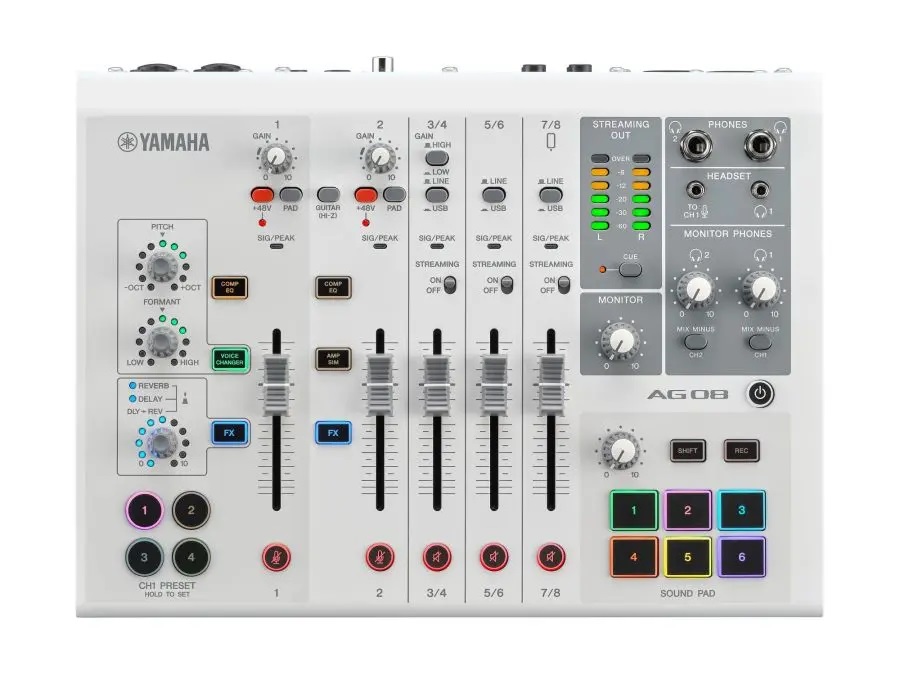

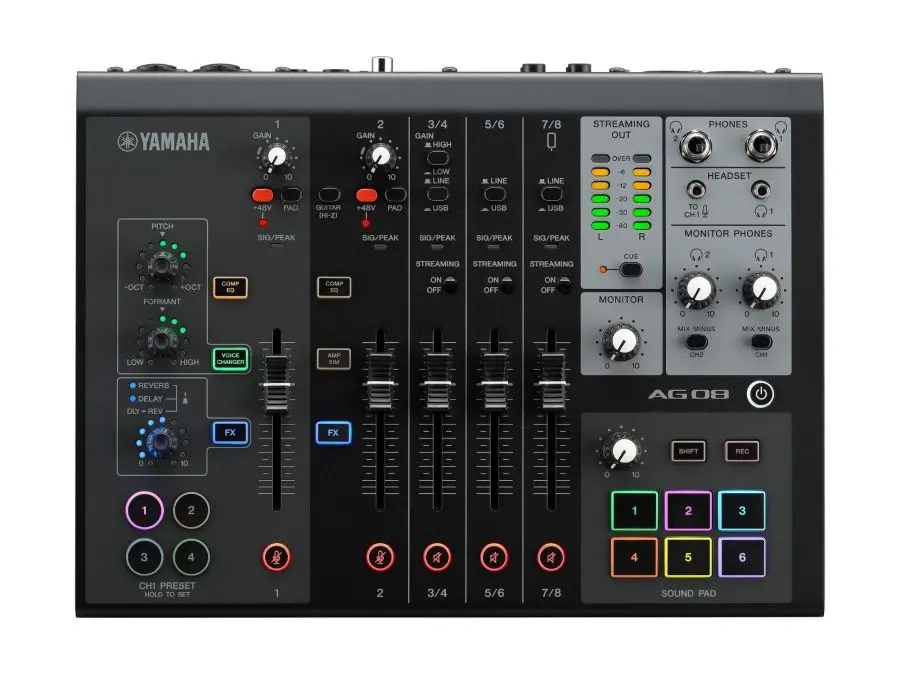

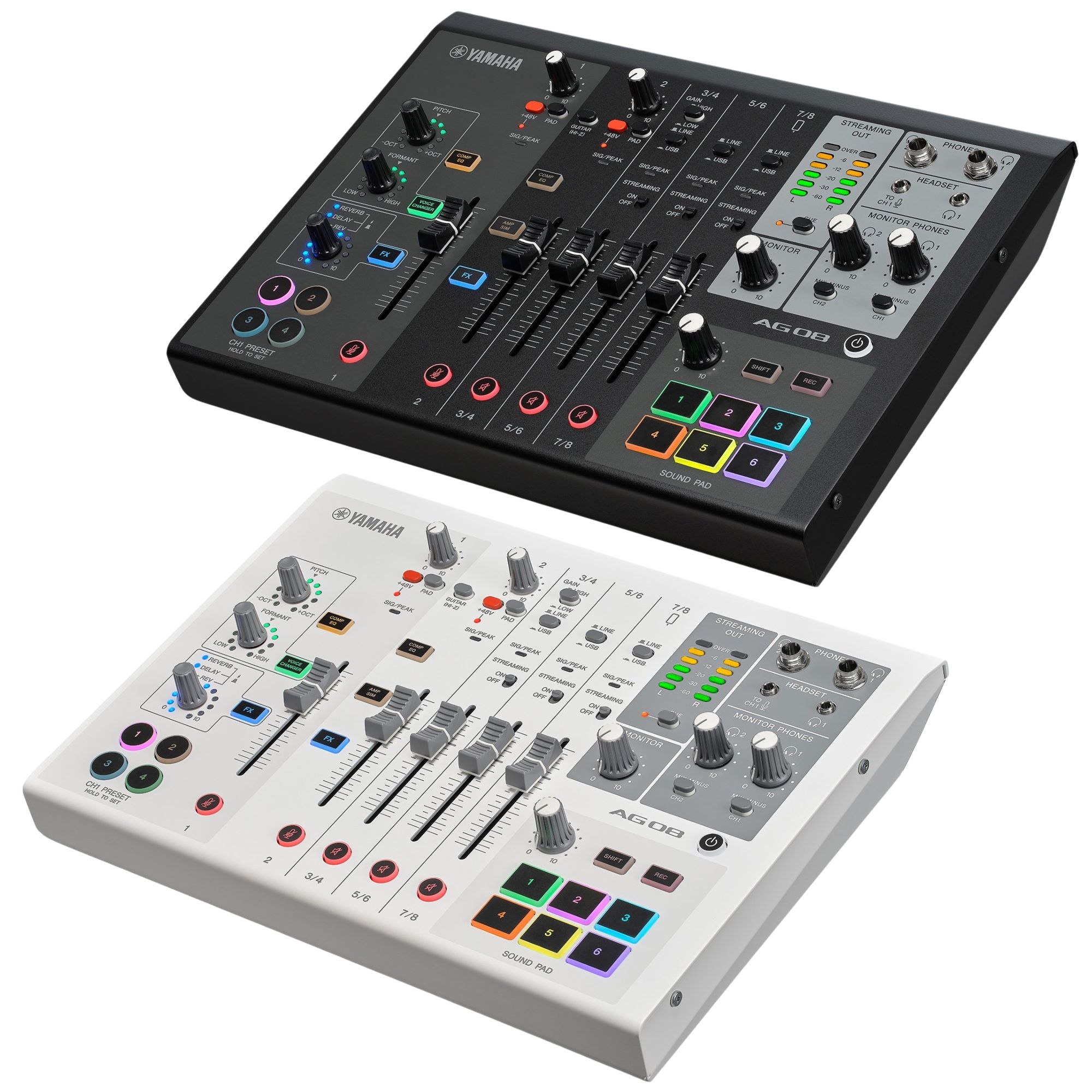

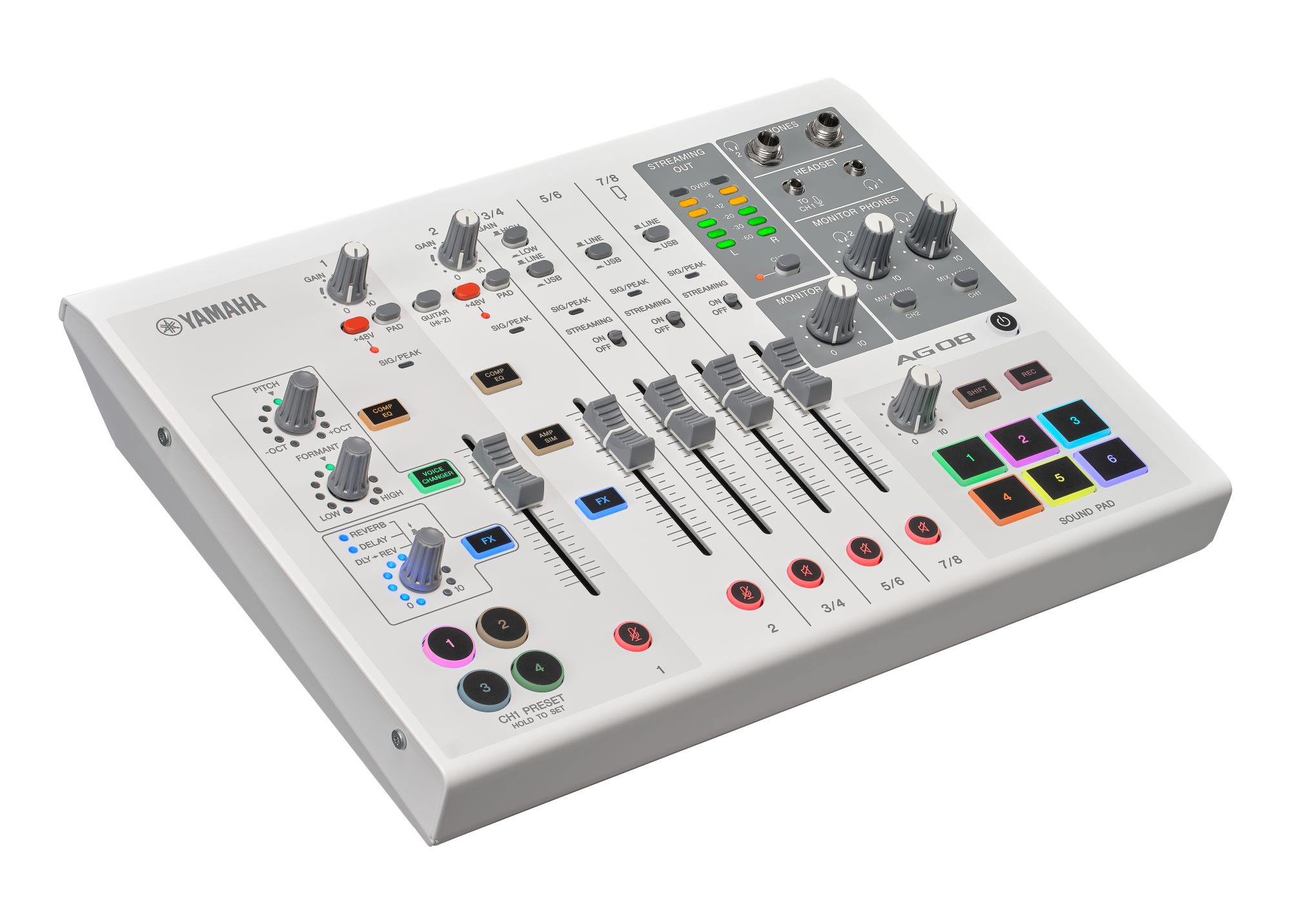

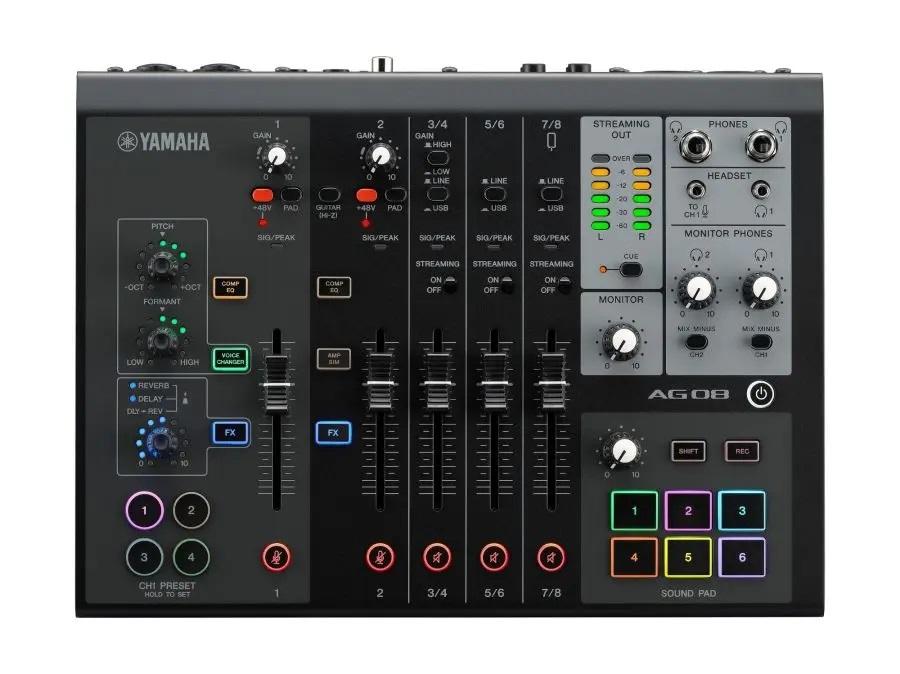

Yamaha AG08 Live Streaming Mixer

Finance

Features

Two Condenser Mic IN with Two Headphone OUT
Like the AG06MK2, both Channel 1 and 2 of the AG08 are equipped with phantom power to support condenser microphones that are favored amongst musicians and dialogue-driven content creators for their exceptional sensitivity and fidelity. You can also pan left and right with the AG08 Controller dedicated app for any kind of stereo microphones including ASMR microphones.

In addition, there are two independent headphone monitor channels for applications where two people are broadcasting a conversation or where there is someone other than the performers managing the audio.

Three Assignable Faders for Flexible USB IN/OUT
The signal from multiple apps on a USB-connected PC, or analog line inputs can be individually assigned to the faders for Channel 3/4, 5/6, or 7/8 of the AG08, allowing you to intuitively mix the LINE/USB audio signals via physical control of the faders. Conversely, three USB mixed outputs from the AG08 can be individually assigned to various apps on the PC via USB connection.

Combining these functions makes it easy to respond more flexibly in real time, for example sharing optimally mixed audio with chat partners or listeners during live chats and streaming.

What’s more, for ASIO-supported apps such as DAW software, the direct out from each input channel (Channels 1, 2, 3/4, 5/6, and 7/8) and three mixed channels can be used in parallel, enabling multi-channel recording even during live streams.

Four Effect Preset Buttons for CH1
The four effect preset buttons on the bottom left of the AG08 console allow you to seamlessly switch between customized effect presets for Channel 1 on the fly. This gives users versatile, real-time control to add just the right amount of effect—including the new Voice Changer— during voice-acting and live music performances in particular.

Five DSP Effects
The AG08 come equipped with high-quality effects to color, correct, or enhance your vocal and musical instrument signals. Grouped into the five categories detailed below, all effects are processed by the onboard DSP, so there is no latency and no impact on PC processing. *Details of each DSP effect can be set in the AG08 Controller app.

• Voice Changer (CH1) / Amp Sim (CH2)
• Comp, EQ
• Reverb, Delay
• Ducker
• Maximizer

Channel 1 features a new voice changer effect that can transform your voice into that of a different gender, a robot, and more, while Channel 2 offers an amp simulator for a more authentic guitar or bass amp sound. These, along with Comp, EQ, Reverb, and the newly added Delay, can be set independently on each channel, allowing you to dial in the optimal setting for each.

Ducker
The Ducker function can be used to automatically attenuate Channels 3/4, 5/6, and 7/8 playback sound relative to audio input from Channels 1 and 2, so you can easily set up a streaming system where Channels 1 and 2 signals are always heard clearly.

Maximizer
Finally, the Maximizer is a simple yet powerful mastering function that can add a level boost to your mix for extra polish and professionalism, as well as attenuating peaking signals to give your listeners and viewers a more comfortable and pleasant audio experience.

Six Sound Pads
The AG08 comes equipped with six customizable sound pads that allow you to easily add sound effects in real time to liven up your broadcasts. Using the “AG08 Controller” dedicated app you can simply drag and drop existing sound files and assign them to the pad of your choice, or record your own samples via the AG08 inputs and trim them to their desired length within the app.

Convenient Power Supply
The new console also comes equipped with a new PA-150B power adapter for more stable operation and to accommodate a wider range of application setups along with the onboard USB 1.5 A bus power supplier.

Powerful bundled software
The AG08 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG08 is also compatible with Cubasis LE applications for iOS devices which are available free of charge from Steinberg to support and inspire your audio content creation.

Specs

Input Channels

• Mono[MIC/LINE] :     2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
• Stereo[LINE] :  3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
• AUX : 1 - Stereo mini
• Smartphone : 1 - 4-pole mini input/output (TRRS)
• USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)

Output Channels

• PHONES : 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
• Smartphone : 1 - 4-pole mini input/output (TRRS)
• MONITOR OUT : 2 - LR Stereo: XLR, 1/4 TRS Phone
• STEREO OUT : 1 - MIX: LR stereo TRS Phone
• USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.

Bus : 4 Stereo

• Functions : MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
• On-board processors -  DSP : Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
• USB - USB Audio : 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power input : 1 - Type-C, 5 V DC, 1.5 A

General specifications

• Power requirements : DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
• Power consumption : Max. 7.5 W
• Dimensions : W 290 mm (11.5"), H 88 mm (3.5"), D 222 mm (8.8")
• Net weight : 2.2 kg (4.9 lbs)
• Included Accessories : AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
• Others : Operating Temperature: 0 to + 40 ?
