Yamaha AG08 Live Streaming Mixer

In Black

£529.00
incl. VAT
AG08 Live Streaming Mixer
AG08 Live Streaming Mixer AG08 Live Streaming Mixer AG08 Live Streaming Mixer AG08 Live Streaming Mixer AG08 Live Streaming Mixer AG08 Live Streaming Mixer

Overview

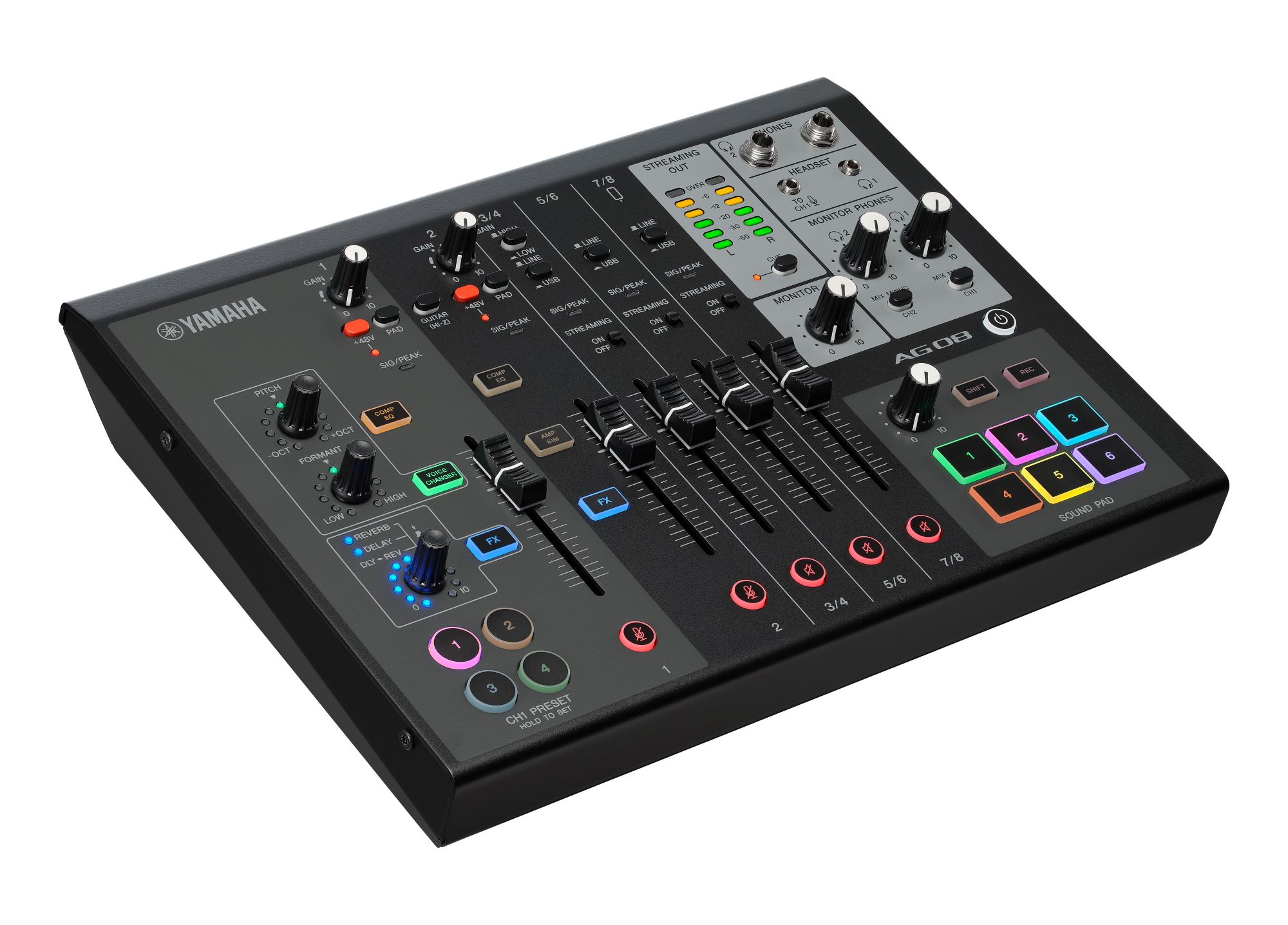

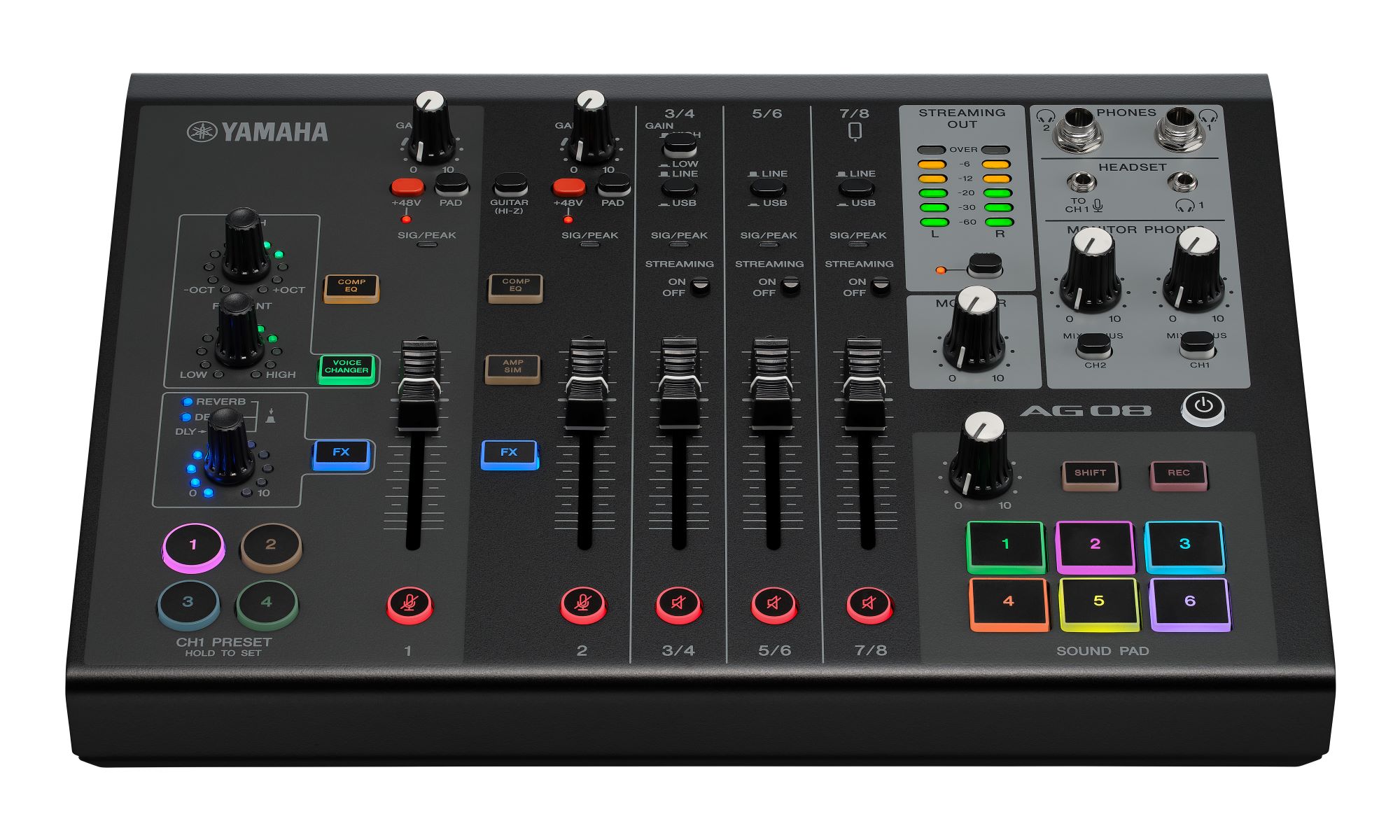

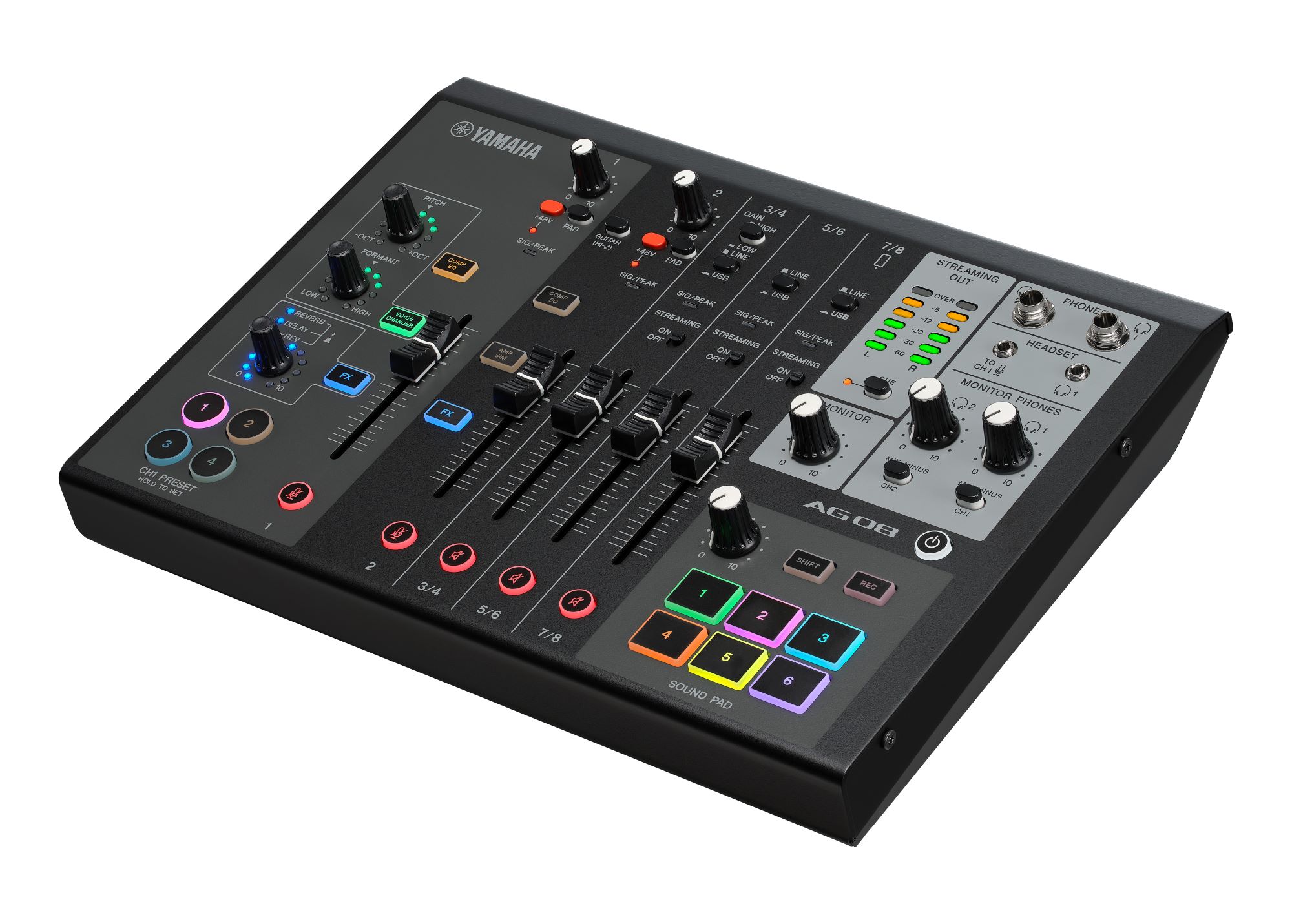

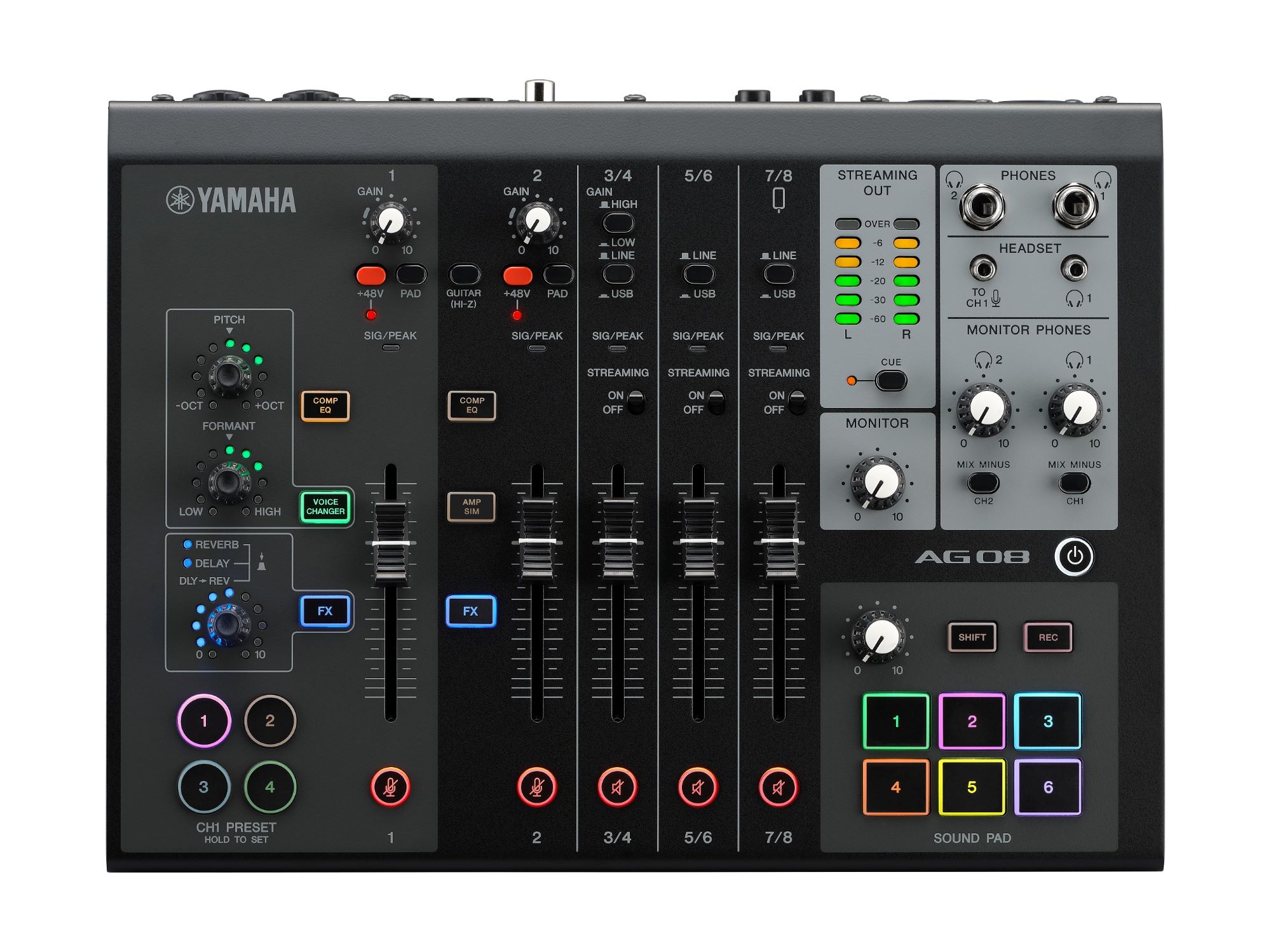

Yamaha AG08 Live Streaming Mixer

An 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler.

  • Two mic/line inputs and two headphone outputs can be used simultaneously
  • +48 V phantom power on CH1 and 2 for condenser mics or Dl boxes
  • Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
  • Three stereo inputs with assignable faders, switchable input source for LINE/USB
  • 4-pole mini input/output (TRRS) on CH7/8
  • MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
  • Six sound pads trigger audio samples in real time to add color to live streams
  • Internal circuitry delivers highest sound-quality in the AG series
  • 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
  • Flexible inputs and outputs ideal for live streaming
  • DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
  • AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
  • 60 mm faders and Mute buttons for each input
  • Foot switch functionality for more versatile system control
  • Windows / Mac support via USB-C connection
  • iOS connectivity via Apple Camera Adapter (requires external USB power supply)
  • Android supported by 4-pole mini input/output (TRRS)
  • USB-C power input (5 V DC, 1.5 A)
  • Cubase Al, WaveLab Cast, Cubasis LE are available

Finance

Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one

Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative



Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.

Specs

Input Channels

  • Mono[MIC/LINE] :     2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
  • Stereo[LINE] :  3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
  • AUX : 1 - Stereo mini
  • Smartphone : 1 - 4-pole mini input/output (TRRS)
  • USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)

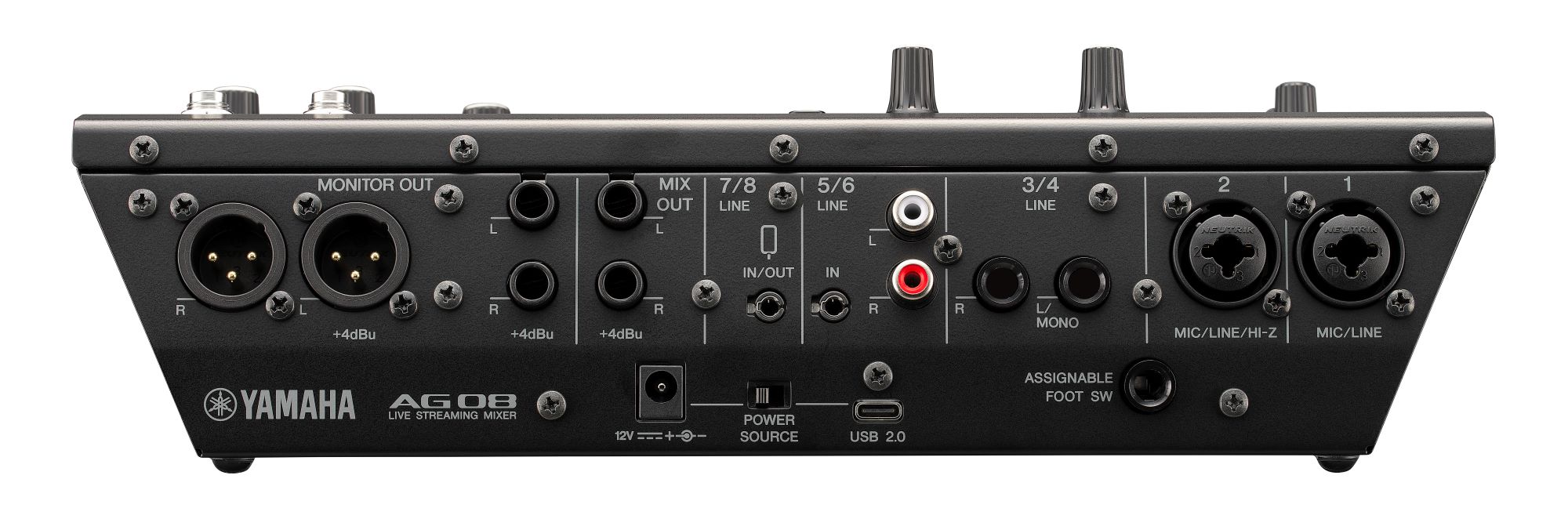

Output Channels

  • PHONES : 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
  • Smartphone : 1 - 4-pole mini input/output (TRRS)
  • MONITOR OUT : 2 - LR Stereo: XLR, 1/4 TRS Phone
  • STEREO OUT : 1 - MIX: LR stereo TRS Phone
  • USB : 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.

Bus : 4 Stereo

  • Functions : MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
  • On-board processors -  DSP : Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
  • USB - USB Audio : 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
  • USB DC Power input : 1 - Type-C, 5 V DC, 1.5 A

General specifications

  • Power requirements : DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
  • Power consumption : Max. 7.5 W
  • Dimensions : W 290 mm (11.5"), H 88 mm (3.5"), D 222 mm (8.8")
  • Net weight : 2.2 kg (4.9 lbs)
  • Included Accessories : AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
  • Others : Operating Temperature: 0 to + 40 ?
Product IDCAG08BLUK
