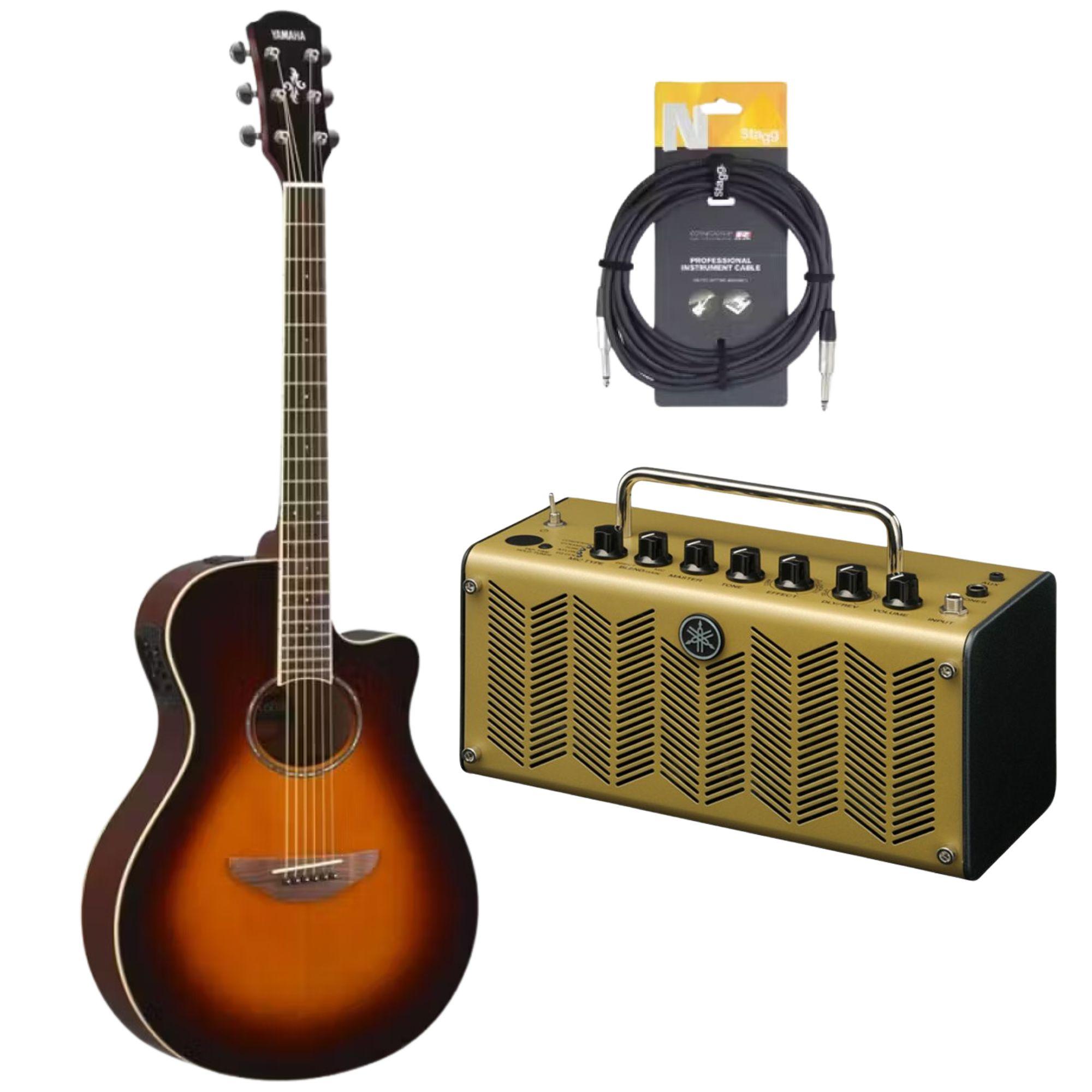

Yamaha APX600 Electro-Acoustic Guitar Exclusive Package

Features

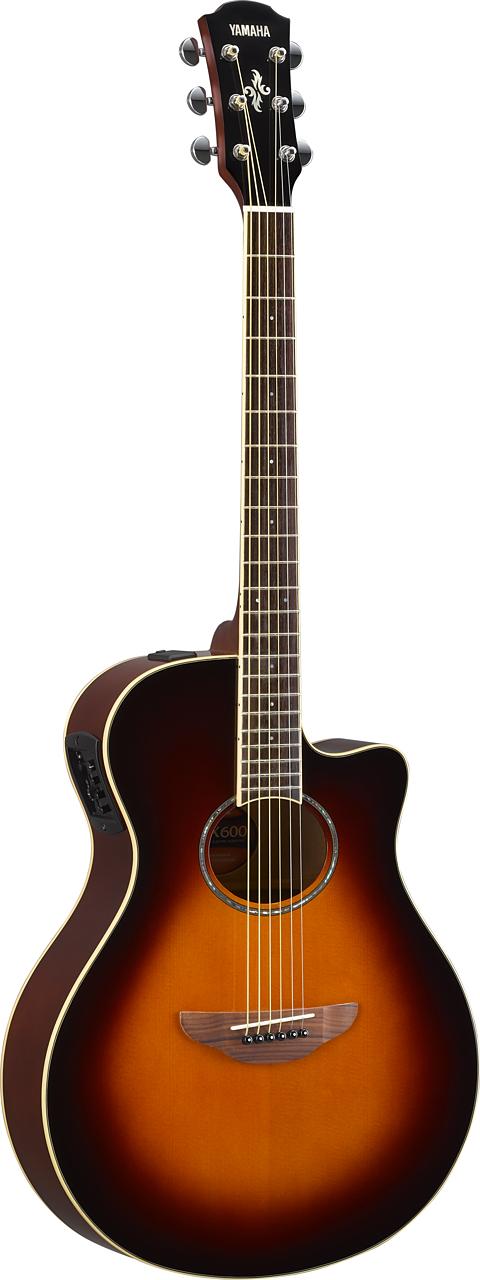

Yamaha APX600 Electro-Acoustic Guitar

Body depth and Bracing pattern
The APX’s thin-line body offers incredible comfort, top-fret access, and a sound perfect for on-stage use. Specially designed non-scalloped X-type bracing maximises body resonance for full, natural tone. Their wide dynamic range, excellent sensitivity, and outstanding clarity make them impressive performers.

APX Soundhole : Oval
The instantly recognisable APX soundhole thickens lower-mid response and gives a more strident, open low end.

Electric system : Piezo pickup system for APX600
This pickup uses individual elements for each string to give an ultra-clear, ultra-wide bandwidth signal with far better dynamic response and tonal accuracy than a regular, piezo pickup.

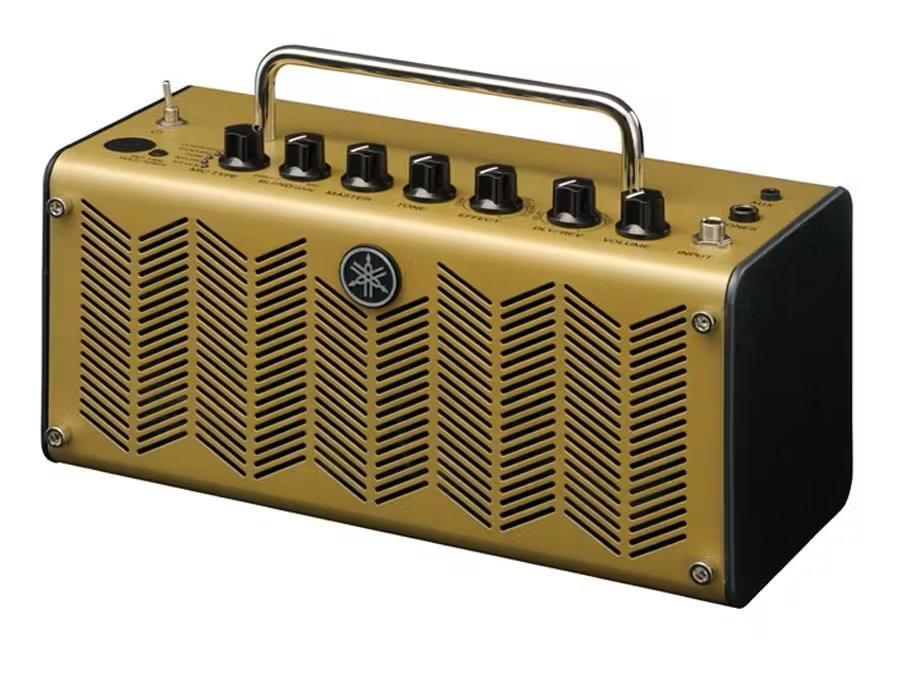

Yamaha THR5A Electro-Acoustic & Silent Guitar Amp

VCM Amp Models
Developed by a team of guitarists in search of the ultimate tone, THR delivers the sound that you want and the feeling that you need. Effects that enhance and complement your playing combine with room-filling reverbs and delays to push your playing to new levels. And thanks to THR's unique design and focus, stadium-filling volume isn't a pre-requisite - everything about this amp is designed to fit the way you play, right down to the need to keep it quiet sometimes. With tone and feel like this, you'll appreciate the ability to keep playing all night…

THR5A offers four acoustic mic simulations and one clean amp modeling for electric guitar:

• CONDENSER
• DYNAMIC
• TUBE
• NYLON
• EG CLN

VCM Effects
Most of THR's effects feature VCM effects processors. Based on the technology used in Yamaha's professional audio mixers, VCM effects give unsurpassed realism and quality.

VCM (Virtual Circuitry Modeling)
VCM effects are capable of capturing subtleties that simple digital simulations cannot even approach, going beyond simple simulation and delivering the truly musical performance that makes classic analog gear invaluable even in today's digital production environment.

YAMAHA Hi-Fi Audio Technology
THR was developed with Yamaha's award-winning AV division to offer true hi-fi stereo sound and a new experience in guitar amplifiers. The exclusive, specially designed speaker enclosure is optimised to handle both guitar and stereo playback sounds making THR uniquely capable of giving you amazing tone for both your guitar and your track from a compact, portable amp.

New Extended Stereo Technology
THR incorporates Yamaha's new Extended Stereo Technology to create an incredibly wide, spacious audio image. Stereo tracks and studio quality reverb take on a depth unimaginable from such a small enclosure.

Battery Powered or AC Powered
THR's two-way power supply lets the unit operate on AC (PSU supplied) or battery power.

Cubase AI
THR is bundled with Cubase AI, Steinberg's professional music production application that offers full-fledged recording and editing.

THR Editor
The THR Editor, available for download from http://download.yamaha.com, offers deep editing of amp and effect parameters using a computer. Additional in-depth controls include compressor and noise gate functions.

USB Connection
THR's design provides stereo playback from your smartphone or other device through its AUX jack or direct from your computer via the USB connection.

Tap Tempo & In Built Tuner
Tap tempo function to quickly set delay time.The built-in chromatic tuner features accurate, stable tuning and an easy to read display.

Virtual Tube Illumination
THR's Virtual Tube Illumination includes a simulated orange tube glow from the metal speaker grille.

Specs

• Body Shape - APX Shape
• Scale Length - 634 mm (25”)
• Body Length - 490 mm (19 5/16")
• Total Length - 1022 mm (40 1/4")
• Body Width - 384 mm (15 1/8")
• Body Depth - 80-90 mm (3 1/8" - 3 9/16")
• Nut Width - 43 mm (1 11/16”)
• String Spacing * - 10.0 mm
• Top Material - Spruce
• Back Material - Locally Sourced Tonewood **
• Side Material - Locally Sourced Tonewood **
• Neck Material - Locally Sourced Tonewood **
• Fingerboard Material - Rosewood
• Fingerboard Radius - R400 mm (15 3/4")
• Bridge Material - Rosewood
• Nut Material - Urea
• Saddle Material - Urea
• Bridge Pins - Black ABS with White Dot
• Tuners - Die-cast Chrome (TM29T)
• Body Binding - Ivory & Black
• Soundhole Inlay - ABS + Abalone
• Pickguard - None
• Body Finish - Gloss
• Neck Finish - Matt (Gloss for Black and Vintage White)
• Electronics - SYSTEM65
• Controls - Vol/3-band EQ/Tuner/Mid FQ
• Connections - LINE OUT
• Strings - .012/.016/.024/.032/.042/.053
• Accessories - Hex Wrench
• Case - N/A

Yamaha THR5A Electro-Acoustic & Silent Guitar Amp

Sounds

• Amp Type CONDENSER*, DYNAMIC*, TUBE*, NYLON*, EG CLN (*Mic simulation)
• Effects COMPRESSOR, COMPRESSOR/CHORUS, CHORUS, FLANGER*, PHASER*, TREMOLO*, DELAY, DELAY/REVERB, HALL REVERB, SPRING REVERB*, *NOISE GATE (*only available in the THR Editor)

Digital Section

• Chromatic Tuner ~ Yes

Hardware

• Controller/Switch MIC TYPE, BLEND/GAIN, MASTER, TONE, EFFECT, DLY/REV, VOLUME, TAP/TUNER Switch
• Connections INPUT (Standard Mono Phone), PHONES (Standard Stereo Phone), AUX IN (Stereo Mini), USB
• Speakers 8cm Full Range x 2
• Rated Output 10W (5W + 5W)

Power Source

• Power Source AC Adaptor EADP-38EB A or UIB345-1530 (included)
• Battery AA alkaline batteries (approx. 6 hours) or Nickel-hydride batteries (approx. 7 hours) * Depending upon usage and conditions

Size/Weight

• Width 271mm
• Height 167mm
• Depth 120mm
• Weight 2.0kg

Others

• Accessories AC Adapter, USB Cable, Stereo Mini Cable, Owner’s Manual, Cubase AI DVD-ROM
