Overview
The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker design and acoustic technologies that we've accrued over a long and storied history of making speakers of every kind.
Combining a meticulous materials selection process, thorough customisation of the audio components, and a fresh, innovative approach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highly portable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.
- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level
- Rugged, Highly Portable Enclosure Design
- Simple Connectivity
- Versatility for a Variety of Applications
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
HF Protection and Highly Responsive LF Unit for Reliable Performance at Any Output Level
Have you ever blown your speakers by cranking up the output levels beyond your speakers capabilities? CBR Series speakers employ a protection function that limits excessive input to the HF unit. This valuable protection circuit affords you worry-free operation of your speakers when you need them most. Combined with a highly responsive LF unit, CBR Series speakers reliably deliver clear, precise sound at any output level.
Rugged, Highly Portable Enclosure Design

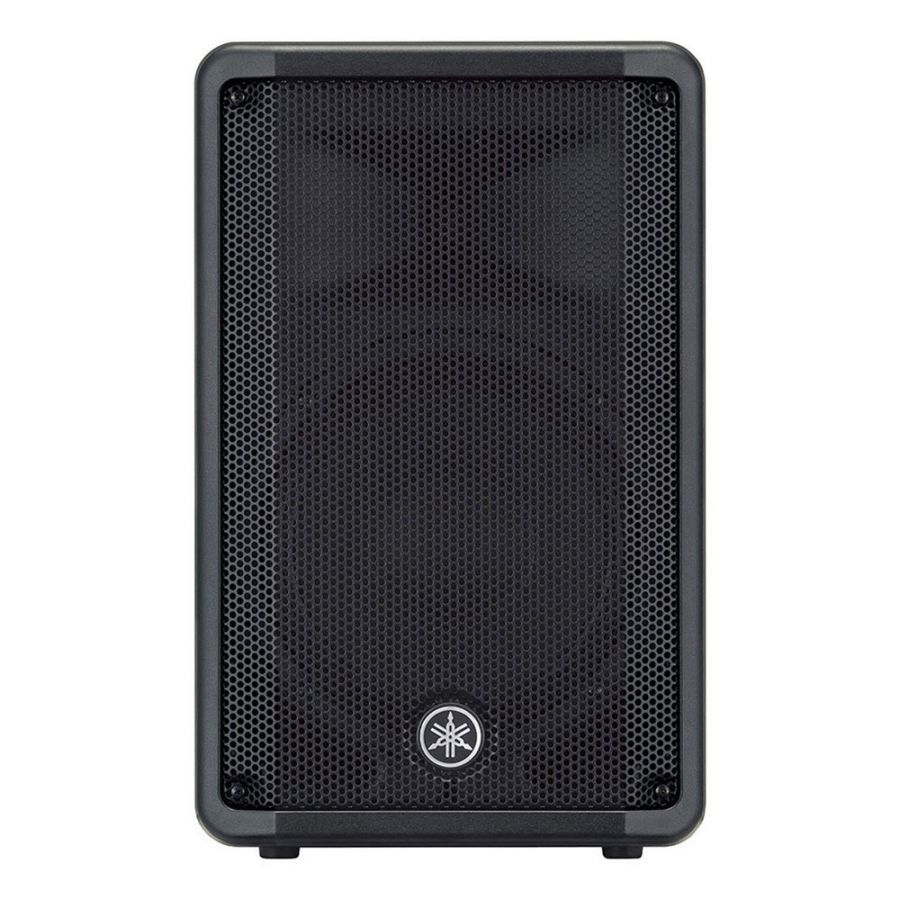

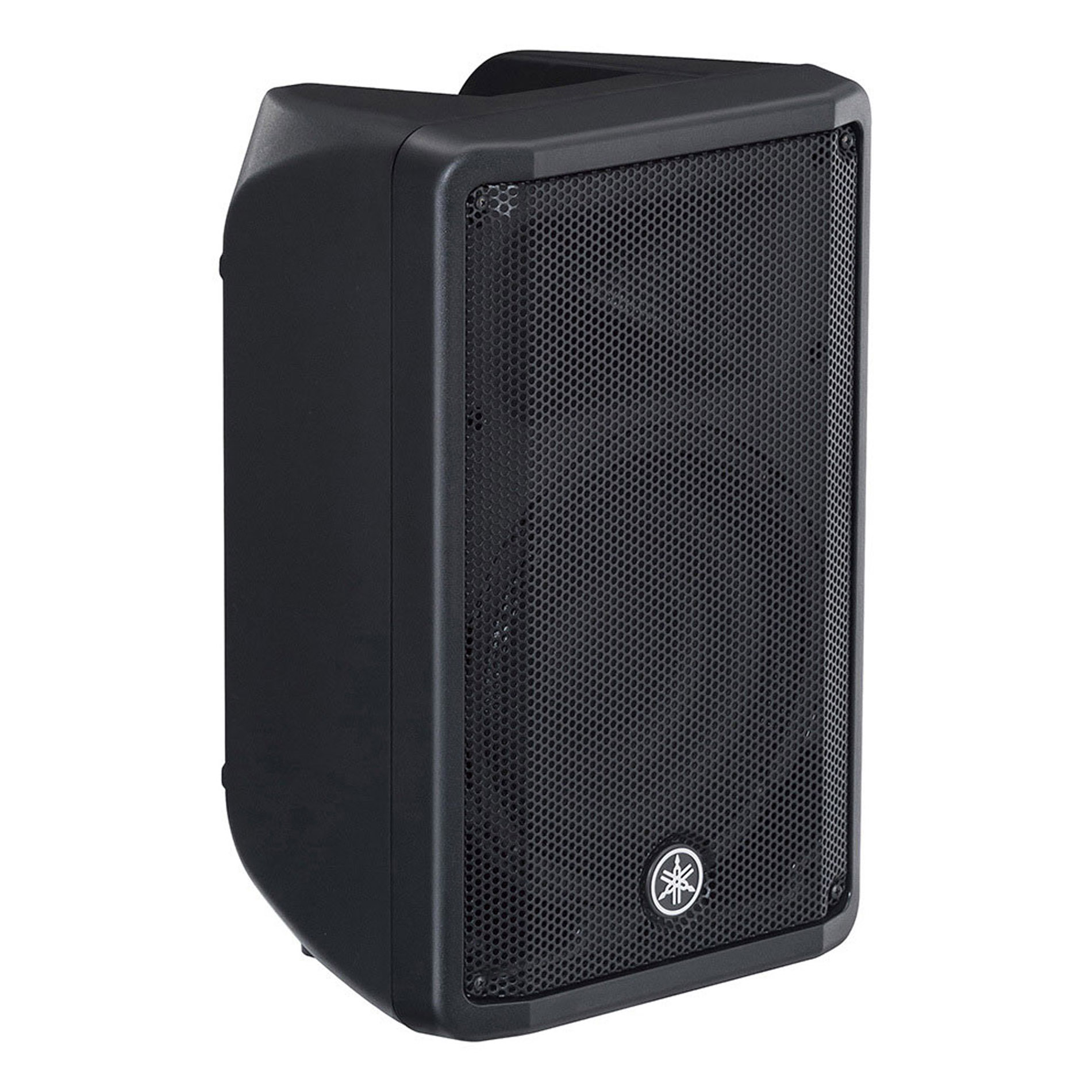

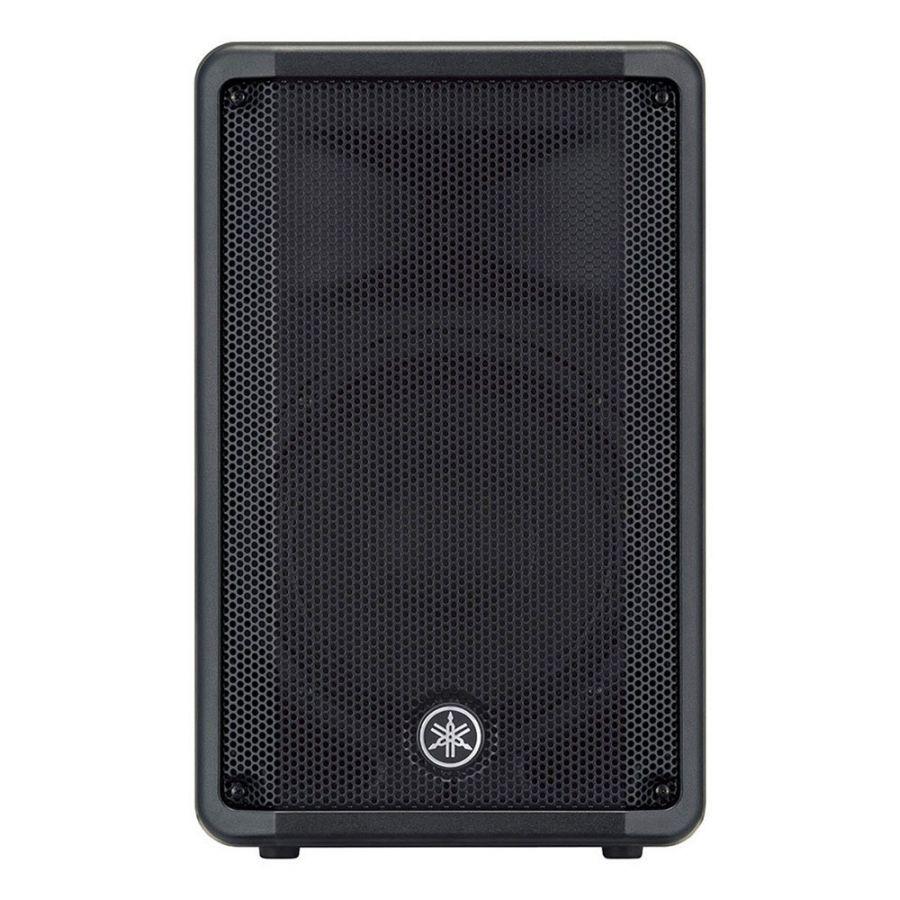

CBR Series speakers feature a very compact, durable, and lightweight plastic cabinet equipped with newly designed, ergonomic handles that greatly minimize system transport and setup. In addition, all CBR models feature a sleek, steel front grille that seamlessly blends in with installation aesthetics while protecting the vital inner speaker components from environmental hazards.
Simple Connectivity

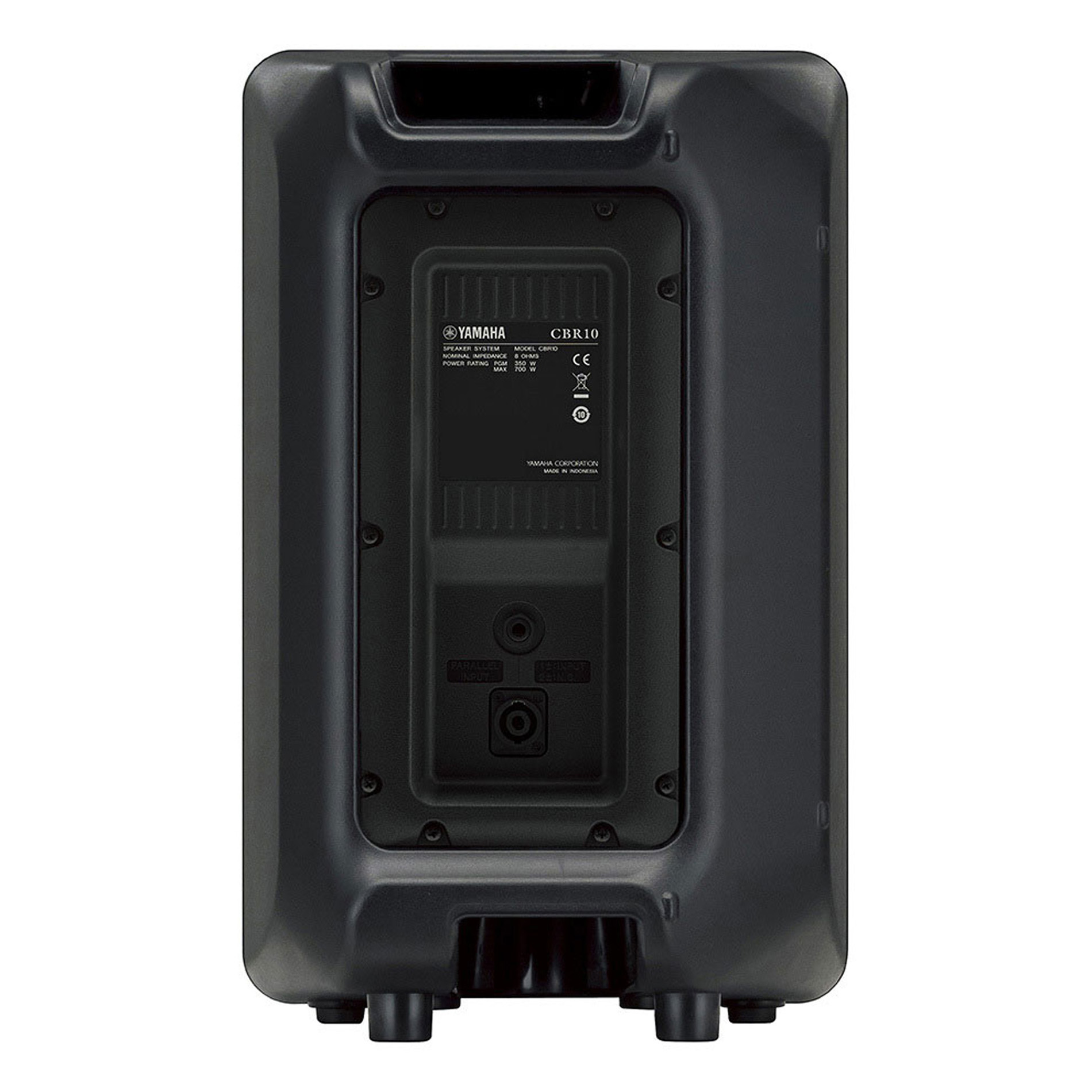

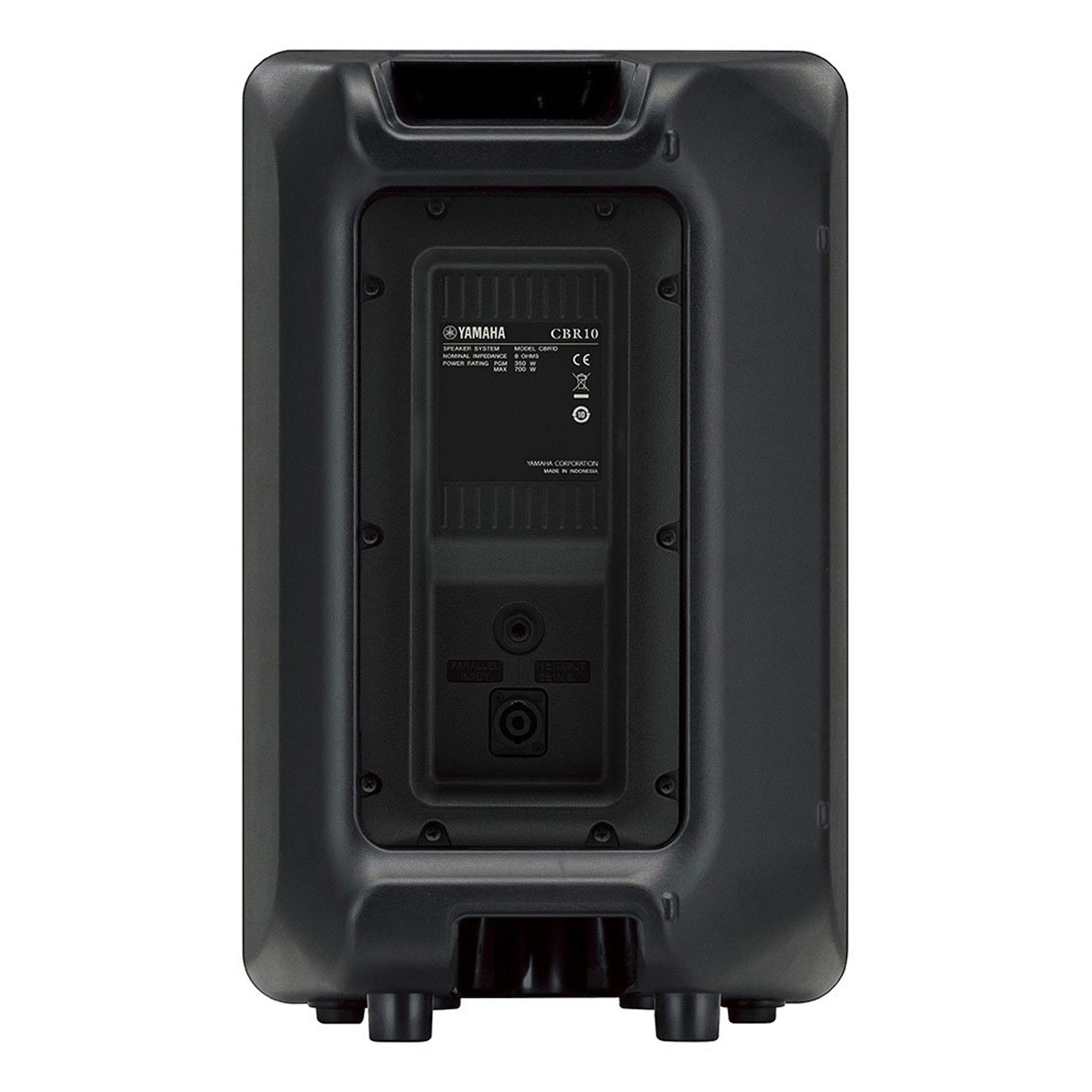

CBR Series speakers are equipped with one speakON jack and one 1/4" Phone jack that allow for fast and easy connectivity in both personal and professional environments.
Smart Enclosure Design for Floor Monitoring

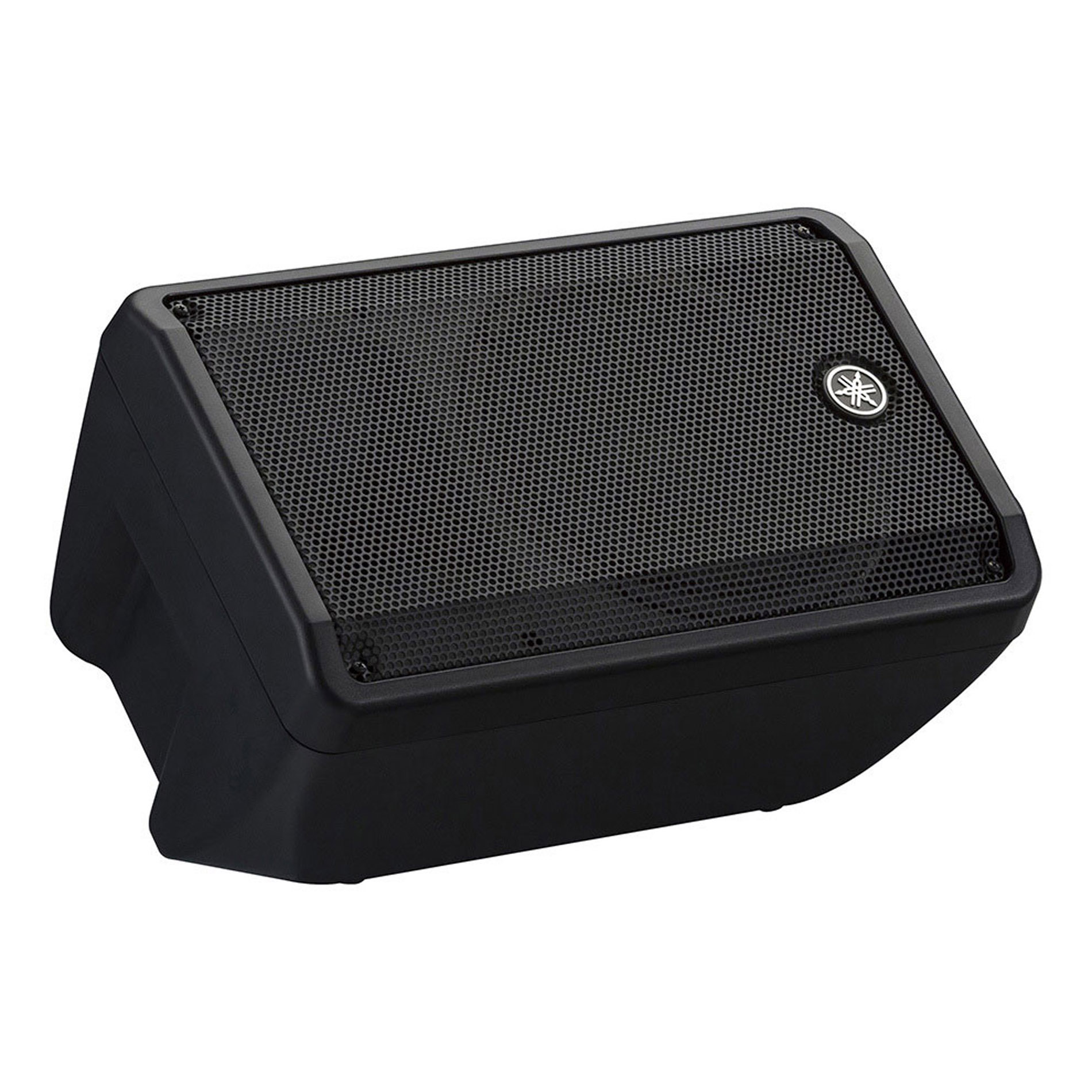

The CBR Series speakers feature an optimized 50° wedge angle for floor monitoring. In addition, the CBR12 and CBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.
Rigging Points for Installation Applications
CBR loudspeakers come equipped with M8 rigging points, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
Functional Speaker Cover
Yamaha's newly designed functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road. *Functional Speaker Cover is not included.
Specs
| Speaker type | 2-way Speaker, Bass-reflex Type |
|---|
| Frequency range (-10dB) | 50 Hz - 20 kHz |
|---|
| Nominal coverage | H | 90° |
|---|
| V | 60° |
|---|
| Components | LF | 10" Cone, 2" Voice Coil (Ferrite Magnet) |
|---|
| HF | 1" Voice Coil, Compression Driver (Ferrite Magnet) |
|---|
| Crossover | 2.8 kHz |
|---|
| Power rating | NOISE | 175W |
|---|
| PGM | 350W |
|---|
| PEAK | 700W |
|---|
| Nominal impedance | 8Ω |
|---|
| SPL | Sensitivity (1W; 1m on axis) | 94dB SPL |
|---|
| Peak (Calculated) | 123 dB SPL |
|---|
| I/O connectors | 1/4" Phone x 1, speakON NL4MP x 1 |
|---|
| Cabinet material | Plastic |
|---|
| Finish | Black |
|---|
| Handle | Top x 1 |
|---|
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) |
|---|
| Pole socket | Φ35 mm Bottom x 1 |
|---|
| Dimensions | W | 308mm (12.1") |
|---|
| H | 493mm (19.4") |
|---|
| D | 289mm (11.4") |
|---|
| Net weight | 9.4 kg (20.7 lbs) |
|---|
