Overview
Performance. Optimized.
The CHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.
Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications —all featuring carefully selected custom transducers. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition CHR quality and performance to improve your sound?

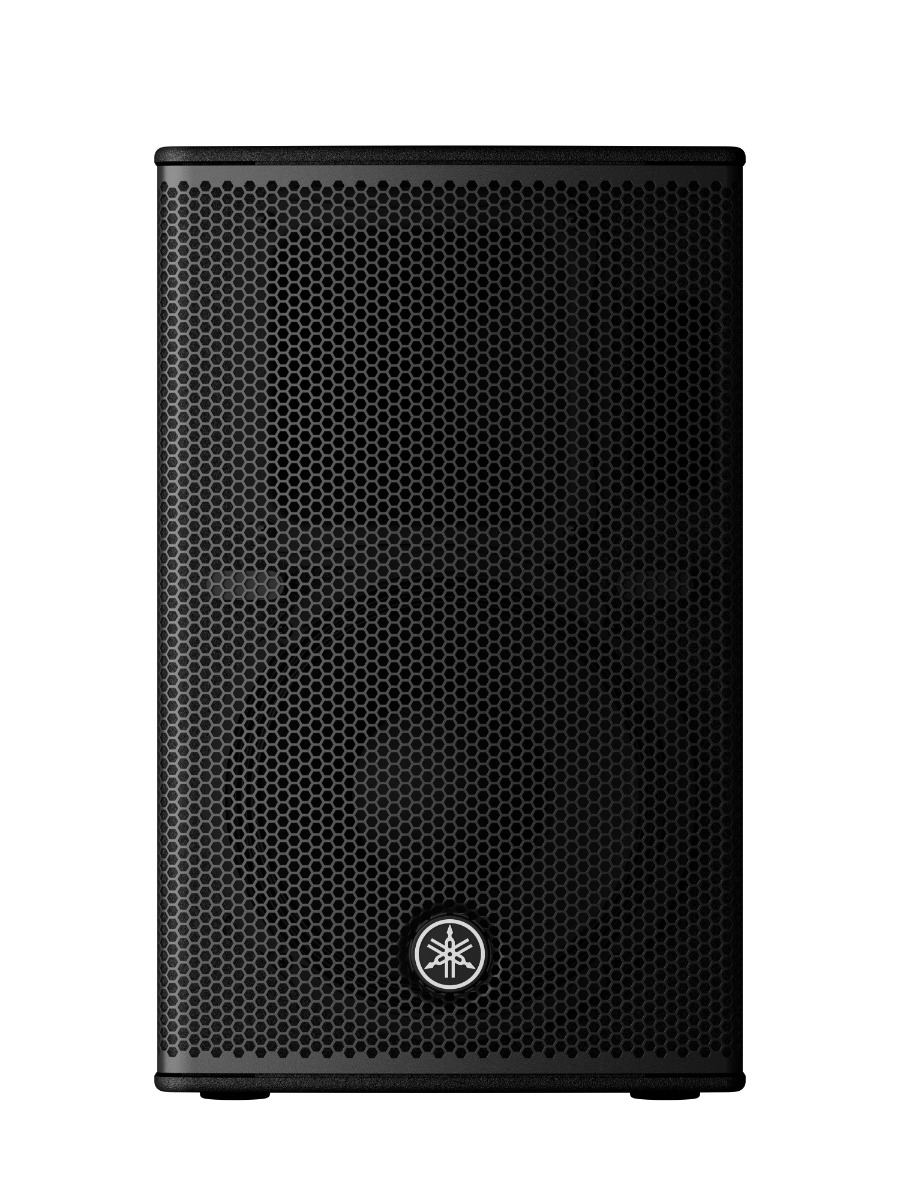

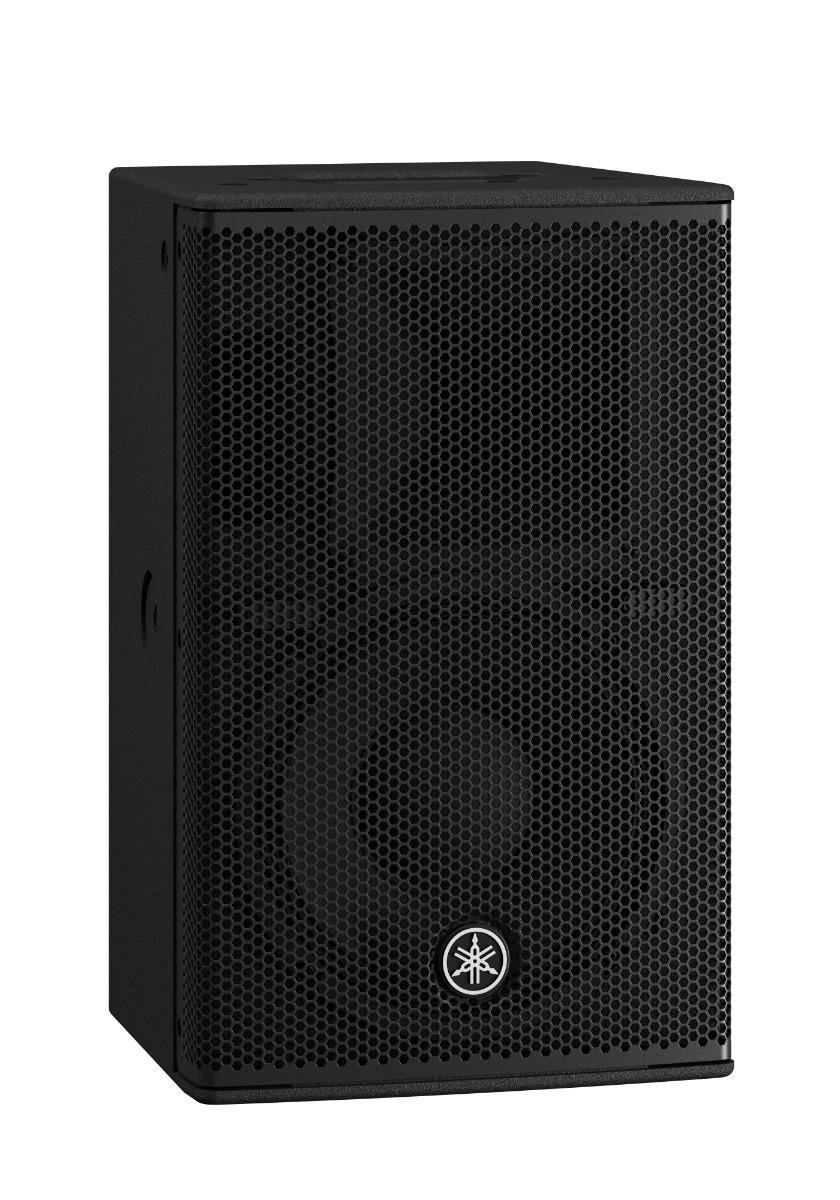

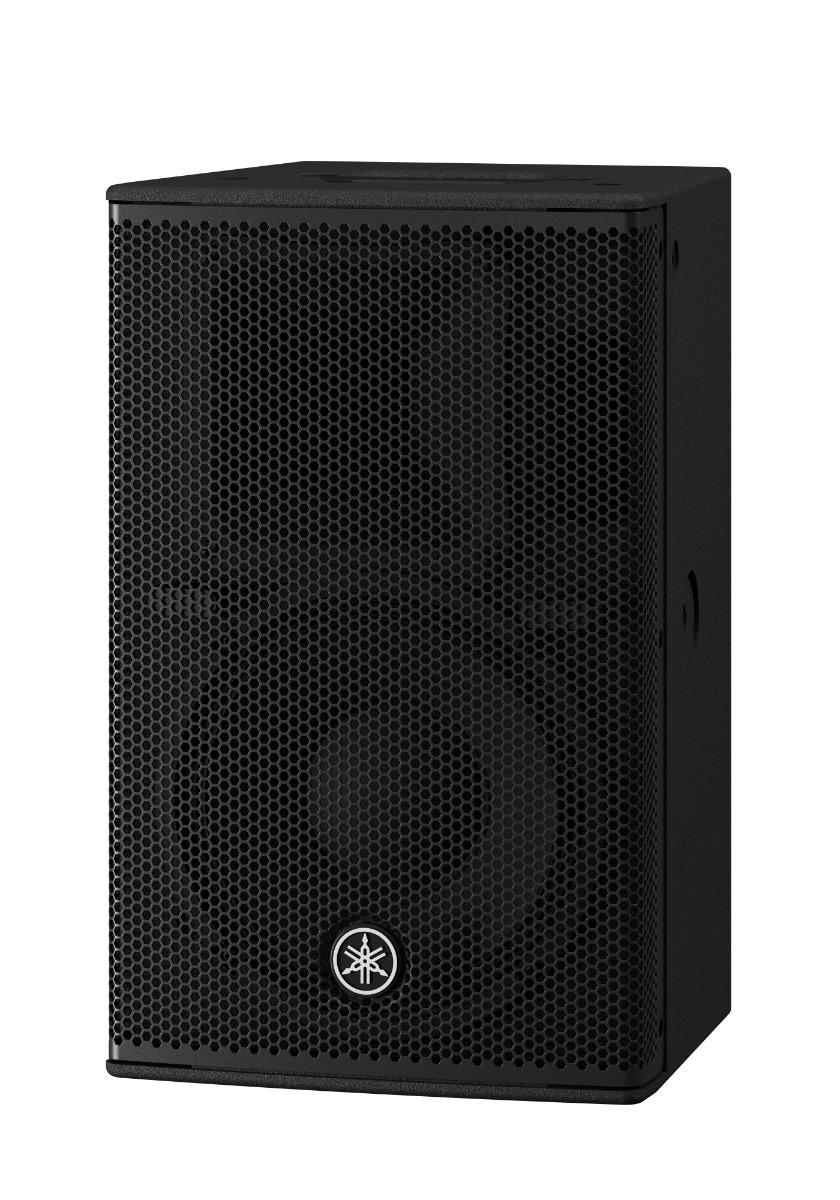

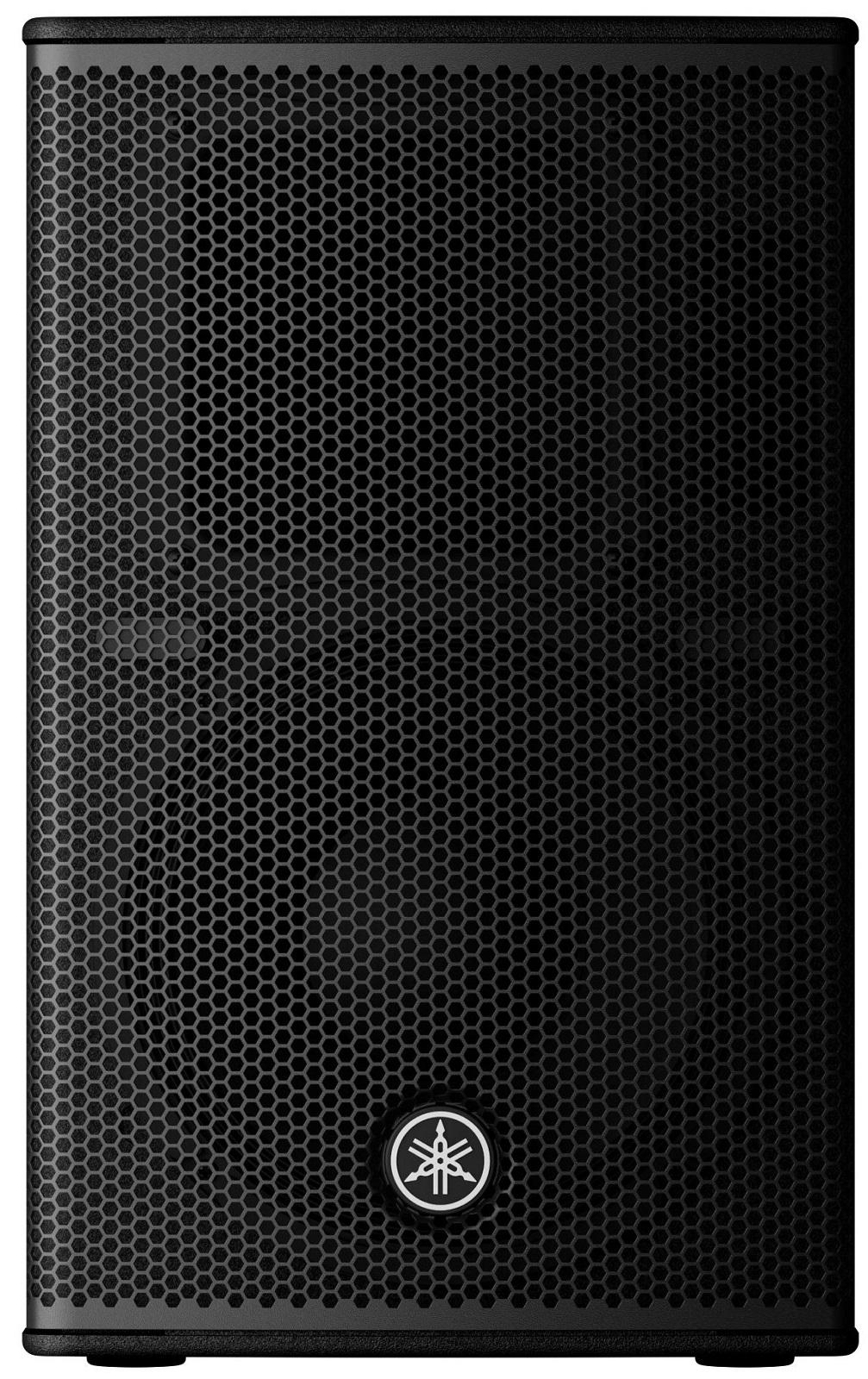

The CHR10 is a 2-way loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining carefully selected and customized transducers with the same high-grade plywood construction found on Yamaha’s high-end CZR Series, the CHR10 offers best-in-class sound quality and durability.
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact appearance thanks to the 10-inch LF driver that provides excellent low frequency response
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
- Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
- A pole socket for use on a stand
- Rigging points for use with eye bolts
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Cabinet designs optimized for a range of audio environments
The CHR Series features a comprehensive lineup optimized to meet the demands of specific applications. The 10” model is equipped with a rotatable HF horn and a dedicated UB-DXRDHR10 U-bracket for use in fixed installations and utility, while the 12” model is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring. The series is rounded out by a 15” model featuring dual-angle pole sockets and rigging points for use in fixed installations or as temporary main speakers for sound reinforcement.
Specs
Yamaha CHR10 Loudspeakers
- Speaker type: 2-way Speaker, Bass-reflex
- Frequency range (-10dB): 55 Hz - 20 kHz
- Coverage area: H90? x V60? (Rotatable)
- Crossover: 2.5 kHz
- Nominal impedance: 8 ?
- SPL Sensitivity (1W; 1m on axis): 93 dB SPL
- SPL Peak (Calculated): 122 dB SPL
- LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
- HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
- NOISE: 175 W
- PGM: 350 W
- PEAK: 700 W

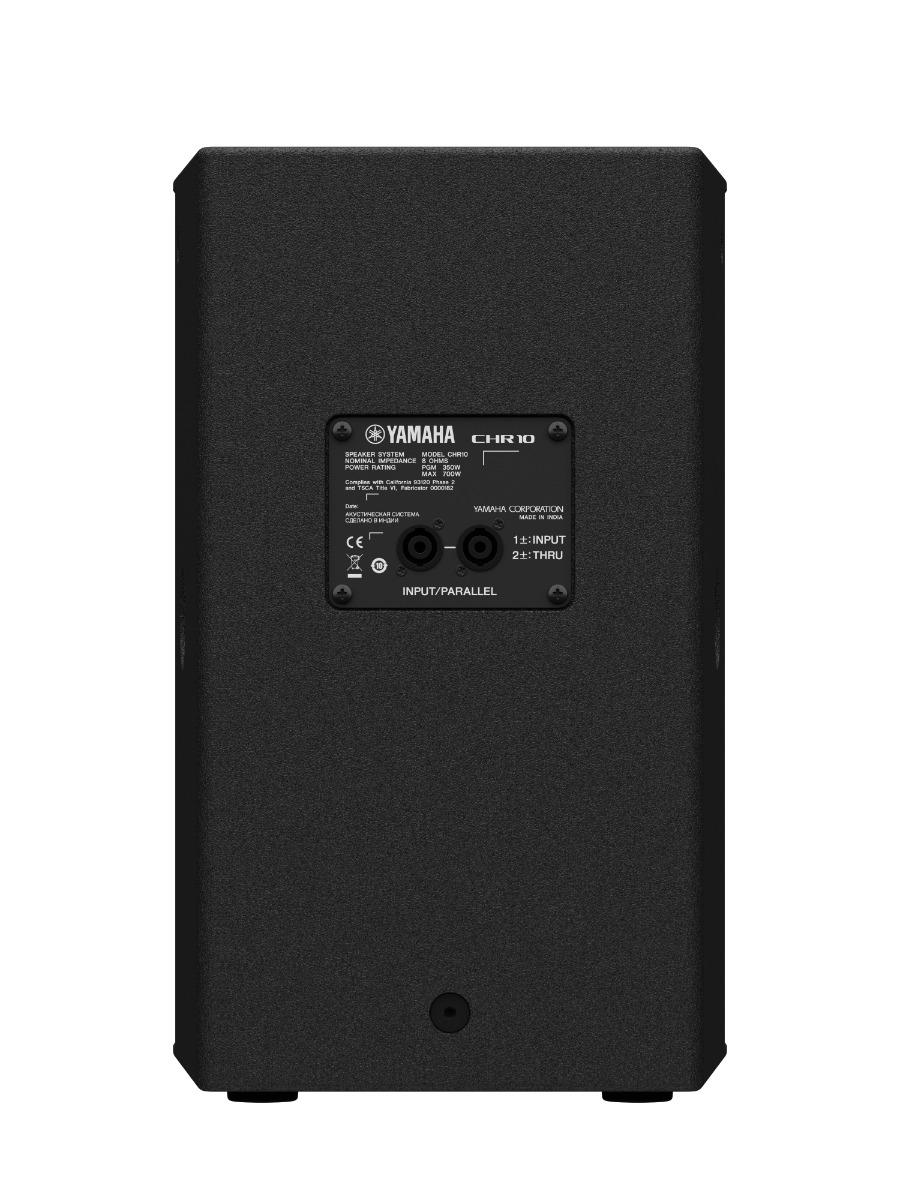

- I/O connectors: SpeakON NL4MP x 2 (Parallel)
- Cabinet material: Plywood
- Finish: Durable Polyurea Painting, Black
- Handle: Top x1
- Pole socket: ?35 mm x1 (Bottom)
- Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Floor Monitor Angle: -
- Dimensions (W x H x D) 305 mm (12.0") x 494 mm (19.5") (with rubber feet) x 300 mm (11.8")
- Net weight: 13.7 kg (30.2 lbs)
- Options: U-bracket: UB-DXRDHR10
