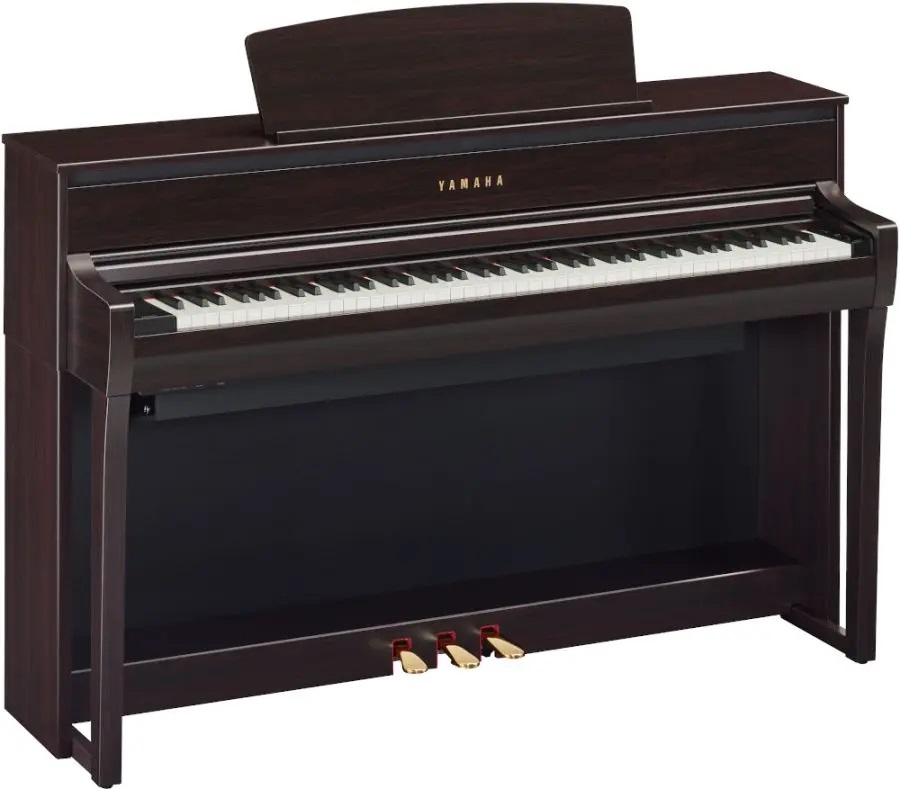

| CLP-775 |
| Size/Weight |
| Dimensions | Width | 1,461 mm (57-1/2") [Polished finish: 1,466 mm (57-11/16")] |
| Height | 967 mm (38-1/16") [Polished finish: 970 mm (38-3/16")] |
| Depth | 465 mm (18-5/16") [Polished finish: 465 mm (18-5/16")] |
| Weight | Weight | 71 kg (156 lb, 8 oz) [Polished finish: 74 kg (163 lb, 2 oz)] |
| Control Interface |
| Keyboard | Number of Keys | 88 |
| Type | GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement |
| Touch Sensitivity | Hard2/Hard1/Medium/Soft1/Soft2/Fixed |
| 88-key Linear Graded Hammers | Yes |
| Counterweight | - |
| Pedal | Number of Pedals | 3: Damper (with half-pedal function), Sostenuto, Soft |
| Functions | Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause |
| GP Response Damper Pedal | Yes |
| Display | Type | Full Dots LCD |
| Size | 128 x 64 dots |
| Language | English, Japanese |
| Panel | Type | Touch sensors |
| Language | English |
| Cabinet |
| Key Cover | Key Cover Style | Sliding |
| Music Rest | Yes |
| Music Braces | Yes |
| Voices |
| Tone Generation | Piano Sound | Yamaha CFX, Bösendorfer Imperial |
| Binaural Sampling | Yes (CFX Grand and Bösendorfer voices only) |
| Key-off Samples | Yes |
| Smooth Release | Yes |
| VRM | Yes |
| Grand Expression Modeling | Yes |
| Polyphony | Number of Polyphony (Max.) | 256 |
| Preset | Number of Voices | 38 |
| Compatibility | - |
| Effects |
| Types | Reverb | 6 |
| Chorus | 3 |
| Brilliance | 7+ User |
| Master Effect | 12 |
| Intelligent Acoustic Control (IAC) | Yes |
| Stereophonic Optimizer | Yes |
| Functions | Dual/Layers | Yes |
| Split | Yes |
| Duo | Yes |
| Songs |
| Preset | Number of Preset Songs | 21 voice demo songs + 50 classics + 303 lesson songs |
| Recording | Number of Songs | 250 |
| Number of Tracks | 16 |
| Data Capacity | approx. 500 KB/Song |
| Compatible Data Format | Playback | SMF (Format 0, Format 1) |
| Recording | SMF (Format 0) |
| Functions |
| Piano Room | Yes |
| USB Audio Recorder | Playback | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) |
| Recording | .wav (44.1 kHz sample rate, 16-bit resolution, stereo) |
| Overall Controls | Metronome | Yes |
| Tempo Range | 01/05/00 |
| Transpose | -12 - 0 - +12 |
| Tuning | 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments) |
| Scale Type | 7 types |
| Rhythm | 20 |
| Bluetooth | Audio/MIDI (varies by country) |
| Storage and Connectivity |
| Storage | Internal Memory | Total maximum size approx. 1.4 MB |
| External Drives | USB flash drive |
| Extensive Connection | Headphones | Standard stereo phone jack (x 2) |
| MIDI | [IN] [OUT] [THRU] |
| AUX IN | Stereo Mini |
| AUX OUT | [L/L+R] [R] |
| AUX Pedal | - |
| USB TO DEVICE | Yes |
| USB TO HOST | Yes |
| DC IN | 24 V |
| Amplifiers and Speakers |
| Amplifiers | (42 W + 50 W + 50 W) x 2 |
| Speakers | (16 cm + 8 cm + 5 cm + transducer) x 2 |
| Power Supply |
| Power Consumption | 50 W (When using PA-500 AC adaptor) |
| Auto Power Off | Yes |
| Power Supply | Adaptors | PA-500 |
| Accessories | |
| Accessories | Owner’s Manual, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500 *varies by area |
