Overview

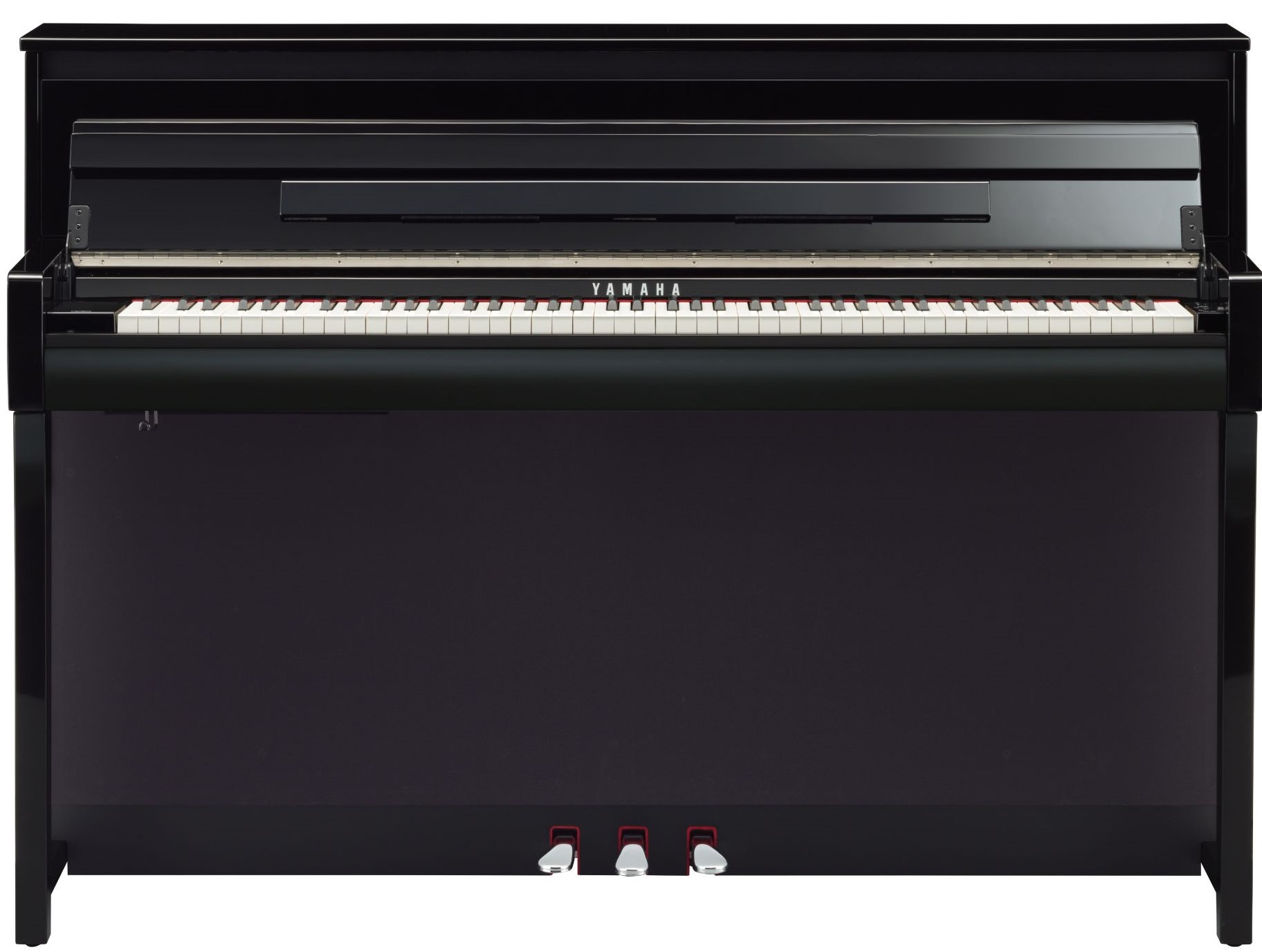

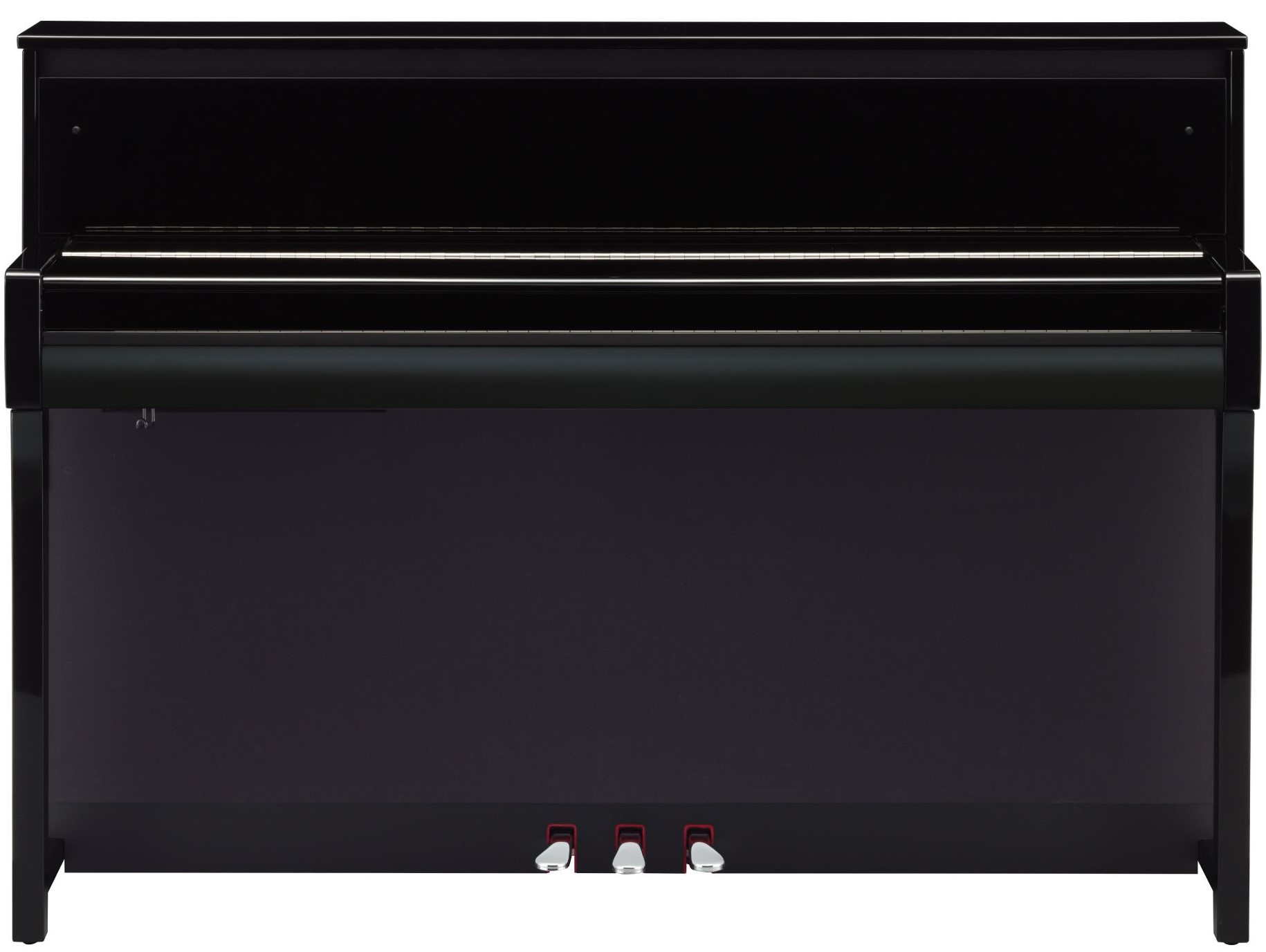

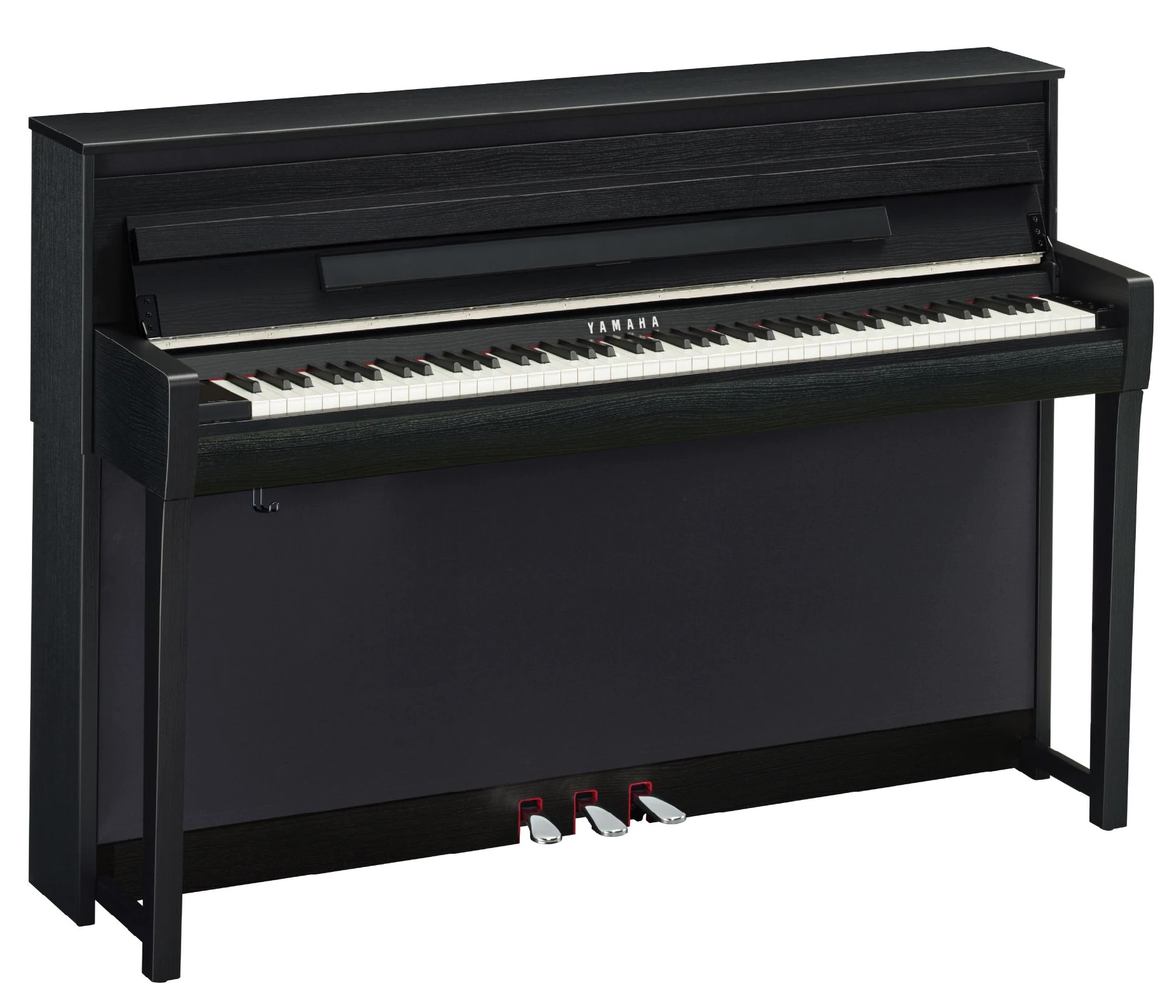

The flagship upright piano style model of the Clavinova CLP Series, featuring a counterweighted GrandTouch keyboard and the finest sound system in the series.
- New Yamaha CFX and Bösendorfer Imperial piano samples, new Yamaha CFX and Bösendorfer binaural sampling
- 53 voices + 14 Drum/SFX Kits + 480 XG voices, including 4 fortepiano voices (Scarlatti Piano/Mozart Piano/Beethoven Piano/Chopin Piano)
- Improved VRM (Virtual Resonance Modeling)
- Grand Expression Modeling
- GrandTouch™ keyboard with counterweights, 88-key Linear Graded Hammers
- GP Response Damper Pedal
- (50 W + 50 W + 50 W) x 2 amplifiers
- Grand Acoustic Imaging
- (16 cm + 8 cm + 2.5 cm (dome) + transducer) x 2 speaker system, Spruce Cone speaker
- USB Audio Recorder (Playback/Recording: WAV)
- 20 rhythms
- Built-in Bluetooth® audio
- Wireless connection to the Smart Pianist app via Bluetooth® MIDI
- Touch sensor control panel
Features
Playability
Featuring the latest GrandTouch/GrandTouch-S keyboards with a broad dynamic range of touch and response on the level of a grand piano. Excellent consistency and nuanced expression give the pianist the utmost control over touch.
Sensitivity
Grand Expression Modeling is a groundbreaking new technology that enables the pianist to use their techniques to produce the limitless tonal variation unique to grand pianos. The ability to vary the intensity and speed of touch to produce different tones adds another dimension to the joy of musical expression.
Sound Quality
Virtual Resonance Modeling performs real-time modeling of the sympathetic resonance created by the behavior of the strings and body of the instrument—the foundation of the beautiful sound of a genuine grand piano. Also, the latest acoustic design technology delivers lifelike concert grand piano tone and resonance to your home for you to enjoy.
Specs
Size/Weight
- Width: 1,461 mm (57-1/2")
- Height 1,027 mm (40-7/16")
- Depth: 476 mm (18-3/4")
- Weight: 84 kg (185 lb, 3 oz)
Control Interface
- Keyboard
- Number of Keys: 88
- Type: GrandTouch™ keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement
- Touch Sensitivity: Hard2/Hard1/Medium/Soft1/Soft2/Fixed
- 88-key Linear Graded Hammers: Yes
- Counterweight: Yes
- Pedal:
- Number of Pedals: 3: Damper (with half-pedal function), Sostenuto, Soft
- Functions: Sustain (Switch), Sustain Continuously, Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause
- GP Response Damper Pedal: Yes
- Type: Full Dots LCD
- Size: 128 x 64 dots
- Language English, Japanese
- Panel
- Type: Touch Sensors
- Language: English
Cabinet
- Key Cover Style: Folding
- Music Rest: Yes
- Music Braces: Yes
Voices
- Tone Generation
- Piano Sound: Yamaha CFX, Bosendorfer Imperial
- Binaural Sampling: Yes (CFX Grand and Bosendorfer voice only)
- Key-off Samples: Yes
- Smooth Release: Yes
- VRM: Yes
- Grand Expression Modelling: Yes
- Polphony
- Number of Polyphony (Max.): 256
- Preset
- Number of Voices: 53 voices + 14 Drum/SFX Kits + 480 XG voices
- Compatibility
- XG (GM), GS (for Song playback), GM2 (for Song playback)
Effects
- Types:
- Reverb: 6
- Chorus: 3
- Brilliance: 7+ User
- Master Effect: 12
- Intelligent Acoustic Control (IAC): Yes
- Stereophonic Optimizer: Yes
- Functions
- Dual/Layers: Yes
- Split: Yes
- Duo: Yes
Songs
- Number of Preset Songs: 25 voice demo songs + 50 classics + 303 lesson songs
- Recording
- Number of Songs: 250
- Number of Tracks: 16
- Data Capacity: approx. 500 KB/Song
- Compatible Data Format
- Playback: SMF (Format 0, Format 1)
- Recording: SMF (Format 0)
Functions
- Piano Room: Yes
- USB Audio Recorder
- Playback: .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
- Recording: .wav (44.1 kHz sample rate, 16-bit resolution, stereo)
- Overall Controls
- Metronome: Yes
- Tempo Range: 5 - 500
- Transpose: -12 - 0 - +12
- Tuning: 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
- Scale Type: 7 types
- Rhythm: 20
- Bluetooth: Audio/MIDI (varies by country)
Storage and Connectivity
- Storage
- Total maximum size approx. 1.4 MB
- External Drives: USB flash drive
- Connectivity
- Headphones: Standard stereo phone jack (x 2)
- MIDI: [IN] [OUT] [THRU]
- AUX IN: Stereo Mini
- AUX OUT: [L/L+R] [R]
- AUX Pedal: N/A
- USB TO DEVICE: Yes
- USB TO HOST: Yes
- DC IN: 24V
Amplifiers and Speakers
- Amplifiers: 50W+50W+50W x 2
- Speakers: 16cm + 8cm + 2.5cm(dome) + transducer x 2, Spruce Cone Speaker
- Power Supply
- Power Consumption: 60 W (When using PA-500C AC adaptor)
- Auto Power Off: Yes
- Power Supply: PA-500V
Accessories:
Owner’s Manual, “50 Classical Music Masterpieces” Music Book, Online Member Product Registration, Warranty*, Bench*, Power cord*/AC adaptor* PA-500C *varies by area
