Overview

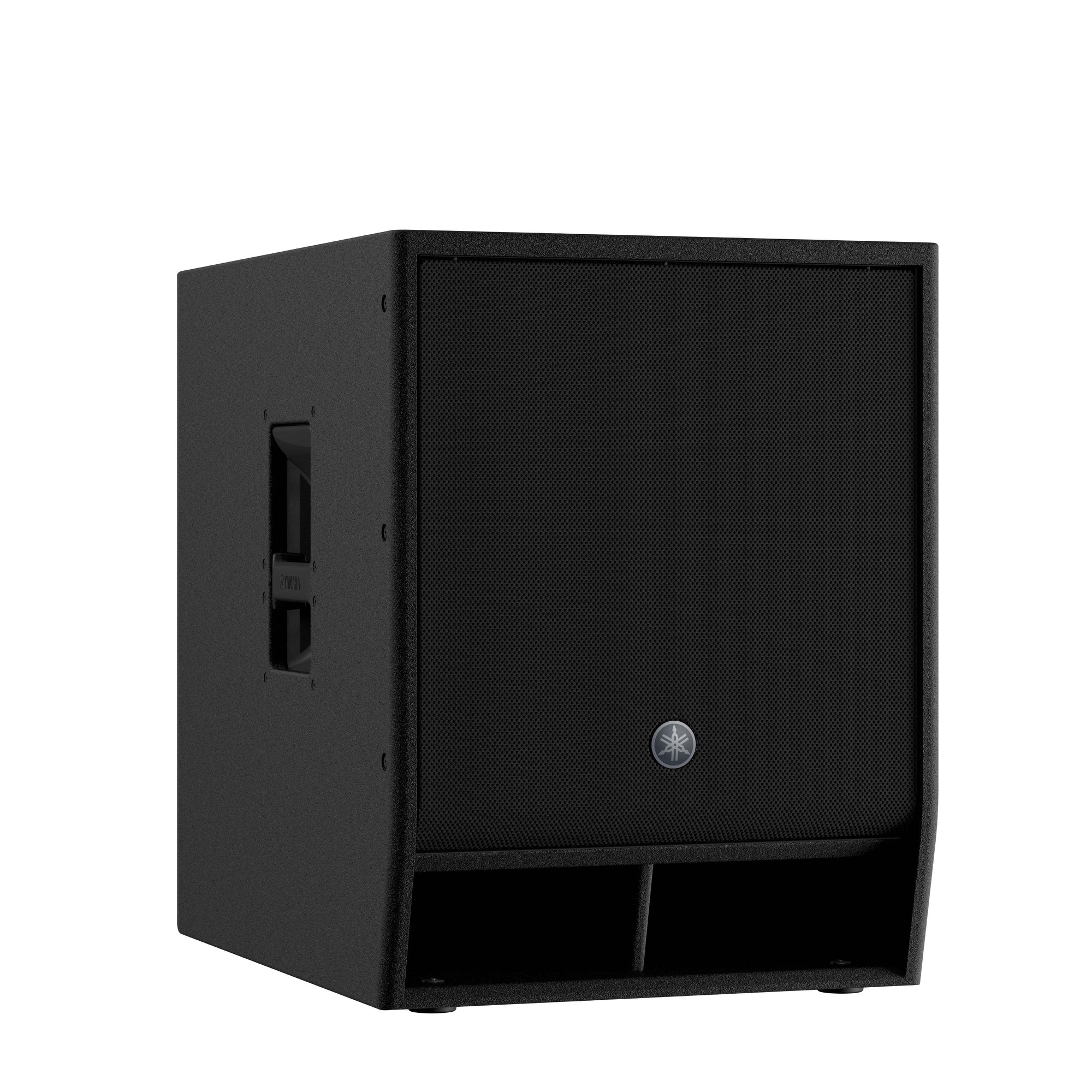

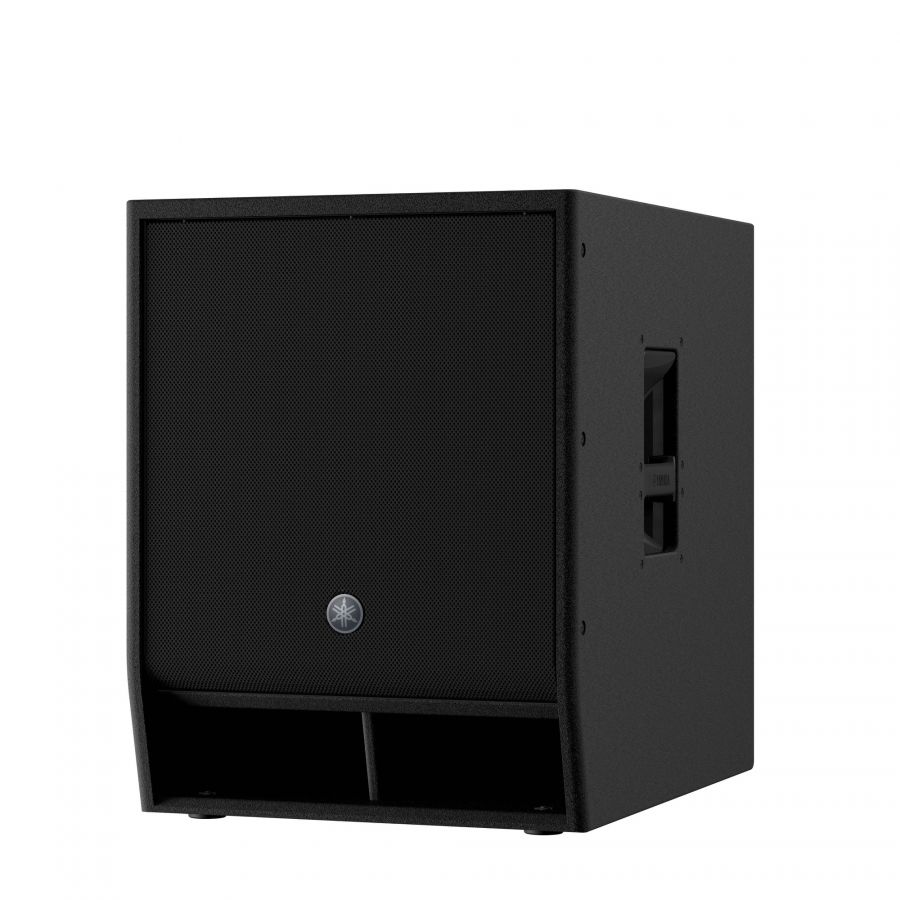

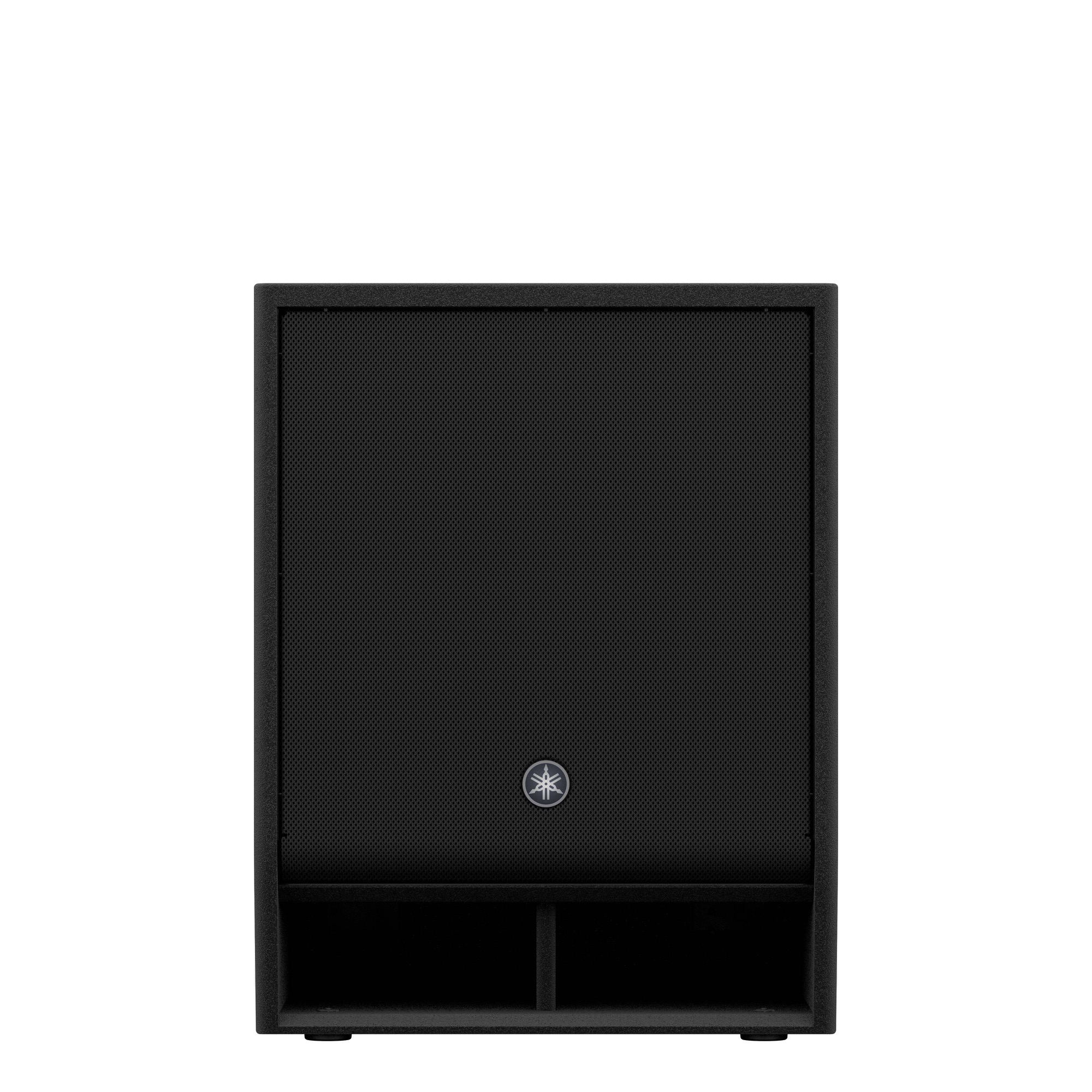

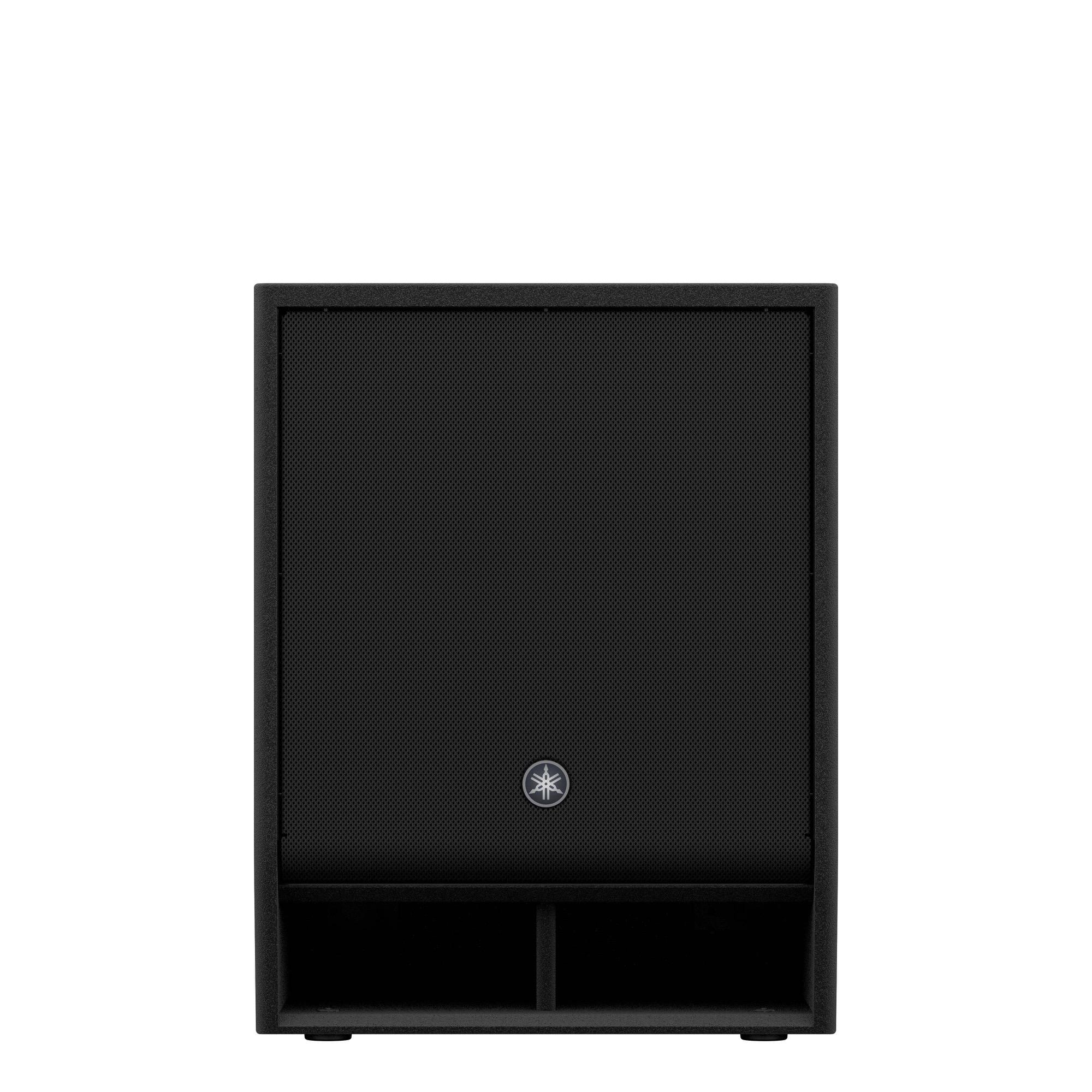

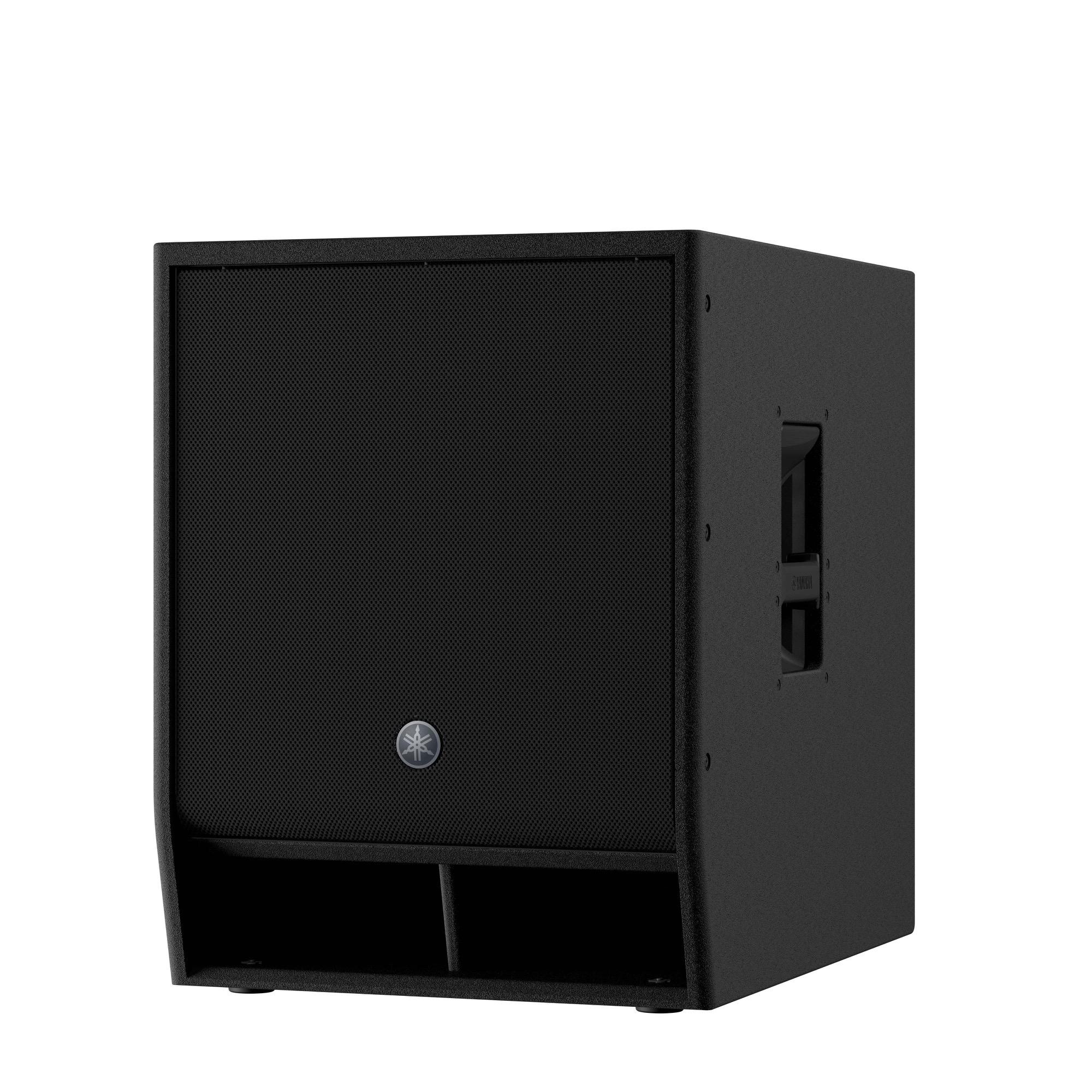

CXS15XLF Passive Subwoofer
Perfectly suited for use with our CZR full-range speakers, the CXS15XLF is a bass-reflex type subwoofer with extended low frequencies, outstanding clarity, and best-in-class 131dB SPL performance.
- 15” subwoofer with 4” Voice Coil
- High power 800W (PGM) input
- Cardioid mode capable with processors or DSP onboard power amps
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- SpeakON NL4MP x 3 (Parallel x2, Output x1)
- Dual-pole socket
- Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features

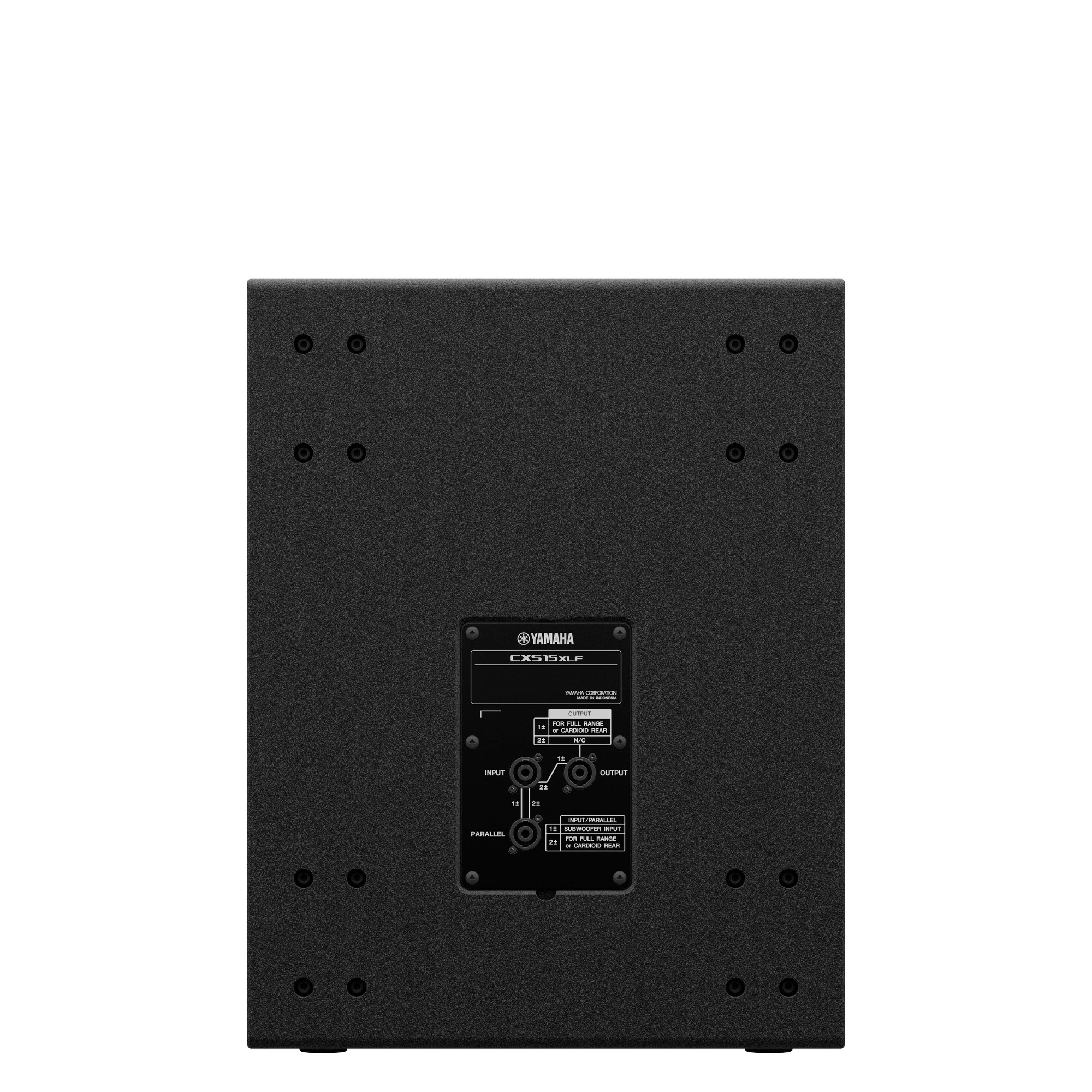

The CXS XLF Series of consists of two passive subwoofers, the CXS18XLF (18-inch) and the CXS15XLF (15-inch) which can extend the system’s low frequency down to a starting 29Hz for throbbing LF capability. Neutrik speakON NL4MP connectors provide safe, reliable and flexible connectivity. Equipped with two input/parallel connectors for multiple subwoofers plus one unique output connector for flexible set up to full-range CZR loudspeakers or cardioid mode setting. It is capable the simpler connection with single 4-pole speakON cable.
The specially designed enclosure features lightweight and robust premium plywood with a scratch-resistant, rugged Polyurea coating for improved portability and durability on the road, as well as two different sockets for pole-mounting at either -7° down tilt or level. The CXS XLF are equipped with both a 35mm pole socket and an M20 threaded socket to support a full range cabinet.
Specs
Speaker type | | Subwoofer, Bass-reflex |
Frequency range (-10dB) | | Passive: 33 Hz - 3.5kHz, Normal (*1): 35 Hz - 150 Hz, Extend (*1): 33 Hz - 150 Hz |
Coverage area | | - |
Floor Monitor Angle | | - |

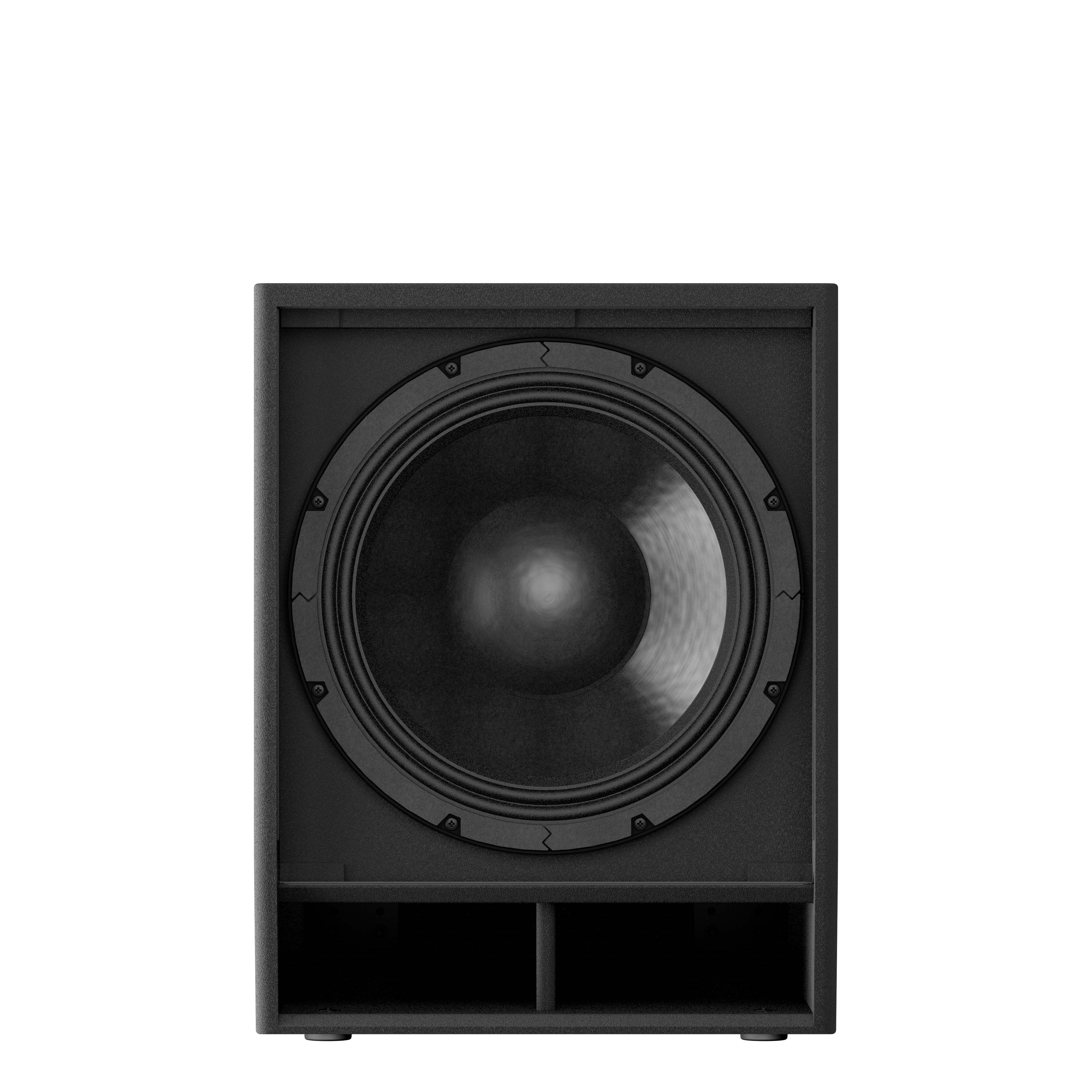

Components | LF | 15" Cone, 4" Voice Coil, Ferrite magnet |
HF | - |
Crossover | | - |
Power rating | NOISE | 400 W (EIA 426-A) |
PGM | 800 W (EIA 426-A) |
PEAK | 1600 W (EIA 426-A) |
Nominal impedance | | 8Ω |
SPL | Sensitivity (1W; 1m on axis) | 98dB *2 |
Peak (Calculated) | 130 dB *2 |
I/O connectors | | SpeakON NL4MP x 3 (Parallel x2, Output x1) |
Handle | | Aluminium die-cast, Side x2 |
Pole socket | | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) |
Rigging | | - |
Dimensions | W | 450 mm (17.7") |
H | 587 mm (23.1") (with rubber feet) |
D | 600 mm (23.6") |
Net weight | | 35.6kg (78.5 lbs) |
Options | | Cover: SPCVR-DXS15X, Caster: SPW-1 |
Others | | Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black |
| Product ID | CCXS15XLF |
|---|
