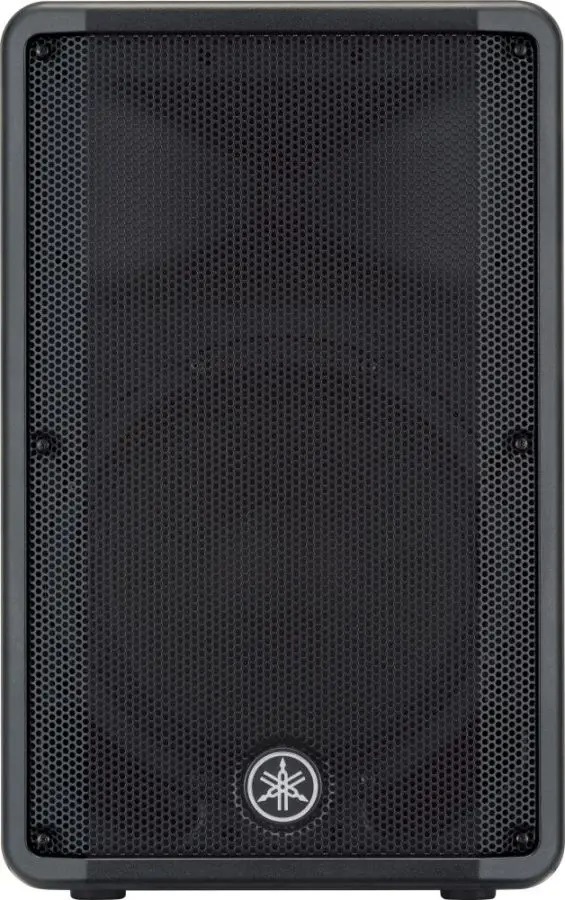

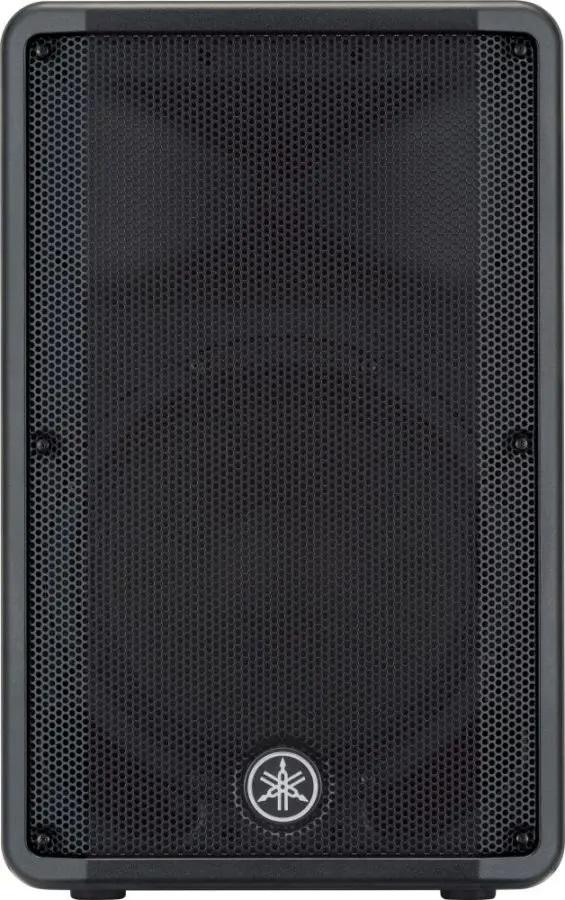

The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outermost edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50°?wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.

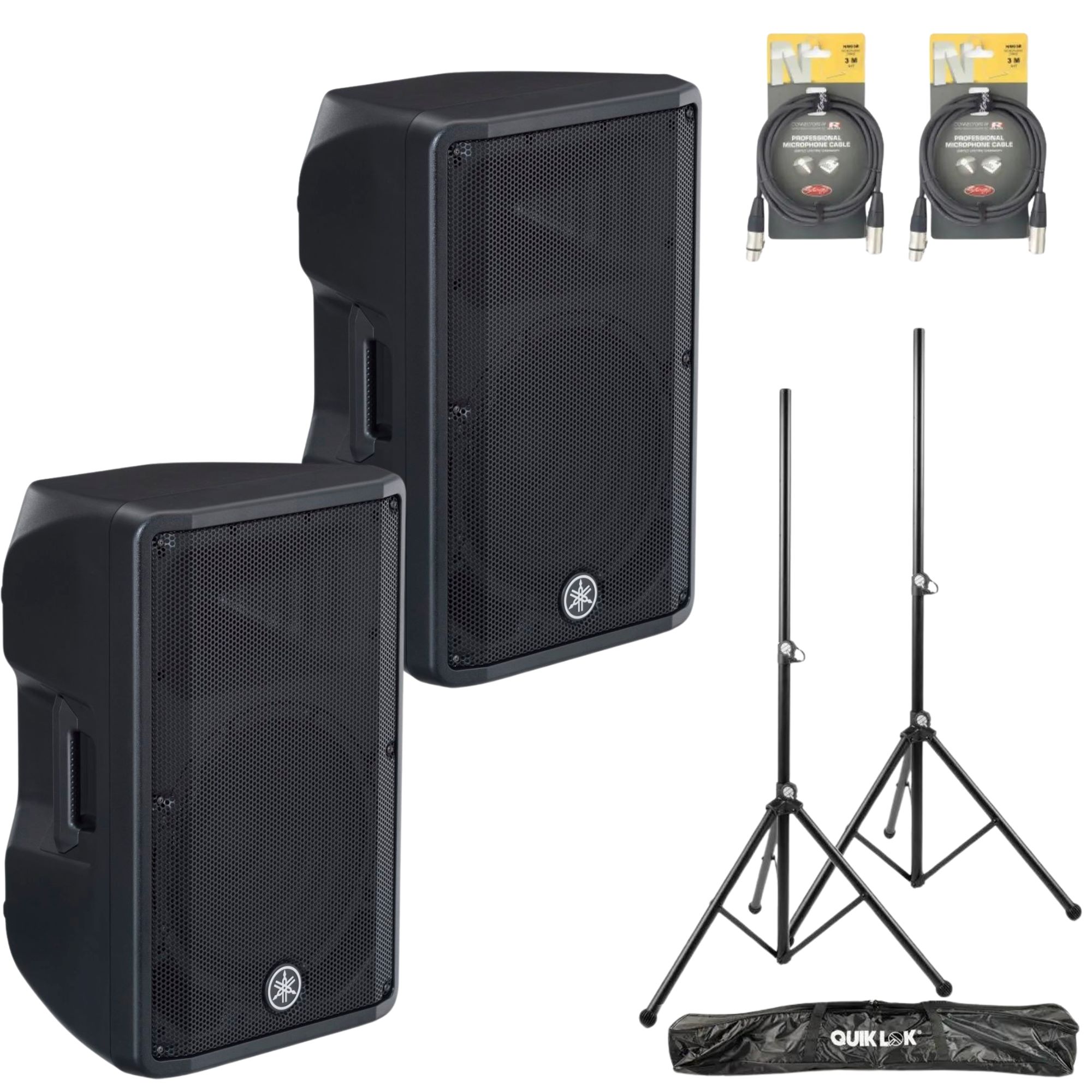

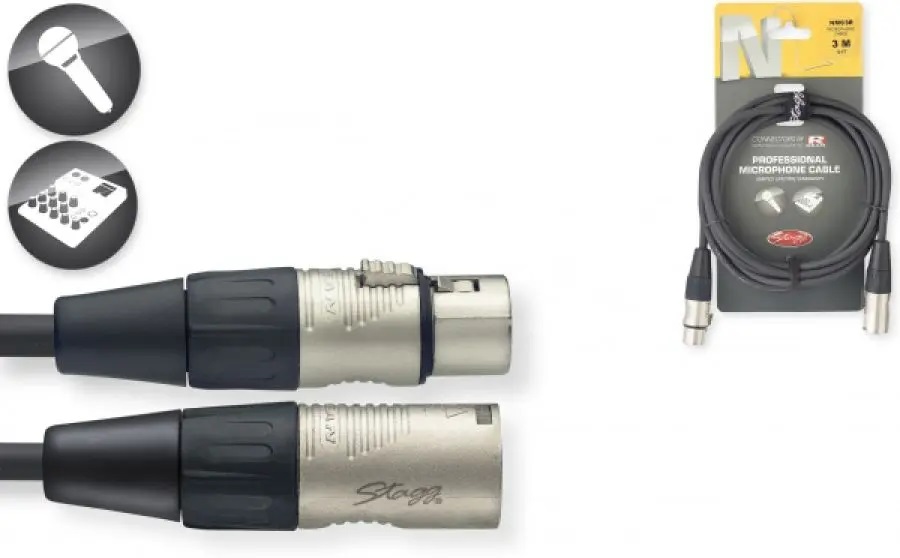

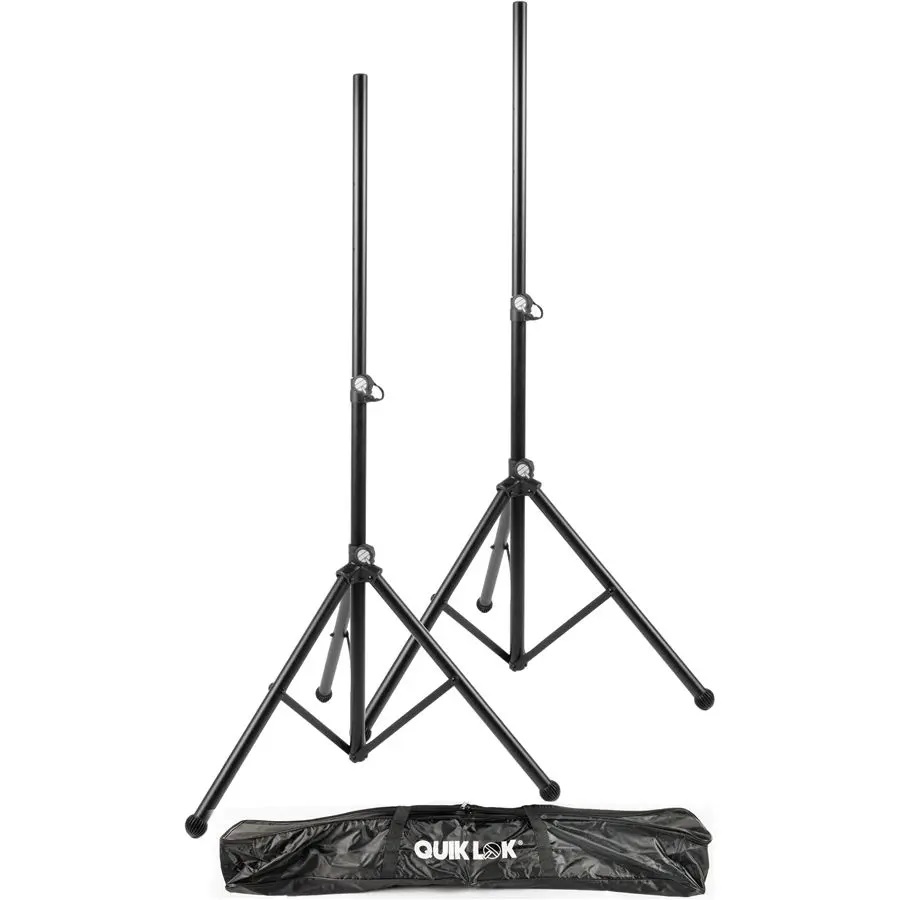

What's included in the pack:
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
The DBR has the following features:
DBR12
Speaker type
2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
52Hz – 20kHz
Nominal coverage
Horizontal
90°
Vertical
60°
Components
Low Frequencies
Diameter:12" cone, Voice Coil:2", Magnet:Ferrite
High Frequencies
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover
2.1kHz: FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
Maximum output level (1m; on axis)
131dB SPL
I/O connectors
INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation
Fan cooling, 4 speeds
Power requirements
100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
Power consumption
74W(1/8 Power Consumption), 18W(Idle)
Cabinet material
Plastic
Handle
Side x 2
Flying and mounting hardware
Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
Pole socket
35mm (Bottom x 1)
Dimensions
Width
376mm (14.8")
Height
601mm (23.7")
Depth
348mm (13.7")
Net weight
15.8 kg (34.8 lbs)
Optional Accessories
BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
