Overview

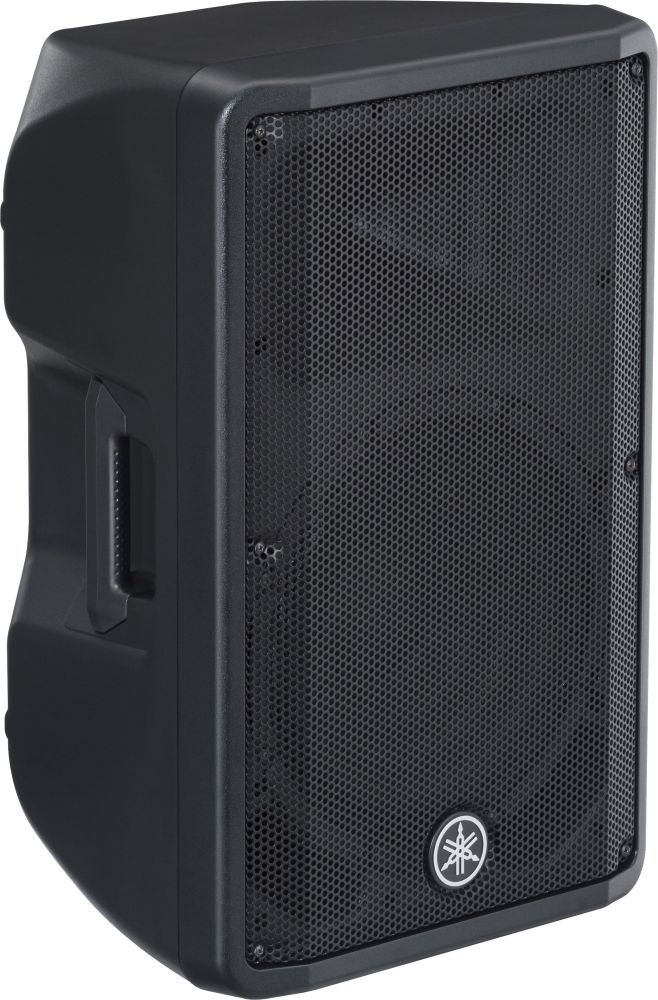

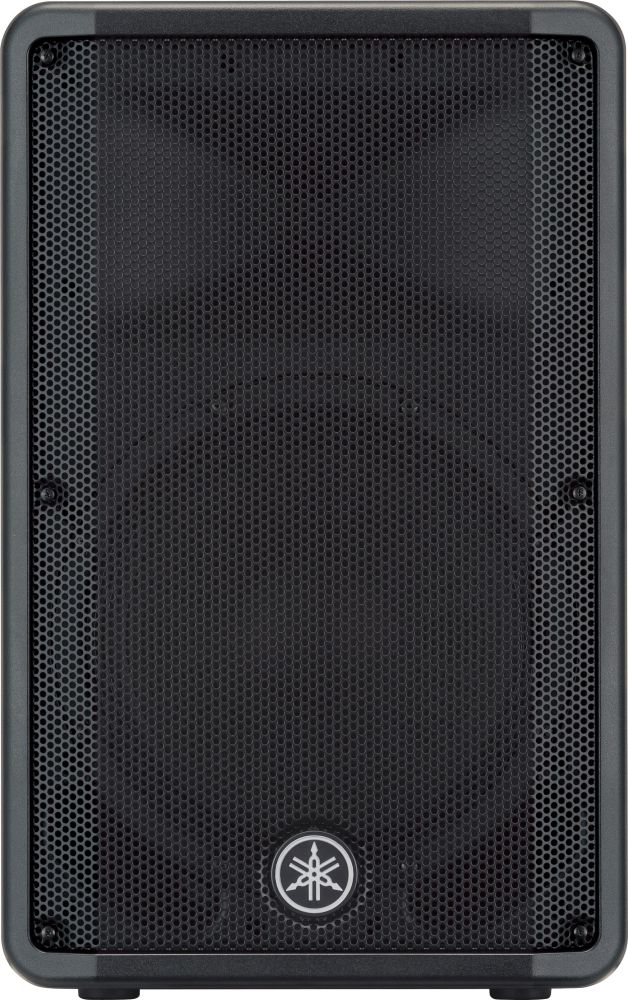

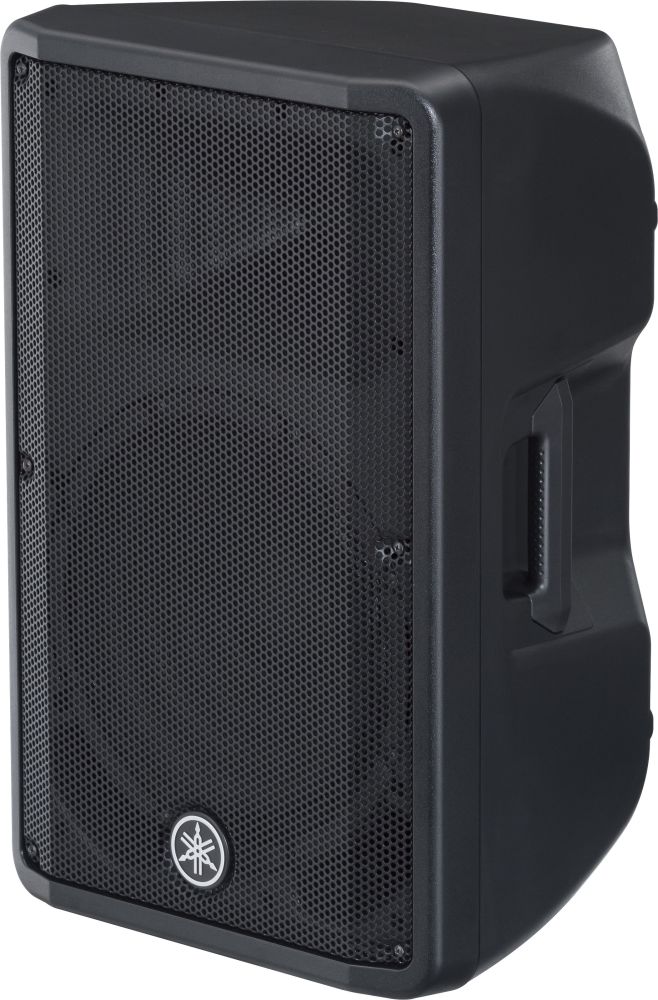

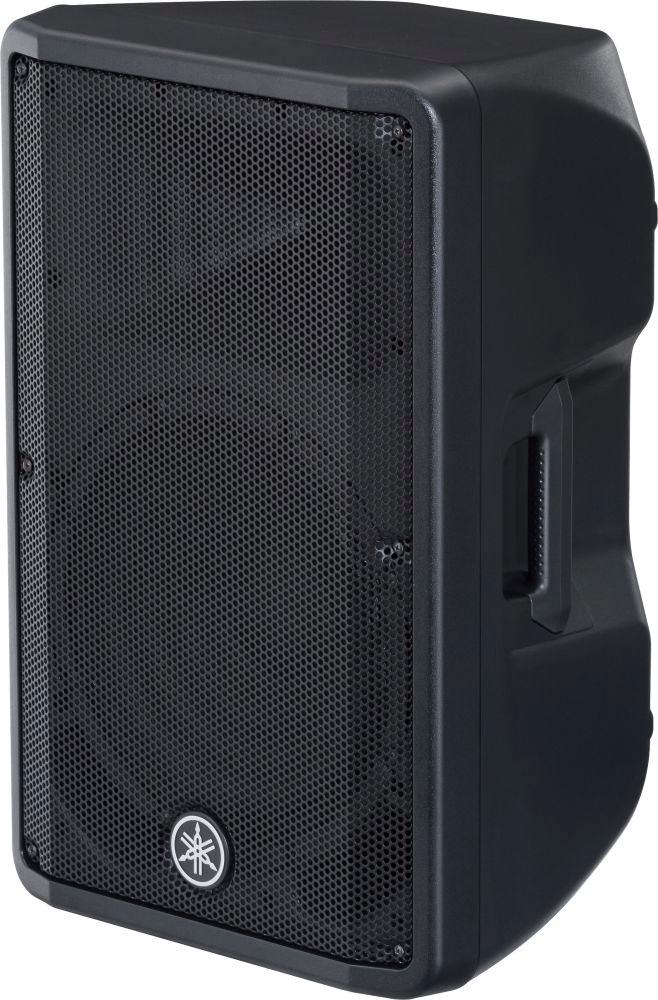

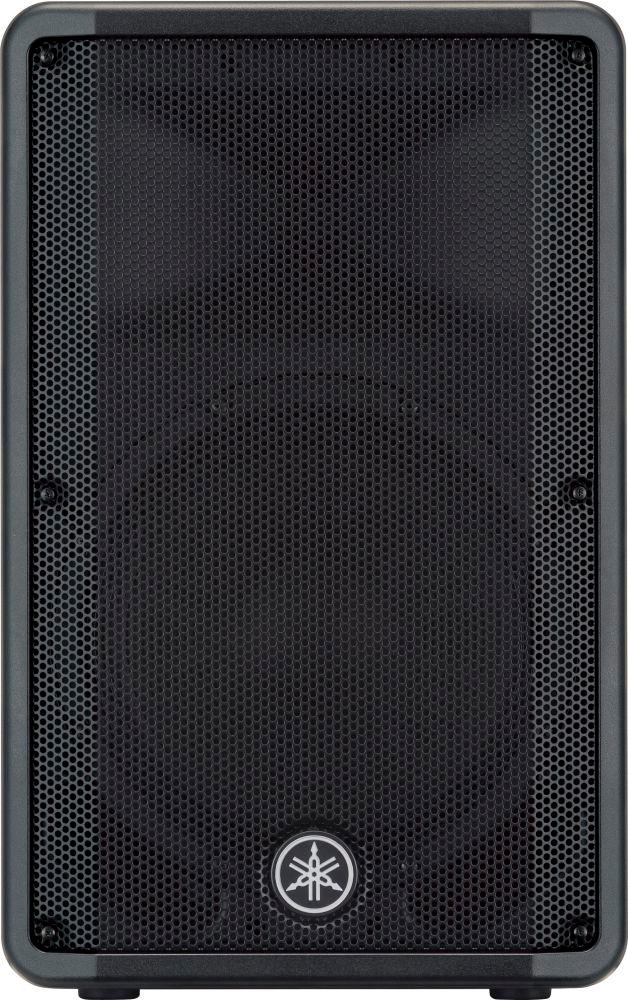

The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50° wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
The DBR has the following features:
- Custom designed transducers and wide-dispersion constant directivity horn
- DSP Features of DSR-Series
- FIR-X tuning simultaneously optimises frequency and phase response
- Multiband dynamic processor for consistent clarity at any output Level
- Extensive DSP protection functions for maximum output level
- 2-channel mixer with XLR, TRS Phone and RCA inputs

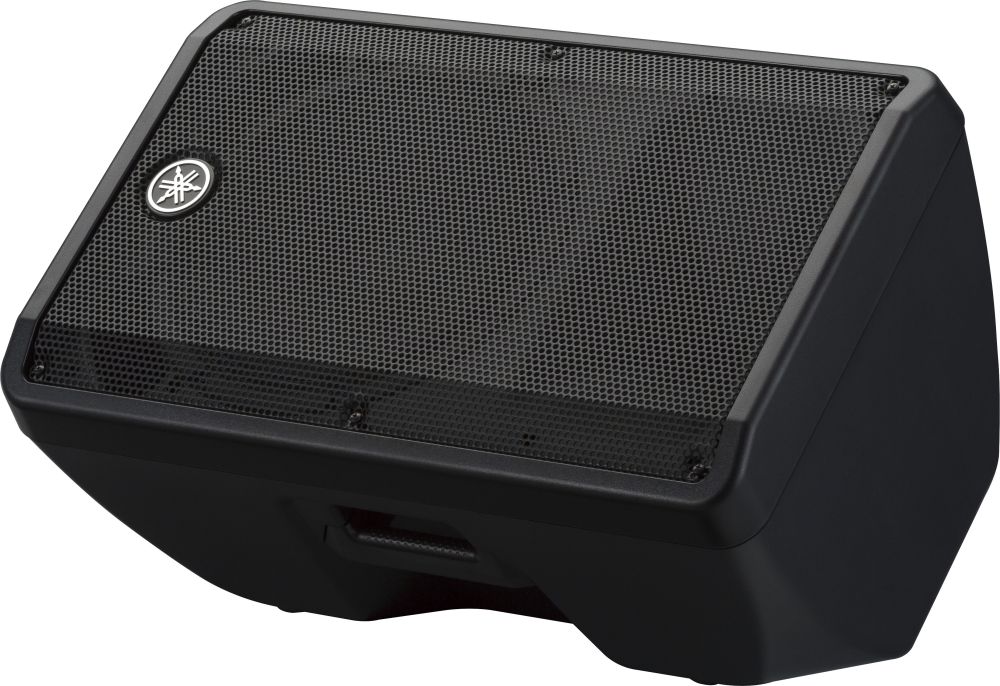

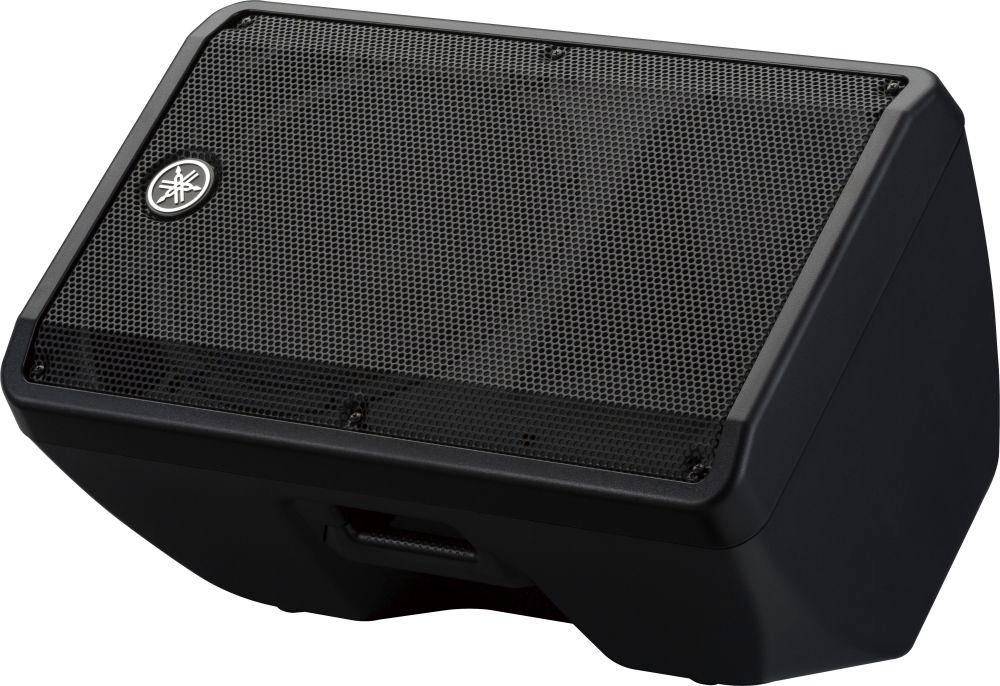

- 50°degree wedge angle & symmetrical mirror-mode floor monitoring
- 3x M8 Rigging Points for standard eye-bolts (Brackets available as an option)
- Speaker covers available as an option
Specs
| DBR12 |
Speaker type | 2-way, Bi-amp powered speaker, Bass-reflex type |
Frequency range (-10dB) | 52Hz – 20kHz |
Nominal coverage | Horizontal | 90° |
Vertical | 60° |
Components | Low Frequencies | Diameter:12" cone, Voice Coil:2", Magnet:Ferrite |
High Frequencies | Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite |
Crossover | 2.1kHz: FIR-X tuning™ (linear phase FIR filter) |
Output power | Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) |
Maximum output level (1m; on axis) | 131dB SPL |

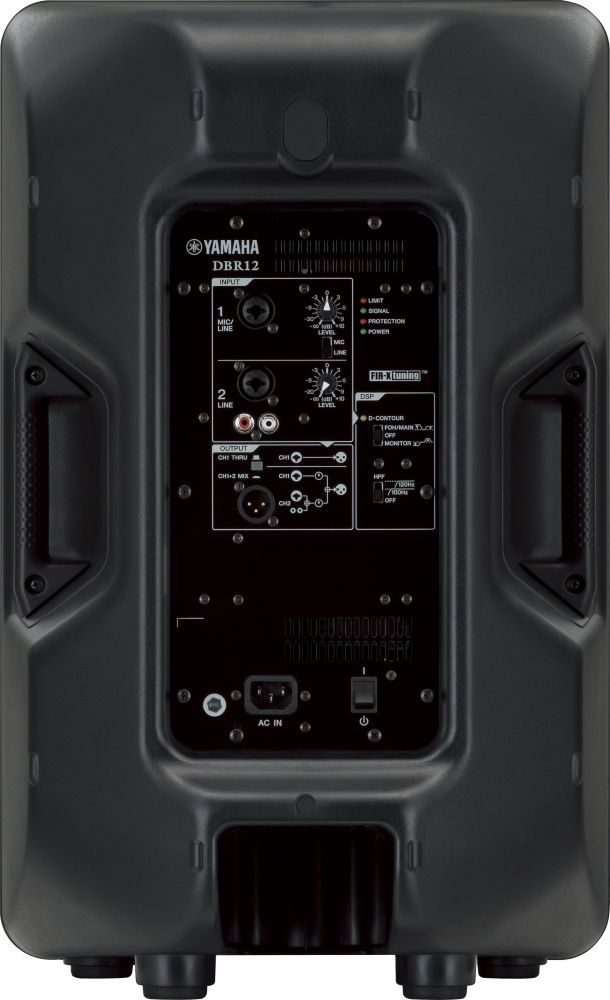

I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
Heat dissipation | Fan cooling, 4 speeds |
Power requirements | 100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz |
Power consumption | 74W(1/8 Power Consumption), 18W(Idle) |
Cabinet material | Plastic |

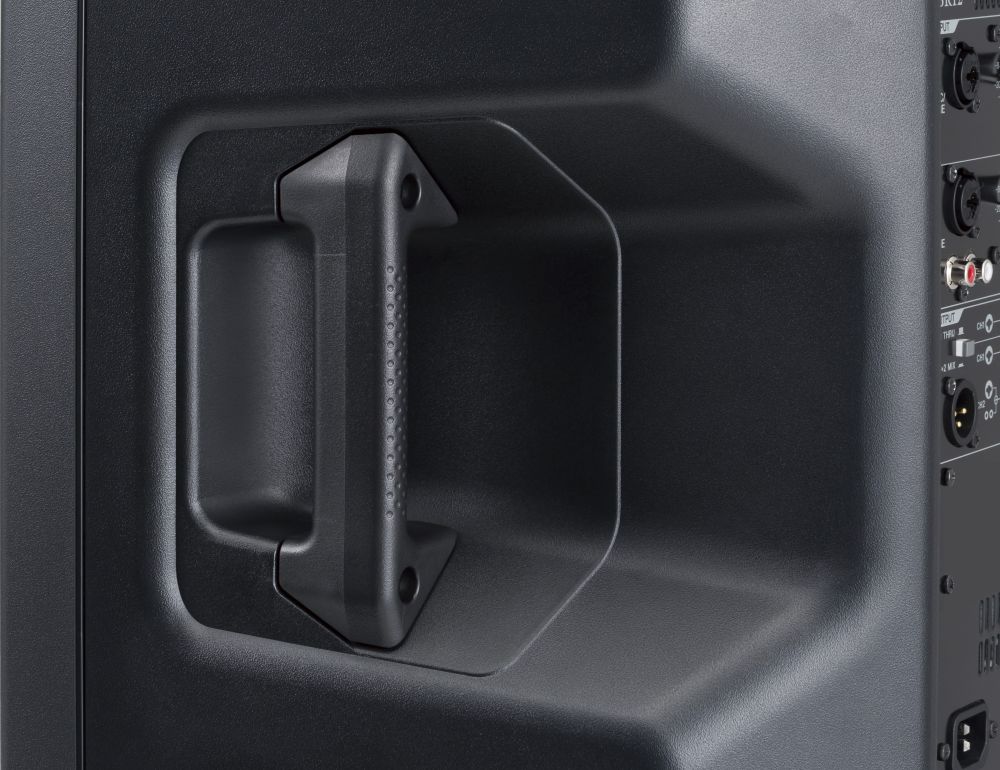

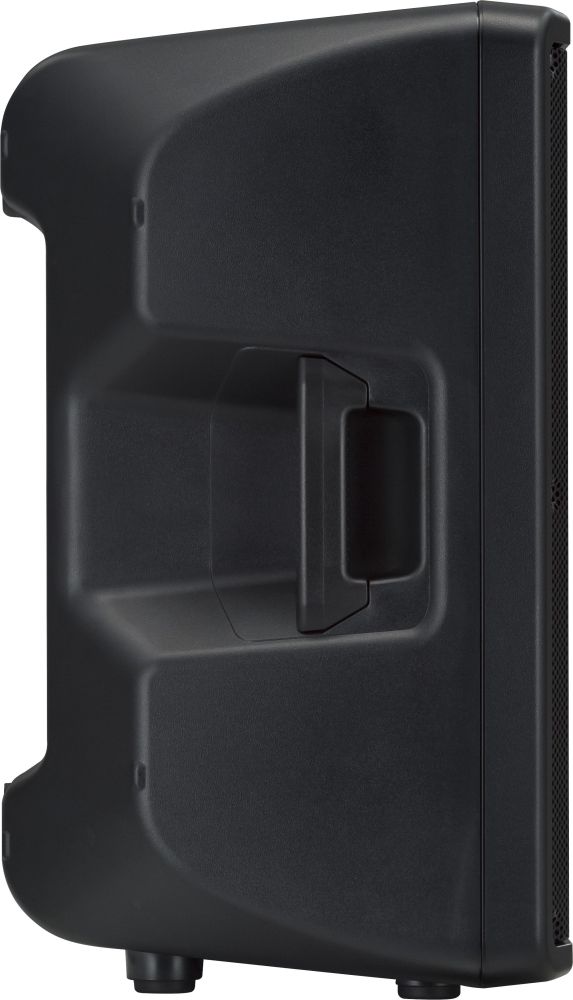

Handle | Side x 2 |
Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) |
Pole socket | 35mm (Bottom x 1) |
Dimensions | Width | 376mm (14.8") |
Height | 601mm (23.7") |
Depth | 348mm (13.7") |
Net weight | 15.8 kg (34.8 lbs) |
Optional Accessories | BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) |
