Overview

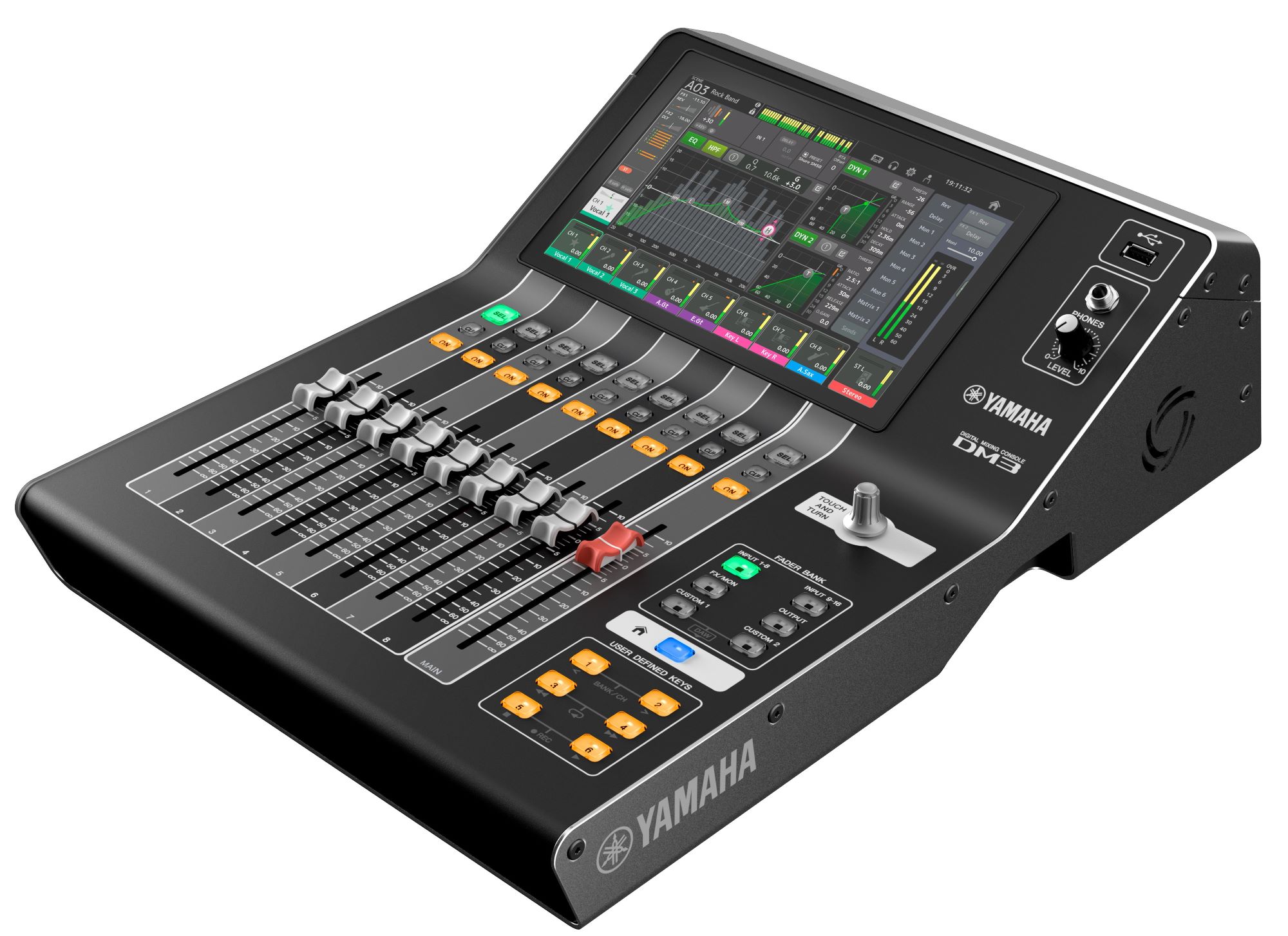

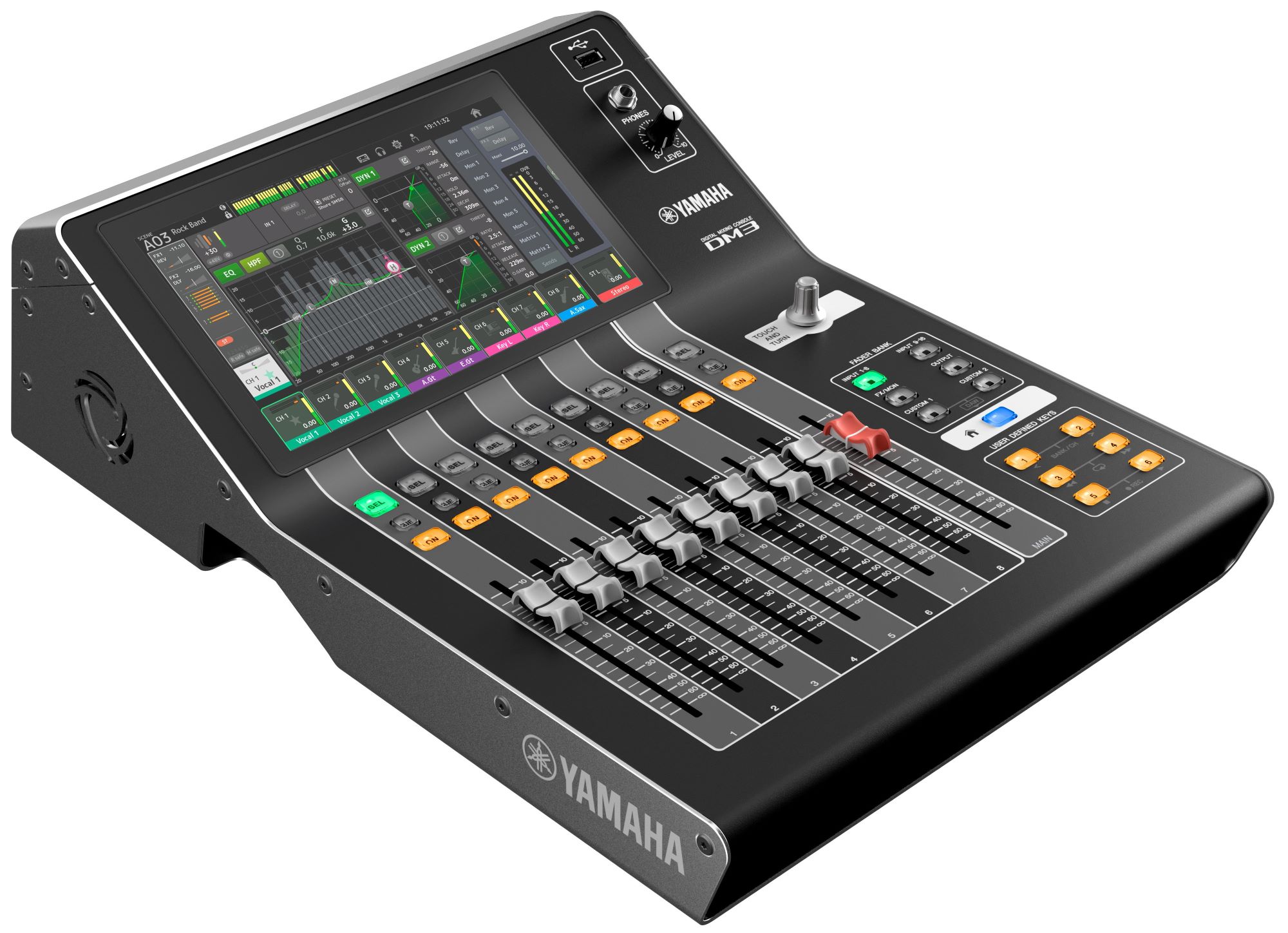

Yamaha DM3 (with DANTE) Digital Mixer
RAISING THE BAR FOR COMPACT DIGITAL MIXERS.
DM3 Series allow engineers to capture the on-stage sound accurately, without coloration, and then add creative touch as required. It exemplifies a “less is more” design philosophy, utilizing a 9” touchscreen and a single Touch & Turn knob for managing most of the console’s operations. DM3 mixing consoles give you the power and flexibility to DO MORE than ever imagined with a digital console this compact.
- INPUT MIX: 16 MONO + 1 ST + 2FX
- BUS: 6 MIX + 2 FX + 2 MATRIX
- 9 MOTOR FADERS, 1 TOUCH & TURN
- ANALOG IN: 16 MIC/LINE
- ANALOG OUT: 8 (XLR)
- 18 X 18 AUDIO INTERFACE VIA USB
- 2 FX & GEQ ON MIX/STEREO BUS
- DAW REMOTE (HUI)
- CUBASE AI & VST RACK ELEMENTS
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Specs
Mixing Capacity
- Input channels : 16 Mono, 1 Stereo, 2 FX Return
- Buses : 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

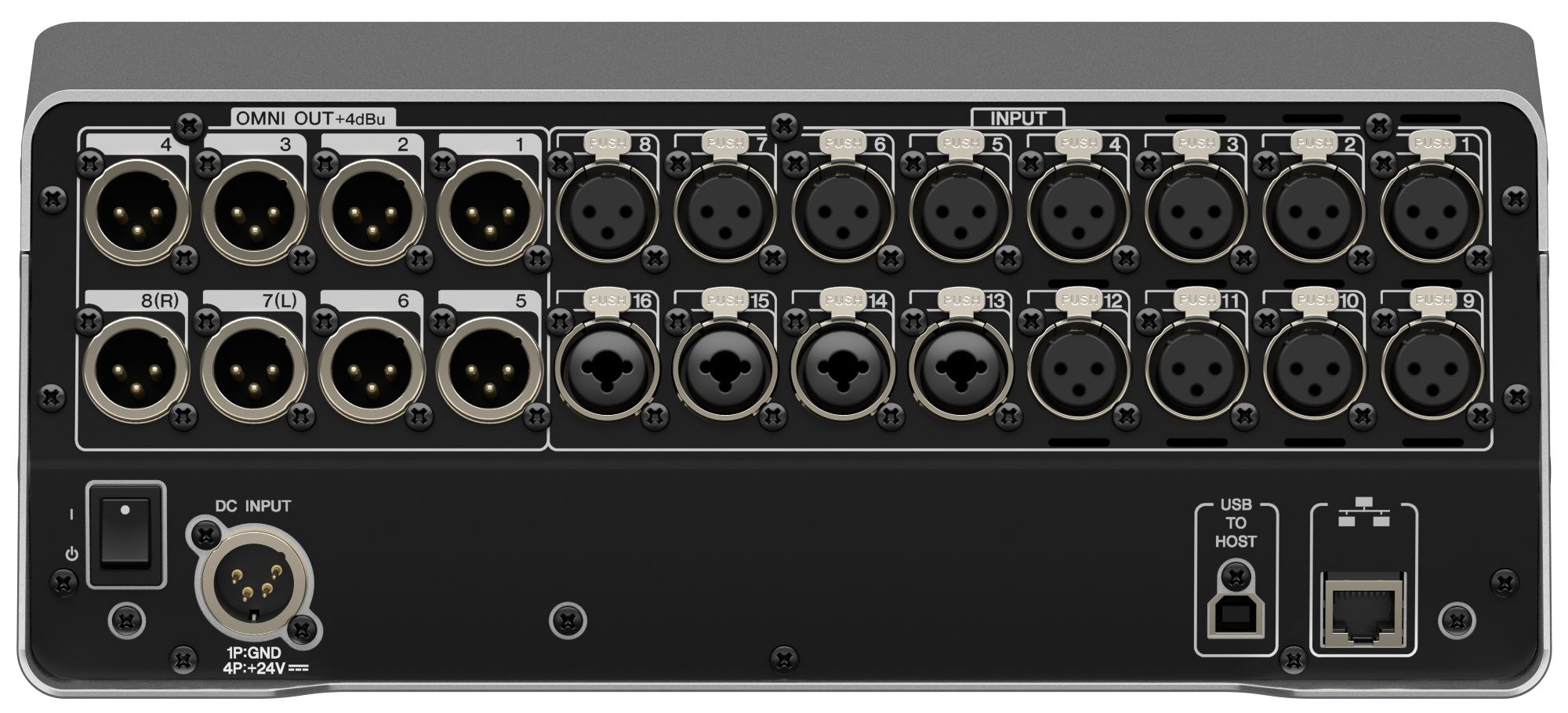

Local Connectors
- Analog In : 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
- Analog Out :8 (XLR)
- Dante I/O (DM3 only) : 2 (etherCON : Primary/Secondary, 16 In/Out)
- Ethernet : 1 (RJ-45)
- USB to Host : 1 (USB Type-B)
- USB to Device : 1 (USB Type-A)
- Phones : 1 (TRS Phones)
- DC IN : 1 (XLR 4pin)

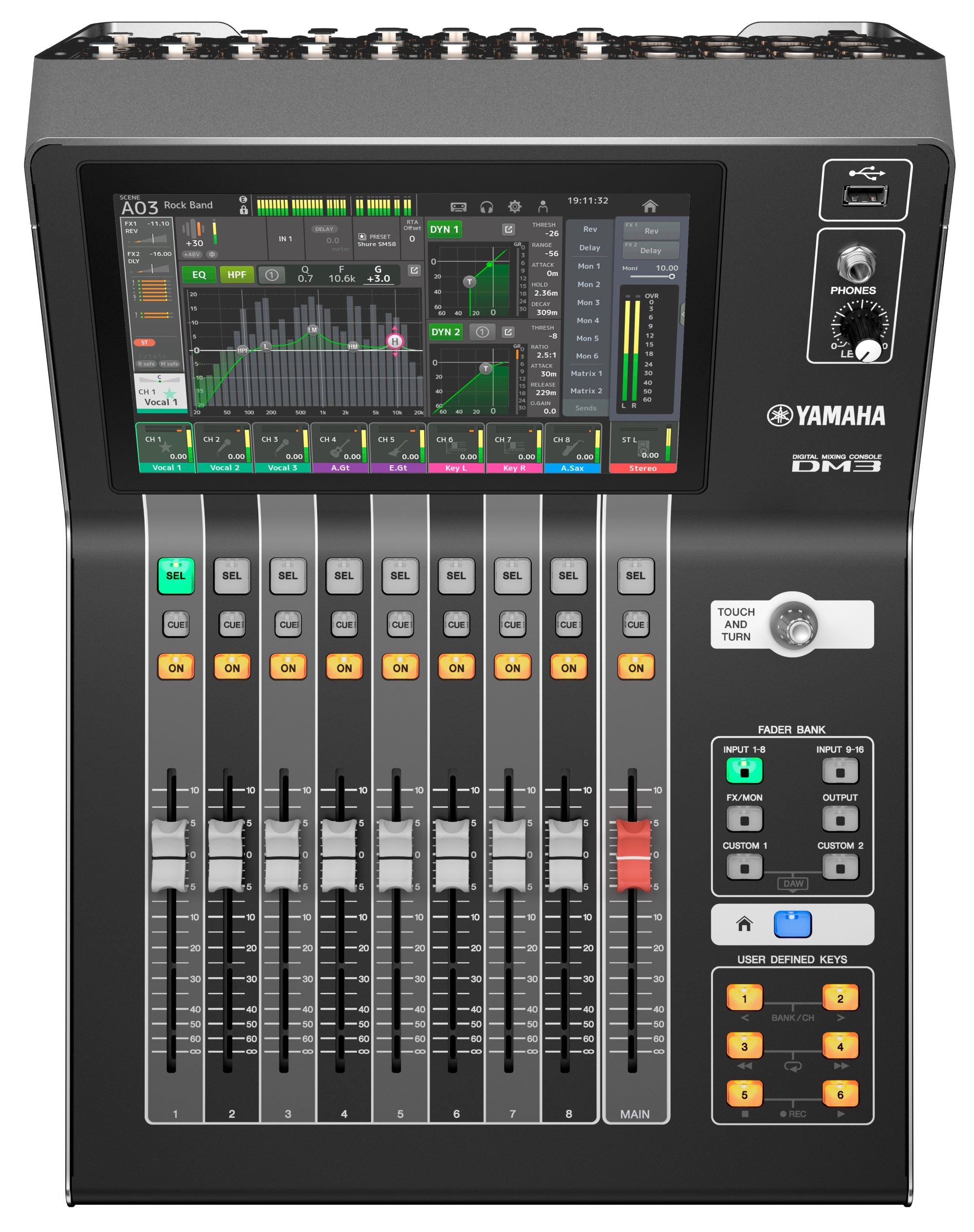

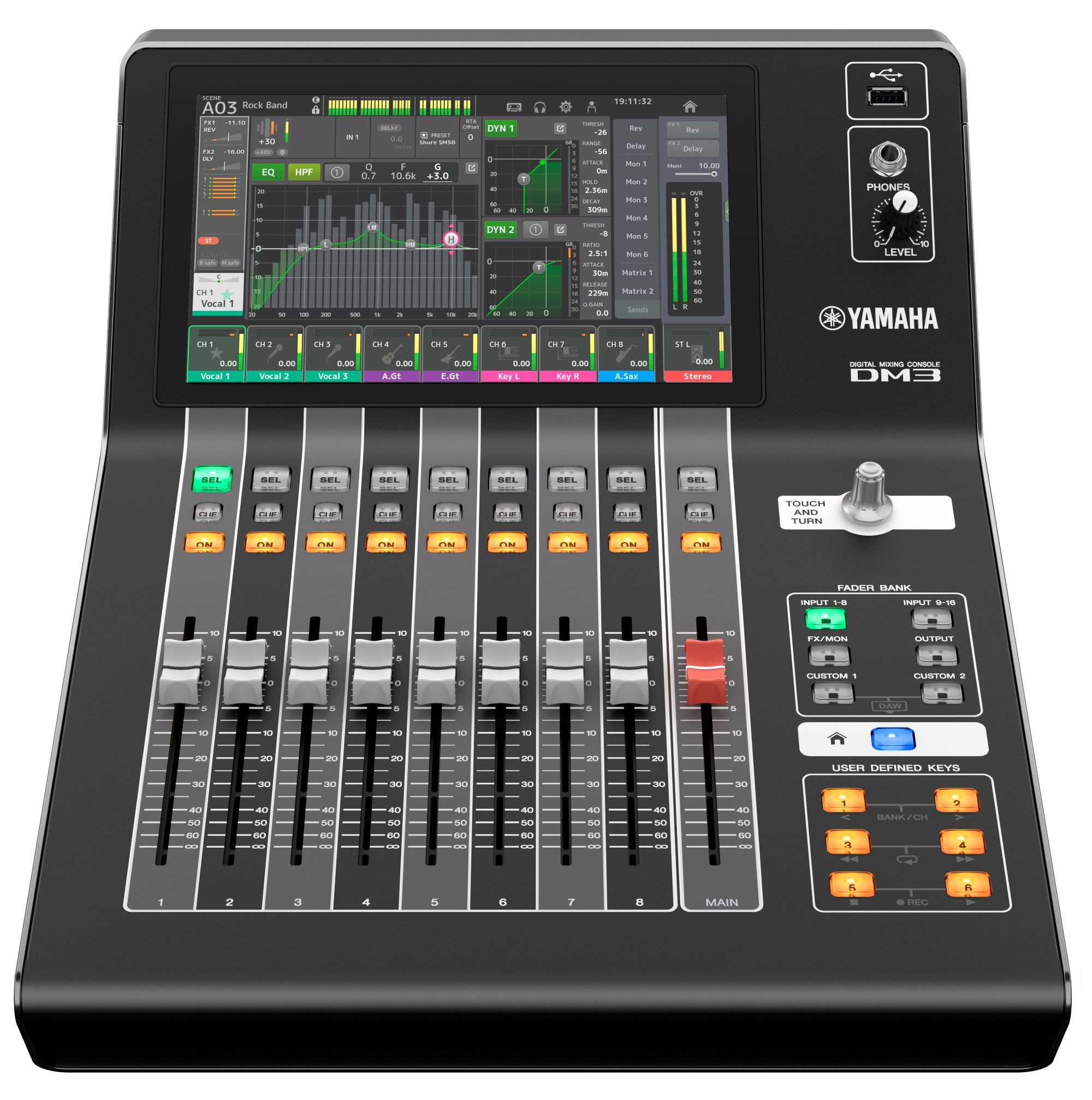

User Interface
- 9-inch multi-touch screen
- 9 x 100mm Motorized fader (8 channels + 1 master)
- 1 x Rotary Encoder (Touch and Turn)
Recording & Playback
- PC (via USB to Host) (USB 2.0) : Recording 18 track
- PC (via USB to Host) (USB 2.0) : Playback : 18 track
- USB storage device : Recording 2 track
- USB storage device : Playback 2 track
- Sampling rate : 96 kHz/48 kHz
- Power Requirements : DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
- Power Consumption : 43 W
- Dimensions (W x H x D) : 320 mm × 455 mm × 140 mm
- Weight : 6.5 kg
- Temperature Range : Operating Temperature Range: 0 to 40°C
- Temperature Range : Storage Temperature Range: -20 to 60°C
- Accessories : Owner’s Manual, Power Adapter (PA-L500, including power cord), CUBASE AI Download Information,
- Options : Rack mount kit RK-DM3, I/O RACK Tio1608-D
*1 Total Harmonic Distortion is measured with a –18 dB/octave filter@80 kHz.
*2 Hum & Noise are measured with an A-Weight filter.
*3 Crosstalk is measured with a –30 dB/octave filter@22 kHz.
