Overview
"DTX flagship model that boasts the beauty of real drums"
The DTX10 series is the flagship of the DTX line-up, combining the functionality of electronic drums with the sheer beauty of their acoustic counterparts.
- Faithfully reproduces real drum sounds and real-room ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- LED rotary faders that allow you to change many settings intuitively, accurately and quickly
- Yamaha's original TCS heads are used for snare and toms, achieving a comfortable, natural feel and rebound that makes you want to keep playing
- Beautiful wood shells that are built and finished at Yamaha acoustic drum factories
- Snare pad and ride cymbal are equipped with a hit point detection function
- Individual Outputs, AUX inputs suitable for PA monitor return, USB port that can send and receive audio data directly to and from computers and smart devices
- Professional Yamaha system hardware used for hardware and racks
Featuring real drum sounds and real room ambience recorded in world renowned studios, playability that allows you to create sounds intuitively, inspiring feel and expressiveness, and the true beauty of real birch shells with the same finishes used on acoustic drums, the DTX10 series was born from the technology and sensibilities that Yamaha has cultivated over its many years of crafting drums.
The KIT MODIFIER knobs condense the sound creation know-how that Yamaha has accumulated over decades into three knobs: AMBIENCE, COMPRESSION, and EFFECT. A wide range of tonal possibilities are available thanks to Yamaha engineers — from the natural sound of acoustic drums, through to processed live performance sounds, to heavily effected sounds.
The AMBIENCE knob controls the natural ambience and reverb of the drum kit sound. On acoustic drum sounds, the AMBIENCE MODIFIER controls the real recorded natural ambience from 0-50%. When turned up higher than 50%, high quality digital reverb is also introduced to the sound.
The COMP and EFFECT knobs utilize the "1-knob" control technology featured in many Yamaha PA products.
The COMP adds one-knob compression to the whole kit sound, from subtle to very obvious, while EFFECT controls the mix of the internal effects processors. The processors are fully adjustable and have a long list of available effects to choose from.
The seven LED rotary faders can be used to change the parameters of all the instruments. With the fader select knob, you can select your preferred option from six presets (with 14 sub presets) and control it intuitively with the LED rotary faders.
Additionally, the LED rotary faders can be used to control connected external devices and DAW software, in studio and live situations.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Superbly Playable
Reproducing the way an acoustic drum behaves when struck is a key factor in the playability of electronic drums. Our electronic drums feature a sound module that captures and reproduces the full range of sound from the initial attack to the final cut-off, all based on samples of authentic drums tuned by skilled engineers and drummers. Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of drum kit behaviour. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PROX, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of musical hardware has allowed us to offer combinations of expertly crafted modules and pads that deliver superb playability.
Original TCS heads
Yamaha TCS (Textured Cellular Silicone) heads use a foam silicone material that contains numerous air bubbles, providing accurate firmness and rebound. The air bubbles inside serve as a cushion, softening the impact sound and reducing strain on wrists and elbows. The head surface is just like that of a coated head, and prevents the sticks from sliding.
Additionally, a unique floating structure is employed to prevent the head and body parts from coming into direct contact. No vibration is transferred to other parts of the head, and thus quietness and sensitivity are improved.
Live Set function that instantly recalls settings
The DTX-PROX is equipped with a "Live Set" function allows you to freely arrange and set various combinations of kits, tempos, and audio files or backing tracks, and recall them with a single touch, making it particularly useful for live venues or for live streaming events. It also allows for various setups, including the Wav & Click Sync function that adds click settings to audio files and follows them for playback, adds a pre-count, and stops the click after a pre-arranged time.
Connect to Bluetooth and record performances to USB memory
The Bluetooth function of DTX-PROX allows you to wirelessly connect to smart devices, portable music players, and computers and have fun playing drums along with the audio. Furthermore, USB memory can be used to record audio from not only devices connected via Bluetooth, but also devices connected by AUX or USB cables. You can also record your own drum performances over the songs being played.
*Availability of Bluetooth audio varies by country.
Professional grade headphone amp
Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PROX module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in a realistic sound stage.
Connections for every possible application
The DTX-PROX is equipped with 8 INDIVIDUAL OUTPUTS and a matrix that allows routing to any output. The two AUX IN sockets are ideal for receiving monitor sound from a PA system, connecting to other musical instruments (rear side), or connecting to smart devices (front side). The DTX-PROX offers both a standard jack and a mini jack headphone outputs, allowing for highly flexible routing, such as outputting clicks and AUX IN sounds only to the headphones.
The USB port can be directly connected to a computer or smart device to send and receive audio data and MIDI.
An extensive range of training functions to support drummers
The best practice functions featured in previous DTX models are also found in the DTX-PROX. As well as the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. All drummers will find the DTX10 training functions a useful aid for daily practice.
Includes Cubase AI
The DTX-PROX comes with a download code for the latest version of "Cubase AI" the powerful music production software.
By connecting the DTX-PROX to your computer with a USB cable, all recording, editing, and mixing tasks, that are found in modern music production can be handled by the one software program.
Specs

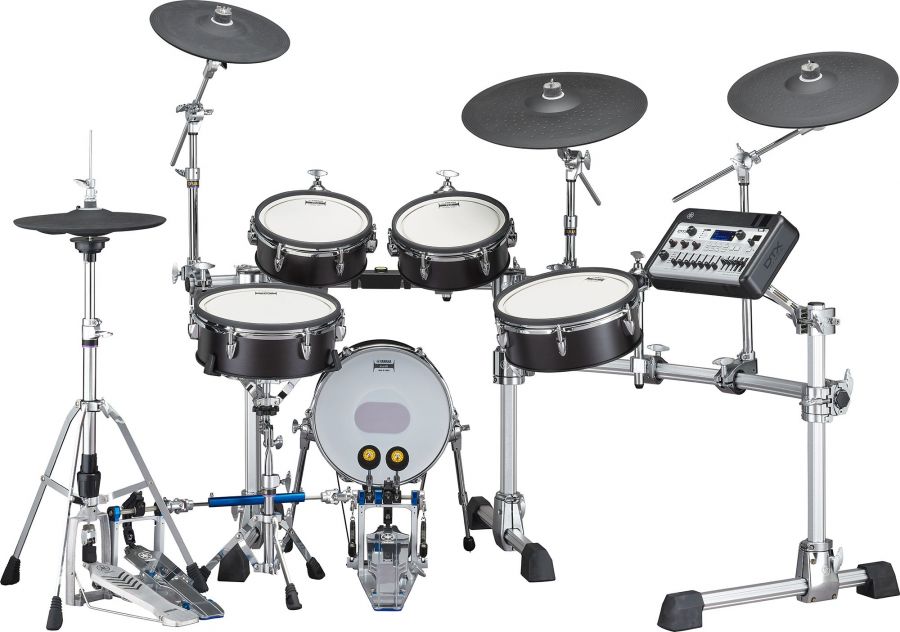

Yamaha DTX10K-X in Black Forest Finish
- Snare: XP125SD-X (12 inch TCS pad with 2 zone)
- Tom Pad: XP105T-X (10 inch TCS pad with 2 zone)
- Floor Tom Pad: XP125T-X (12 inch TCS pad with 2 zone)
- Kick Pad: KP128 (12-inch Mesh pad with Multilayer cushion)
- Hi-hat Pad: RHH135 (13-inch pad with 2 zone)
- Crash cymbal 1: PCY135 (13-inch pad with 3 zone)
- Crash cymbal 2: PCY155 (15-inch pad with 3 zone)
- Ride cymbal: PCY175 (17-inch pad with 3 zone)
- Hi-hat Stand: HS740A
- Kick Pedal- NOT INCLUDED- Image as an example only
- Footprint (average): 1,100 mm x 1,600 mm
- Weight: 46.77 kg
- Snare Stand: SS662 (Snare Stand for 12")
- Tone Generator – Width: 342 mm (13-7/16 in)
- Height: 196 mm (7-11/16 in)
- Depth: 66 mm (2-5/8 in)
- Weight: 2.0 kg (4 lb 7 oz)
- Maximum Polyphony: 256 notes
- Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
- Drum kits: Preset: 70 Kits, User: 200 Kits
- Voices: 733
- Click Sets: 30
- Tempo: 30 to 300 BPM, Tap Tempo supported. Voice Guide
- Time signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
- Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
- Others: Individual click volume control, wav import, timer
- Training Types: 10
- Songs: Preset: 37 songs, User: 1 song
- Audio Files - Import limit: 1,000 files
- Maximum loadable sample time: 50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)
- Sample Format: WAV
- Recording time Internal memory: Maximum of 90 seconds
- Recording time USB flash drive: Maximum of 90 minutes per file
- Format: Record/playback: WAV (44.1 kHz, 16-bit, stereo)
- Connectors
- DC IN: DC IN (+12V)
- Headphones: Headphones (standard stereo phone jack ×1, stereo mini jack ×1)
- AUX IN: AUX IN (stereo mini jack ×1, stereo standard phone jack ×1)
- Output: OUTPUT L/MONO, R (standard phone jack, one for each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (stereo standard phone jack, one for each)
- USB: USB TO DEVICE, USB TO HOST
- MIDI: MIDI OUT ×1, MIDI IN ×1
- Trigger Input: Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controllar, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used)
- Bluetooth: Audio (varies by country)
- Display: Full Dot LCD (128×64 dot)
- Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A))(*2), Owner’s Manual , module holder, module holder wing bolts (× 4), Cubase AI Download Information (*2) May not be included depending on your area. Check with your Yamaha dealer.
