Overview

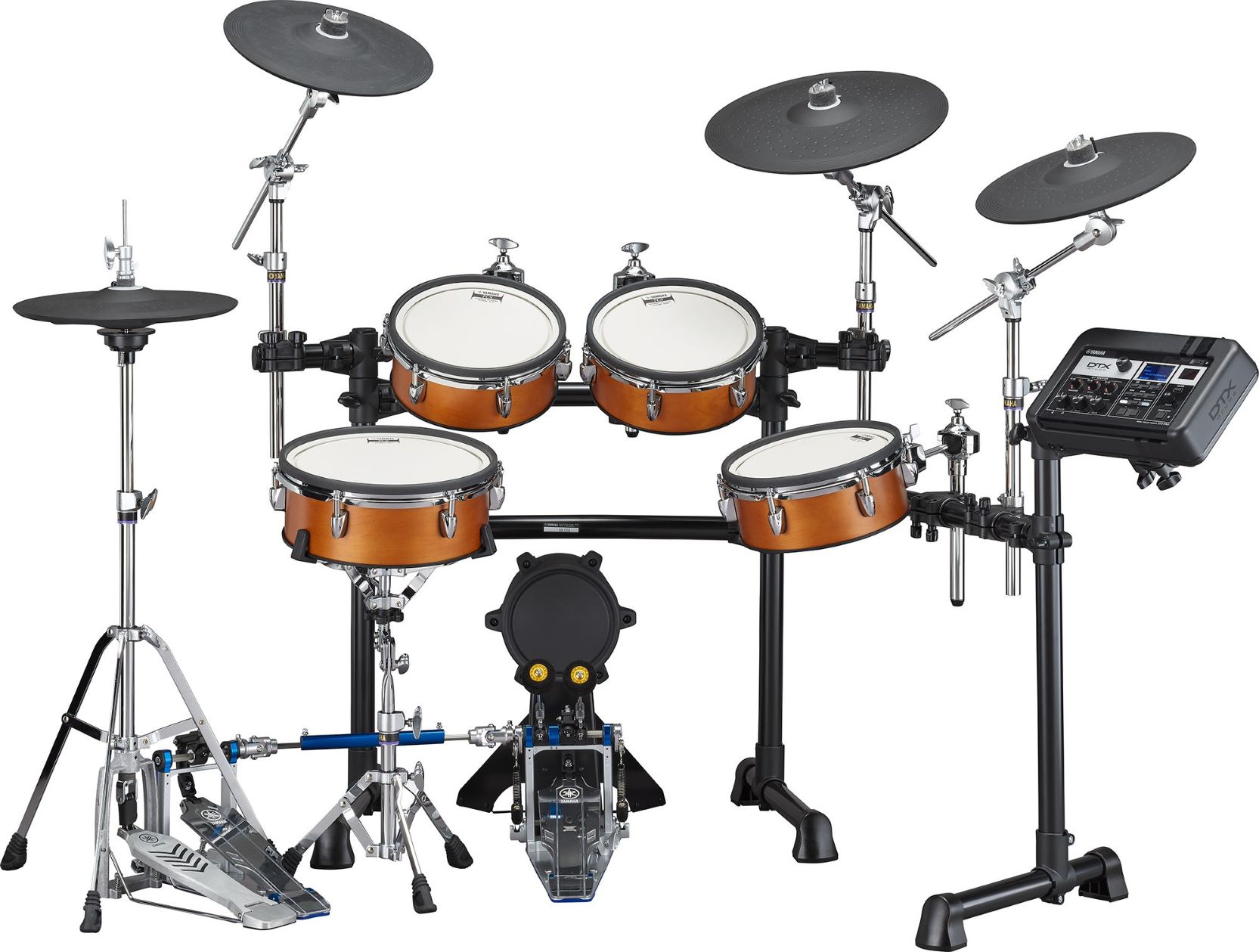

Yamaha DTX8K-X E-Drum Set
- Faithfully reproduces real drum sounds and real-room ambience recorded in world renowned studios
- AMBIENCE, COMP, and EFFECT Kit Modifier knobs that allow you to create your own unique sounds
- Yamaha's original TCS heads are used for snare and toms, achieving a comfortable, natural feel and rebound that makes you want to keep playing
- Beautiful wood shells that are built and finished at Yamaha acoustic drum factories
- The snare/tom/hi-hat pads are equipped with two playing zones and the cymbal pads all have three zones
- Snare pad and ride cymbal are equipped with a hit point detection function
- Professional Yamaha system hardware used for hardware and racks
The DTX8K-X defines the new upper mid-range of the Yamaha E-Drums range but uses Yamaha's new mesh head pads. It promises professional sounds and features for players of all levels and offers a massive technological step forward. It combines Yamaha's world class acoustic drum history with the newest in digital drumming, sampling, and music technology.

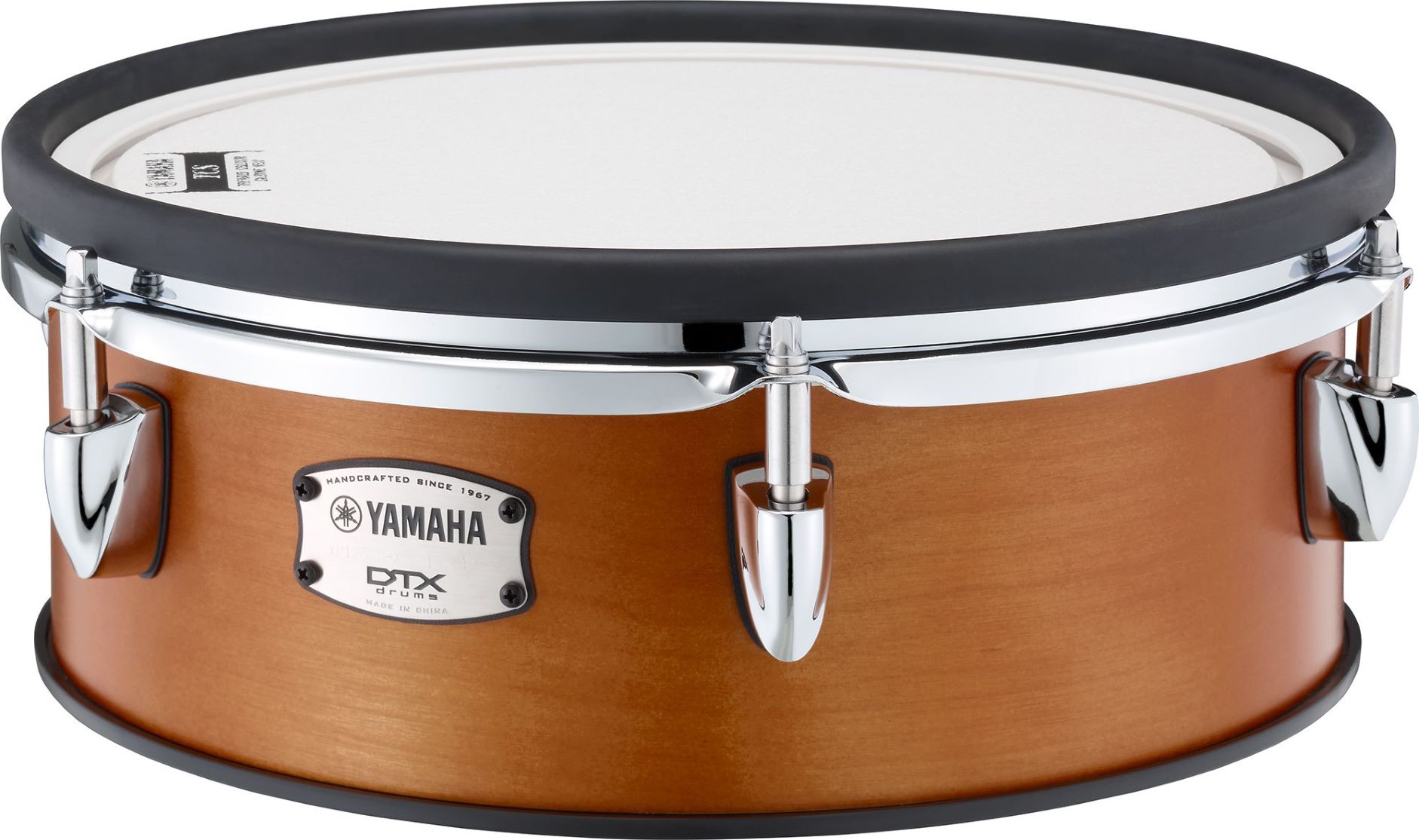

The mesh head drum pads use real Yamaha birch drum shells for a totally authentic look and maximum drumming integrity, finished in two of the same beautiful, sprayed finishes as Yamaha's acoustic drums – Black Forest and Real Wood. The lugs and hoops are the same as on Yamaha's acoustic drums, and each pad features a unique 'DTX Drums' badge.
The DTX-PRO Drum Trigger Module offers totally new audio quality with new samples recorded in some of the best studios in Europe. The sounds can be treated with a host of studio effects, so users can tailor the sound of their kits to their exact needs. Users can also load up to 1000 of their own samples, in addition to the 400+ internal sounds.

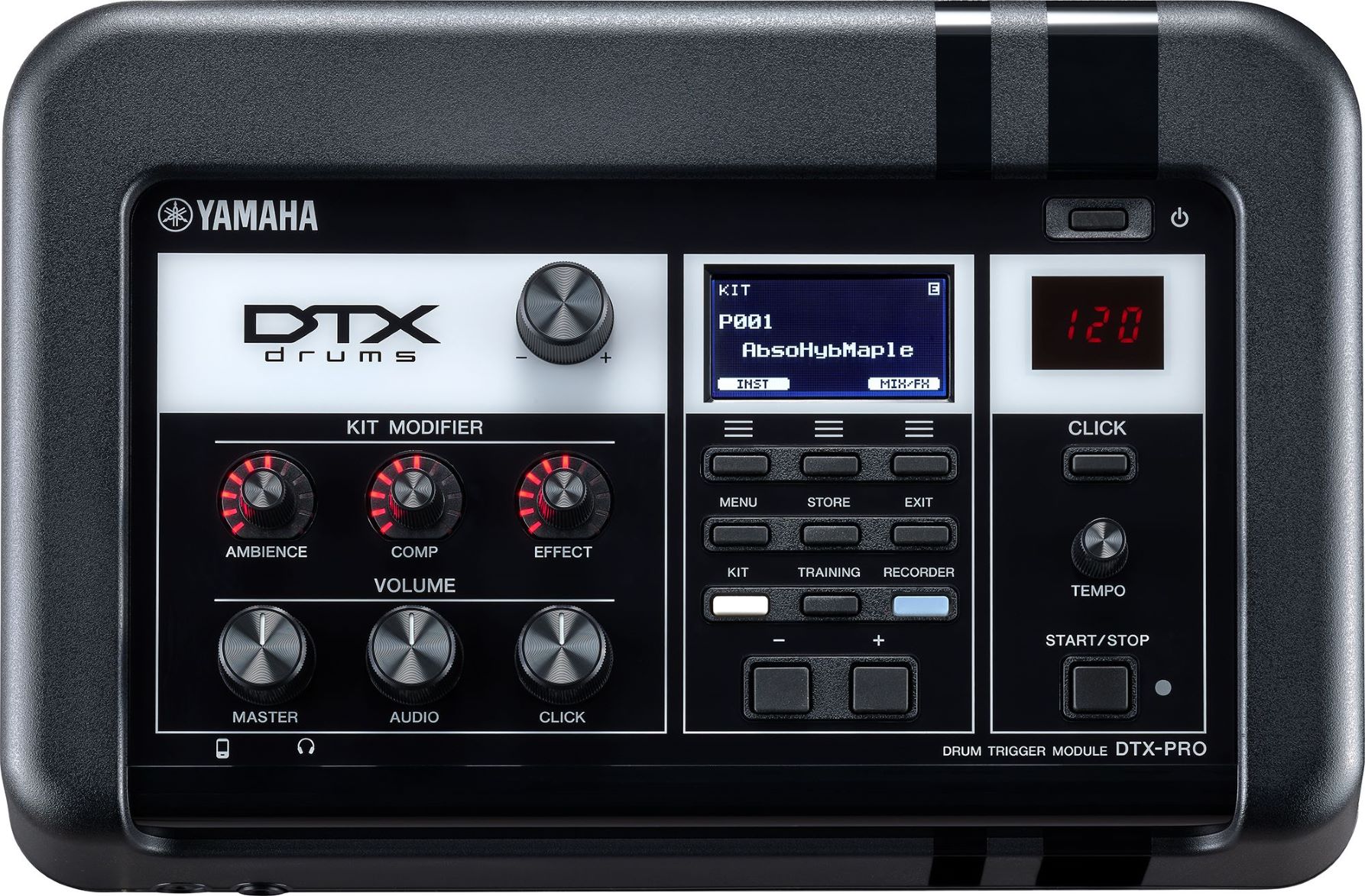

Unique to the DTX-PRO Modules are the Kit Modifier Knobs which allow the user to instantly change the sound of the kit by adjusting real sampled room ambience (not just digital reverb), kit compression, and other effects in real time. Every channel also has EQ, and Transient Adjustment which is usually found in studio software and allows you to change the attack and decay of the sound to suit your needs.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Superbly Playable
Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums.
Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PRO, allowing Yamaha to improve its expressive capabilities still more. Yamaha’s expertise as a manufacturer of music hardware has allowed them to offer combinations of expertly crafted modules and pads that deliver superb playability.
Same tone generator as the flagship series
The DTX-PRO sound module of the DTX8 series has the exact same sound engine that is found on the flagship DTX-PROX module. Each module is capable of stunning sound quality. Choosing the correct trigger setting* to suit the pads being used will allow you to enjoy the sounds to the max.
*The configuration screen is displayed upon initial startup.
Reliable Yamaha Hardware
The DTX8 series uses Yamaha drum hardware that is highly trusted by professional drummers all over the world.
Easy-to-adjust ball clamps have been adopted for the toms, while the unique boom-retractable tilter design of the cymbal holders allows them to be used straight or as booms. Snare and hi-hat stands are also included and support the player with typical Yamaha robustness, playability, and stability.
An extensive range of training functions to support drummers
The best practice functions featured in previous DTX models are also found in the DTX-PRO. As well as the sophisticated programmable metronome, the module offers a comprehensive recorder function, 10 training functions that are ideal for players of all standards, as well as 37 training songs that allow you to learn various genres. Beginners and professionals alike will find the DTX8 training functions a useful aid for daily practice.
Professional grade headphone amp
Yamaha realize that it is incredibly important that drummers can hear themselves clearly, so the DTX-PRO module comes equipped with a high precision, low distortion, low noise, and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, has been developed exclusively for electronic drums, and it envelops the player in a realistic drumming sound stage.
Includes Cubase AI
The DTX-PRO comes with a download code for the latest version of "Cubase AI" the powerful music production software.
By connecting the DTX-PRO to your computer with a USB cable, all recording, editing, and mixing tasks that are found in modern music production, can be handled by the one software program.
Specs
Yamaha DTX8K-X E-Drum Set
- Snare: XP125SD-X (12-inch TCS pad with 2 zone)
- Tom Pad: XP105T-X (10-inch TCS pad with 2 zone)
- Floor Tom Pad: XP105T-X (10-inch TCS pad with 2 zone)
- Kick Pad: KP90 (7.5-inch rubber pad with Multilayer cushion)
- Hi-hat Pad: RHH135 (13-inch pad with 2 zone)
- Crash cymbal 1: PCY135 (13-inch pad with 3 zone)
- Crash cymbal 2: PCY135 (13-inch pad with 3 zone)
- Ride cymbal: PCY155 (15-inch pad with 3 zone)
- Hi-hat Stand: HS650A

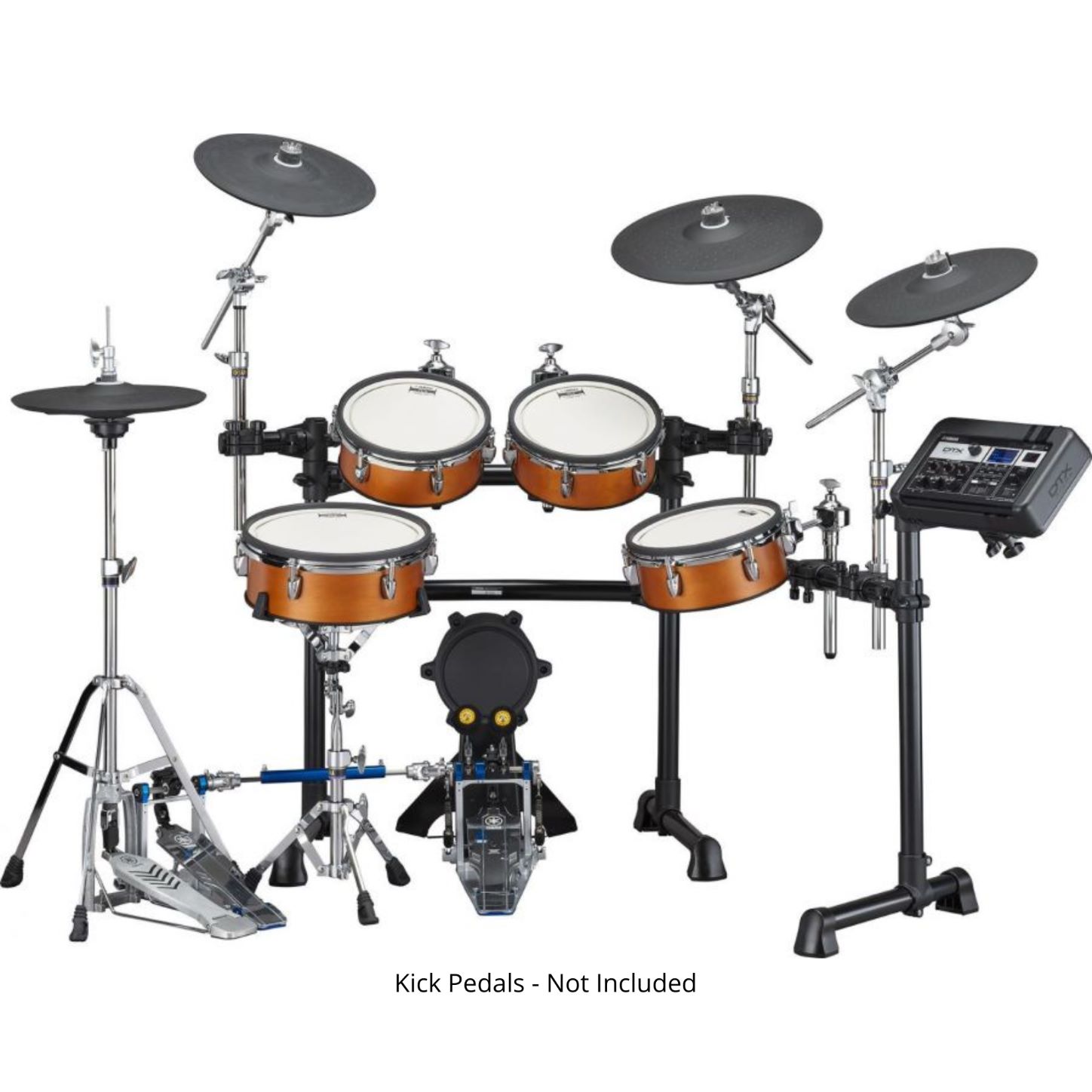

- ****Kick Pedal- NOT INCLUDED- Image as an example only****
- Footprint (average): 1,100 mm x 1,500 mm
- Weight: 45.88 kg
- Snare Stand: SS662 (Snare Stand for 12")
- Width: 303 mm (11-15/16 in)
- Ton Generator - Height: 196 mm (7-11/16 in)
- Depth: 66 mm (2-5/8 in)
- Weight: 1.5 kg (3 lb 5 oz)
- Maximum Polyphony: 256 notes
- Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
- Drum kits: Preset: 40 Kits, User: 200 Kits
- Voices: 712
- Click Sets: 30
- Tempo: 30 to 300 BPM, Tap Tempo supported.
- Time signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
- Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
- Others: Individual click volume control, wav import, timer
- Training Types: 10
- Songs: Preset: 37 songs, User: 1 song
- Audio Files - Import limit: 1,000 files
- Maximum loadable sample time: 760 seconds (44.1 kHz, 16-bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
- Sample Format: WAV
- Recording time Internal memory: Maximum of 90 seconds
- Recording time USB flash drive: Maximum of 90 minutes per file
- Format: Record/playback: WAV (44.1 kHz, 16-bit, stereo)

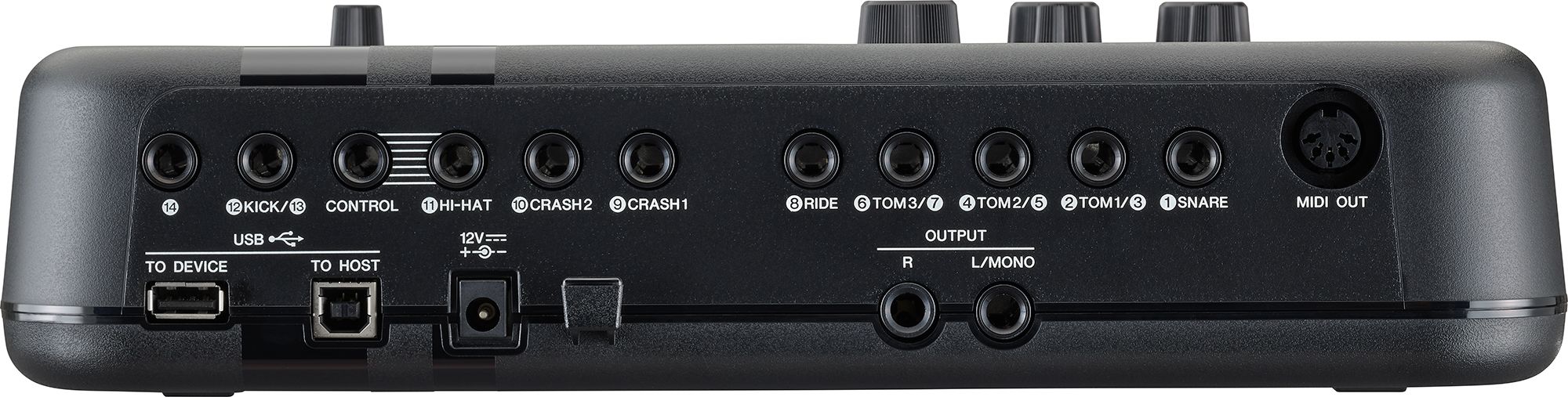

- Connectors
- DC IN: DC IN (+12V)
- Headphones: Headphones (standard stereo phone jack × 1)
- AUX IN: AUX IN (stereo mini jack × 1)
- Output: OUTPUT L/MONO, R (standard phone jack, one for each)
- USB: USB TO DEVICE, USB TO HOST
- MIDI: MIDI OUT
- Trigger Input: Trigger input jack ×10 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for All type of pad, 2, 4, 6 for 2zone, 8, 9, 10 for 3zone, 11 dedicated for hi-hat pad/controller, 12 for kick, 2zone) *If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum 14 of pads to be connected (when Y-cable is used)
- Display: Full Dot LCD (128×64 dot)
- Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha) *2, Owner’s Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information *2 May not be included depending on your area. Check with your Yamaha dealer.
