Overview

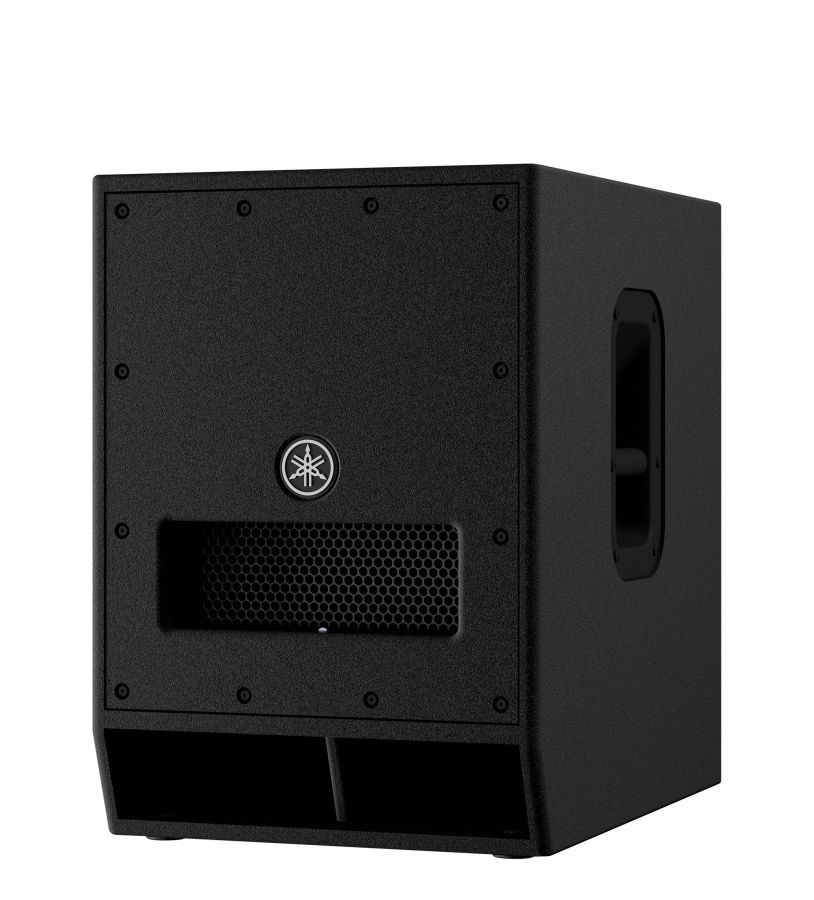

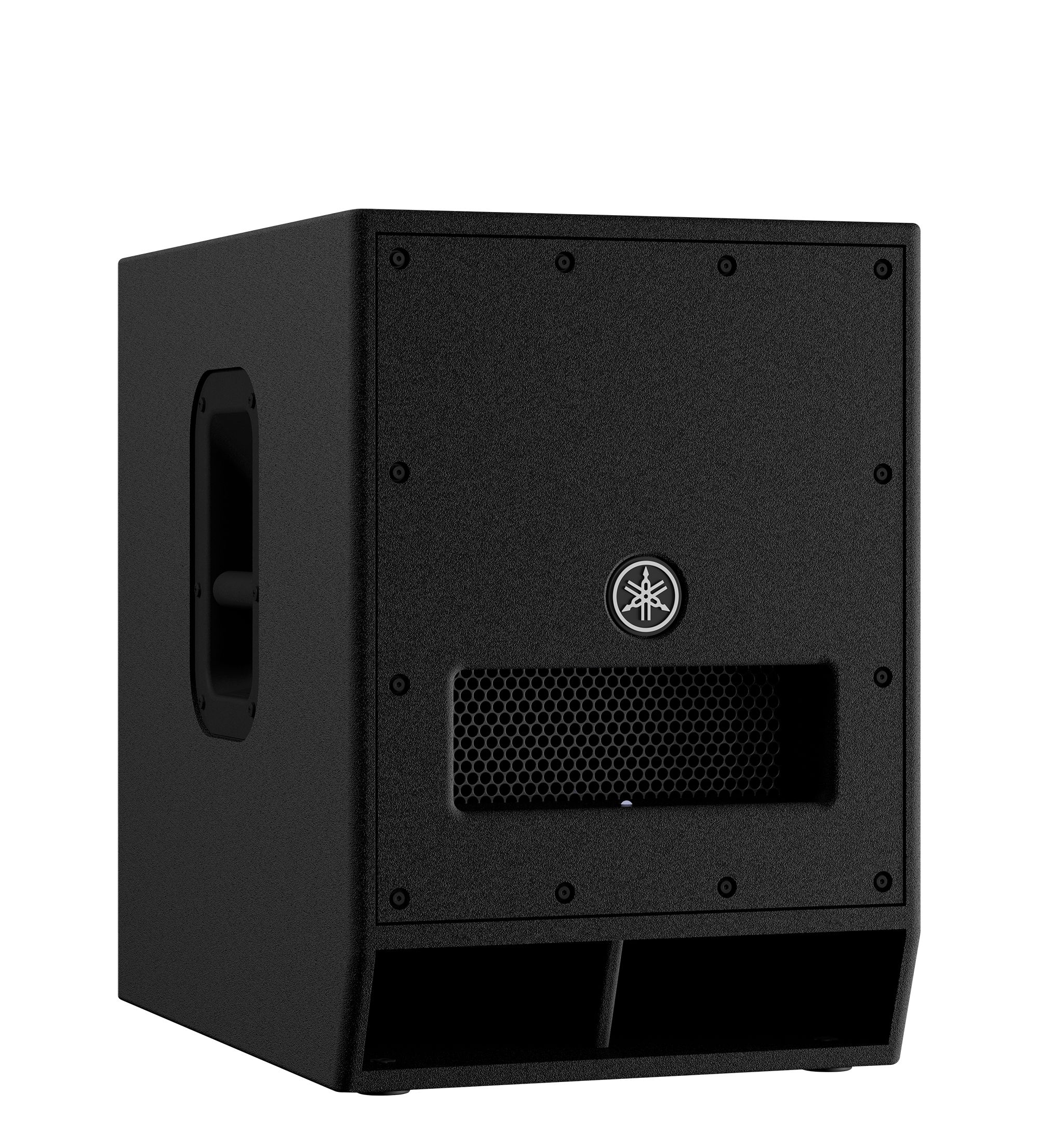

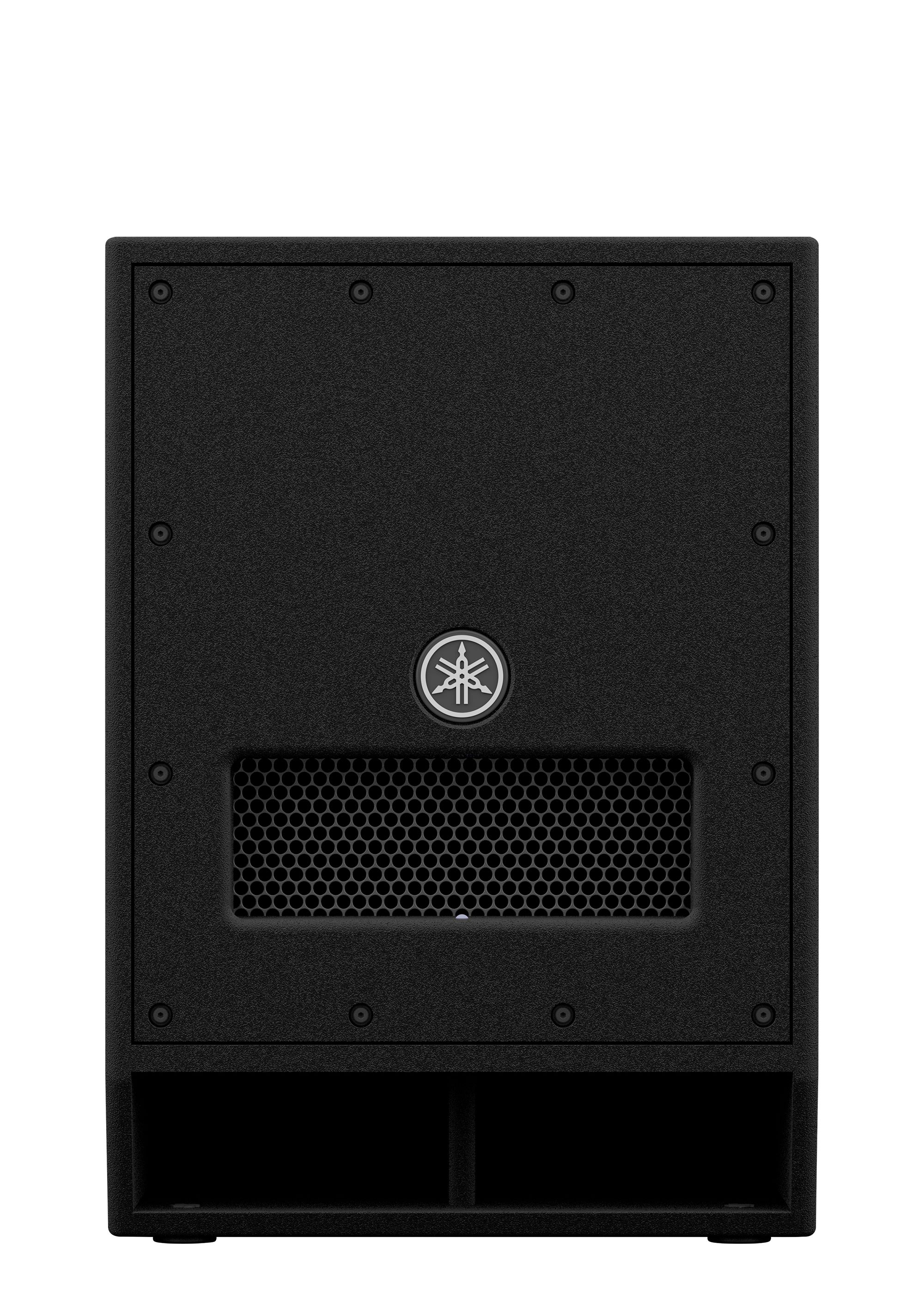

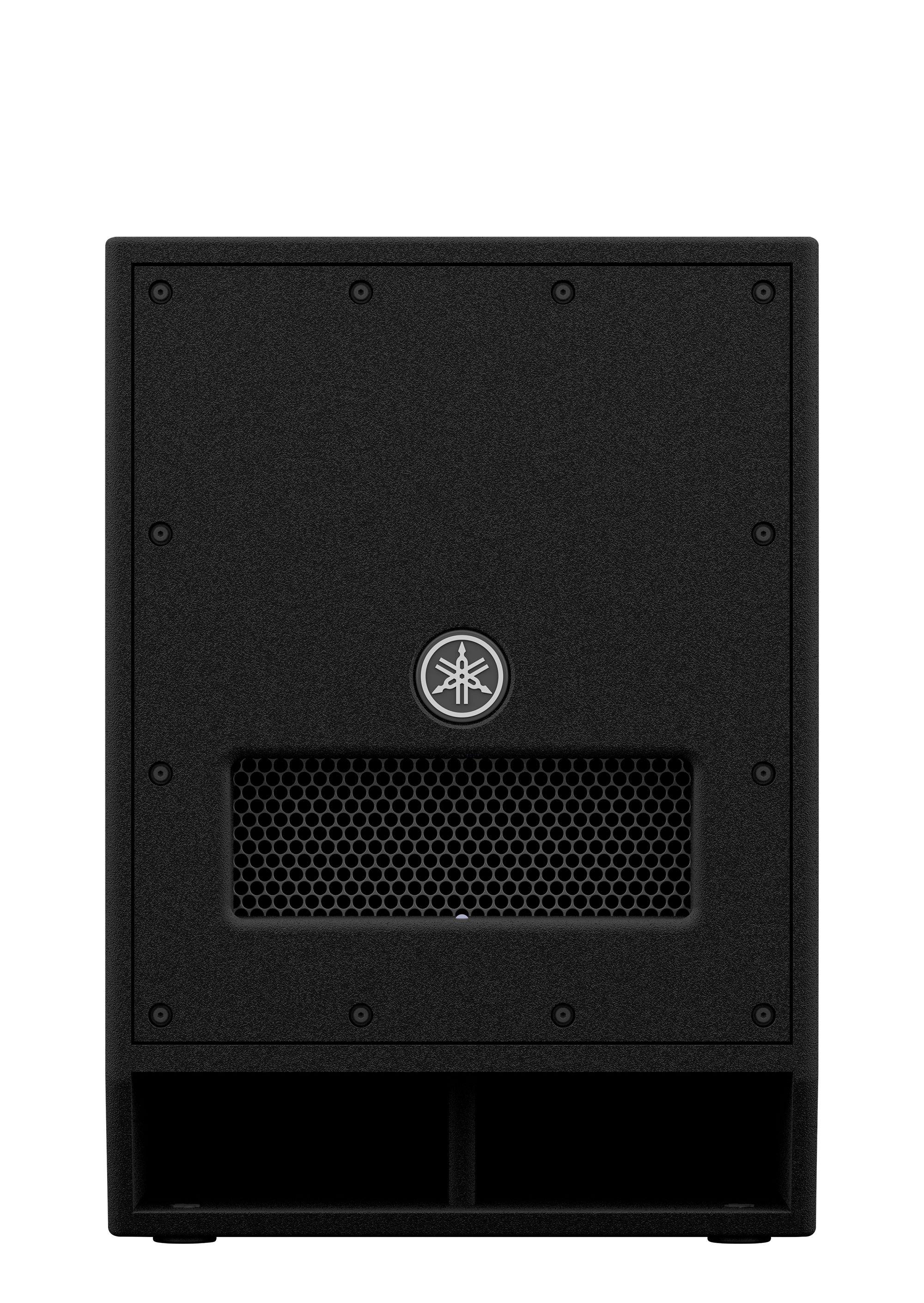

For smaller venues or temporary sound reinforcement setups that require serious power with a professional edge, look no further than this compact powerhouse. The new DXS12 mkII is equipped with an upgraded 1020W power amplifier producing an impressive 134dB and reaching as low as 42Hz producing clean, clear, heart-stopping bass that defies its lightweight construction.
Try selecting our D-XSUB “BOOST” or “XTENDED LF” low frequency processing settings, turn up the volume, and watch the eyes widen and jaws drop. All this in a small, easy to install enclosure. Listeners will need to search for the source of this much low frequency performance.
12" powered subwoofer with 1020W class-D power amplifier High-output 12” woofer with a band-pass design cabinet for superb bass response with a maximum 134dB SPL 42Hz-150Hz frequency range is ideal for small to medium-sized applications Built-in D-XSUB processing allows you to extend the frequency response even lower Plywood cabinet is durable and acoustically optimized for minimal distortion Cardioid mode for bass management onstage Selectable X-OVER (80/100/120 Hz) M20 and Ø35 mm dual pole sockets
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Feel the Power DXS Series is made for audio engineers and bass fanatics who demand consistent high-quality sound for their live performances or DJ events - even when it's cranked to the maximum SPL.
High-Efficiency 1020W Class-D Amplifiers The DXS’s high-performance Class-D amplifier is capable of producing up to 1020W of power, and a maximum SPL of 136dB, delivered with exceptional clarity and accuracy. Both the DXS15mkII and DXS12mkII can produce 3dB more SPL than previous models.
Custom Designed Transducer The high-output woofer of DXS18 features a 4" voice coil magnet and delivers powerful, well-defined, low-frequency bass with minimal distortion. The DXS12mkII and DXS15mkII both feature 2.5" voice coil magnets.
Band-Pass Type Enclosure All DXS Series enclosures incorporate a band-pass design to reduce unwanted vibrations and noise that could otherwise sabotage your sound. We've also designed a very durable plywood enclosure which, when combined with the band-pass configuration, tested better than the traditional bass-reflex design and reduced distortion considerably, making it possible to achieve a higher SPL.
Durable, Portable, and Road-Ready Ergonomic and compatible features just made your system setup and transport a whole lot easier.
Rugged coating for superior protection Enclosure exteriors feature a durable Polyurea coating with extremely high damage resistance to protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
Compact and portable design enclosure Just as impressive as the high output at their disposal is the compact portability and lightweight construction that houses the DXS Series' awesome power. The DXSmkII models in particular have shed 2kg and 3kg compared to their 15” and 12” predecessors respectively, making it easier than ever to load up, set up, or tear down your PA.
Optional Wheel Kit For more fast and convenient setup of your DXS subwoofers, optional wheels are available, featuring radial ball bearings that ensure smooth running and a rattle-free performance.
Optional Speaker Cover* The functional speaker covers that protect your speakers from unfavourable weather conditions during operation in outdoor performances, and in dusty and dirty warehouse storage, or the rigors of equipment transport on the road. Trilaminar polyester fabric with an inner cushion protect from impacts. Slits allow easy access to the handles for carriage.
*Covers do not guarantee waterproof protection.
Dual pole socket For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.
Specs
Speaker type
12" powered subwoofer, Band-pass type
Frequency range (-10dB)
42 Hz - 150 Hz
Components
12" cone, 2.5" voice coil
Output power
Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)
134 dB SPL

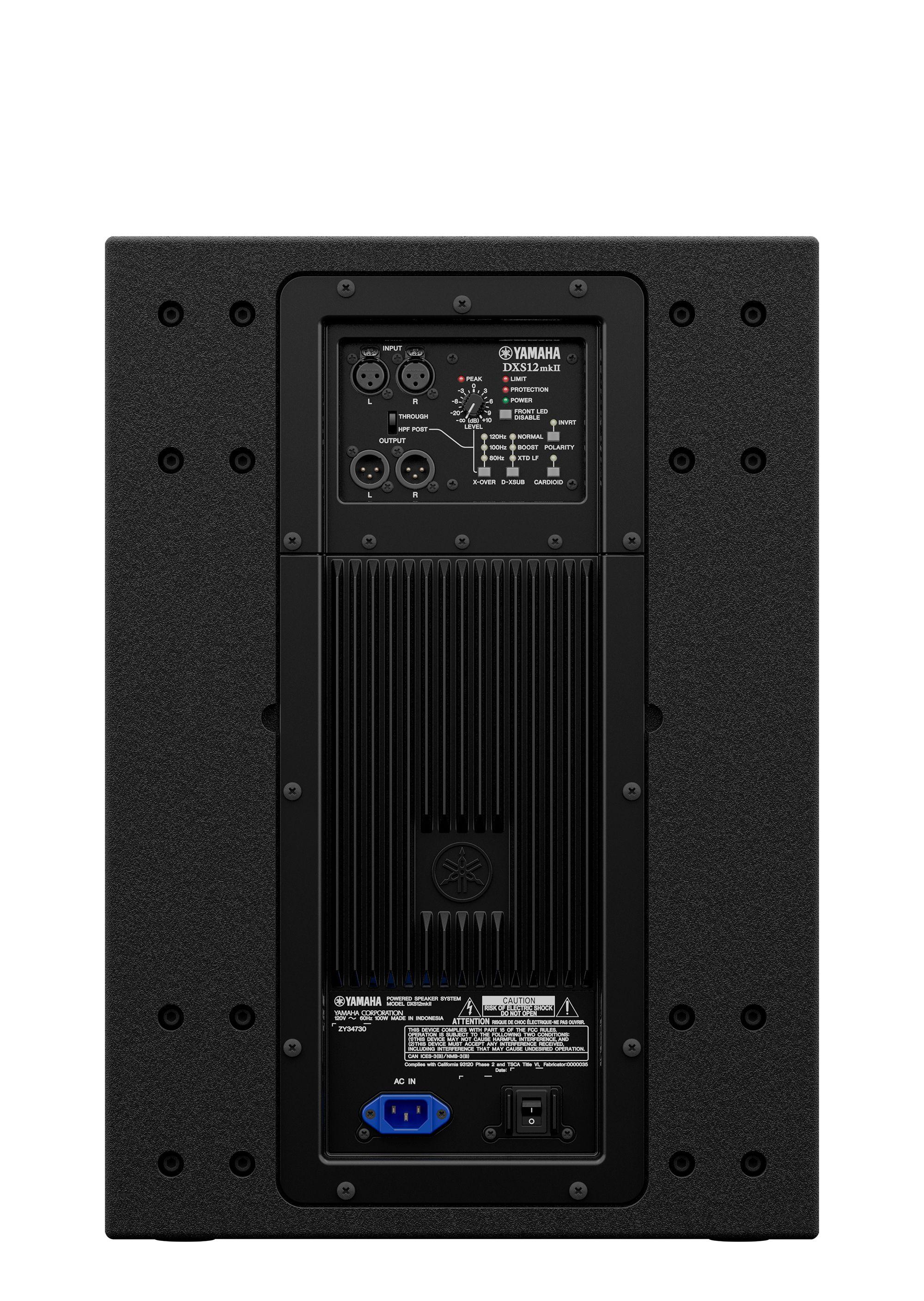

I/O connectors
INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors
D-XSUB: BOOST,XTENDED-LF, OFF
Cooling
Natural convection
Power requirements
100V – 240V, 50Hz/60Hz
Power consumption
100W
Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Width
400 mm (15.75")
Height
567 mm (22.32")
Depth
570 mm (22.44")
Net weight
30.0 kg (66.1lbs)
Others
Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
