Overview
Professional Automation for Multi-microphone Mixing

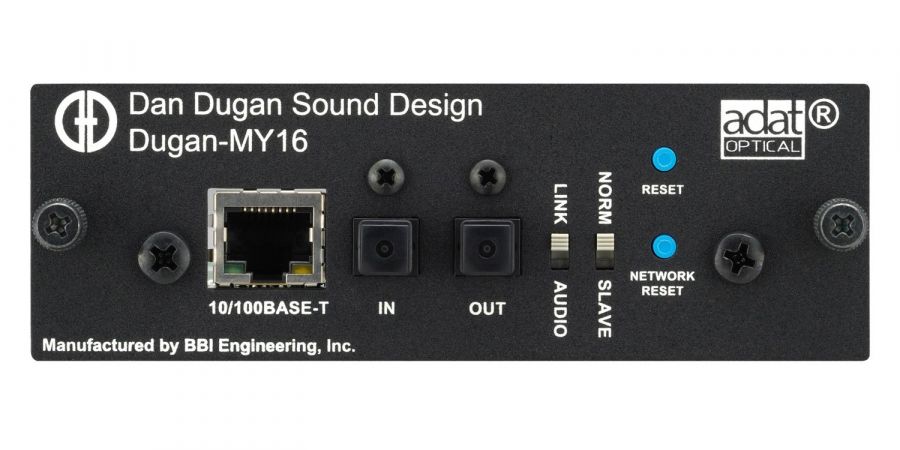

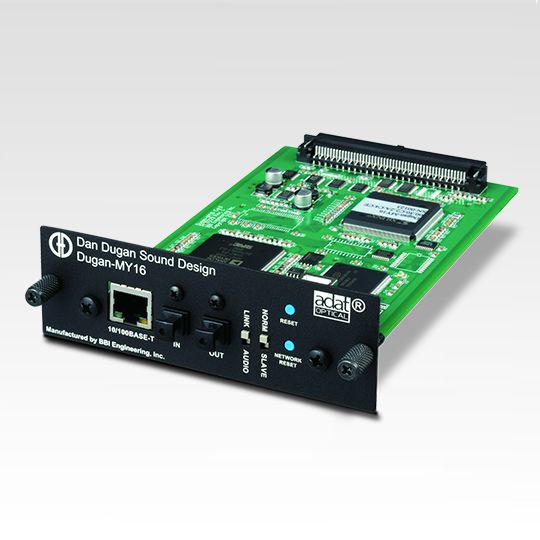

The Dugan-MY16 is an automatic mixing card for Yamaha digital mixers that employs advanced technology from Dan Dugan Sound Design. When multiple microphone inputs need to be mixed without a script or pre-planned gain changes, the Dugan-MY16 can automatically optimize gain distribution over multiple faders so that the engineer is free to concentrate on the quality of the mix, rather than being chained to the faders. It’s almost like having a talented assistant engineer keeping track of fader levels, lightening the overall workload and maximizing efficiency.[About Dan Dugan Sound Design]Dan Dugan Sound Design specializes in automatic mixing technology, with automatic mixer inventor Mr. Dan Dugan at the helm. Initially licensed by the Altec company for their automatic mixers, the unique algorithm of the Dugan Speech System is now being made available in high-performance automatic mixing systems under the Dan Dugan Sound Design brand. Dan Dugan products have become standards in broadcast studios, conferences, and houses of worship in the United States, prized for their outstanding performance and reliability.
- 24bit resolution, 16-in/16-out automatic mixing (8-in/8-out at 96 kHz)
- 2x Optical connectors, 1x RJ-45 connector
- Up to 8 cards can be used simultaneously to handle up to 128 channels at 48 kHz, or 64 channels at 96 kHz
- Automatic detection of active mics with automatic control of individual channel and overall gain
- No speech cutoff due to late fader activation, for smooth, uninterrupted sound
- Effective background noise and feedback suppression without the need for noise-gate type threshold level settings
- Easy setup: simply insert on the appropriate mixer input channels and raise the faders
- Channels can be grouped to make up to three independent automatic mixers
- Dugan Control Panel software application provides remote control and level monitoring capability
- Can also function as an 8-channel auto-mixer + 8-channel ADAT interface
Dan Dugan Sound Design
Dan Dugan Sound Design specialises in automatic mixing technology, with automatic mixer inventor Mr. Dan Dugan at the helm. Initially licensed by the Altec company for their automatic mixers, the unique algorithm of the Dugan Speech System is now being made available inhigh-performance automatic mixing systems under the Dan Dugan Sound Design brand. Dan Dugan products have become standards in broadcast studios, conferences, and houses of worship in the United States, prized for their outstanding performance and reliability.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Dugan-MY16 Gain Control Operation
The Dugan-MY16 uses the innovative Dugan Speech System to control gain, distributing microphone gain across the entire system in order to retain the natural ambience of a single microphone.This remarkable system achieves automatic mixing without distracting level changes, inconsistent ambience, or other problems associated with automatic mixing using noise gates.The illustration shows the input and gain levels for three microphone inputs.
System Example
Setup is accomplished by simply inserting the Dugan processor into the appropriate input channels of the mixer (post-fader insert recommended) and raising the corresponding channel faders.
The Dugan Control Panel software is a JAVA application that runs on Windows and Mac computers, providing remote control and level monitoring for the Dugan-MY16.
No one speaking
When nobody is speaking all input levels are low and the gain levels are equal. The microphones are not muted. The gain is equally distributed between them.
One speaker
When one person is speaking the gain of the corre sponding microphoneis instantaneously raised to 0 dB while the gain of the other two microphones is lowered. The same occurs in any channel when only one person is speaking.
Multiple speakers
When two people speak at the same time the gain is equally distributed between the two active microphones so that the total gain remains constant, and the gain of the remaining microphone is lowered.
