Specs
Colour/Finish
Cabinet ~ White
Size/Weight
Width ~ 941mm (37-1/16")
Height ~ 105mm (4-1/8")
Depth ~ 317mm (12-1/2")
Weight ~ 4.6kg (10lb, 2oz) (not including batteries)
Control Interface
Keyboard - Number of Keys ~ 61
Keyboard - Type ~ Organ Style
Keyboard - Touch Response ~ Yes (Soft, Medium, Hard, Off)
Display
Type ~ LCD
Backlight ~ Yes
Language ~ English
Panel
Language ~ English
Voices
Tone Generation - Tone generating Technology ~ AWM Stereo Sampling
Polyphony - Number of Polyphony (Max.) ~ 48
Preset - Number of Voices ~ 650 (258 Panel Voices + 25 Drum/SFX kits + 20 Arpeggio + 347 XGlite Voices)
Compatibility - GM ~Yes
Compatibility - XGlite ~ Yes
Effects
Types - DSP ~ 41 types
Types - Reverb ~ 15 types
Types - Chorus ~ 7 types
Types - Master EQ ~ 5 types
Types - Harmony ~ 26types
Functions - Dual ~ Yes
Functions - Split ~ Yes
Functions - Arpeggio ~ 152 types
Functions - Melody Suppressor ~ Yes
Accompaniment Style
Preset - number of Preset Styles ~ 260
Preset - Fingering ~ Smart Chord, Multi-finger
Preset - Style Control ~ ACMP, ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
Other Features
Music Database ~ 200
One Touch Setting (OTS) ~ Yes
Auto Chord Play ~ 50 Chord Progressions
Expandability - Expansion Style ~ 10
Songs
Number of Preset Songs ~ 152
Recording - Number of Songs ~ 5
Recording - Number of Tracks ~ 2
Recording - Data Capacity ~ approx. 10,000 notes
Compatible Data Format - Playback ~ SMF Formats 0 & 1
Compatible Data Format - Recording ~ Original File Format
Functions
Lesson ~ KEYS TO SUCCESS, 3-Step Lesson (listening, timing, Waiting), A-B Repeat, Rhythm & Touch Tutor
USB audio interface ~ 44.1kHz, 16 bit, stereo
Overall Controls - Metronome ~ Yes
Overall Controls - Tempo Range ~ 11-280
Overall Controls - Transpose ~ -12 to 0, 0 to +12
Overall Controls - tuning ~ 427.0-440.0-453.0 hz (approx 0.2 Hz increments)
Overall Controls - Duo ~ Yes
Miscellaneous - PIANO Button ~Yes (Portable Grand Button)
Storage and Connectivity
Storage - Internal Memory ~ Approx. 1.4MB
Connectivity -DC In ~ 12 V
Connectivity - Headphones ~ Standard stereo phone jack (PHONES/OUTPUT)
Connectivity - Sustain Pedal ~ Yes
Connectivity - AUX IN ~ Yes (Stereo mini jack)
Connectivity - USB TO HOST ~ Yes (MIDI/AUDIO)
Amplifiers and Speaker
Amplifiers ~ 2.5W + 2.5W
Speakers ~ 12 cm x 2
Power Supply
Adaptors ~ PA-130 or an equivalent recommended by Yamaha
Batteries ~ Six "AA" size alkaline (LR6), manganese (R6), or Ni-MH rechargeable batteries (HR6)
Power Consumption ~ 5 W (when using PA-130 AC adaptor)
Auto Power Off ~ Yes
Accessories
Included ~ Music rest, Owner's Manual, AC Adaptor *(PA-130 or equivalent recommended by Yamaha), Online Member Product Registration, Song Book (digital Download from Yamaha website)

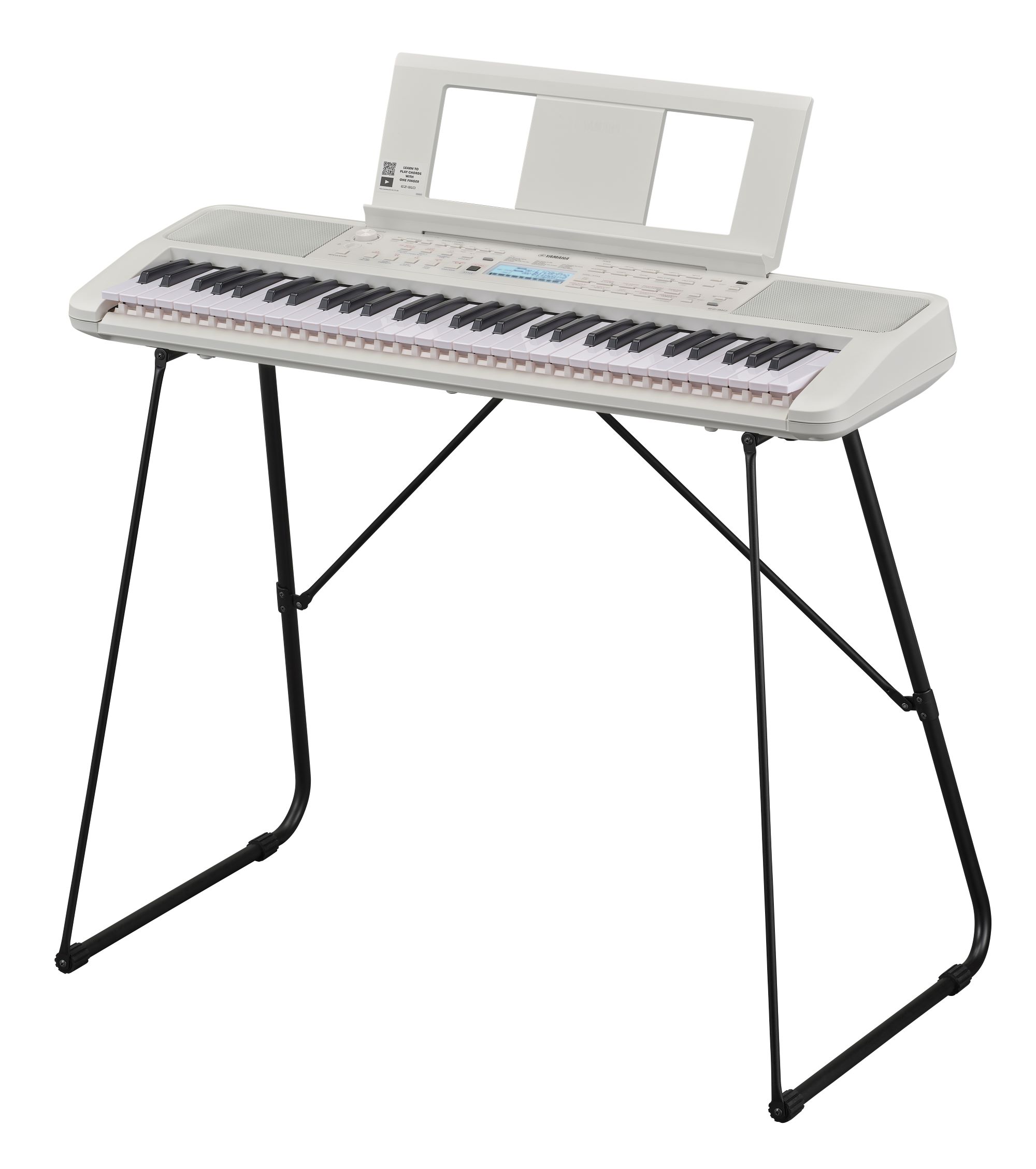

Sold Separately ~ Keyboard stand: L-2C, Headphones: HPH-150, HPH-100. HPH-50; Footswitch: FC4A, FC5; Keyboard bag: SC-KB630
