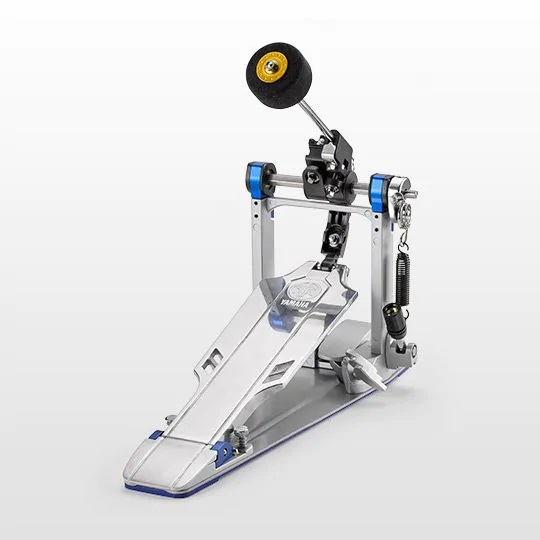

FP9D Direct Drive Bass Drum Pedal
- Quick Adjusting Link
- Axle Stabilizing Bearing Chamber
- Low Profile Stabilizing Hinge
- Easy Access Auto Lock Spring Adjustment
- Weight Adjustable Beater
- Independent Beater/Footboard Angle Adjustment
- Ball Bearing Drive Connection
- Anti-Skid Heel Spikes
- Carrying Case
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Quick Adjusting Cam / Link
The chain drive gains tension gradually throughout the stroke as the pedal is depressed. Switching the cam from C1 to C3 reduces the initial tension.
Double Chain Drive
This durable,reliable double chain drive boasts fluid movement. The cam at the bottom of the chain can be slid into three positions, allowing the drummer to fine tune the pedal's action to match their preferred performance. It can also be used as a belt drive by replacing the belt that comes included with the pedal.
Axle Stabilising Bearing Chamber
The frame and bearing cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing them to to be aligned with the central axis of the shaft and ball bearings to unleash a smooth rotation.
Low Profile Stabilising Hinge
The hinge base and cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing smooth foot board performance.
Easy Access Auto Lock Spring Adjustment
Moving the spring adjustment knob upward greatly simplifies the traditionally troublesome tension adjustment process. The knob is locked at a 90-degree angle that prevents it from coming loose on its own.
Weight Adjustable Beater
Attaching weights to the beater allows drummers to attain their preferred sound and feel. Aluminium (3g) and Brass (9g) weights are both available and can be attached and removed easily.
Independent Beater/Footboard Angle Adjustment
The beater angle and footboard angle can be independently and freely adjusted. The inclusion of an angle checker allows drummers to easily recreate their preferred settings.
Ball Bearing Drive Connection
The tip of the footboard comes equipped with ball bearings, allowing even smoother performance.
Anti-Skid Heel Spikes
The heel of the pedal comes equipped with spikes that prevent slipping when playing and provide improved stability.
All Bearing Universal Joint
Newly designed universal joints add ball bearings to all axes. The seamlessly smooth rotation dramatically improves the action and operability of the secondary pedal.
Secondary Pedal Anchor
The secondary pedal side also comes equipped with spikes that prevent slipping when playing and ensure stable performance.
Carrying Case
The pedal unit comes with its own semi-hard carrying case.
Specs
- Type: Single
- Drive: Direct
- Drum Key: included
- Carrying Case: included
