Overview

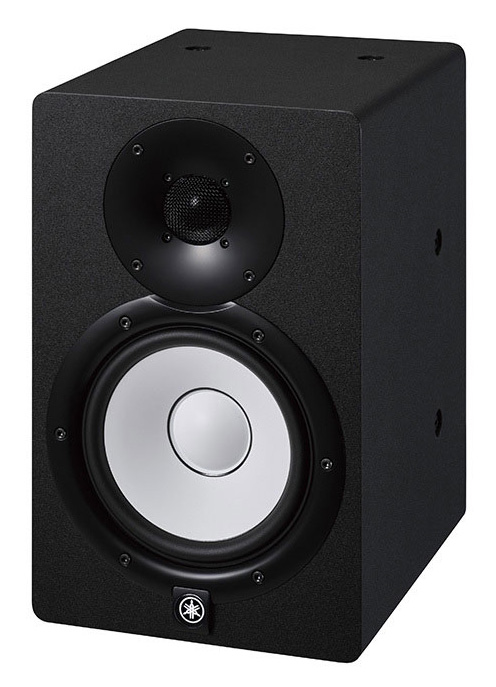

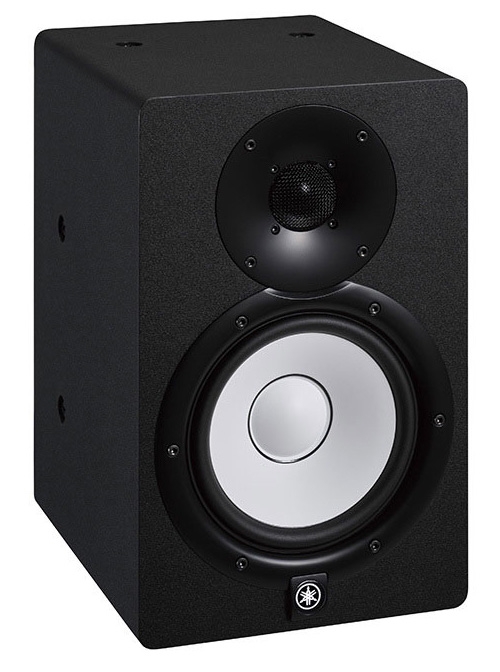

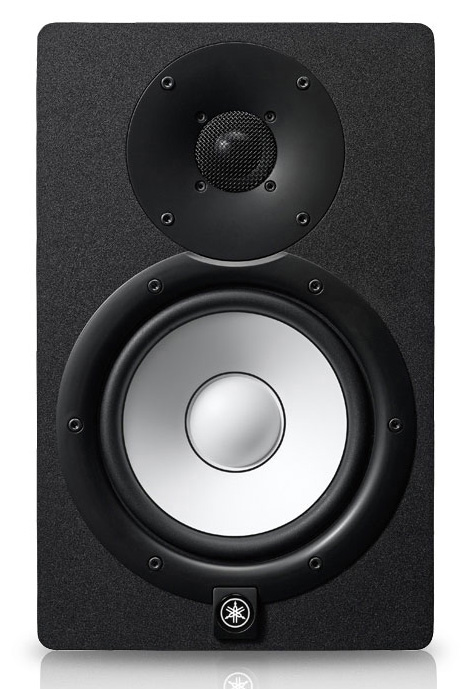

Yamaha HS7I Single Monitor Speaker with Integrated Mounting Points
Channelling the spirit of the legendary Yamaha NS10 nearfield speakers, the HS7I monitors offer exceptional detail and clarity with a superb flat response.
This edition of the HS7 speaker features mounting points for wall brackets - perfect for installations in studios, public spaces and retail environments.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 6.5" cone woofer and 1" dome tweeter
- 43Hz - 30kHz (-10dB), 55Hz - 24kHz (-3dB) frequency response

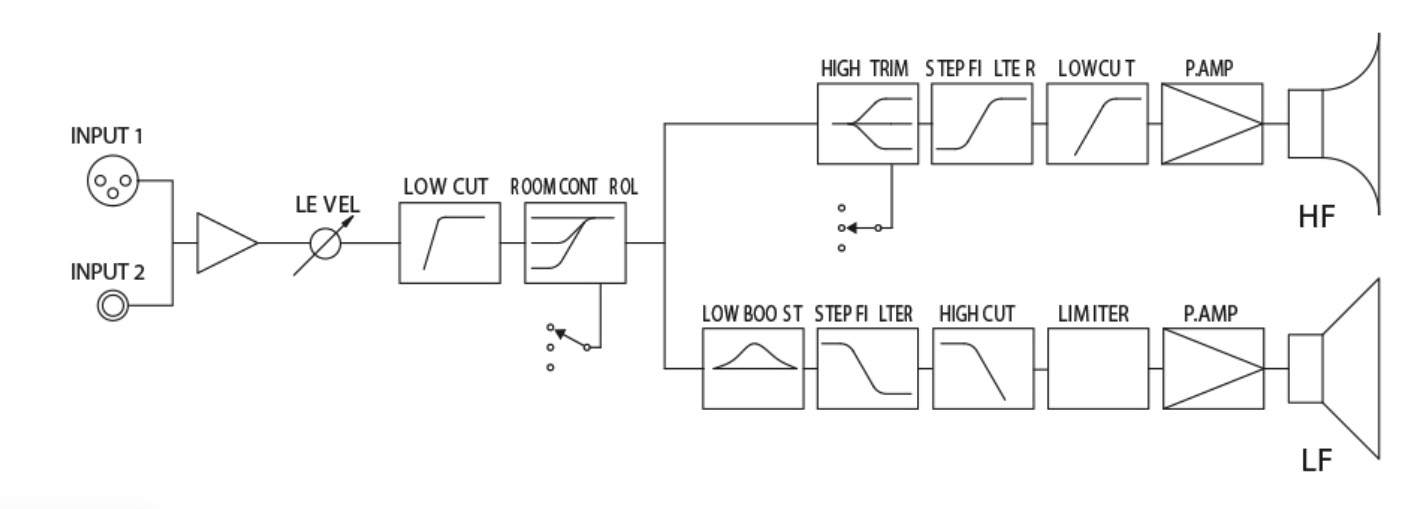

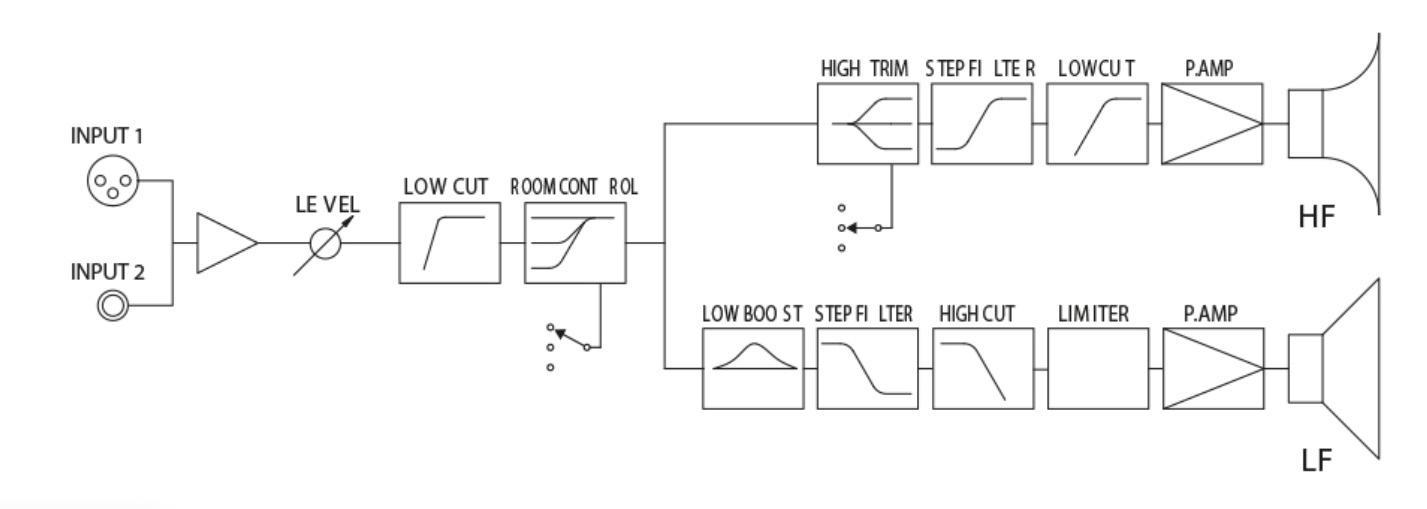

- 60W LF plus 35W HF bi-amp system for high-performance 95W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
- Mounting points on 4 surfaces
Features
Ever since our studio monitors made their debut in the 1970s, their iconic white woofer and signature detail and flat response have become the preferred choice for countless professional audio engineers and producers around the world - as well as finding homes in radio and post-production studios.
This edition of the best-selling HS7 Monitor Speaker includes built-in mounting points, making it compatible with three optional bracket types for wall, ceiling and baton mounting - offering the flexibility needed for a wider range of sonic environments.
Highly Efficient Transducers
The HS Series features newly developed transducers that achieve astonishingly smooth response over a wide bandwidth. These transducers utilise an advanced magnetic field design that regulates the flow of magnetic response to provide seamless, natural sonic transitions Every component's materials and design have undergone an extensive cycle of development, re-examination and optimisation resulting in staggering gains in signal reproduction accuracy across the audio spectrum.
Low Resonance Enclosure Design
The enclosures are constructed from a specific dense and resiliant MDF with a damped acoustic response perfectly matched to reference monitoring. Drawing from over a century of acoustic piano making, we've employed a traditional 3-way mitered-joint technique. Common to architectural design, this construction firmly anchors the the corners of the enclosure to dramatically improve durability and eliminate unwanted resonance.
Wide Range of Applications

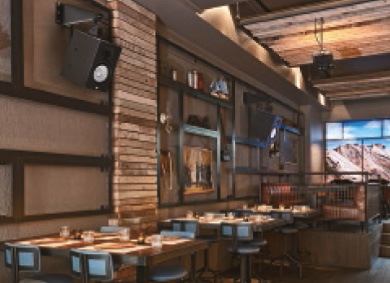

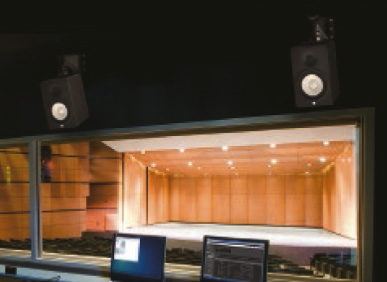

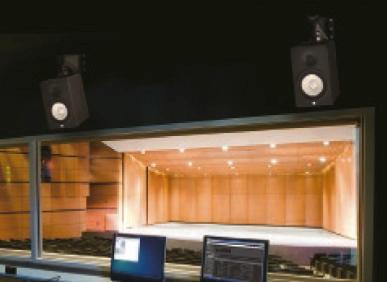

The 'I' Editions of the HS Series feature flexible mounting options that help bring a stylish aesthetic and classic HS sound to a more diverse range of instlled applications.
Specs
Speaker type | 2-way bi-amp powered studio monitor |
---|
Frequency response (-10dB) | 43Hz - 30kHz |
---|
Frequency response (-3dB) | 55Hz - 24kHz |
---|
Components | LF | 6.5" cone |
---|
HF | 1" dome |
---|
Crossover | 2kHz |
---|
Output power | 95W (LF:60W, HF:35W) |
---|
Input sensitivity | -10 dBu/10k ohms |
---|
I/O connectors | XLR3-31 type (balanced), PHONE (balanced) |
---|
Indicators | Power ON (White LED) |
---|
Power consumption | 55W |
---|
Shape | Bass-reflex type |
---|
Cabinet material | MDF |
---|

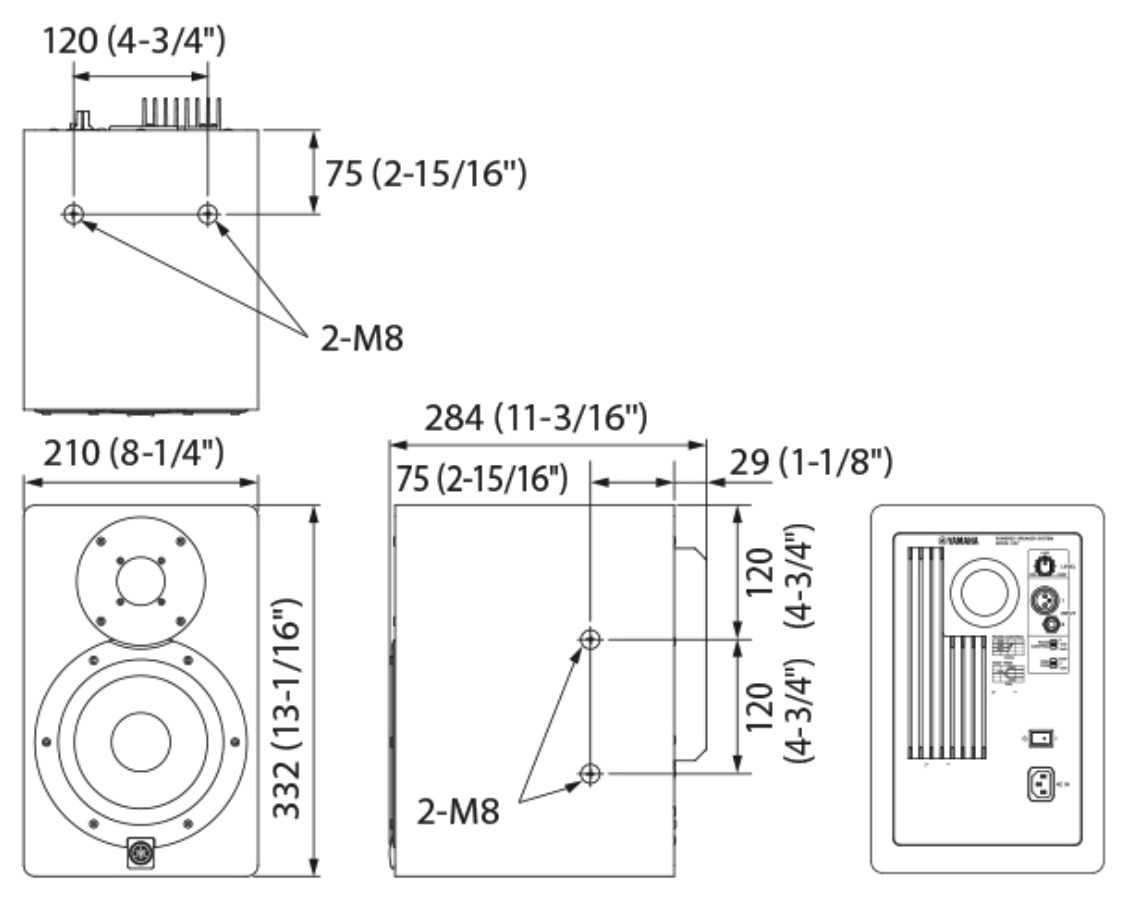

Flying and mounting hardware | Four surfaces x 2 x M8 (120 mm pitch) |
---|
Dimensions | W | 210mm (8-1/4") |
---|
H | 332mm (13-1/16") |
---|
D | 284mm (11-3/16") |
---|
Net weight | 8.7 kg (19.2 lbs.) |
---|
Accessories | Owner's Manual, Power cord, Screws for installing brackets x 2 |
---|
Options | Baton bracket BBS251, Ceiling bracket BCS251, Wall bracket BWS251, Wall / ceiling bracket BWS50 |
---|
Packaging | Single |
---|
Others | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
---|
