Overview
Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.
- 8" bass-reflex powered subwoofer delivers low frequencies down to 22Hz
- 22Hz - 150Hz frequency response
- High-power 150W amplifier exclusively designed for low frequencies
- LOW CUT switch, LOW CUT control (80-120Hz) HIGH CUT control (80-120 Hz)
- PHASE switch allow users to set up a subwoofer system with simple connections and no additional equipment

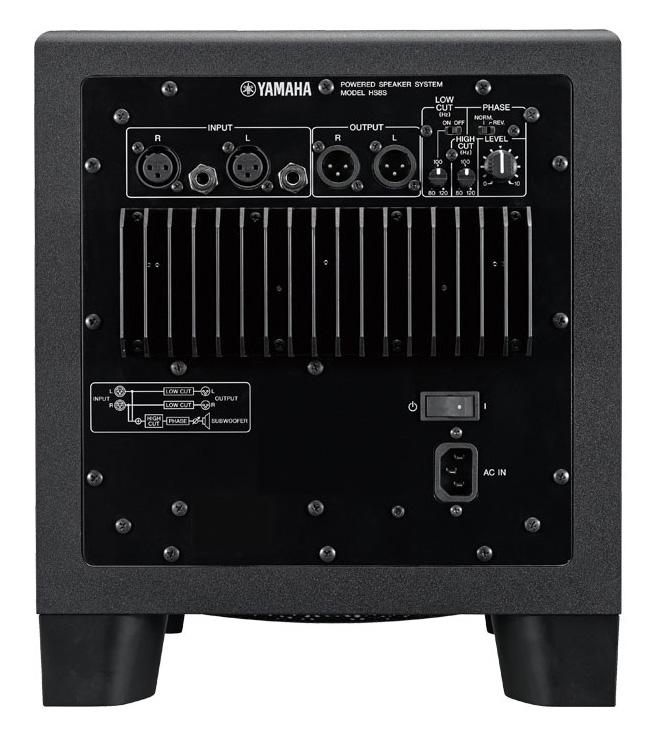

- XLR and TRS phone for inputs and XLR for outputs
Specs
| Speaker type | Powered subwoofer |
|---|
| Frequency range (-10dB) | 22Hz - 160Hz |
|---|
| Components | LF | 8" cone |
|---|
| Output power | 150W |
|---|
| I/O connectors | INPUT: XLR3-31 type (balanced) x2, PHONE (balanced) x2 / OUTPUT: XLR3-32 type (balanced) x2 (L&R) |
|---|
| Power consumption | 70W |
|---|
| Shape | Bass-reflex type |
|---|
| Cabinet material | MDF |
|---|
| Dimensions | W | 300mm (11.8") |
|---|
| H | 350mm (13.8") |
|---|
| D | 389mm (15.3") |
|---|
| Net weight | 12.5kg (27.6 lbs.) |
|---|
| Others | LEVEL control, PHASE switch : NORM./REV., HIGH CUT control (80-120Hz, center click), LOW CUT control (80-120Hz, center click), LOW CUT switch (ON/OFF) |
|---|
| Product ID | CHS8SUK |
|---|
| Limited Shipping |
|
