Overview
Line 6's HX Stomp is a professional-grade multi-effects processor that delivers the sound of Helix amps, cabs, and effects in an ultra-compact pedal. Use it as a 'super stompbox', a backup or fly rig, an add-on tone expander when combined with other modellers, an audio interface - or even a complete guitar or bass rig.
The same HX Modelling technology which powers the flagship Helix guitar processor enables HX Stomp to run up to six processing blocks simultaneously, making it the most powerful and flexible stompbox-sized multi-effects processor available. HX Stomp is easy to operate thanks to its simple-but-powerful controls, colour display, and capacitive-sensing footswitches with colour-coded LED rings.
External control via MIDI and optional expression pedal and footswitch control provide additional flexibility, as does I/O that may be configured for sophisticated routing such as simultaneously feeding an amp and a FOH mixer, 4-cable method operation with an amplifier, and studio re-amping. Along with over 300 amps, cabs, and effects - even a looper-HX Stomp includes a legacy library of effects from Line 6 M-Series pedals, as well as from classic Line 6 stompbox modellers such as the DL4, MM4, FM4, and DM4. There are also presets created specifically for bass players, as well as individual bass amp and cab models.
The free HX Edit app offers preset librarian functionality and third-party IR loading.
- Utilises the same HX Modelling as Helix
- Over 300 effects and models from Helix, M-Series, and legacy Line 6 products
- Up to 6 simultaneous amp, cab, and effect blocks (including a looper and IR loading)
- 3 capacitive-sensing footswitches with color-coded LED rings facilitate fast editing
- TRS dual expression pedal/footswitch input extends creative control capabilities

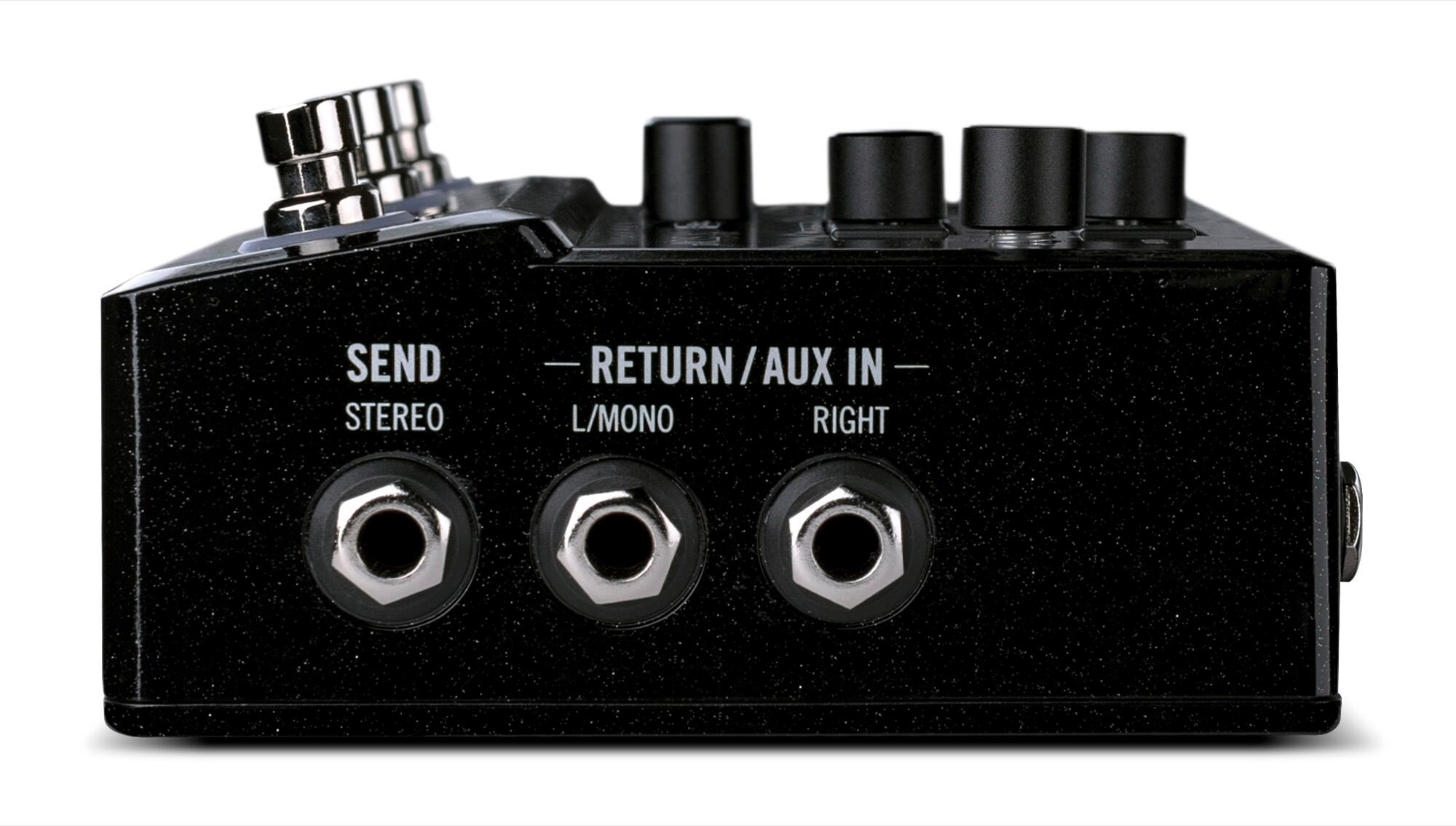

- Stereo effects loop (mono/stereo TRS send + stereo returns) facilitates use with other pedals
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Additional features include a choice of true bypass and DSP bypass with trails, a stereo effects loop for patching other pedals into the signal chain and 4-Cable Method setups, a jack for connecting two external footswitches or expression pedals, extensive MIDI control, IR (impulse response) loading capabilities, and a multichannel 24-bit/96kHz USB audio interface. The free HX Edit app allows you to customize nearly every aspect of the pedal’s operation, create, save and load presets. It also provides preset librarian capabilities, IR loading, and more.
Intuitive Control & Editing

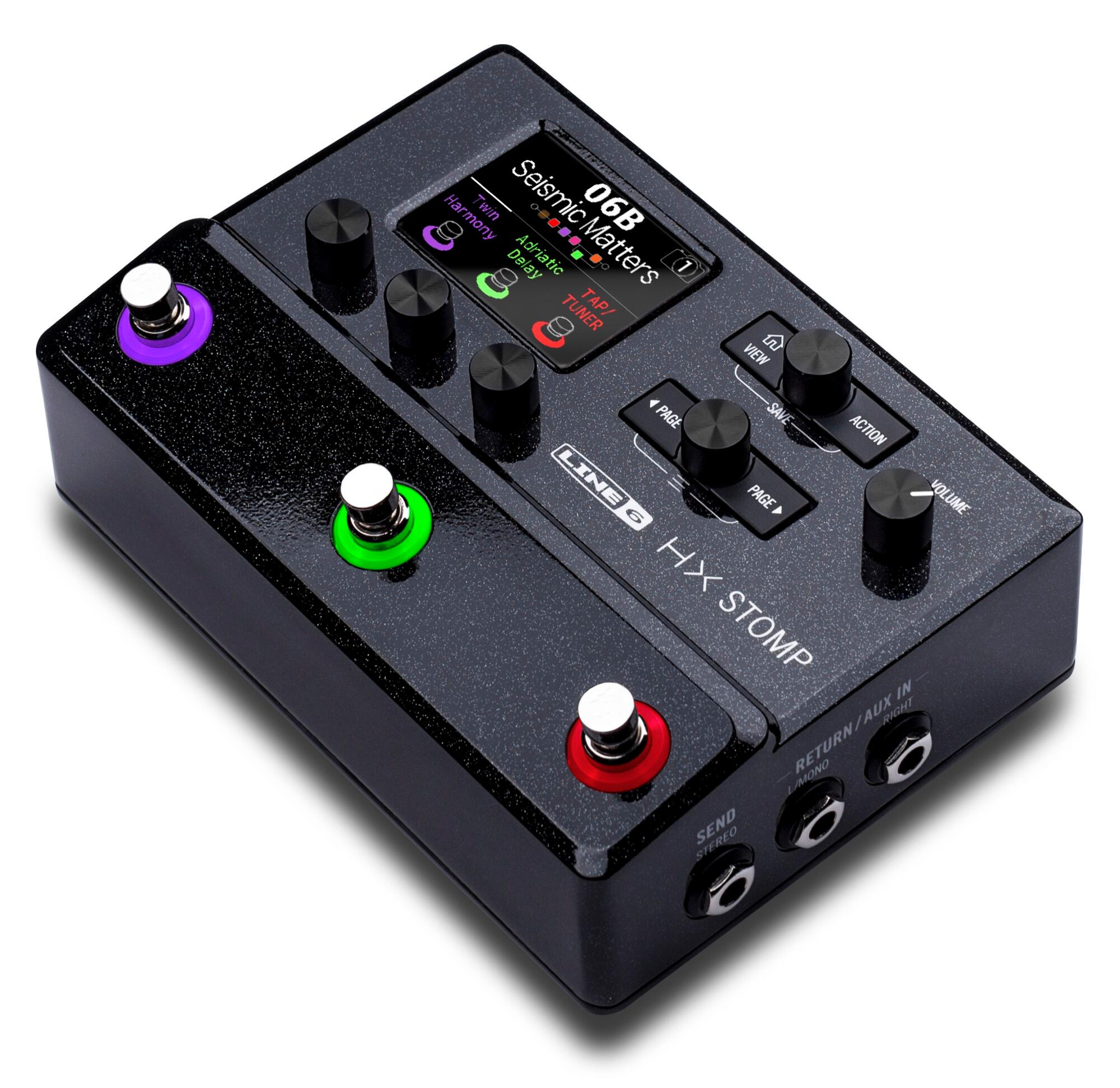

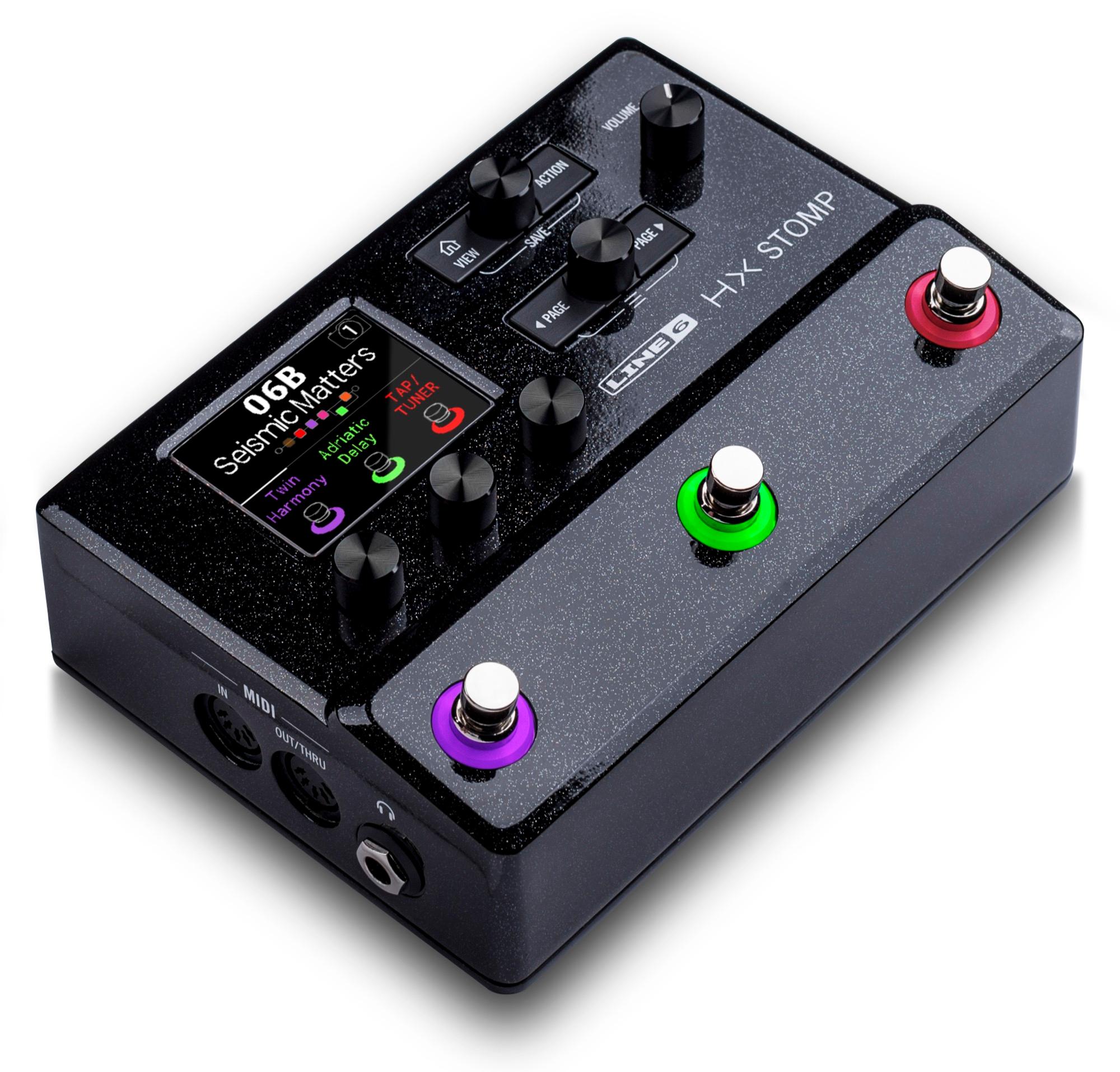

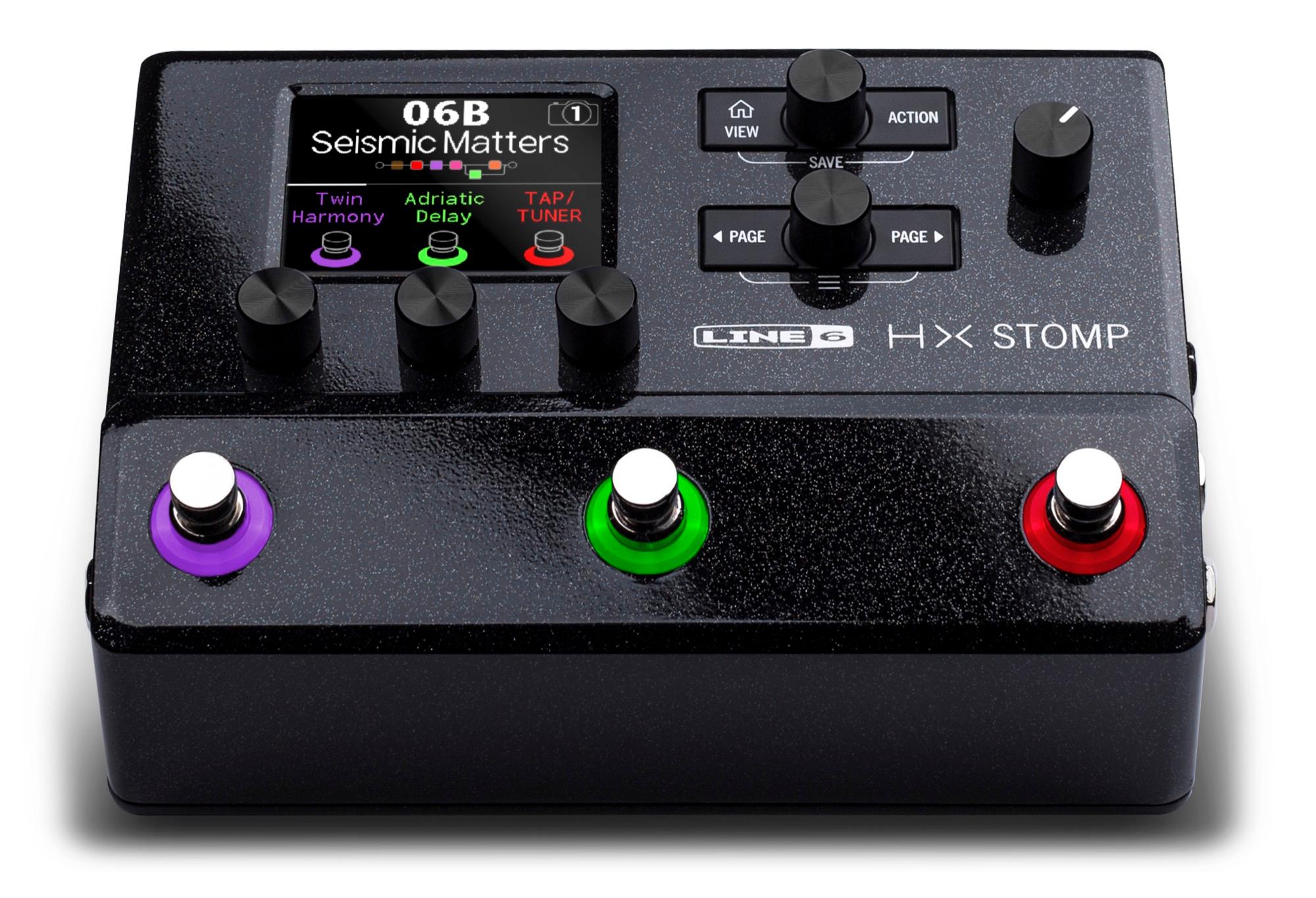

Despite its tiny size, HX Stomp is easy to both operate and program, thanks to its simple but powerful controls, 320 x 240-pixel colour LCD, and three capacitive-sensing footswitches with color-coded LED rings. External control via MIDI and optional expression pedal and footswitch control provide additional flexibility, as does I/O that may be configured for sophisticated routing such as simultaneously feeding an amp and a FOH mixer, 4-Cable Method operation with an amplifier, and easy studio re-amping.
Pristine Audio Quality
An industry-leading 123dB of dynamic range provides tremendous depth and ultra-low noise, while the highest-quality components guarantee unadulterated audio throughout - from inputs to outputs - whether feeding an amp, going direct to FOH, or recording in the studio.
A Complete Rig in a Pedal

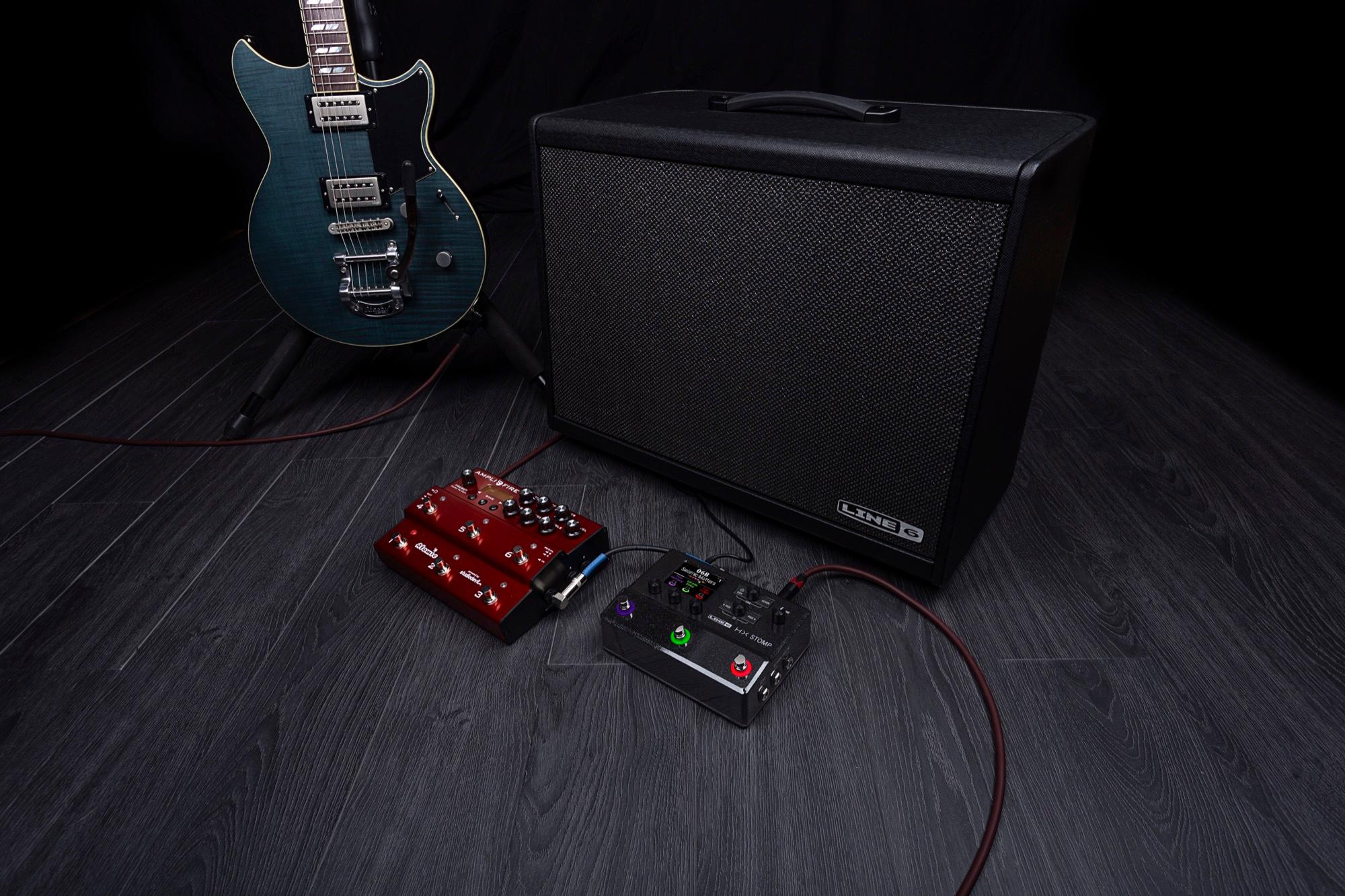

Whether you need a backup for your Helix or other rig, a fly rig that will fit into a duffle bag with room to spare for cables and additional pedals, a convenient practice and rehearsal rig, or a complete guitar and effects studio recording setup - the HX Stomp multi-effects pedal provides the perfect solution. It even fits into the top pocket of a Helix Backpack.
Specs
DSP Processor | 1x SHARC ADSP-21469 Processor, 450MHz |
A/D/A Converters | 24bit, 192KHz |
Chassis | Cast Aluminium Alloy |
Display | 2.4” 320x240 Colour LCD |
Capacitative Footswitches | x3 |
Power Supply | External PSU (Included) |
Width | 7.01” |
Depth | 4.69” |
Height | 2.6” |
Weight | 1.75lbs |

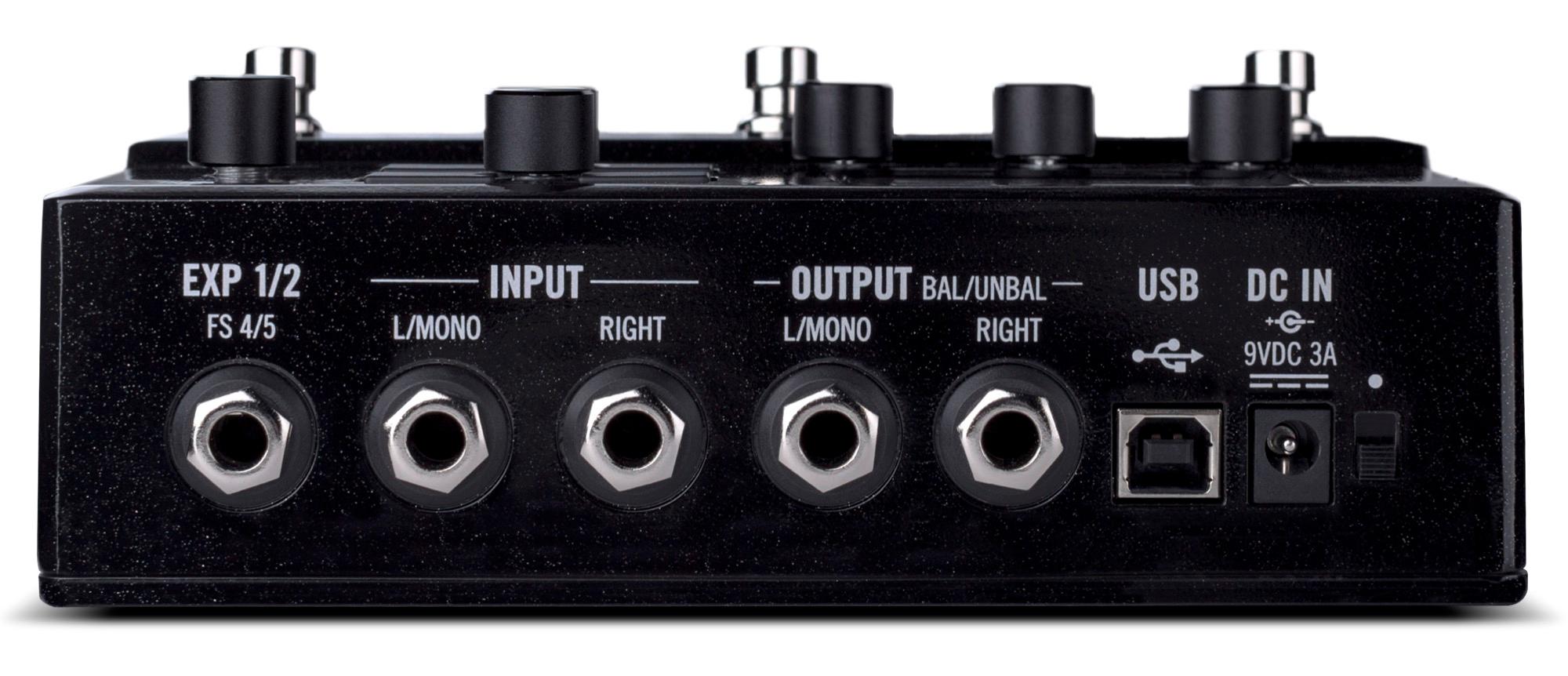

Inputs | 4x 1/4” Jack: Main L/R, Return L/R |
Outputs | 3x 1/4” Jack: Main L/R (Balanced), Stereo TRS Send |
Headphone Output | Yes |
FX Loops | TRS Stereo Send, 2x Return |
Expression Pedal Connection | EXP 1/2 (TRS, Shared with Footswitch 4/5) |

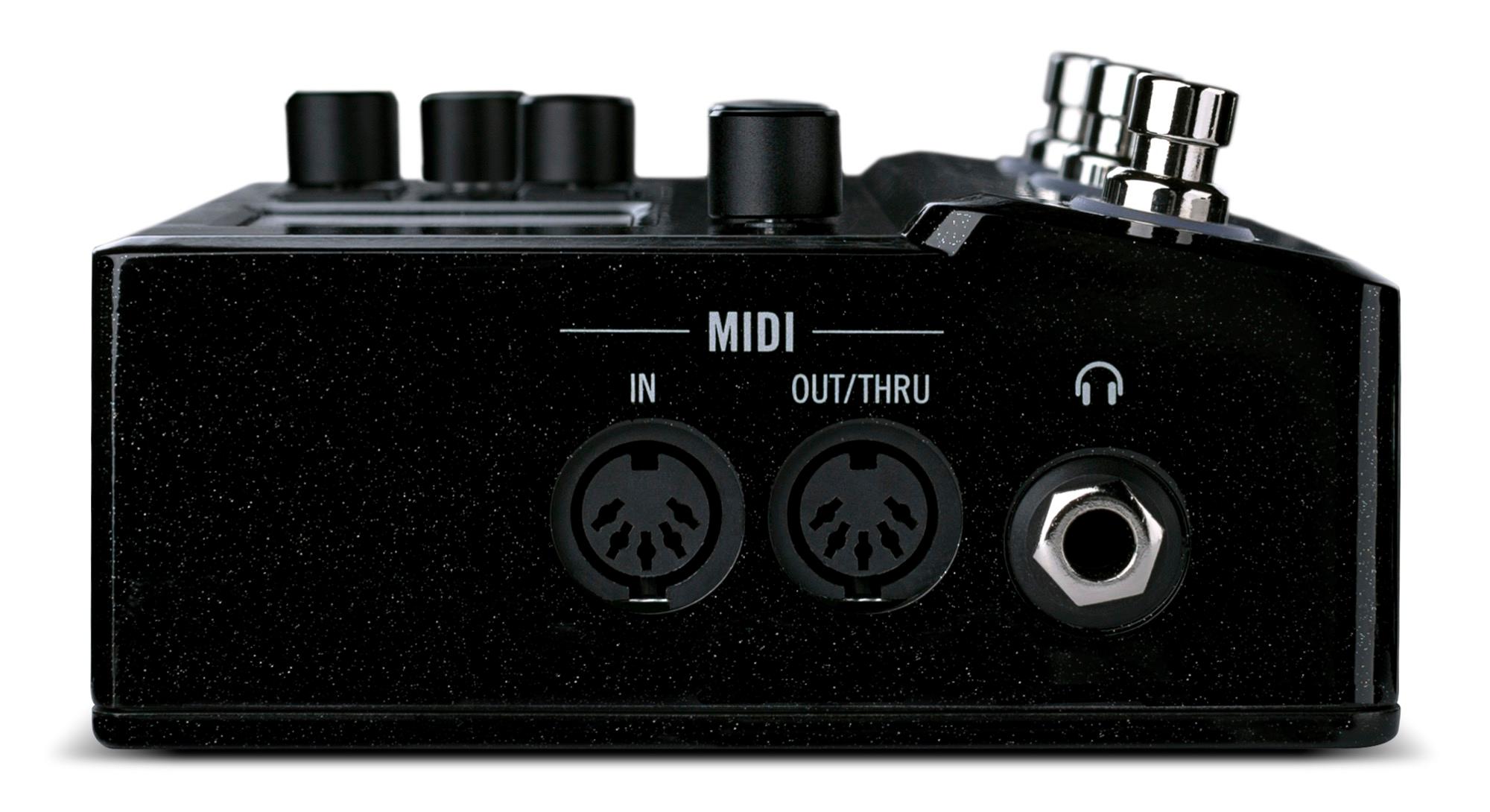

MIDI | IN, OUT/THRU |
USB Audio Interface | 8-In, 6-Out with re-amping (4 physical ins/outs) |
USB MIDI | Yes |
iOS Recording/Playback | Yes |
Input Pad | Yes (Inputs set to Line Level) |
Variable Impedance | Yes (Input L (Mono), Right) |
123dB Dynamic Range | Yes (Input L (Mono), Right) |
Preset Locations | 126 (42 Banks x 3 Presets) |
Snapshots | 3 pre Preset |
Processing Blocks | Up to 6 (free assignable, DSP permitting) |
Signal Flow Paths | 1 or 2 stereo |
Amp Models | 74 |
Cab Models | 37 |
Effects Types | 200 (123 HX, 77 Legacy) |
User/3rd Party Impulse Responses | 128x 1024-point or 2048-point mono |
Simultaneous Impulse Response Blocks | 2x 1024-point or 1x 2048 point, DSP permitting |
Input Gate | x1 |
Looper | 1 Switch Looper |
Looper Memory | 60 Seconds Mono or 30 Seconds Stereo (at full speed) |
Global EQ | Yes |
Dynamic Input Black Routing | Yes |
Number of Footswitches | 3 Capacitative; 2 external footswitches optional using TRS jack |
Footswitch Mode Changeable With Feet? | Via external switch only |
Swap all Stomp Assignments Option? | Yes |
Footswitch Modes | Stomp, Scroll, Preset, Snapshot |
Stomp Footswitch Types | Latching, Momentary |
Maximum Number of Preset Switches | 3 |
Maximum Number of Snapshot Switches | 3 |
Maximum Number of Controllers | 5 Physical + 94 via MIDI CC |
Adjustment Parameters per Snapshot | 64 |
Footswitch as Controller | 8 per footswitch |
Transmission of MIDI Bank/Program Change | Via Preset Recall Only |
macOS/Windows Editor/Librarian/IR Loader Application | HX Edit 2.70 and higher |
Dedicated Dry USB-Out Channels (For Re-Amping) | 4 |
Preset List? | Yes |
Quick-Reorder Presets? | Yes |
MIDI Recall Indicator? | Yes |
Repurpose Returns as Stereo Aux In | Yes |
