Overview
HX Effects was created for guitarists and bassists who want Line 6's flagship Helix effects for traditional amp and pedalboard setups. Powered by the same audio engine as Helix processors, HX Effects includes the full array of Helix effects plus legacy effects from the M-Series and Stompbox Modeller pedals. All in a compact pedal that fits easily on your pedalboard.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
HX AUDIO ENGINE
Run up to nine HX effects simultaneously.
Featuring the same HX audio engine as Helix processors, HX Effects leverages powerful DSP to run up to nine effects simultaneously. HX Modeling delivers effects with unprecedented authenticity, and accurately recreates the behavior of vintage effects by emulating their specific circuits and components.
More than 100 HX effects - plus IR support.
HX Effects features more than 100 of the same effects featured in our Helix guitar processors, including distortions, delays, reverbs, modulations, pitch/synth/filters, compressors/limiters, EQs, wahs, and an on-board looper. HX Effects also lets you load custom impulse responses (IRs), allowing you to customize your sound even further.
Pristine sound quality and responsiveness.
HX Effects features an industry-leading 123dB of dynamic range for tremendous depth and ultra-low noise. Each effect is delivered with pristine sound quality to ensure an authentic and responsive playing experience.
TRUE BYPASS SWITCHING
Nothing comes between you and your tone.
HX Effects features selectable analog bypass switching to ensure your tone isn’t compromised when the pedal is bypassed.
CAPACITIVE TOUCH FOOTSWITCHES
Quickly select and edit effects.

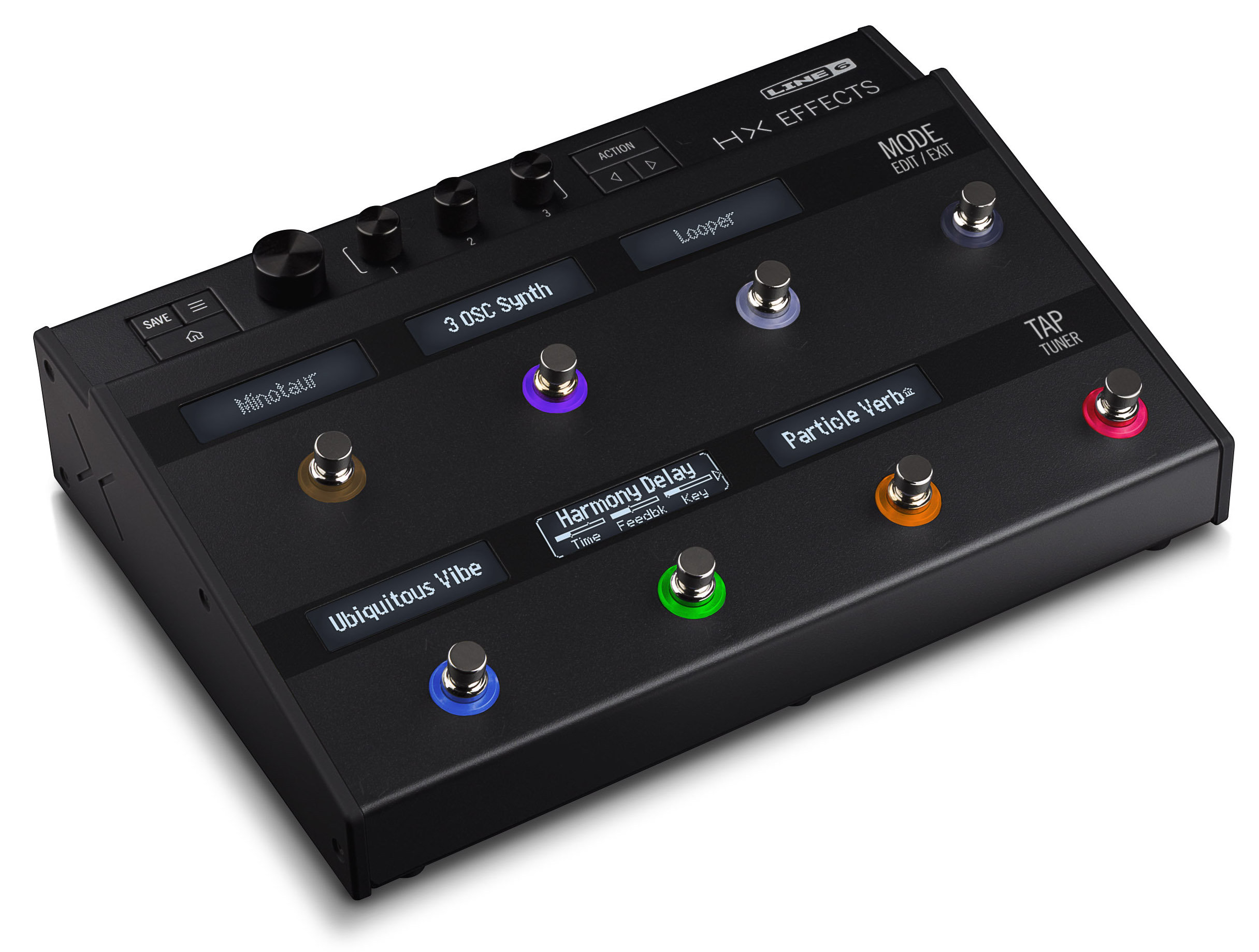

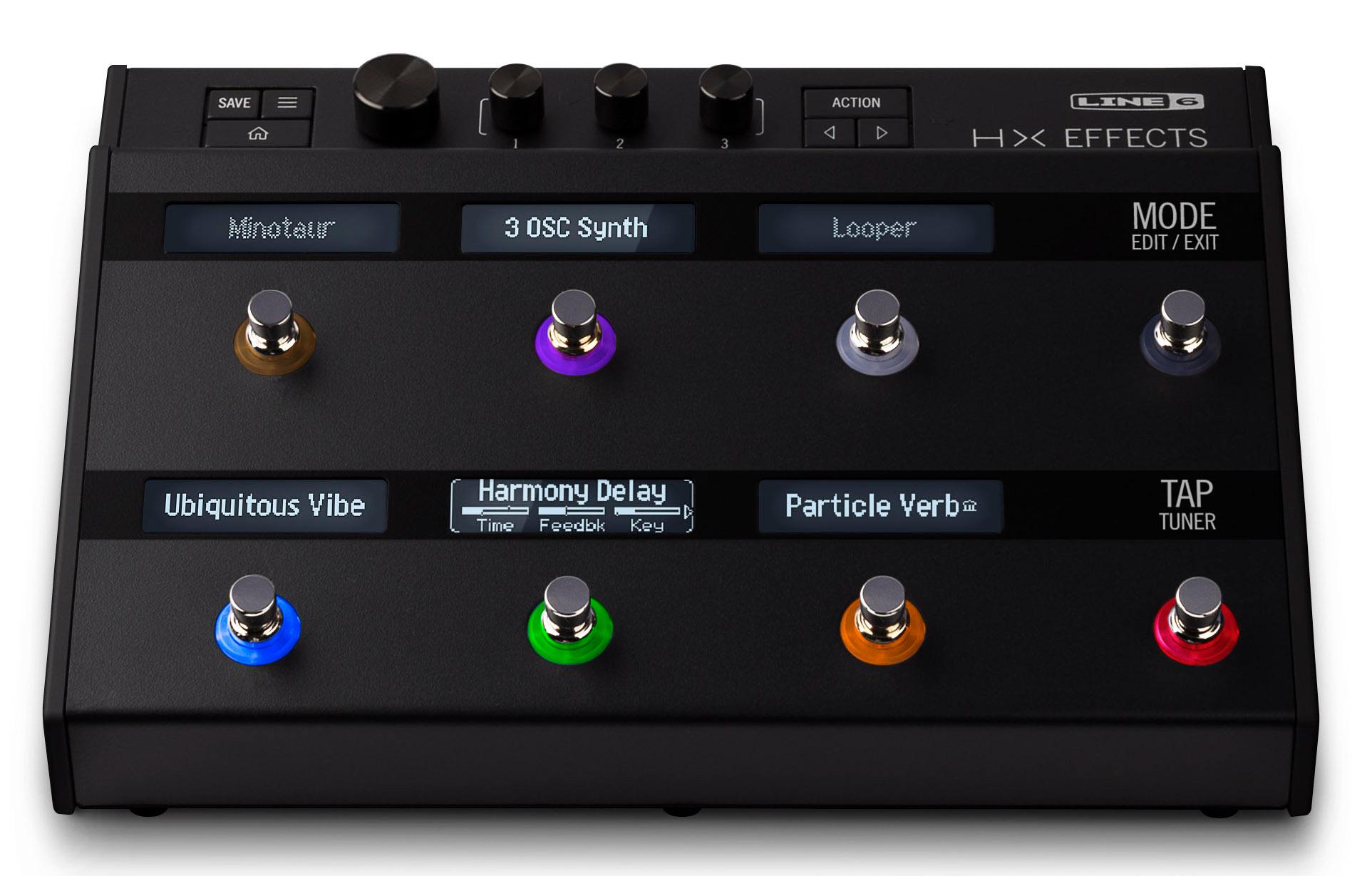

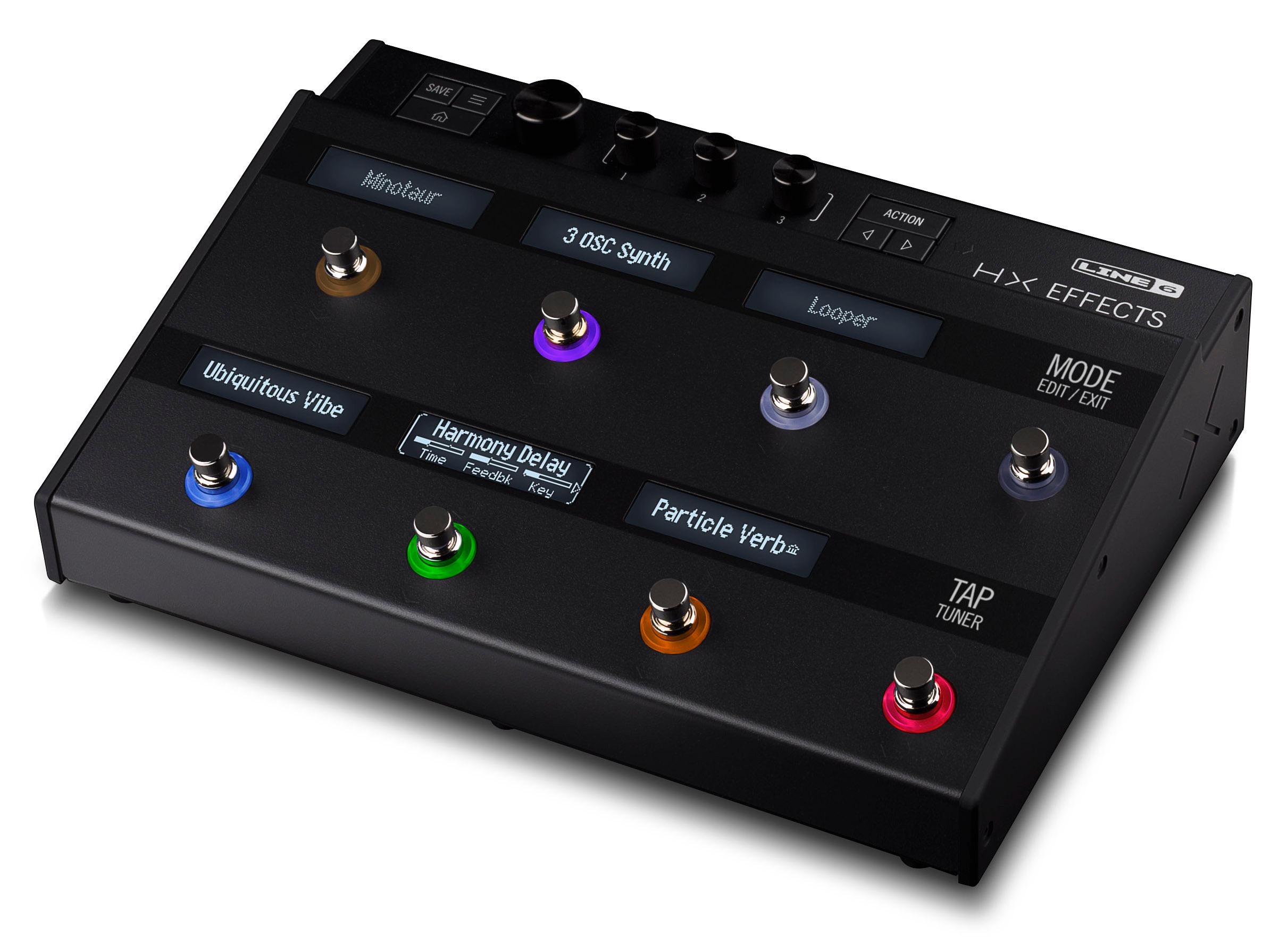

Eight capacitive-sensing footswitches with color-coded LED rings, and six LED scribble scrips enable intuitive effect selection and editing. Simply touch a footswitch with your finger to instantly jump to any effect and quickly adjust its parameters. Touch two switches to swap them. And touch and hold a switch to display all parameters across the LCDs to see everything at once.
ROBUST ROUTING AND I/O
Seamless integration with your rig.
HX Effects is easily integrated into existing pedalboard and studio rigs thanks to robust routing and control options, including parallel stereo signal paths, two assignable effects loops (stereo linkable), two expression pedal inputs, and up to four amp switching outputs.
SWITCHABLE INSTRUMENT/LINE INPUTS
Connect any instrument, and more.
A switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX Effects as an outboard processor in the studio.
MASTER CONTROLLER
A command center for your entire rig.
Like Helix multi-effects processors, HX Effects can act as the command center for your entire rig. Communicate with other pedals or your DAW software via MIDI DIN or USB MIDI, and control your amps from up to four amp switching outputs - all from HX Effects.
Specs
Stomp Footswitches | 6 (Capacitative) |
Inputs: | Left/Mono, Right |
Outputs: | Left/Mono, Right |
MIDI: | IN, OUT/THRU |
USB-To-Host: | Data connection for editing |
Expression Pedal Connections | 2 (Defaults to Wah & Volume) |
Send/Return | 1 & 2 or Stereo |
