Overview

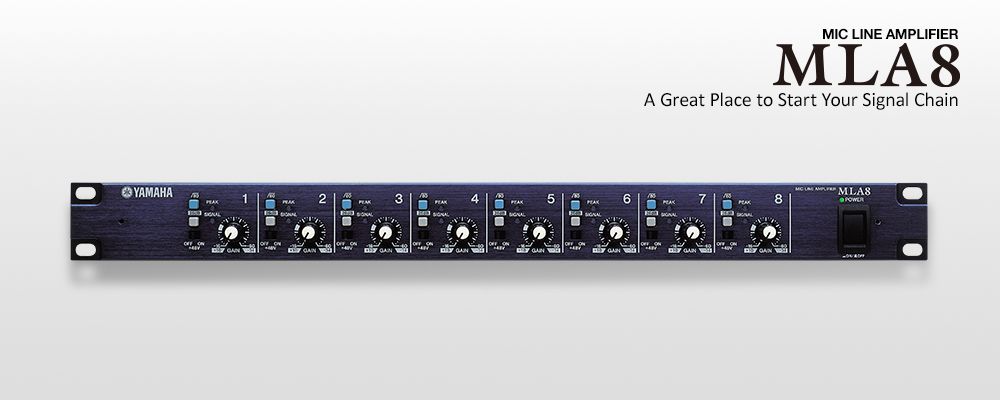

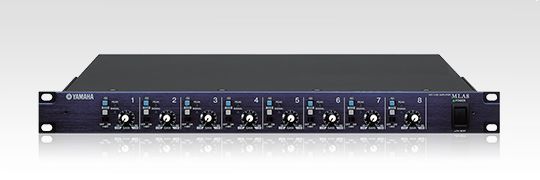

The MLA8 is an eight-channel head amplifier inheriting top-performance head amp technology from our acclaimed DM2000 digital mixing console. In a compact 1U unit, the MLA8 features a 26 dB pad, adjustable 44dB gain trim, an 80Hz high-pass filter, and a phantom-power switch on each channel. Both Euroblock terminals and a D-sub 25-pin connector are provided on the rear panel for output connections, making the MLA8 a perfect match for Yamaha digital mixers.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
An Eight-Channel Head Amplifier that Inherits Acclaimed DM2000 Head-Amp Technology
Having earned the acclaim of professional engineers at live-sound venues, music production studios and other areas, the head-amp technology from Yamaha's top-of-the-line DM2000 Digital Production Console was selected for use in the MLA8. This head amp design achieves stunning audio quality, reproducing the original sound with breathtaking clarity.
Practical Features in a Compact 1U Package

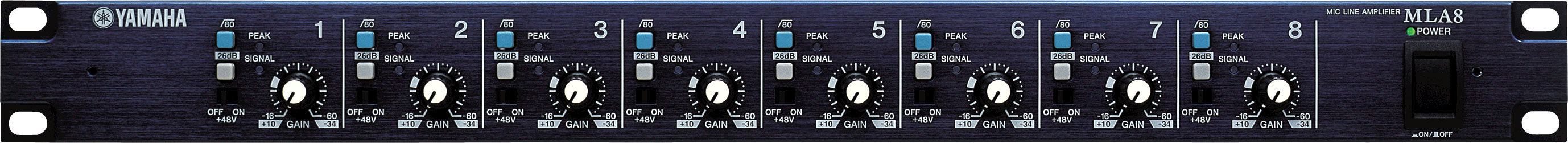

In a space-saving 1U design, the MLA8 front panel offers a 26 dB pad, adjustable 44 dB gain trim, an 80 Hz high-pass filter, and a phantom-power switch on each channel. Used in conjunction with Yamaha digital mixers, DME64N/24N digital mixing engines, or other state-of-the-art digital audio gear, the MLA8 offers simple, straightforward signal control that can provide invaluable complementary functionality for a wide range of applications.
Convenient Colour-coded Control Interface
The control colours for Yamaha mixers are based on a set of common rules. Accordingly, the MLA8 uses green for signal indicators and high-pass filters, red for peak indicators, and gray for pads. In systems where the MLA8 will be combined with other Yamaha products, this provides an intuitive, efficient working environment.
Euroblock and D-sub 25-pin Connectors

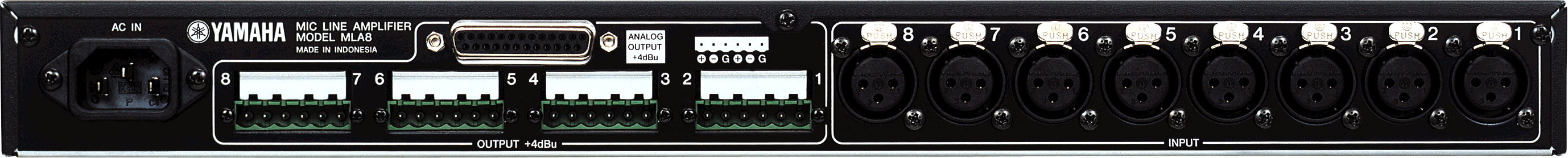

XLR connectors are provided for the audio input, while output connections can be made via either a D-sub 25-pin connector or Euroblock connectors. The latter can be an advantage in installations. The D-sub 25-pin connector is compatible with the MY8-AD96 8-channel Mini-YGDAI A/D card, providing convenient connectivity with Yamaha digital mixers.
Specs
- Total harmonic distortion: Less than 0.01% (20Hz-20kHz)
- Frequency response: 0, +0.5, -0.5dB 20Hz-20kHz
- Hum & noise level: Equivalent input noise -128dBu
- Crosstalk: -70dBu
- Power consumption: 25W
- Dimensions:
- Width: 480mm
- Height: 44mm (1U)
- Depth: 375.5mm
- Net weight: 4.7kg
- Accessories Owner's manual, AC power cord, 8x Euroblock connectors (3P), 4x Rubber foot
| Product ID | CMLA8BS |
|---|
