Overview

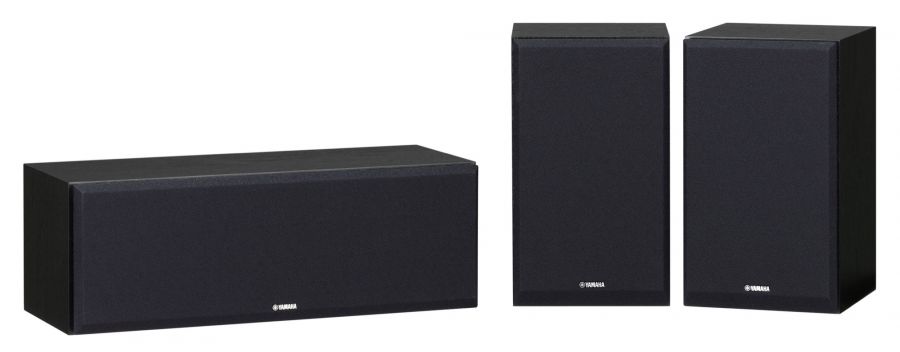

Producing finely detailed sound, this speaker package including a centre and two surround speakers is designed to team with the NS-F350 for a smooth, seamless surround sound field. Every channel features an all-new tweeter and PMD cone woofer. Enjoy every bit of audio data in the AV source with 5-channel output.
- New 3 cm (1”) aluminium dome tweeter generates 45 kHz (–10 dB) high frequency reproduction that is truly outstanding
- The 13 cm (5”) woofer features PMD cones that have a proven track record, produce massive, clear low frequencies
- Unique waveguide horn that enhances the sound field sensation of theatre sound
- Wall mountable
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Yamaha’s Sound Concept: The Ability to Fully Play All the Latest AV Sources
If the sound quality is not good enough in 2-channel playback, there is no chance of properly reproducing the source in surround sound. This is the idea that led to the development of these surround back and centre speakers for a 5-channel system. Both speakers use an all-new tweeter and PMD cone woofer combination. They have large cabinets to handle audio-rich data, ensuring that expansive and seamless theatre sound will fill your room.
Expansive, Glistening Sound. A New 3 cm (1”) Aluminium Dome Tweeter that Reproduces 45 kHz (–10 dB) High Frequencies
As a next-generation unit, the NS-PC350 and NS-PB350 employ a new structure that puts an aluminium dome inside the voice coil. The aluminium’s Black Anodised processing suppresses the aluminium-specific character of the sound, providing expansive and accurate reproduction of the texture and nuance of the high frequencies. With a new diffuser shape and a new voice coil using CCAW (copper-coated aluminium wire) it achieves 45 kHz (–10 dB) reproduction with extended high frequency range while maintaining the amount of information and energy in the audible band.
Featuring a Unique Waveguide Horn that Controls Directivity
Based on the idea of controlling spatial representation from the speaker, the waveguide horn directs the sound to reflect from walls and other surfaces. Thanks to the directivity of a left-right directional range of 135 degrees and a vertical range of 120 degrees optimised for home theatre use, it precisely recreates the sound field while minimising the impact of the room.
Supple and Strong. 13 cm (5”) Woofer Utilises a PMD Cone with a Proven Track Record in Europe and Japan
Incorporating 30% high quality white mica, the 13 cm (5”) woofer utilises a lightweight, high rigidity PMD (Polymer-injected Mica Diaphragm) cone that achieves ideal internal loss and high elasticity characteristics. The new design put both the voice coil and spider under the knife, achieving massive, expansive low tones.
Wall Mountable
The NS-PC350 and NS-PB350 have keyholes on the back so they can be quickly and securely wall mounted.
Specs
| Type | 2-way acoustic suspension (NS-PC350) / 2-way bass-reflex (NS-PB350) |
Center Speaker | Woofers | Dual 13cm (5”) cone |
Tweeter | 3cm (1”) aluminium dome |
Frequency Response | 58 Hz–45 kHz |
Nominal Input Power | 100 W |
Maximum Input Power | 200 W |
Sensitivity | 90 dB/2.83 V/1 m |
Crossover Frequencies | 2.8 kHz |
Impedance | 6 ohms |
Dimensions (W x H x D) | 500 x 174 x 202 mm; 19-5/8” x 6-7/8” x 8” |
Weight | 6.3 kg; 13.9 lbs./unit |
Surround Speaker | Woofers | 13cm (5”) cone |
Tweeter | 3cm (1”) aluminium dome |
Frequency Response | 57 Hz–45 kHz |
Nominal Input Power | 50 W |
Maximum Input Power | 150 W |
Sensitivity | 88 dB/2.83 V/1 m |
Crossover Frequencies | 3 kHz |
Impedance | 6 ohms |
Dimensions (W x H x D) | 186 x 320 x 208 mm; 7-3/8” x 12-5/8” x 8-1/4” |
Weight | 4.8 kg; 10.9 lbs./unit |
