Overview

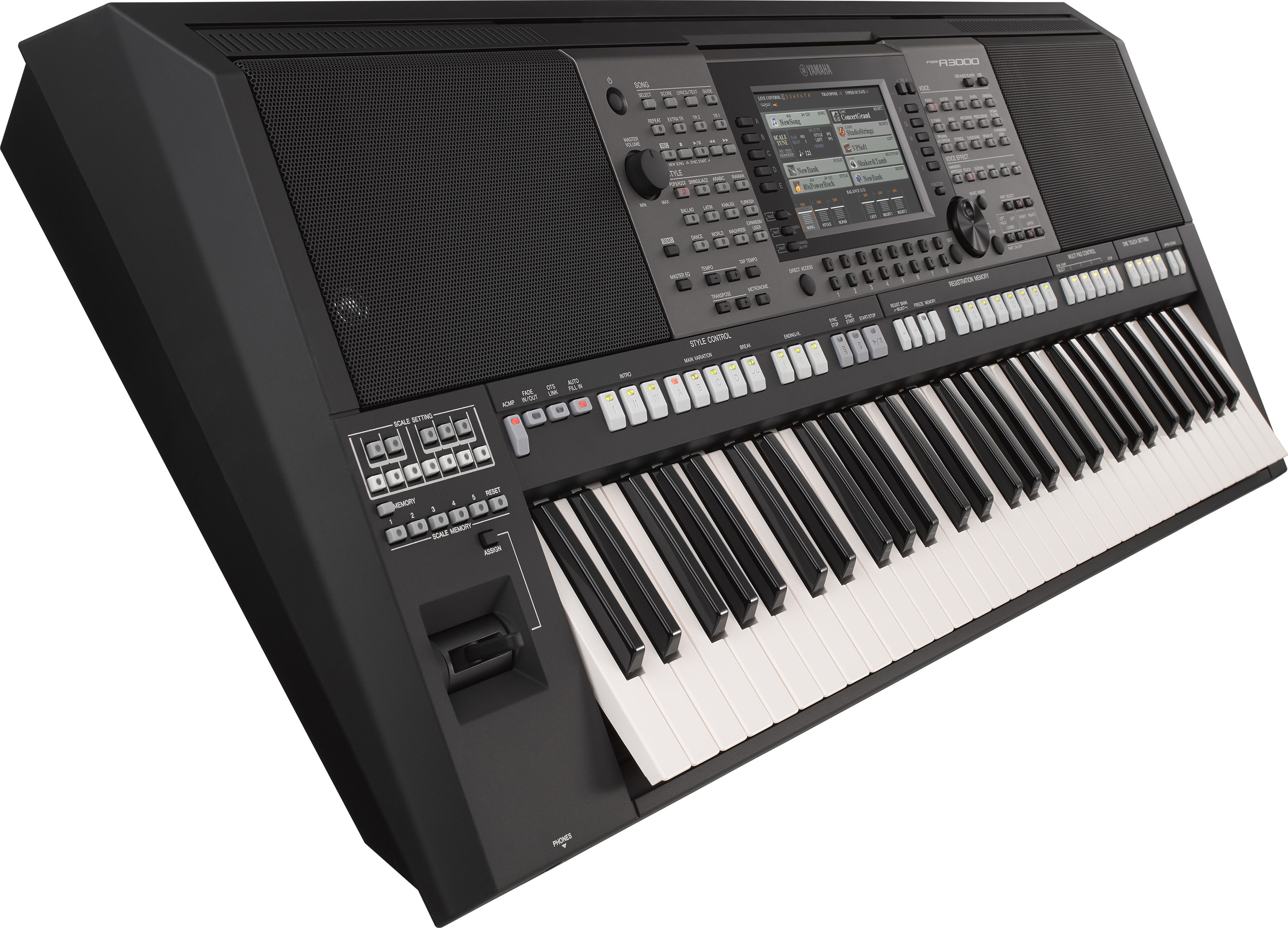

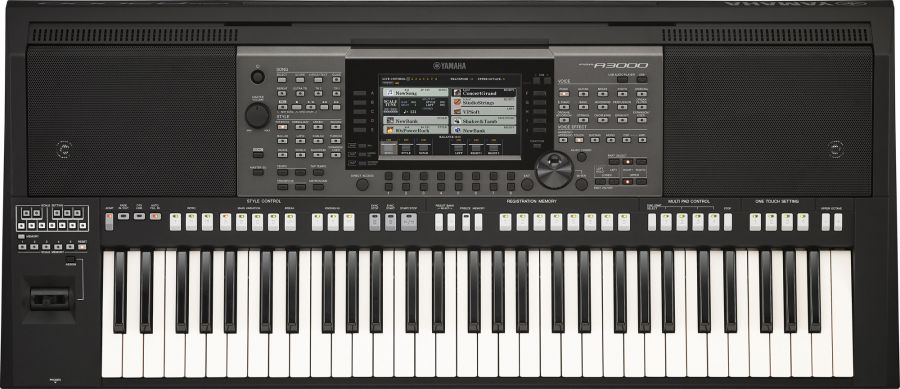

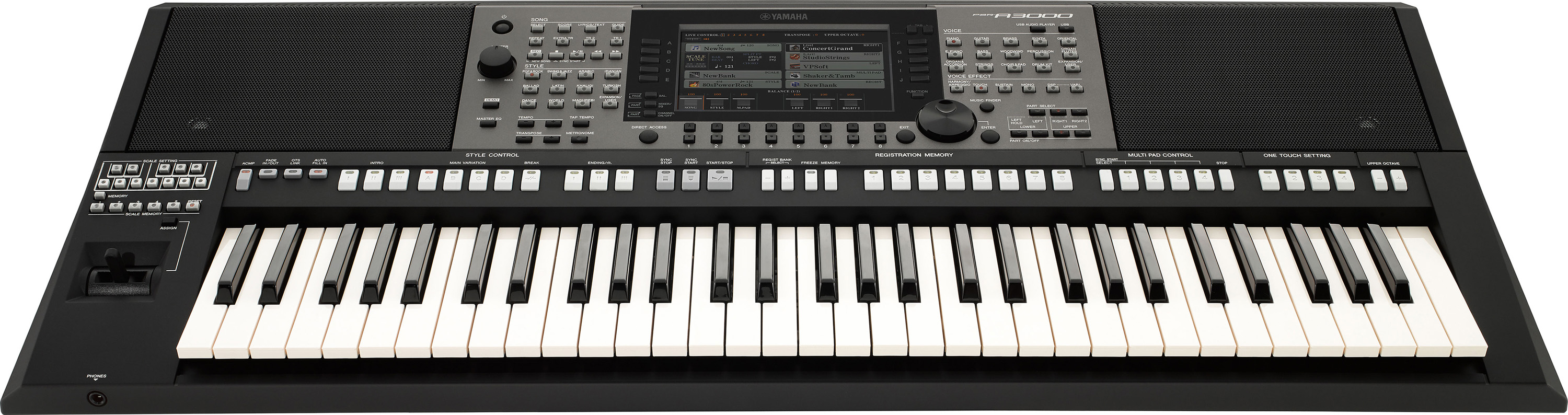

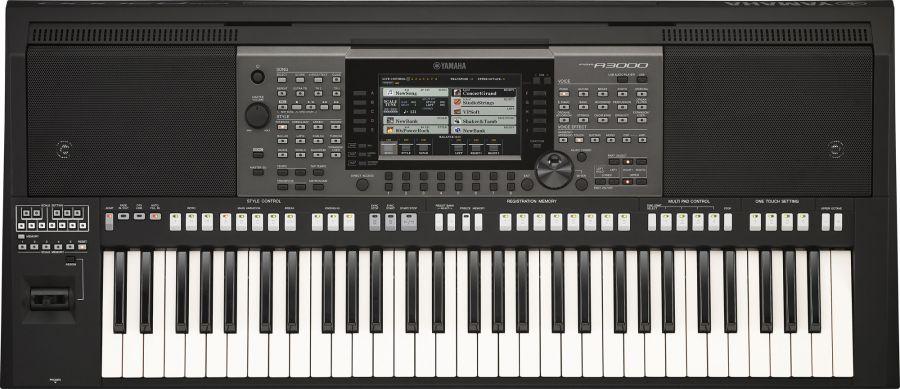

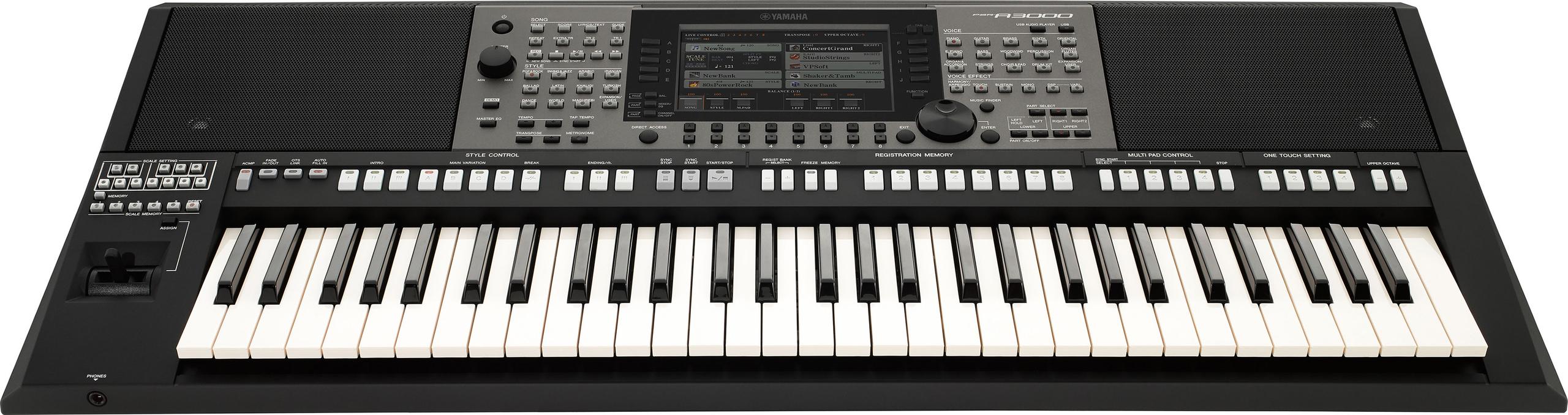

The PSR-A3000 - uniquely in the PSR Arranger Workstation range - is equipped with a joystick giving you the ability to create incredibly expressive performances. It's also compatible with our Yamaha Expansion Manager software for PC which lets you create voices from samples.
- 997 Voices, 58 Drum/SFX kits and 480 XG voices. Including 171 Oriental Voices and 25 Oriental Kits.
- 107 Super Articulation Voices, including Oriental Super Articulation Voices.
- 400 preset Styles, including all-new DJ Styles and Oriental Styles.
- Assignable joystick for more dynamic live performance. Assign combination of parameters such as Filter, and Style Track muting.

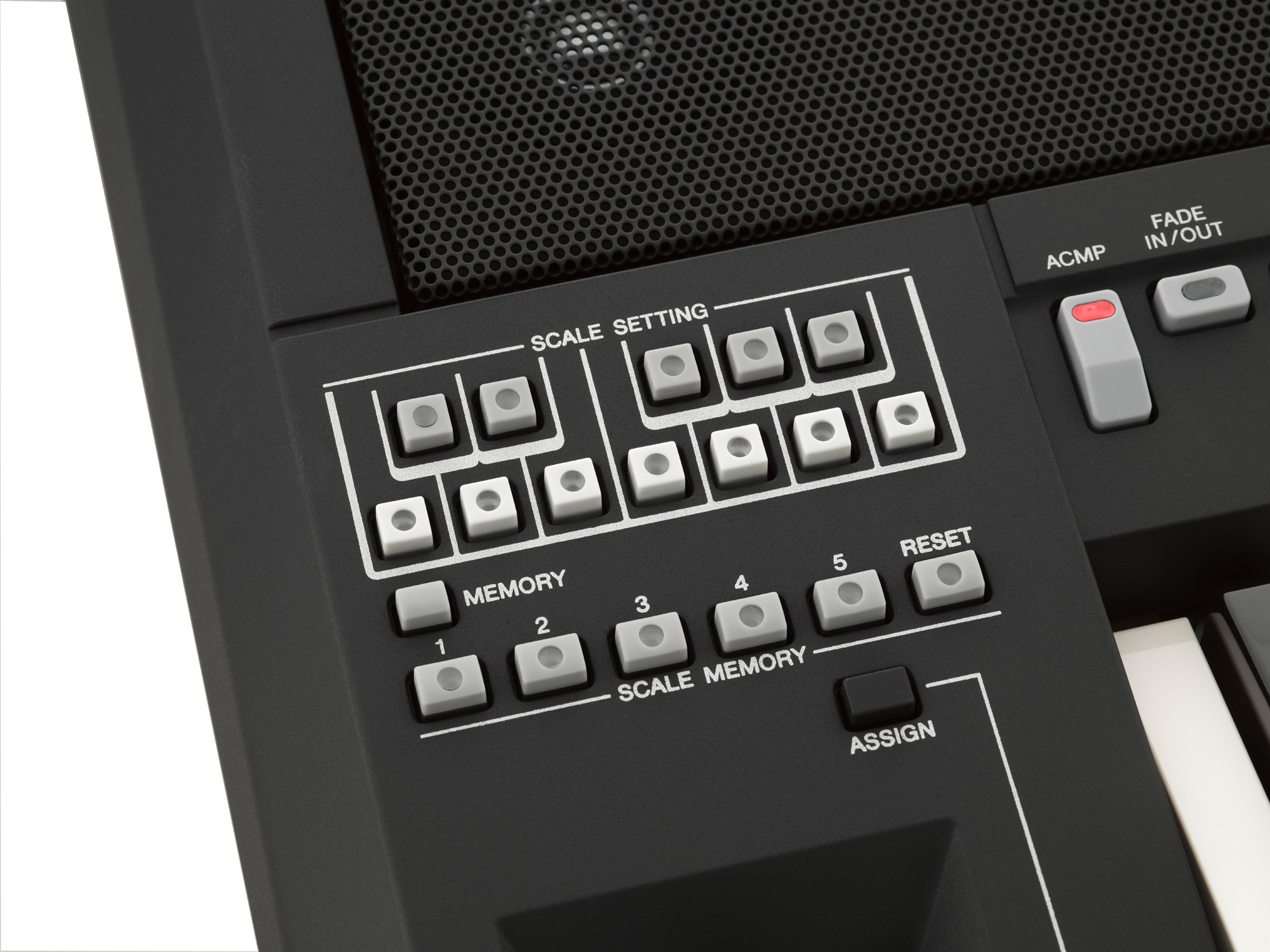

- Scale Tuning and Scale Setting Buttons support any type of tuning.
- New Arpeggio function gives you instant access to a library of phrases.
- Time stretch, pitch shift, and vocal cancel function are added to USB audio playback.
- Re-design of sound system with new speaker enclosure, new Master EQ and Master Comp. function brings you powerful sound.
- Various effects, including Real Distortion and Real Reverb, can be applied to your performance.
- Drum Setup function in Style Creator for editing the Drum kit for Style Performance
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Brings the reality to your performance
The new Oriental Super Articulation Voices reproduce the actual instrument’s unique characteristics such as vibrato, tremolo and more. Other voices have also been enhanced for even greater realism. For example, a new feature called “Mono Legato” allows you to play trill phrases without using the joystick, perfect when playing with Oriental string instrument Voices. The sound system in PSR-A3000 has also been refined, delivering a more powerful and punchy sound than ever before.

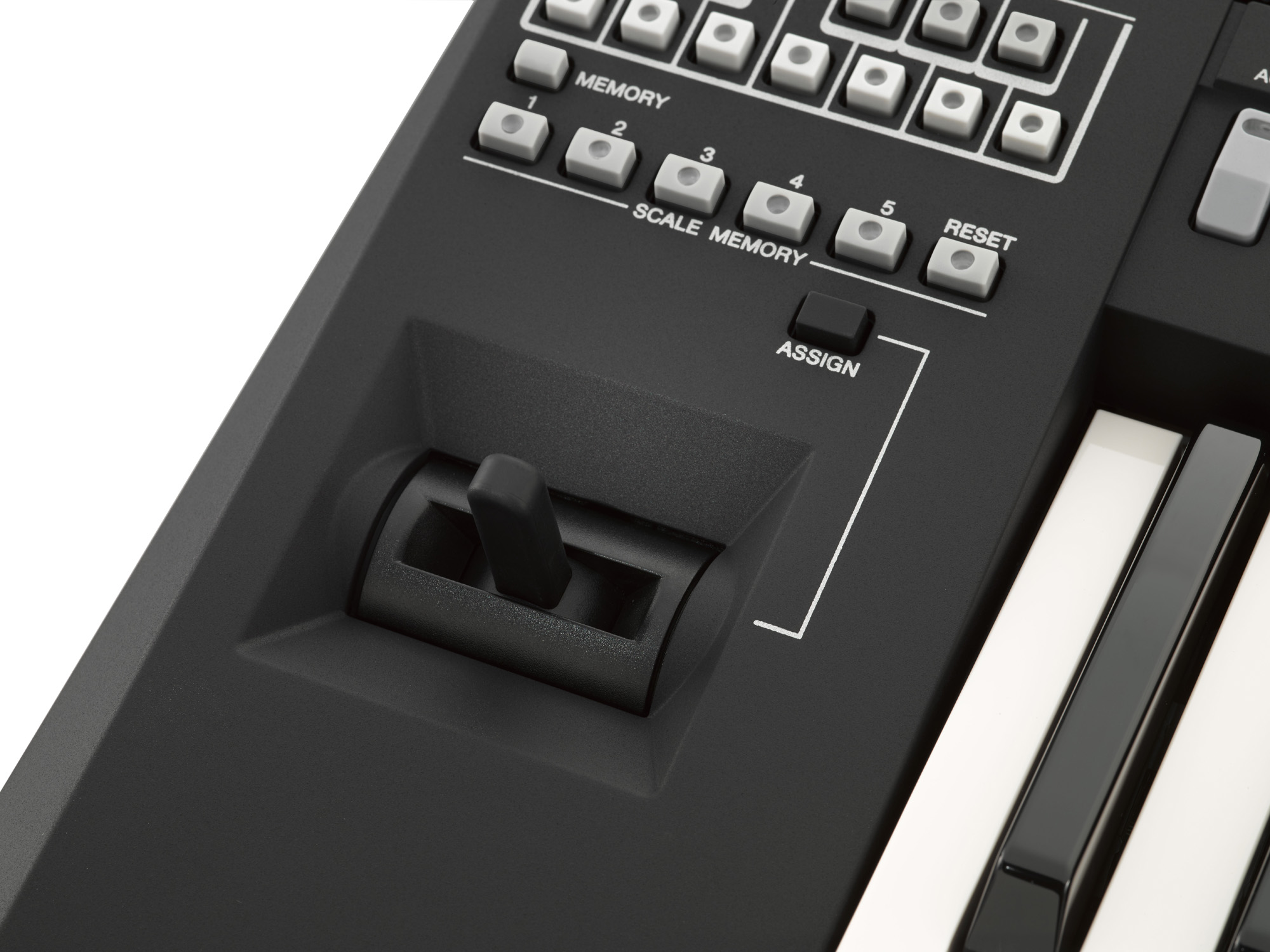

Joystick & Live Control function
PSR-A3000 is equipped with a joystick which provides intuitive control of pitch and modulation. Now you can play with rapid trills, dynamic pitch bends and finely-nuanced modulation all from a single, easily-configured, controller.
In addition to essential parameters such as Pitch Bend and Modulation, other features such as Filter, Style Track-Mute and more can be assigned and changed in an instant, making it really easy to add a unique flair to your performance!
Make the Original contents with Yamaha Expansion Manager
Have you ever wanted to play with more than just the preset sounds? You can now create your own original Voices and Drum kits using Yamaha Expansion Manager! Simply use samples from your own library (.wav, .aif, .aiff, .sf2) and edit a range of parameters on your computer using Yamaha Expansion Manager. You can even create and share your own original content with your friends!
You can also choose content from various Expansion Packs and create your own pack selection to install in your instrument.
Add a flavour to your performance with audio feature
If you’re enhancing a live performance with audio backing tracks from your music library, the time stretch, pitch shift, and vocal cancel functions of the USB audio player will add depth and versatility to your performance. You can also connect your Audio player to the Aux input terminal to add an additional element to your performance.
The Audio Link Multi Pad function enables you to link your own audio files (sound effects, vocal phrases, etc.) and trigger them from the Pads as you play.
Colour Display
For simple intuitive control of the powerful features and capabilities of this advanced keyboard, the PSR-A3000 comes equipped with a large color LCD that allows you to monitor the status of your instrument at a glance, and gives you easy access to valuable performance functions.
Drum Setup function for your Style performance
With Style Creator, you can edit the parameters of a Drum kit in detail, change the drum parts using Voices from the various Drum kits or even use your own from Yamaha Expansion Manager. This means that you can personalize playing with Styles by using your own unique Drum kit!
Specs
Colour/Finish
| Body | Colour | Black & Metallic Dark Grey |
|---|
Size/Weight
| Dimensions | Width | 1002 mm |
|---|
| Height | 148 mm |
|---|
| Depth | 437 mm |
|---|
| Weight | Weight | 11.2 kg |
|---|
Control Interface
| Keyboard | Number of Keys | 61 |
|---|
| Type | Organ, Initial Touch |
|---|
| Touch Response | Hard1, Hard2, Medium, Soft1, Soft2 |
|---|
| Other Controllers | Joystick | Yes (assignable) |
|---|
| Display | Type | TFT Color Wide VGA LCD |
|---|
| Size | 7 inch |
|---|
| Color | Color |
|---|
| Language | English, German, French, Spanish, Italian |
|---|
| Panel | Language | English |
|---|
Voices
| Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
|---|
| Polyphony | Number of Polyphony (Max.) | 128 |
|---|
| Preset | Number of Voices | 997 Voices + 58 Drum/SFX Kits + 480 XG Voices |
|---|
| Featured Voices | 107 S.Art!, 23 Mega Voices, 41 Sweet!, 64 Cool!, 90 Live!, 20 Organ Flutes! (including 171 Oriental Voices, 25 Oriental Drum Kits) |
|---|
| Compatibility | XG | Yes |
|---|
| GS | Yes (for Song playback) |
|---|
| GM | Yes |
|---|
| GM2 | Yes |
|---|
| Expandability | Expansion Voice | Yes (approx. 512 MB max.) |
|---|
| Editing | Voice Set |
|---|
| Part | Right 1, Right 2, Left |
|---|
Effects
| Types | Reverb | 52 Presets + 3 User |
|---|
| Chorus | 106 Presets + 3 User |
|---|
| DSP | 295 Presets + 10 User |
|---|
| Master Compressor | 5 Presets + 5 User settings |
|---|
| Master EQ | 5 Presets + 2 User settings |
|---|
| Part EQ | 27 parts |
|---|
| Arpeggio | Yes |
|---|
Accompaniment Styles
| Preset | Number of Preset Styles | 400 (including 194 Oriental Styles) |
|---|
| Featured Styles | 380 Pro, 10 Session, 10 DJ |
|---|
| Fingering | Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard |
|---|
| Style Control | INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3 |
|---|
| Other Features | Music Finder | 1,200 |
|---|
| One Touch Setting (OTS) | 4 for each Style |
|---|
| Expandability | Expansion Style | Yes |
|---|
| Compatibility | Style File Format, Style File Format GE |
|---|
Songs
| Preset | Number of Preset Songs | 4 Sample Songs |
|---|
| Recording | Number of Songs | Unlimited (depends on the drive capacity) |
|---|
| Number of Tracks | 16 |
|---|
| Data Capacity | approx. 300 KB/Song |
|---|
| Recording Function | Quick Recording, Multi Recording, Step Recording |
|---|
| Compatible Data Format | Playback | SMF (Format 0 & 1), XF |
|---|
| Recording | SMF (Format 0) |
|---|
Multi Pads
| Preset | Number of Multi Pad Banks | 228 banks x 4 Pads |
|---|
| Audio | Audio Link | Yes |
|---|
Functions
| Registration | Number of Buttons | 8 |
|---|
| Control | Registration Sequence, Freeze |
|---|
| Lesson/Guide | Lesson/Guide | Follow Lights, Any Key, Karao-Key, Your Tempo |
|---|
| Performance Assistant Technology (PAT) | Yes |
|---|
| Demo/Help | Demonstration | Yes |
|---|
| Overall Controls | Metronome | Yes |
|---|
| Tempo Range | 5 - 500, Tap Tempo |
|---|
| Transpose | -12 – 0 – +12 |
|---|
| Tuning | 414.8 - 440 - 466.8 Hz |
|---|
| Octave Button | Yes |
|---|
| Scale Type | 9 Presets |
|---|
| Scale Setting | Yes |
|---|
| Scale Memory | Yes |
|---|
| Miscellaneous | Direct Access | Yes |
|---|
| Text Display Function | Yes |
|---|
| Wallpaper Customization | Yes |
|---|
| Voices | Harmony/Echo | Yes |
|---|
| Panel Sustain | Yes |
|---|
| Mono/Poly | Yes (with Mono Legato) |
|---|
| Voice Information | Yes |
|---|
| Styles | Style Creator | Yes |
|---|
| OTS Information | Yes |
|---|
| Songs | Song Creator | Yes |
|---|
| Score Display Function | Yes |
|---|
| Lyrics Display Function | Yes |
|---|
| Multi Pads | Multi Pad Creator | Yes |
|---|
| Audio Recorder/Player | Recording Time (max.) | 80 minutes/Song |
|---|
| Recording | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo) |
|---|
| Playback | .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo) |
|---|
| Time Stretch | Yes |
|---|
| Pitch Shift | Yes |
|---|
| Vocal Cancel | Yes |
|---|

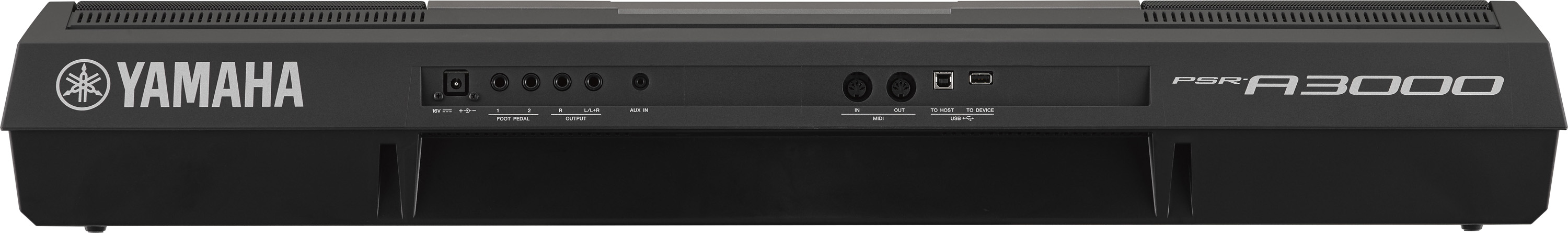

Storage and Connectivity
| Storage | Internal Memory | approx. 13 MB (internal Memory for Style, Song, Midi, and other data) |
|---|
| External Drives | USB Flash Memory (via USB to DEVICE) |
|---|
| Connectivity | Headphones | Yes |
|---|
| FOOT PEDAL | 1 (SUSTAIN), 2 (ARTICULATION 1), Function Assignable |
|---|
| MIDI | IN, OUT |
|---|
| AUX IN | Stereo mini jack |
|---|
| LINE OUT | L/L+R, R |
|---|
| USB TO DEVICE | Yes |
|---|
| USB TO HOST | Yes |
|---|
Amplifiers and Speakers
| Amplifiers | 15 W x 2 |
|---|
| Speakers | 13 cm x 2 + 5 cm x 2 |
|---|
Power Supply
| Power Supply | Yamaha PA-300C (Included) |
|---|
| Power Consumption | 19 W |
|---|
| Auto Power Off Function | Yes |
|---|
Questions & Answers
Question: Hi there, How many years is the standard warranty for this keyboard Yamaha PSR -A3000
Answer
The intrument comes with a standard Yamaha warranty of 24 months
