Overview

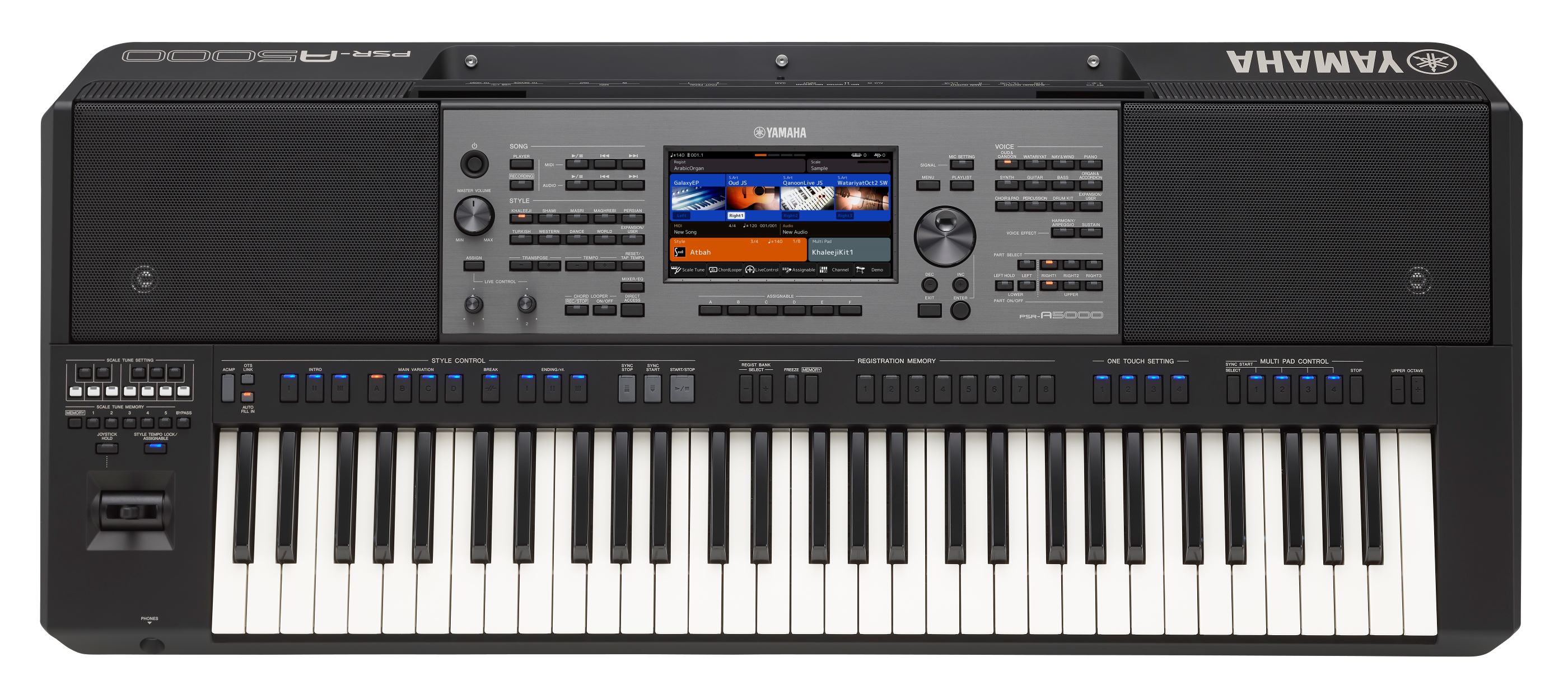

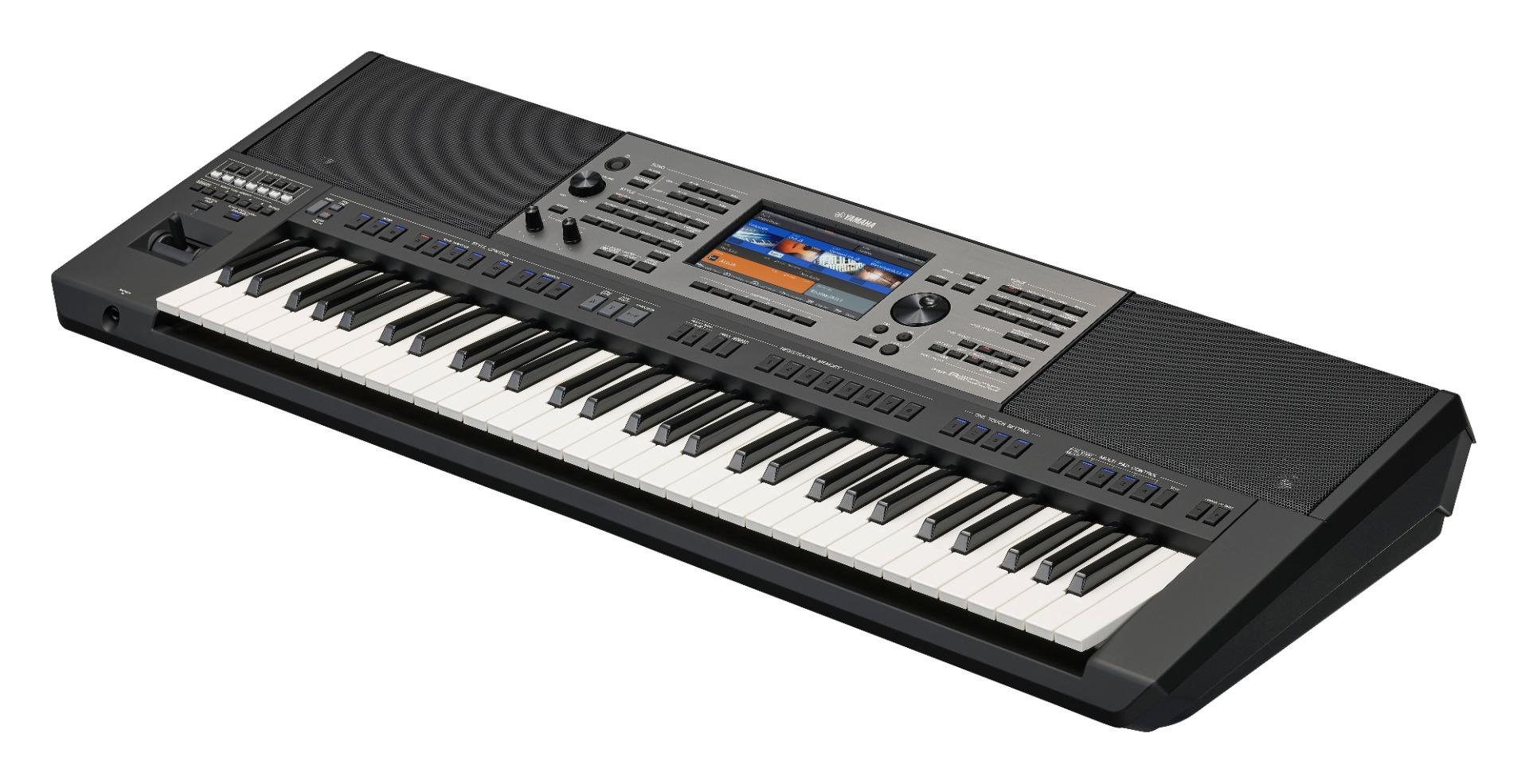

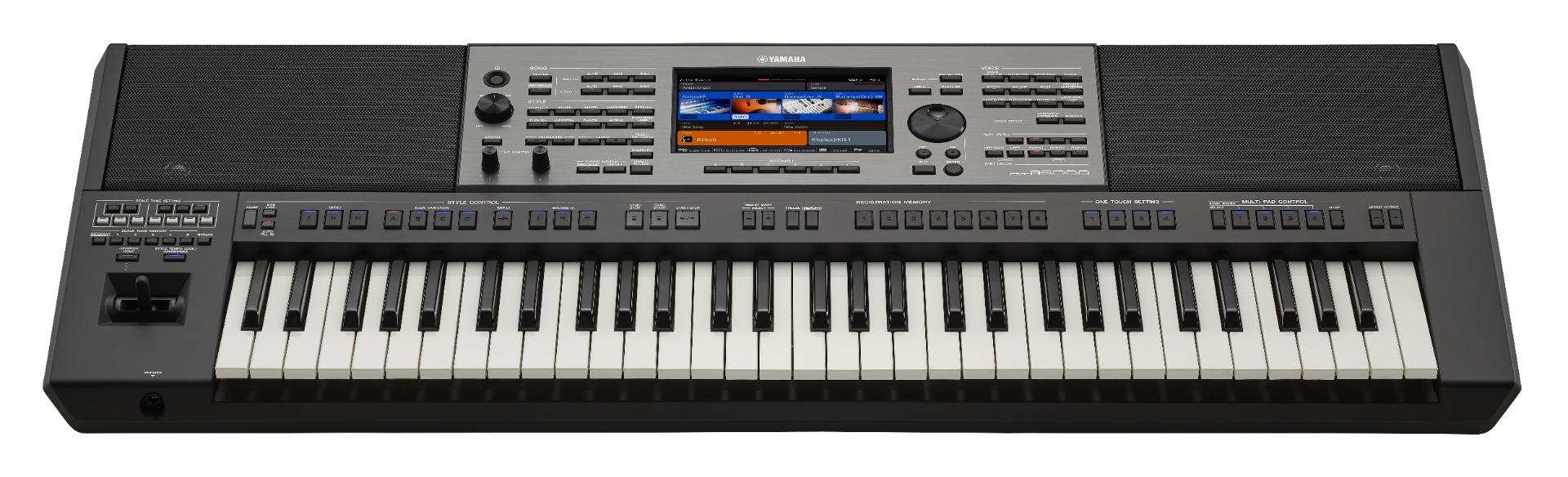

Yamaha PSR-A5000 Digital Workstation
Designed especially for oriental musicians, the PSR-A5000 becomes an ultimate partner for your greatest live performances and original content production. Explore the new features and get inspired with the new sound.
- 1,161 Voices, including 299 Oriental Voices, 44 Oriental Drum Kits, 20 Revo!SFX kits
- 454 Styles (including 260 Oriental Styles, Khaleeji, Shami, Masri, Maghrebi, Persian and Turkish)
- Crossfade Portamento with velocity and time related parameters
- 128 key drum kits with key off note, Upper Octave (-3 - +3)
- Style Section Time Signature, Style Section Reset
- Live Control knobs, Live Control joystick, Assignable buttons, 7-inch color touch screen, FSB keyboard, Sub output
- Scale Tune Setting buttons, Scale Tune Memory buttons
- Mic/Guitar input for use when singing or collaborating with other performers
- Chord Looper function
- Playlist and Registration for quick and easy set-up, Preset Registration
- Voice and Style expandability with the Yamaha Expansion Manager
- Audio Recording (WAV/MP3)
- 1 GB (approx.) on-board memory for expansion data, 2 GB (approx.) internal memory
- 2 USB TO DEVICE terminals
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
THE WHOLE WORLD OF ORIENTAL MUSIC READY TO PLAY
The new PSR-A5000 offers live performers a powerful keyboard packed with a wide variety of newly sampled traditional and modern oriental instruments. With a total of 1,161 Voices, including 299 Oriental Voices, 44 Oriental Drum Kits and 20 Revo!SFX kits, the PSR-A5000 gives performers unlimited creative expression, while the 454 Styles (including 260 Oriental Styles, Khaleeji, Shami, Masri, Maghrebi, Persian and Turkish) ensure a broad range of musical directions to choose from.
Meticulously recorded instruments such as Qud, Qanoon, Nay, and many other voices are given their amazingly realistic sounds thanks to a new velocity-sensitive portamento Super Articulation. Dedicated oriental instrument waveforms that are 10 times more powerful than the previous model add an extra musical layer to the feature-rich mix.
SOPHISTICATED STRINGS, POWERFUL PERCUSSION
In creating truly authentic oriental sounds, the most important instruments have been sampled with greater care than ever before. An example can be seen in the Istanbul Strings feature, which was studio-recorded with absolute attention to the finest details and nuances. Equally impressive is the expanded drum kit functionality, which allows players to play 128 mapped instruments from a single kit. Another highlight feature of the drum mapping is the optimized, intuitive layout for oriental finger drumming on a keyboard. This, combined with newly added key-off notes gives every musical piece its authentic sound and beat.
NEW PORTAMENTO AND EXPANDED MEMORY
The newly added Crossfade Portamento also comes with velocity and time-related parameters, which allow players to edit the speed and velocity of successively played notes. The result is a smoother, harmonic and more expressive transition between individual notes. The new PSR-A5000 also comes with expanded memory which has been increased by approximately 1 GB, thus allowing players to create and store more content at a higher quality.
ALWAYS THE RIGHT STYLE
Equipped with 454 styles, including 210 new oriental Styles with richer sound dynamics and more power than ever before the PSR-A5000 offers a wide range. Styles from a variety of genres, such as Khaleeji (36 Styles), Shami (35 Styles), Masri (15 Styles), Maghrebi (50 Styles), Persian (43 Styles), and Turkish (31 Styles). The Style Section Reset function allows players to rewind the rhythm of the Style to beat 1 immediately. This is also helpful when needing to quickly synchronise a performance on stage. Style content is categorised to be convenient for players of oriental music. Style Section Time Signatures offers a range of time signatures within a single Style, which means that different musical parts can be combined. Using the Style Creator the pattern length is expanded to 128 bars. With Audio Phraser its possible to make your own Audio Style and enjoy playing loop music. The Audio Phraser software can create the Audio Part while adding MIDI parts with Style Creator function onboard.
INTUITIVE USER INTERFACE AND CHORD LOOPER FUNCTION

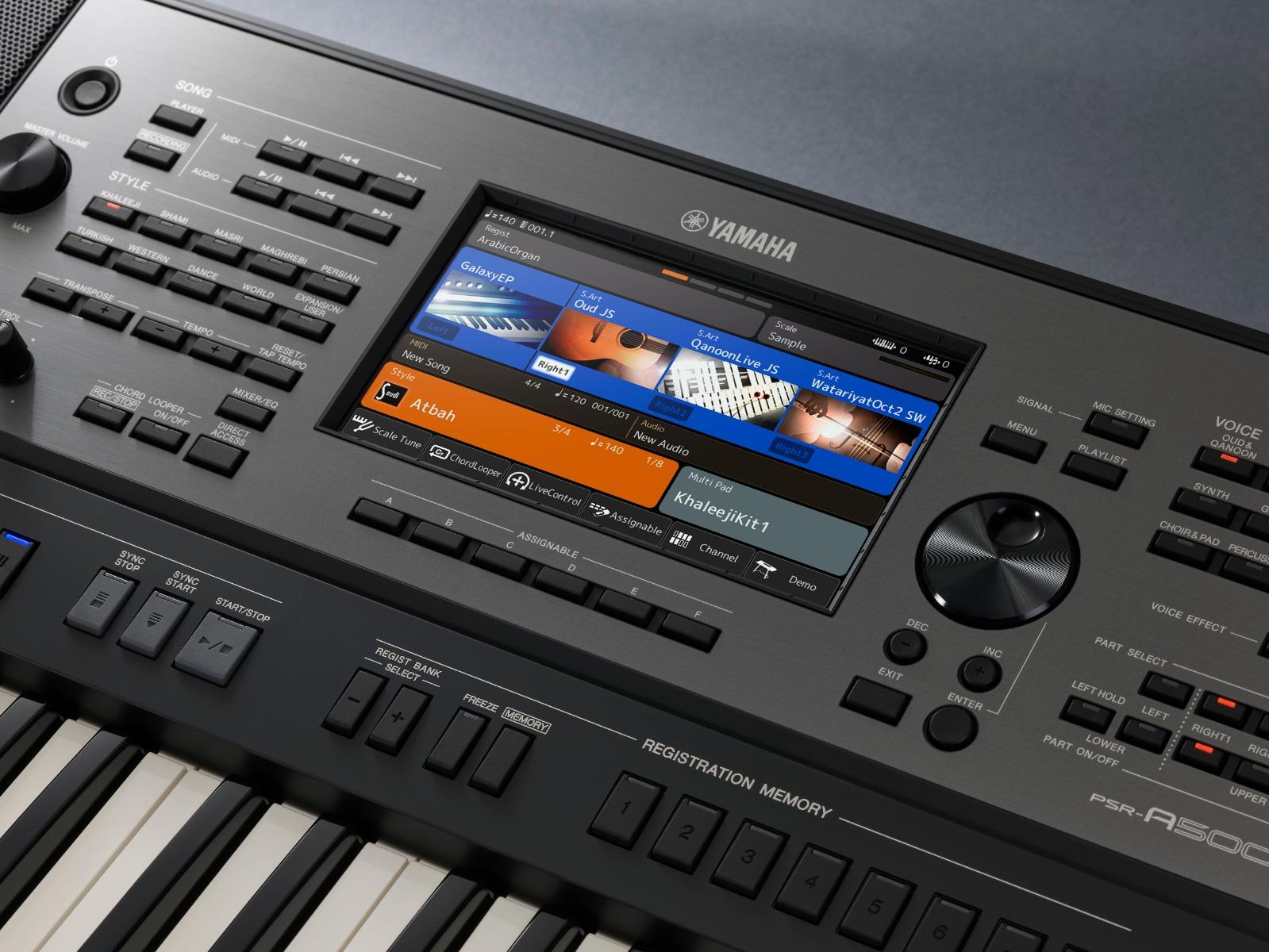

With the 7-inch touch display and new graphic interface, players are always in control with intuitive features like Scale Tune buttons for easy access during live performances. Individual note pitches can be easily modified and stored in Scale Tune Memories, while the FSB keyboard offers greater playability thanks to its heavier initial key resistance, greater key travel, and refined keyboard structure. The innovative Chord Looper lets players record chord sequences and play them back, thus freeing their left hand for more freedom and focus during a musical performance.
Specs
Colour/Finish
Dimensions | Width | 1017 mm |
Height | 139 mm |
Depth | 431 mm |
Weight | Weight | 11.5 kg |
Control Interface
Keyboard | Number of Keys | 61 |
Type | Organ (FSB), Initial Touch |
Touch Response | Normal, Soft1, Soft 2, Hard1, Hard2 |
Other Controllers | Joystick | Yes (assignable) |
| Control Knobs | 2 (assignable) |
| Assignable Buttons | 7 |
| Scale Tune Memory Buttons | 5 |
| Scale Tune Memory Buttons | Yes |
Display | Type | TFT Color Wide VGA LCD |
Size | 800 x 480 dots (7 inch) |
Touch Screen | Yes |
Color | Color |
Language | English, German, French, Spanish, Italian |
Panel | Language | English |
Voices
Tone Generation | Tone Generating Technology | AWM Stereo Sampling |
Polyphony | Number of Polyphony (Max.) | 128 |
Preset | Number of Voices | 1161 Voices + 86 Drum/SFX Kits + 480 XG Voices |
Featured Voices | 219 S.Art!, 25 Mega Voices, 41 Sweet!, 64 Cool!, 91 Live!, 20 Revo!SFX (including 299 Oriental Voices, 44 Oriental Drum Kits) |
Compatibility | XG | Yes (for Song playback) |
GS | Yes (for Song playback) |
GM | Yes |
GM2 | Yes |
Expandability | Expansion Voice | Yes (approx. 1 GB) |
Editing | Voice Set |
Part | Right 1, Right 2, Right 3, Left |
Effects
Types | Reverb | 59 Presets + 30 User |
Chorus | 106 Presets + 30 User |
DSP | 322 Presets (with VCM) + 30 User |
Insertion Effect | 1-8: 322 Preset (with VCM) + 30 User |
Master Compressor | 5 Presets + 30 User |
Master EQ | 5 Presets + 30 User |
Part EQ | 28 parts |
Others | Mic/Guitar effects: Noise Gate, Compressor, 3 Band EQ |
Accompaniment Styles
Preset | Number of Preset Styles | 454 (including 260 Oriental Styles) |
Featured Styles | 429 Pro Styles, 15 Session Styles, 10 DJ Styles |
Fingering | Single Finger, Multi Fingered, Fingered, Fingered On Bass, AI Fingered, Full Keyboard, AI Full Keyboard |
Style Control | INTRO x 3, MAIN VARIATION x 4, FILL IN x 4, BREAK, ENDING x 3 |
Other Features | One Touch Setting (OTS) | 4 for each Style |
| Chord Looper | Yes |
| Style Section Reset | Yes |
| Style Section Change Timing | Yes |
| Style Section Time Signature | Yes |
Expandability | Expansion Style | Yes (Internal Memory) |
| Expansion Audio Style | Yes (Internal Memory) |
Compatibility | Style File Format, Style File Format GE |
Songs
Preset | Number of Preset Songs | Sample Songs |
Recording | Number of Songs | Unlimited (depends on the drive capacity) |
Number of Tracks | 16 |
Data Capacity | approx. 3 MB per Song |
Recording Function | Quick Recording, Multi Track Recording, Step Recording |
Compatible Data Format | Playback | SMF (Format 0 & 1), XF |
Recording | SMF (Format 0) |
Multi Pads
Preset | Number of Multi Pad Banks | 257 Banks x 4 Pads |
Audio | Audio Link | Yes |
Functions
Registration | Number of Buttons | 8 |
Control | Registration Sequence, Freeze |
Playlist | Number of Records | 2,500 (max.) Records per Playlist file |
Guide | | Follow Lights, Any Key, Karao-Key, Your Tempo |
Search | | Yes |
Demo/Help | Demonstration | Yes |
Overall Controls | Metronome | Yes |
Tempo Range | 5 - 500, Tap Tempo |
Transpose | -12 – 0 – +12 |
Tuning | 414.8 - 440 - 466.8 Hz |
Octave Button | -3 -0 - +3 |
Scale Type | 12 Types |
Sub Scale Setting | Yes |
Scale Tune Memory | 5 |
Miscellaneous | Direct Access | Yes |
Text Display Function | Yes |
Wallpaper Customization | Yes |
Voices | Harmony/Echo | Yes |
Arpeggio | Yes |
Panel Sustain | Yes |
Mono/Poly | Yes |
Styles | Style Creator | Yes |
OTS Information | Yes |
Songs | Song Creator | Yes |
Score Display Function | Yes |
Lyrics Display Function | Yes |
Multi Pads | Multi Pad Creator | Yes |
Audio Recorder/Player | Recording Time (max.) | Approx 0.8 (80 minutes) per Song |
Recording | WAV (44.1 kHz, 16 bit, stereo) MP3 (44.1 kHz, 128/256/320 kbps, stereo) |
Playback | WAV (44.1 kHz, 16 bit, stereo), MP3 (44.1/48.0 kHz, 64–320 kbps and VBR, mono/stereo) |
Lyrics Display Function | Yes (.mp3 only) |
Time Stretch | Yes |
Pitch Shift | Yes |
Vocal Cancel | Yes |

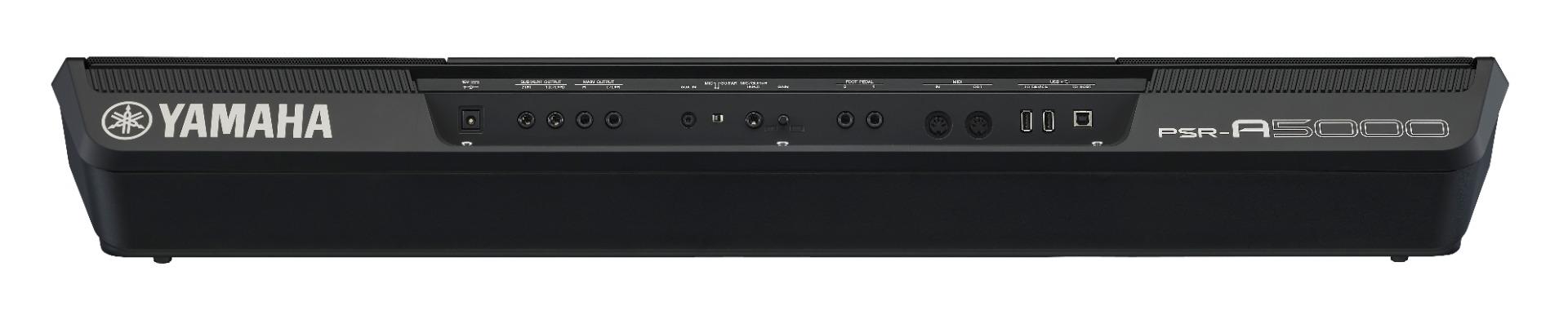

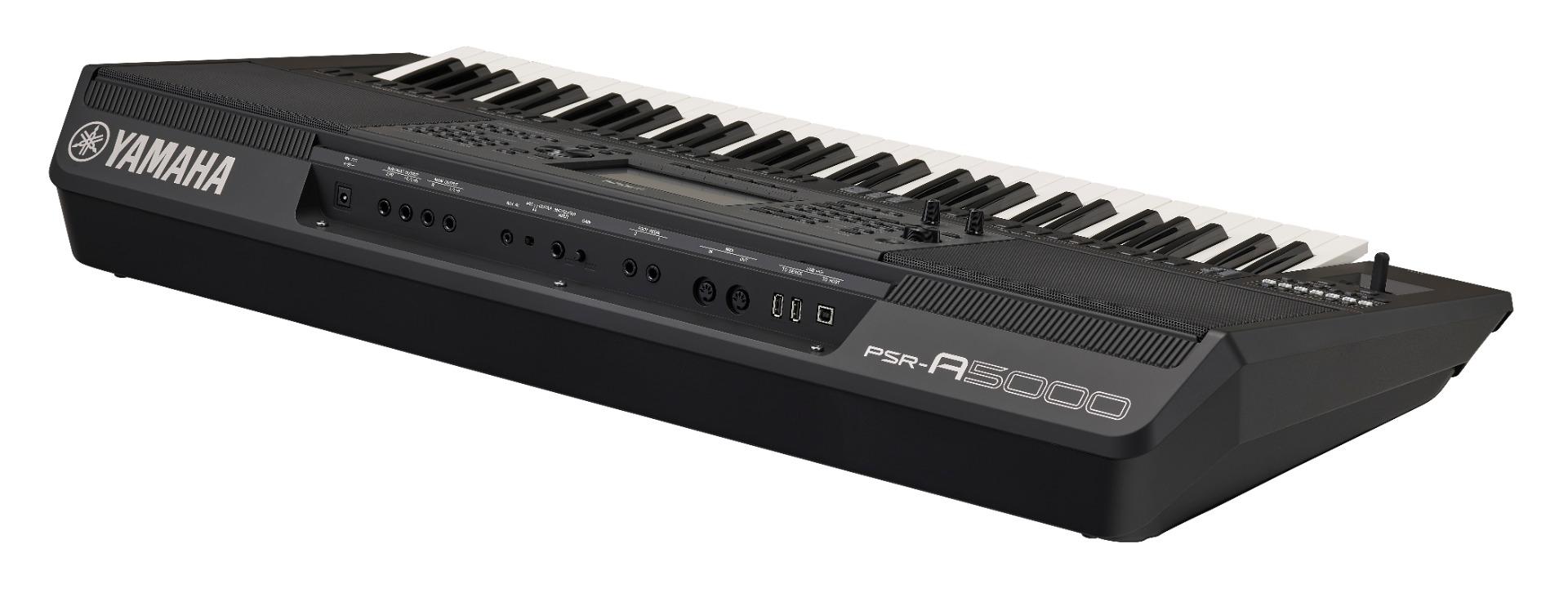

Storage and Connectivity
Storage | Internal Memory | Yes (approx. 2 GB) |
External Drives | USB Flash Drive |
Connectivity | Headphones | Standard stereo phone jack |
FOOT PEDAL | 2 (Assignable) |
MIDI | IN, OUT |
AUX IN | Stereo mini jack |
LINE OUT | MAIN OUTPUT (L/L+R, R), SUB (AUX) OUTPUT (1,2 (L/L+R, R)) |
USB TO DEVICE | Yes (x2) |
USB TO HOST | Yes |
Amplifiers and Speakers
Amplifiers | 15 W x 2 |
Speakers | 13 cm x 2 + 5 cm x 2 |
Power Supply
Power Supply | Yamaha PA-300C or an equivalent recommended by Yamaha |
Power Consumption | 24 W |
Auto Power Off Function | Yes |
Accessories
Included Accessories | Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor (May not be included depending on your area. Check with your Yamaha dealer.) |
