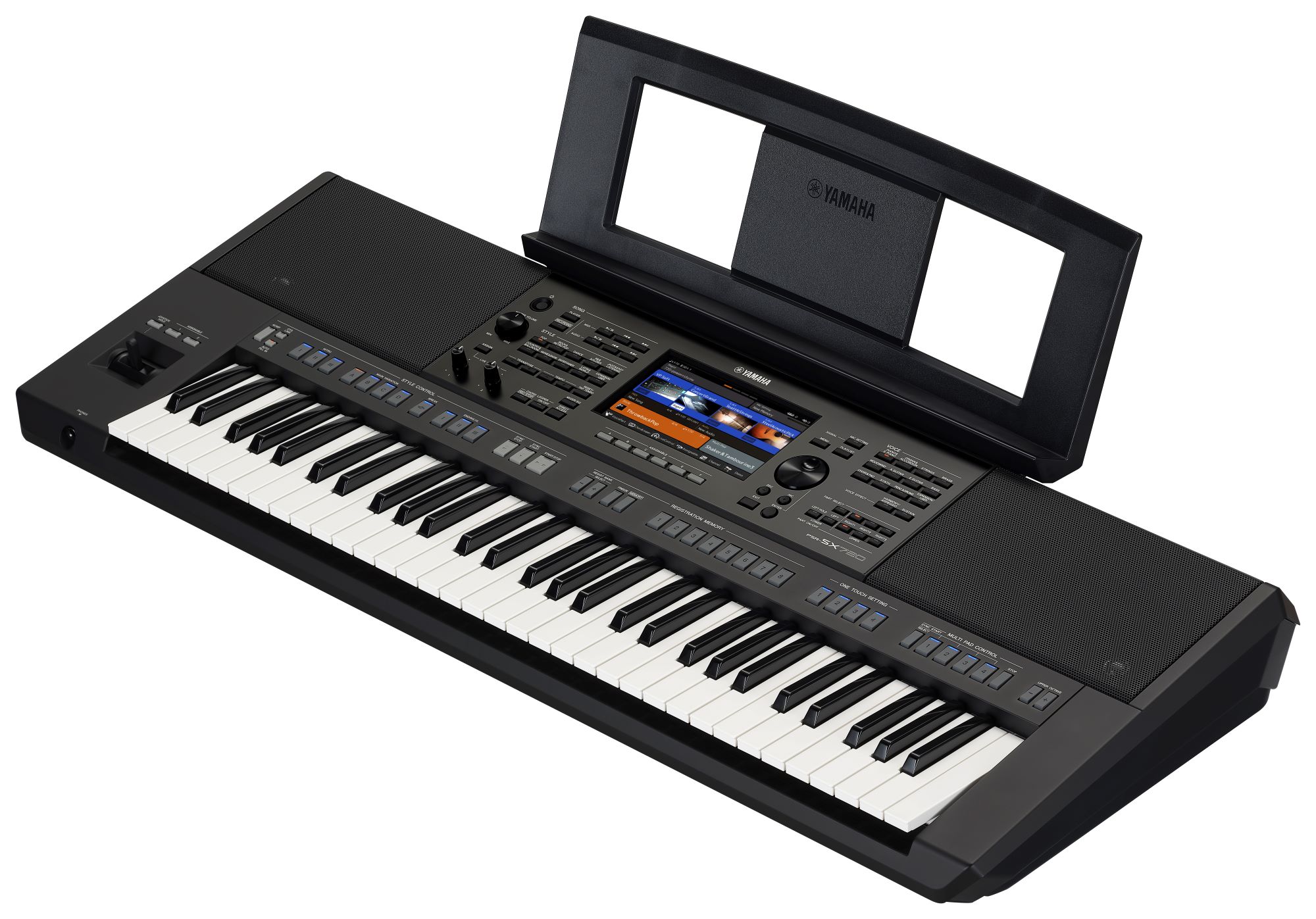

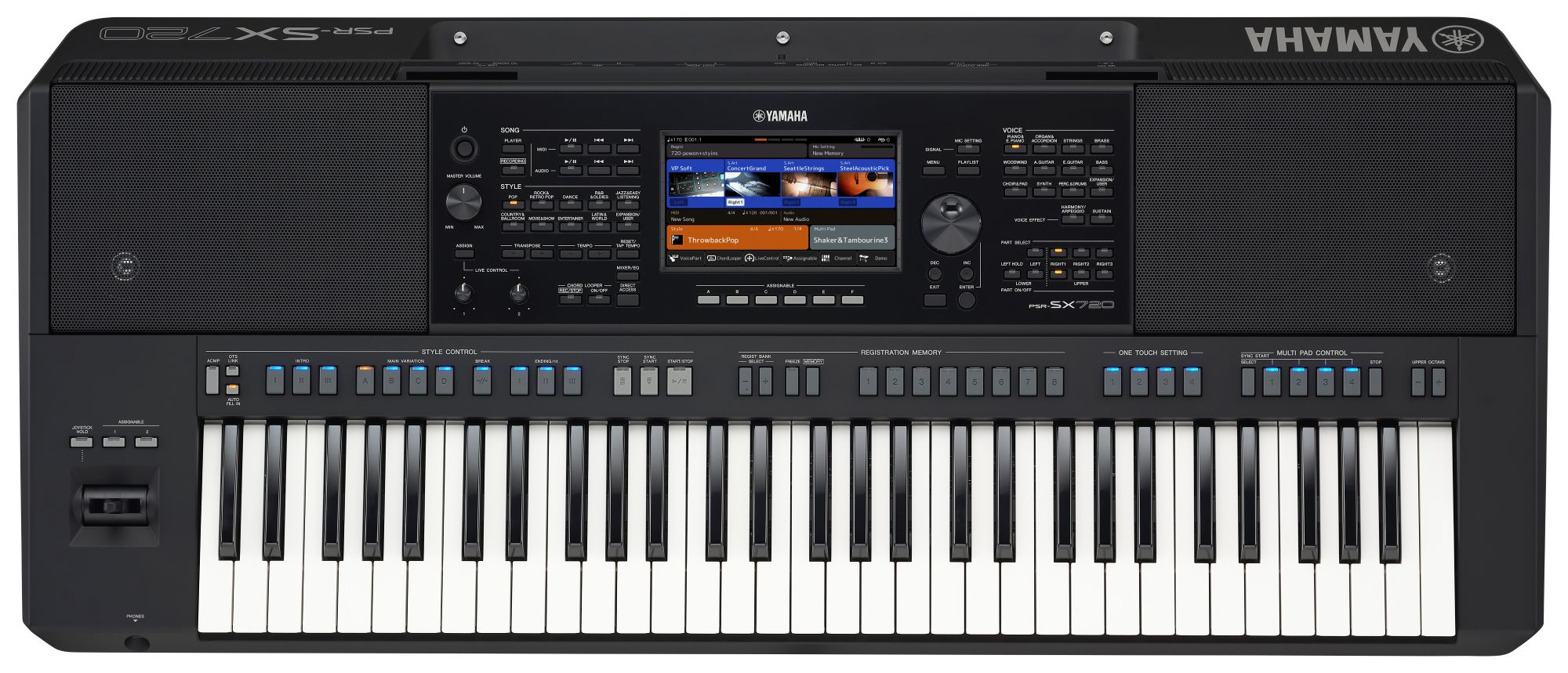

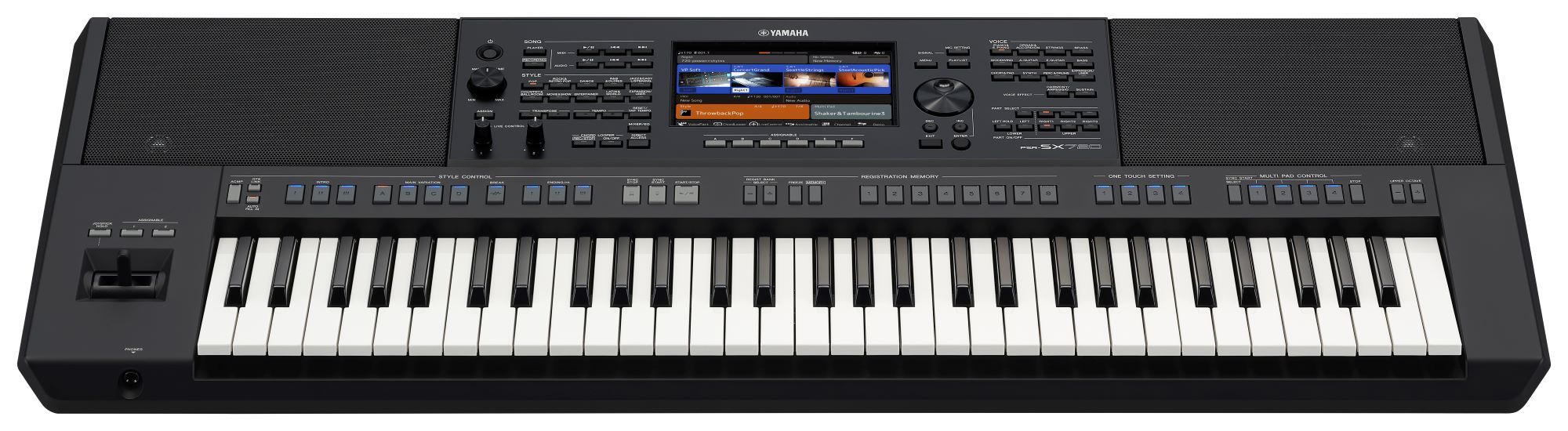

Yamaha PSR-SX720 Arranger Workstation

Finance

Features

More than 1,300 Voices and 450 Styles
Collage of Yamaha Arranger Workstation PSR-SX920/720 Voice selection screens
Ignite your musical creativity with the PSR-SX720! This dynamic Arranger Workstation features over 1,300 high-quality Voices and 450 diverse Styles, all with One Touch Settings to instantly spark your performance. Adjust the energy and dynamics of any Style using a Live Controller with the new Style Dynamics Control. And with double the Style Insertion DSP power from the previous model, new and familiar Styles, all enhanced with the latest Voices and effects, provide for a superior musical experience.

Switch between different instrument articulations effortlessly with the new Super Articulation Plus (S.Art+) Voices and enjoy smooth, fluid pitch transitions with the new Crossfade Portamento, adding expressive depth to your music.

For ultimate performance flexibility, the PSR-SX720 includes 8 assignable panel buttons, 6 home screen shortcuts, and 2 Live Control knobs for quick access to your favorite functions and instant adjustments. Elevate your music with the PSR-SX720—where innovation meets inspiration!

Super Articulation+
Collage of a screen capture of the Yamaha Arranger Workstation PSR-SX920/720 Voice list and a photo of a person's hand playing a keyboard
Instruments often produce varying sounds depending on how notes are played. For instance, string instruments can be bowed or plucked. Previously, accessing these different sounds required switching between Voices on your keyboard. With the new Super Articulation Plus Voices (S.Art+), you can now switch articulations instantly with the touch of a button.

Crossfade Portamento
A collage of photos of the screen operating the Crossfade Portamento on the Yamaha Arranger Workstation PSR-SX920/SX720 and of a person's hand operating the keyboard
Portamento is a musical technique that smooths out changes in pitch, creating a fluid transition between notes. The Crossfade Portamento feature in PSR-SX smoothly transitions between the notes you play, infusing your performance with expressive dynamics and emotional depth.

Style Dynamics Control
Screen capture from Style Dynamics Control video
With Style Dynamics Control, the energy and dynamics of all Styles, including User Styles, can be easily adjusted using a single Live controller. Whether you want your backing band to play at a soft pianissimo level, a hard fortissimo level or anything in between, the choice is yours.

EXPANSION EXPLORER App
Yamaha Arranger Workstation PSR-SX720 and a hand holding smartphone with the Yamaha official app “Expansion Explorer” screen.
The new EXPANSION EXPLORER App is the ultimate tool for supercharging your Arranger Workstation experience. Quickly access, search, and preview your favorite Expansion content on iOS, Android, Windows and Mac. With tailored recommendations and effortless management, EXPANSION EXPLORER makes discovering and installing new content easier than ever before.

Specs

• Body Colour ~ Black

• Width ~ 1,017 mm (40")
• Height ~ 139 mm (5-1/2")
• Depth ~ 431 mm (17")
• Weight ~ 11.6 kg (25.57 lbs.)
• Packing Box
• Width ~ 1,174 mm (46-3/16")
• Height ~ 246 mm (9-11/16")
• Depth ~ 511 mm (20-1/8")

• Keyboard - Number of Keys ~ 61
• Keyboard - Type ~ Organ (FSB), Initial Touch
• Keyboard - Touch Response ~ Normal, Soft1, Soft2, Hard1, Hard2

• Joystick ~ Yes (Assignable)
• Control Knobs ~ 2 (Assignable)
• Assignable Buttons ~ 6 + 2 (With LED Indicator)

• Type ~ TFT Color Wide VGA LCD
• Size ~ 800 x 480 dots (7 inch)
• Touch Screen ~ Yes
• Colour ~ Yes
• Language ~ English, German, French, Spanish, Italian, Chinese
• Panel - Language ~ English, Chinese

• Tone Generation - Tone Generating Technology ~ AWM Stereo Sampling
• Polyphony - Number of Polyphony (Max.) ~ 128
• Preset -Number of Voices ~ 1,377 Voices + 56 Drum/SFX Kits + 480 XG Voices
• Preset - Featured Voices ~ 9 S.Articulation+, 252 S.Articulation, 55 OrganFlutes, 54 MegaVoice

• Expandability - Expansion Voice ~ Yes (approx. 1 GB)
• Compatibility ~ XG, GM, GM2 (for Song Playback）
• Part ~ Right1, Right2, Right3, Left

• Reverb ~ 59 Preset + 30 User
• Chorus ~ 106 Preset + 30 User
• DSP ~ 322 Preset + 30 User
• Insertion Effect ~ 1-8: 322 Preset + 30 User
• Master Compressor ~ 5 Preset + 30 User
• Master EQ ~ 5 Preset + 30 User
• Part EQ ~ 28 Parts

• Preset - Number of Preset Styles ~ 450
• Preset - Featured Styles ~ 410 Pro Styles, 37 Session Styles, 3 Free Play Styles
• Preset - Fingering ~ Single, Fingered, OnBass, Multi, AI Fingered, Full / AI Full, Smart Chord
• Preset - Style Control ~ INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3

• Compatibility ~ Style File Format, Style File Format GE
• Expandability - Expansion Style ~ Yes (Internal Memory)
• Expandability - Expansion Audio Style ~ N/A

• Chord Looper ~ Yes
• Style Section Reset ~ Yes
• Style Section Change Timing ~ Yes
• Style Section Time Signature ~ Yes (per Section)
• Style Dynamics Control ~ Yes (with knobs / pedal)
• One Touch Setting (OTS) ~ 4 for each Style
• Unison & Accent ~ N/A

• Preset - Number of Preset Songs ~ 1 Demo Song, 2 Preset Songs
• Recording - Number of Songs ~ Unlimited (depending on USB flash memory capacity)
• Recording - Number of Tracks ~ 16
• Recording - Data Capacity ~ Approx. 3 MB/Song
• Recording Function ~ Quick Recording, Multi Recording, Step Recording

• Playback ~ SMF (Format 0 & 1), XF
• Recording ~ SMF (Format 0)

• Multi Pads - Preset - Number of Multi Pad Banks ~ 349 banks x 4 Pads
• Audio - Audio Link ~ Yes

• Voices - Harmony/Echo ~ Yes (with Arpeggio)
• Panel Sustain ~ Yes
• Mono/Poly ~ Yes (w/ Legato, Xfd (improved), VeloToPrtTime, FastPlayingPortamento, Velocity Limit)
• Voice Information ~ Yes
• Styles - Style Creator ~ Yes
• Styles - OTS Information ~ Yes

• Songs - Song Creator ~ Yes
• Songs - Score Display Function ~ Yes
• Songs - Lyrics Display Function ~ Yes

• Multi Pads - Multi Pad Creator ~ Yes
• Registration - Number of Buttons ~ 8
• Registration - Control ~ Registration Sequence, Freeze
• Playlist - Number of Records ~ 2,500 (max.) Records per Playlist file (add search/sort function improved)
• Search ~ Registration Bank

• Recording Time (max.) ~ 80 minutes/Song
• Recording ~ .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo)
• Playback ~ .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
• Time Stretch ~ Yes
• Pitch Shift ~ Yes
• Vocal Cancel ~ Yes

• Demo/Help - Demonstration ~ Yes

• Metronome ~ Yes
• Tempo Range ~ 5 - 500, Tap Tempo
• Transpose ~ -12 – 0 – +12
• Tuning ~ 414.8 – 440 – 466.8 Hz
• Octave Button ~ -3 -0- 3
• Scale Type ~ 9 Preset
• Sub Scale Setting ~ Yes

• Direct Access ~ Yes
• Text Display Function ~ Yes
• Wallpaper Customization ~ Yes
• Display Out ~ N/A

• Internal Memory ~ Approx. 1 GB max.
• External Drives ~ USB Flash Memory (via USB to DEVICE)

• Headphones ~ Yes
• Microphone ~ Mic/Guitar
• MIDI ~ IN/OUT
• AUX IN ~ Stereo mini
• LINE OUT ~ L / L+R, R
• DIGITAL OUT ~ N/A
• FOOT PEDAL ~ Assignable, Sw or Vol x2
• USB TO DEVICE ~ USB 2.0 ×1
• USB TO HOST ~ USB 2.0 ×1
• Wireless LAN ~ N/A

• Amplifiers ~ 15 W x2
• Speakers ~ [13 cm + 5 cm ] x2

• Power Supply ~ PA-300C or an equivalent recommended by Yamaha
• Power Consumption ~ 21 W
• Auto Power Off Function ~ Yes

• Included Accessories ~ Owner's Manual, Music Rest, AC Adaptor (may not be included depending on your area. Check with your Yamaha dealer.)
