Yamaha PSR-SX920 Arranger Workstation

Finance

Features

More than 1,500 Voices and 500 Styles
Collage of Yamaha Arranger Workstation PSR-SX920/720 Voice selection screens
Unleash your musical creativity with the PSR-SX920! This powerhouse Arranger Workstation boasts over 1,500 high-quality Voices and 575 diverse Styles, all equipped with One Touch Settings to instantly ignite your performance. Use a Live Controller to adjust the energy and dynamics of any Style with Style Dynamics Control. And with double the Style Insertion DSP power from the previous model, new and familiar Styles, all enhanced with the latest Voices and effects, sound more refined, providing an elevated musical experience.

For the first time in an SX-Series instrument, the PSR-SX920 includes Super Articulation2 (S.Art2) technology. Without even thinking about it, S.Art2 delivers unprecedented realism to Voices with lifelike instrument articulations added seamlessly to your performance. Plus, with the new Super Articulation Plus Voices (S.Art+), you can switch between different instrument articulations with the touch of a button. With the newly added Crossfade Portamento, experience smooth, fluid pitch transitions, adding expressive depth to your music.

For ultimate performance flexibility, the PSR-SX920 includes 8 assignable panel buttons, 6 home screen shortcuts and 2 Live Control knobs, giving you rapid access to your favorite functions for instant adjustments.

Elevate your music with the PSR-SX920—where innovation meets inspiration!

Super Articulation 2/Super Articulation+
Collage of a screen capture of the Yamaha Arranger Workstation PSR-SX920/720 Voice list and a photo of a person's hand playing a keyboard
The PSR-SX920 is the first SX-series instrument to include Super Articulation2 (S.Art2) technology.

Super Articulation2 delivers advanced realism to Voices, previously found only in flagship Arranger Workstations. S.Art2 Voices offer detailed instrument articulations, like glissandos and other nuanced effects unlocking expressive, lifelike instrument characteristics for your performances.

Instruments often produce varying sounds depending on how notes are played. For instance, string instruments can be bowed or plucked. Previously, accessing these different sounds required switching between Voices on your keyboard. With the new Super Articulation Plus Voices (S.Art+), you can now switch articulations instantly with the touch of a button.

Crossfade Portamento
A collage of photos of the screen operating the Crossfade Portamento on the Yamaha Arranger Workstation PSR-SX920/SX720 and of a person's hand operating the keyboard
Portamento is a musical technique that smooths out changes in pitch, creating a fluid transition between notes. The Crossfade Portamento feature in PSR-SX smoothly transitions between the notes you play, infusing your performance with expressive dynamics and emotional depth.

Style Dynamics Control
Screen capture from Style Dynamics Control video
With Style Dynamics Control, the energy and dynamics of all Styles, including User Styles, can be easily adjusted using a single Live controller. Whether you want your backing band to play at a soft pianissimo level, a hard fortissimo level or anything in between, the choice is yours.

EXPANSION EXPLORER App
Yamaha Arrange Workstation PSR-SX920 and a hand holding a smartphone with the Yamaha official app “Expansion Explorer” screen.

The new EXPANSION EXPLORER App is the ultimate tool for supercharging your Arranger Workstation experience. Quickly access, search, and preview your favorite Expansion content on iOS, Android, Windows and Mac. With tailored recommendations and effortless management, EXPANSION EXPLORER makes discovering and installing new content easier than ever before.

Specs

• Width ~ 1,017 mm (40")
• Height ~ 139 mm (5-1/2")
• Depth ~ 431 mm (17")
• Weight ~ 11.6 kg (25.57 lbs.)
• Packing Box
• Width ~ 1,174 mm (46-3/16")
• Height ~ 246 mm (9-11/16")
• Depth ~ 511 mm (20-1/8")

• Keyboard - Number of Keys ~ 61
• Keyboard - Type ~ Organ (FSB), Initial Touch
• Keyboard - Touch Response ~ Normal, Soft1, Soft2, Hard1, Hard2

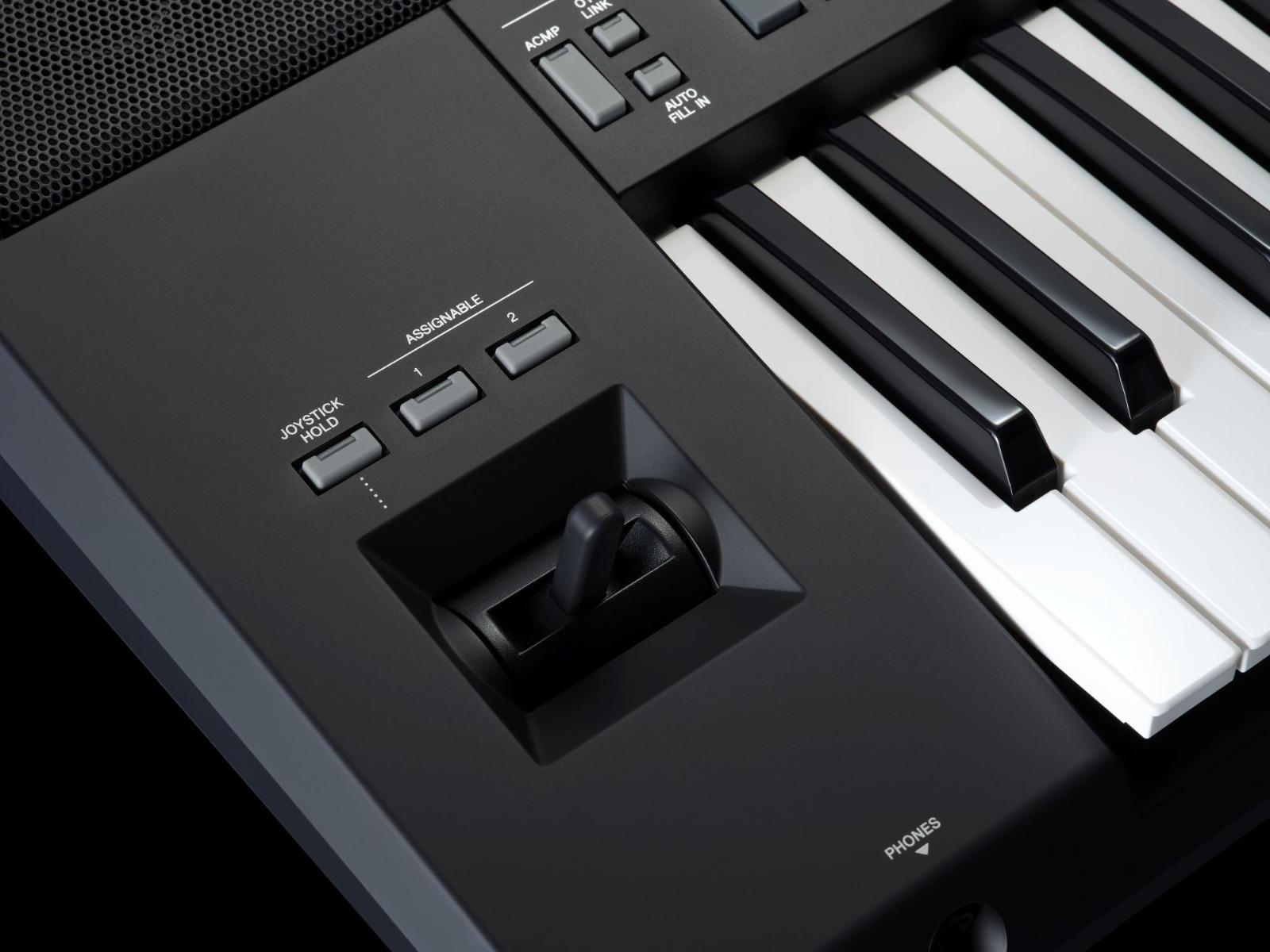

• Joystick ~ Yes (Assignable)
• Control Knobs ~ 2 (Assignable)
• Assignable Buttons ~ 6 + 2 (With LED Indicator)

• Type ~ TFT Color Wide VGA LCD
• Size ~ 800 x 480 dots (7 inch)
• Touch Screen ~ Yes
• Colour ~ Yes
• Language ~ English, German, French, Spanish, Italian, Chinese
• Panel - Language ~ English, Chinese

• Tone Generation - Tone Generating Technology ~ AWM Stereo Sampling
• Polyphony - Number of Polyphony (Max.) ~ 128
• Preset -Number of Voices ~ 11,587 Voices + 63 Drum/SFX Kits + 480 XG Voices
• Preset - Featured Voices ~ 12 S.Articulation2, 15 S.Articulation+, 340 S.Articulation, 55 OrganFlutes, 82 MegaVoice
• Expandability - Expansion Voice ~ Yes (approx. 2 GB)
• Compatibility ~ XG, GM, GM2 (for Song Playback）
• Part ~ Right1, Right2, Right3, Left

• Reverb ~ 59 Preset + 30 User
• Chorus ~ 107 Preset + 30 User
• DSP ~ 358 Preset (with VCM) + 30 User
• Insertion Effect ~ 1-13: 358 Preset (with VCM) + 30 User
• Master Compressor ~ 5 Preset + 30 User
• Master EQ ~ 5 Preset + 30 User
• Part EQ ~ 28 Parts

• Number of Presets ~ Vocal Harmony: 54, Synth Vocoder: 20
• Number of User Settings ~ 60 *The number is the total of Vocal Harmony and Synth Vocoder

• Preset - Number of Preset Styles ~ 575
• Preset - Featured Styles ~ 520 Pro Styles, 49 Session Styles, 6 Free Play Styles
• Preset - Fingering ~ Single, Fingered, OnBass, Multi, AI Fingered, Full / AI Full, Smart Chord
• Preset - Style Control ~ INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3
• Compatibility ~ Style File Format, Style File Format GE
• Expandability - Expansion Style ~ Yes (Internal Memory)
• Expandability - Expansion Audio Style ~ Yes (Internal Memory)

• Chord Looper ~ Yes
• Style Section Reset ~ Yes
• Style Section Change Timing ~ Yes
• Style Section Time Signature ~ Yes (per Section)
• Style Dynamics Control ~ Yes (with knobs / pedal)
• One Touch Setting (OTS) ~ 4 for each Style
• Unison & Accent ~ N/A

• Preset - Number of Preset Songs ~ 1 Demo Song, 2 Preset Songs
• Recording - Number of Songs ~ Unlimited (depending on USB flash memory capacity)
• Recording - Number of Tracks ~ 16
• Recording - Data Capacity ~ Approx. 3 MB/Song
• Recording Function ~ Quick Recording, Multi Recording, Step Recording

• Playback ~ SMF (Format 0 & 1), XF
• Recording ~ SMF (Format 0)
• Multi Pads - Preset - Number of Multi Pad Banks ~ 500 banks x 4 Pads
• Audio - Audio Link ~ Yes

• Voices - Harmony/Echo ~ Yes (with Arpeggio)
• Panel Sustain ~ Yes
• Mono/Poly ~ Yes (w/ Legato, Xfd (improved), VeloToPrtTime, FastPlayingPortamento, Velocity Limit)
• Voice Information ~ Yes
• Styles - Style Creator ~ Yes
• Styles - OTS Information ~ Yes
• Songs - Song Creator ~ Yes
• Songs - Score Display Function ~ Yes
• Songs - Lyrics Display Function ~ Yes

• Multi Pads - Multi Pad Creator ~ Yes

• Registration - Number of Buttons ~ 8
• Registration - Control ~ Registration Sequence, Freeze

• Playlist - Number of Records ~ 2,500 (max.) Records per Playlist file (add search/sort function improved)

• Search ~ Registration Bank

• Recording Time (max.) ~ 80 minutes/Song
• Recording ~ .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo)
• Playback ~ .wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)
• Time Stretch ~ Yes
• Pitch Shift ~ Yes
• Vocal Cancel ~ Yes

• Demo/Help - Demonstration ~ Yes

• Metronome ~ Yes
• Tempo Range ~ 5 - 500, Tap Tempo
• Transpose ~ -12 – 0 – +12
• Tuning ~ 414.8 – 440 – 466.8 Hz
• Octave Button ~ -3 -0- 3
• Scale Type ~ 9 Preset
• Sub Scale Setting ~ Yes

• Direct Access ~ Yes
• Text Display Function ~ Yes
• Wallpaper Customization ~ Yes
• Display Out ~ Yes (via USB to DEVICE)

• Bluetooth ~ Yes (depends on destination)

• Internal Memory ~ Approx. 4 GB max.
• External Drives ~ USB Flash Memory (via USB to DEVICE)

• Headphones ~ Yes
• Microphone ~ Mic/Guitar
• MIDI ~ IN/OUT
• AUX IN ~ Stereo mini
• LINE OUT ~ L/ L+R, R, Sub 1/2
• DIGITAL OUT ~ N/A
• FOOT PEDAL ~ Assignable, Sw or Vol x2
• USB TO DEVICE ~ USB 2.0 ×2
• USB TO HOST ~ USB 2.0 ×1
• Wireless LAN ~ N/A

• Amplifiers ~ (15 W+10 W) x2
• Speakers ~ [13 cm FSP+2.5 cm, (Dome type)] x2

• Power Supply ~ PA-300C or an equivalent recommended by Yamaha
• Power Consumption ~ 24 W
• Auto Power Off Function ~ Yes

• Included Accessories ~ Owner's Manual, Music Rest, AC Adaptor (may not be included depending on your area. Check with your Yamaha dealer.)
