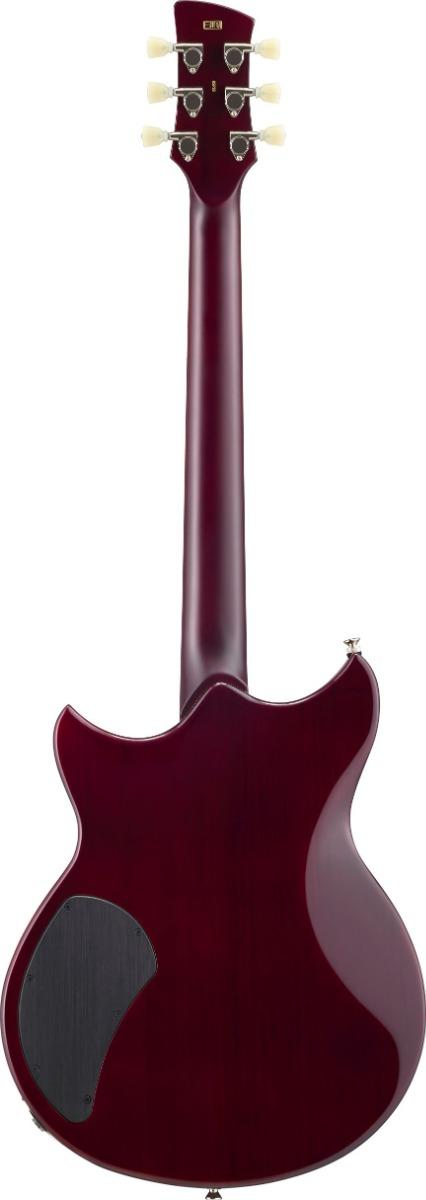

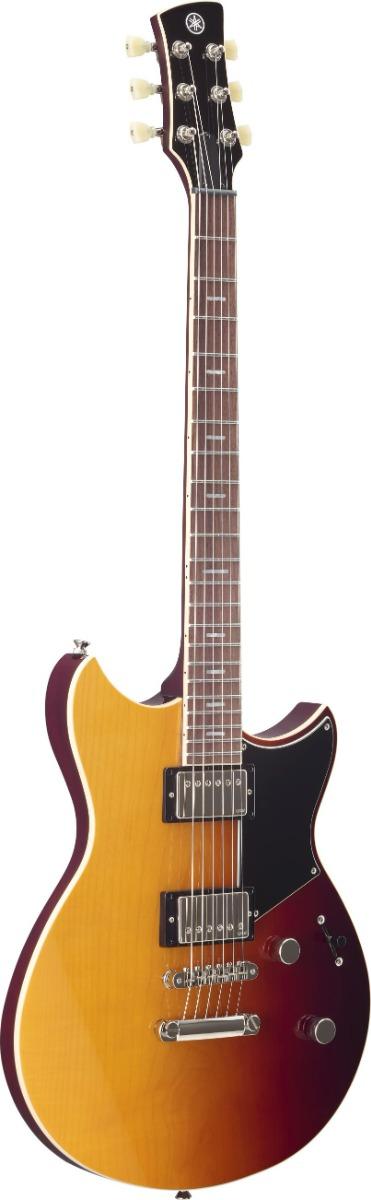

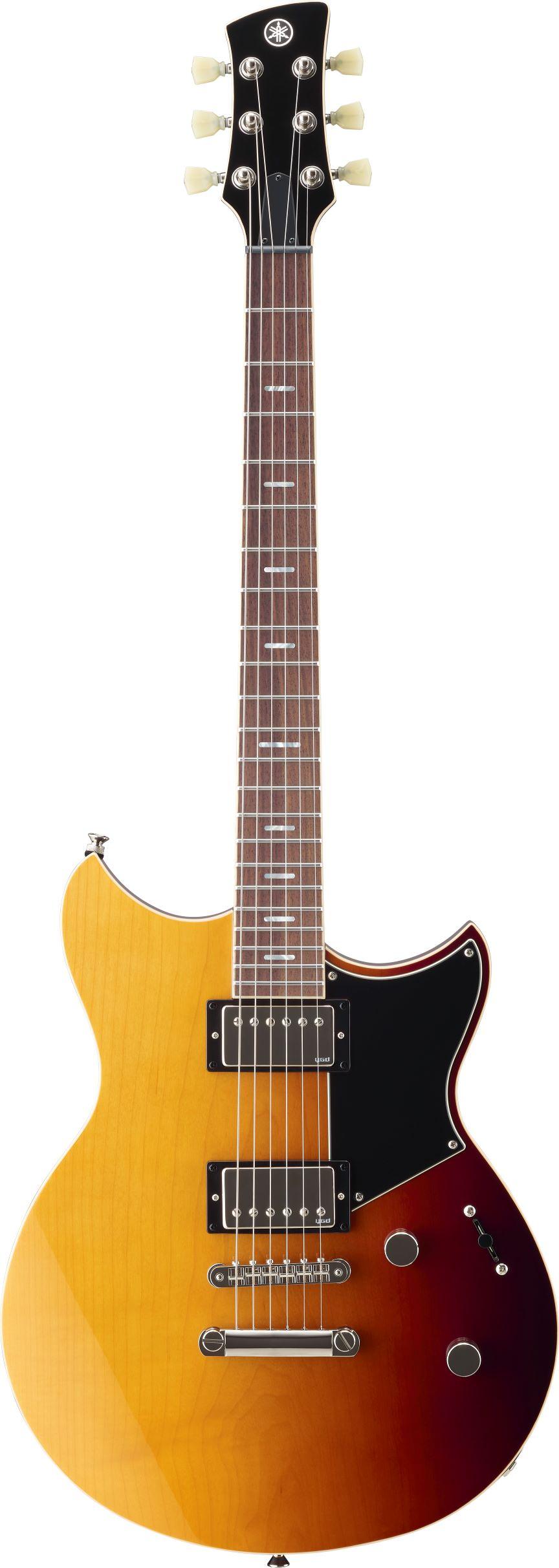

Yamaha Revstar Professional RSP20SSB Electric Guitar in Sunset Burst
Crafted to our highest standards by our master luthiers in Japan, Revstar Professional guitars represent the pinnacle of the new Revstar series.
The Japanese-made RSP20 features carbon reinforcement in the neck and chambered body, dual humbucking pickups, 5-way switching, and a Focus Switch, providing exceptional versatility.
- Built in Japan
- 3 Café racer inspired finishes
- Chambered maple and mahogany body
- Carbon-reinforced neck and body
- 2 humbucking pickups
- 5-Position pickup selector
- Passive Focus Switch
- Hardshell case included
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
CHAMBERED BODY WITH ACOUSTIC DESIGN
Revstar Professional guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the body and neck to improve vibration transfer.
5-WAY SWITCHING
Positions 2 and 4 slightly delay the opposite pickup for a subtle phase shift that offers a fresh take on classic “in-between” sounds.
FOCUS SWITCH
The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.
CHOICE OF PICKUPS
RSP20 and RSP20X feature humbuckers, and RSP02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.
Specs
- Construction: Set-in
- Scale Length: 24-3/4” (628.6mm)
- Body Materials: Top: Maple / Back: Chambered 2-Piece Mahogany, Carbon Reinforcement
- Body Finish: Gloss Polyurethane
- Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
- Neck Finish: Satin Polyurethane
- Fingerboard Materials: Rosewood
- Fingerboard Radius: 12" (304.8mm)
- Fret wire: Jumbo Stainless steel
- Number of frets: 22
- Nut materials: PPS
- Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
- Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
- Neck Pickup: VH5n: Humbucker / Alnico V
- Middle Pickup: N/A
- Bridge Pickup: VH5b: Humbucker / Alnico V
- Controls: Master Volume, Master Tone (Push-Pull, "Focus Switch")
- Pickup Switch: 5-Position Lever Switch
- Bridge: Tune-O-Matic
- Tremolo Arm: N/A
- String spacing: 10.5mm
- Tailpiece: Stopbar
- Tuning Machines: Die-Cast
- Pickguard: Swift Blue / Moonlight Blue: 3-Ply Cream, Sunset Burst: 3 Ply Black
- String gauge: D'Addario EXL110 / 0.010-0.046
- Case: Hardshell case
- Special Features: I.R.A. Treatment
