Yamaha Revstar Standard RSS02TSWB Electric Guitar
THE NEW STANDARD
With two available pickup configurations, 5-way switching, and the Focus Switch passive boost, the new Revstar Standard is all about versatility.
This Revstar Standard features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

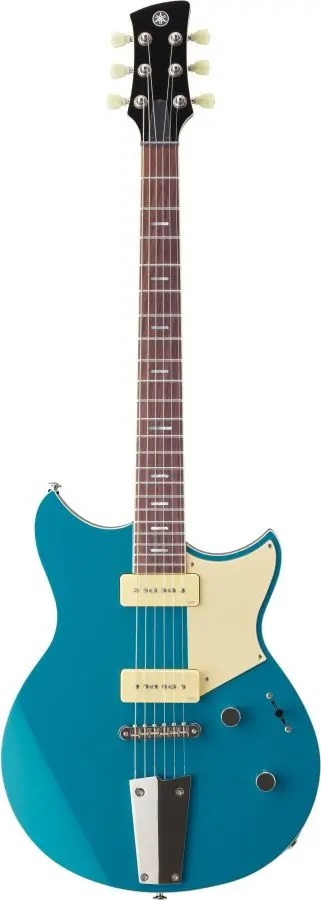

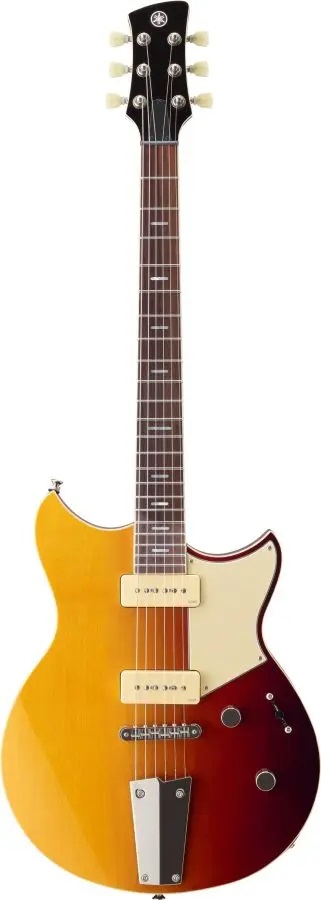

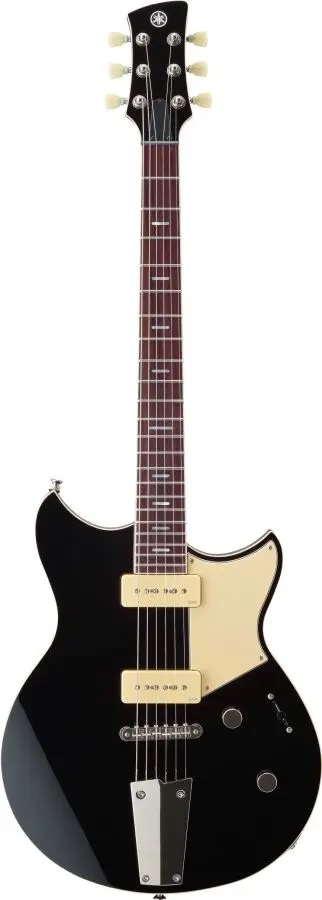

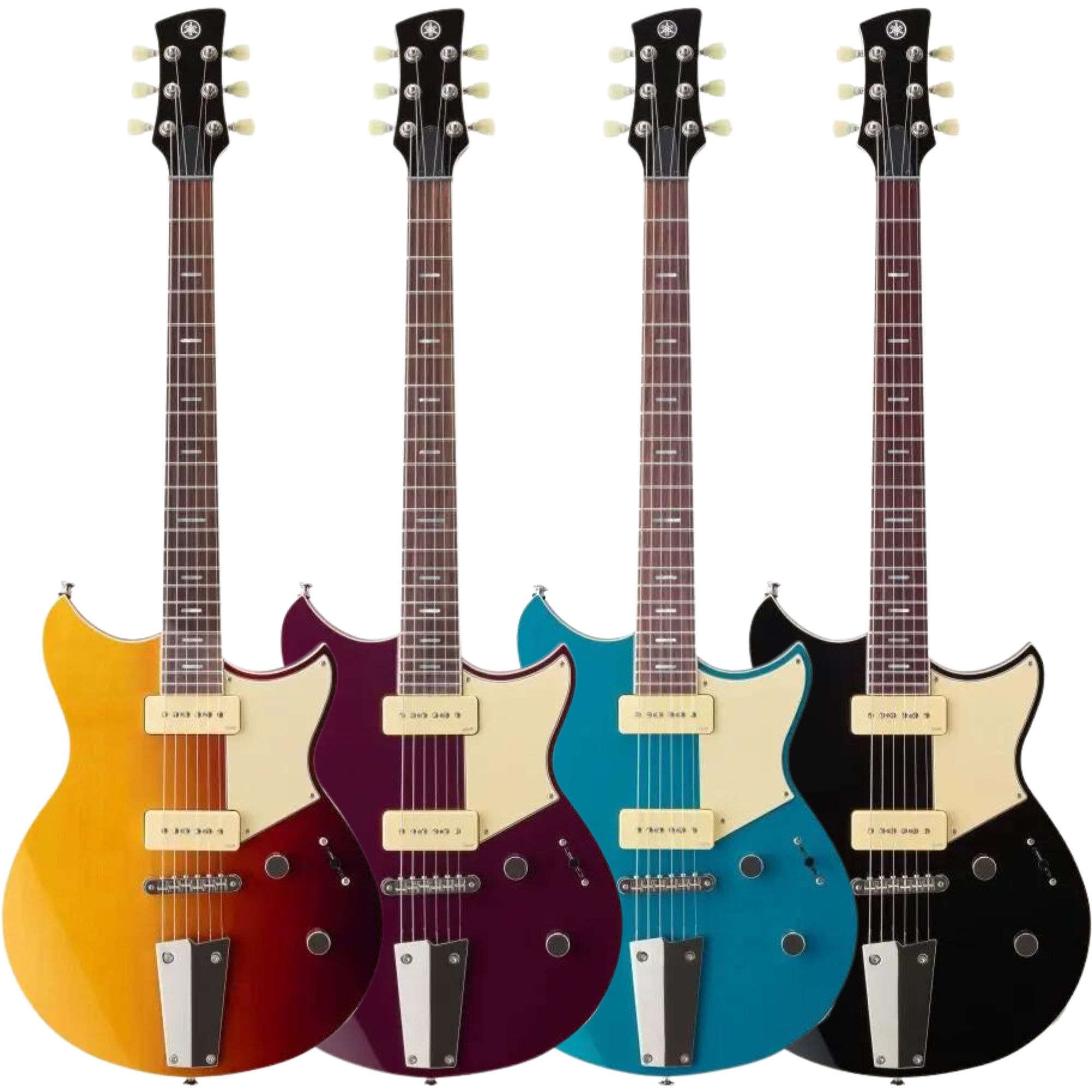

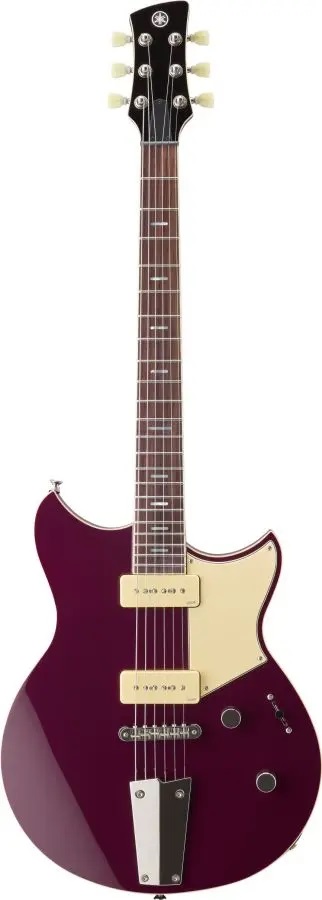

- 4 Café Racer inspired finishes
- Chambered maple and mahogany body
- Carbon-reinforced 3-piece mahogany neck
- 2 P90-style pickups
- 5-Position pickup selector
- Passive Focus Switch

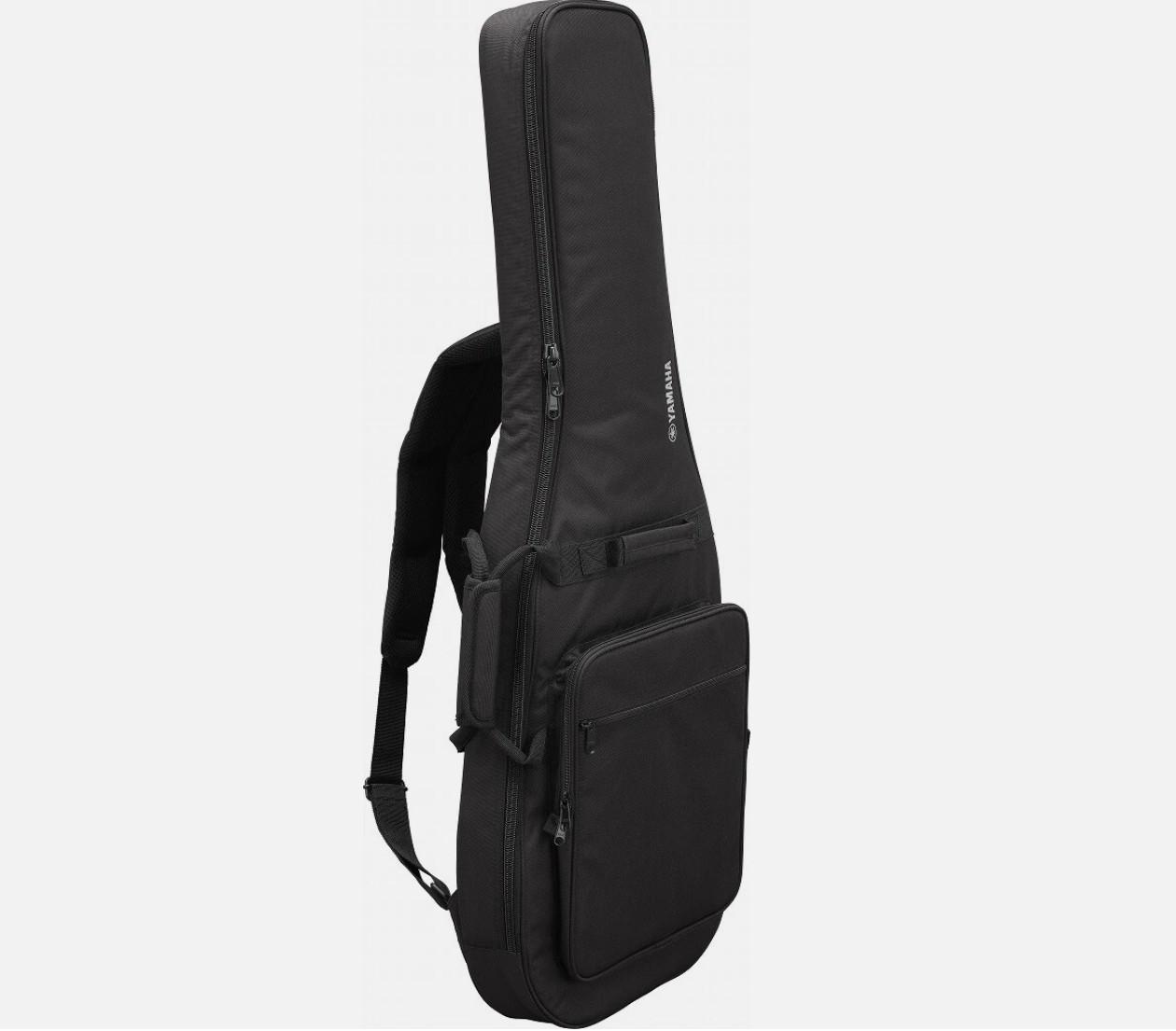

- Deluxe gig bag included
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
CHAMBERED BODY WITH ACOUSTIC DESIGN
Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer.
5-WAY SWITCHING
With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic “in-between” sounds.
FOCUS SWITCH
The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.
CHOICE OF PICKUPS

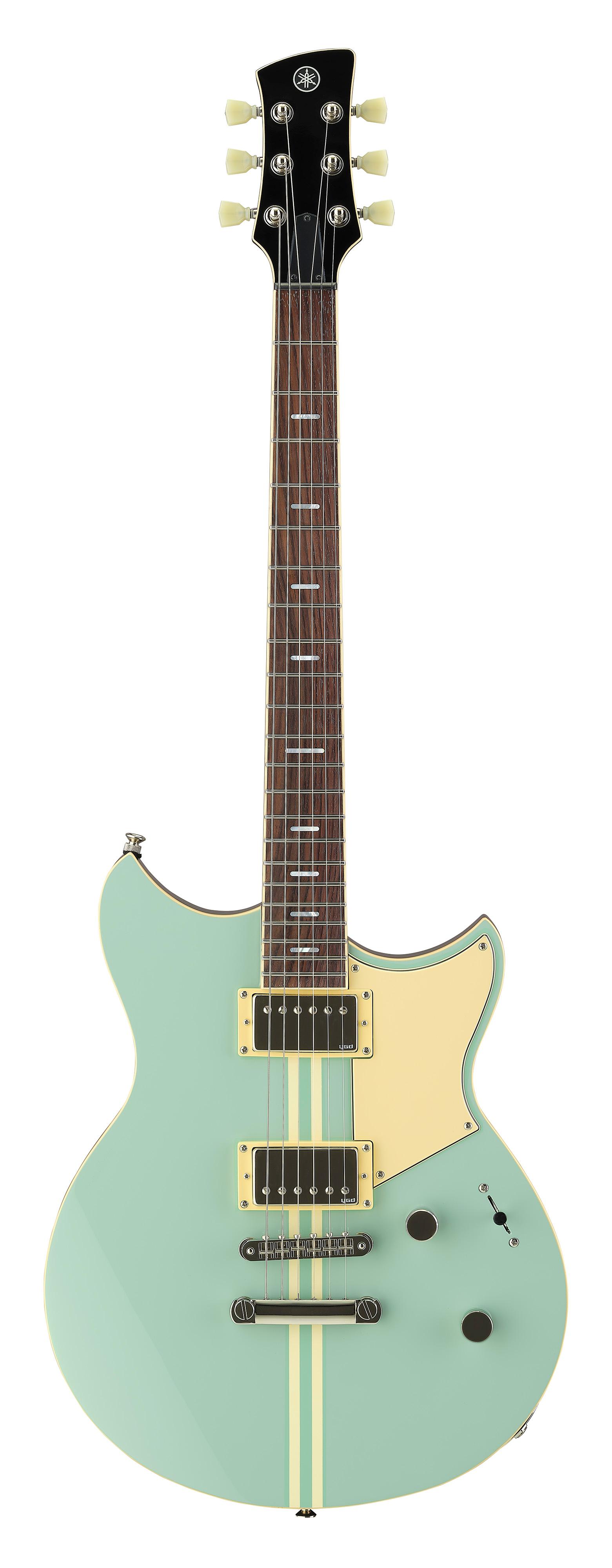

RSS20 and RSS20L feature humbuckers, and RSS02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.
SWITCH ON
The Focus Switch boost on Professional and Standard models, and the Dry Switch filter on Revstar Element, provide even greater versatility.
Specs
- Construction: Set-in
- Scale Length: 24-3/4” (628.6mm)
- Body Materials: Top: Maple / Back: Chambered Mahogany
- Body Finish: Gloss Polyurethane
- Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
- Neck Finish: Satin Polyurethane
- Fingerboard Materials: Rosewood
- Fingerboard Radius: 12" (304.8mm)
- Fret wire: Jumbo Stainless steel
- Number of frets: 22
- Nut materials: PPS
- Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
- Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
- Neck Pickup: VP5n: P90 type Single coil / Alnico V
- Middle Pickup: N/A
- Bridge Pickup: VP5b: P90 type Single coil / Alnico V
- Controls: Master Volume, Master Tone (Push-Pull, "Focus Switch")
- Pickup Switch: 5-Position Lever Switch
- Bridge: Tune-O-Matic
- Tremolo Arm: N/A
- String spacing: 10.5mm
- Tailpiece: Racing Tailpiece
- Tuning Machines: Die-Cast
- Pickguard: 3-Ply Cream
- String gauge: Elixir Nanoweb Light / 0.010-0.046
- Case: Gig Bag
- Special Features: N/A
