Yamaha STAGEPAS 200 Portable PA System

£493.00
incl. VAT
Ask us about our Price Promise - click here
STAGEPAS 200 Portable PA System
STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System STAGEPAS 200 Portable PA System

Overview

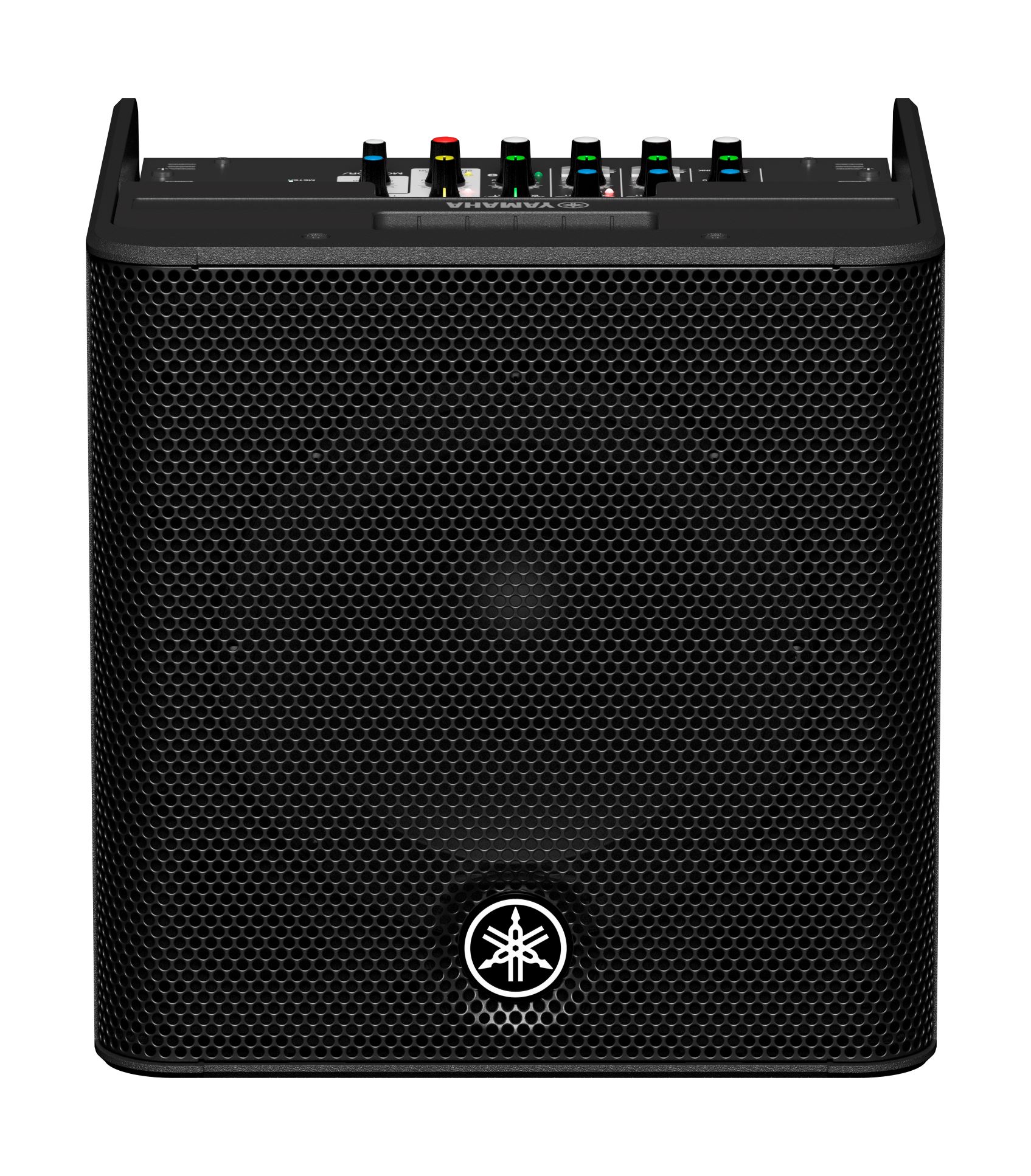

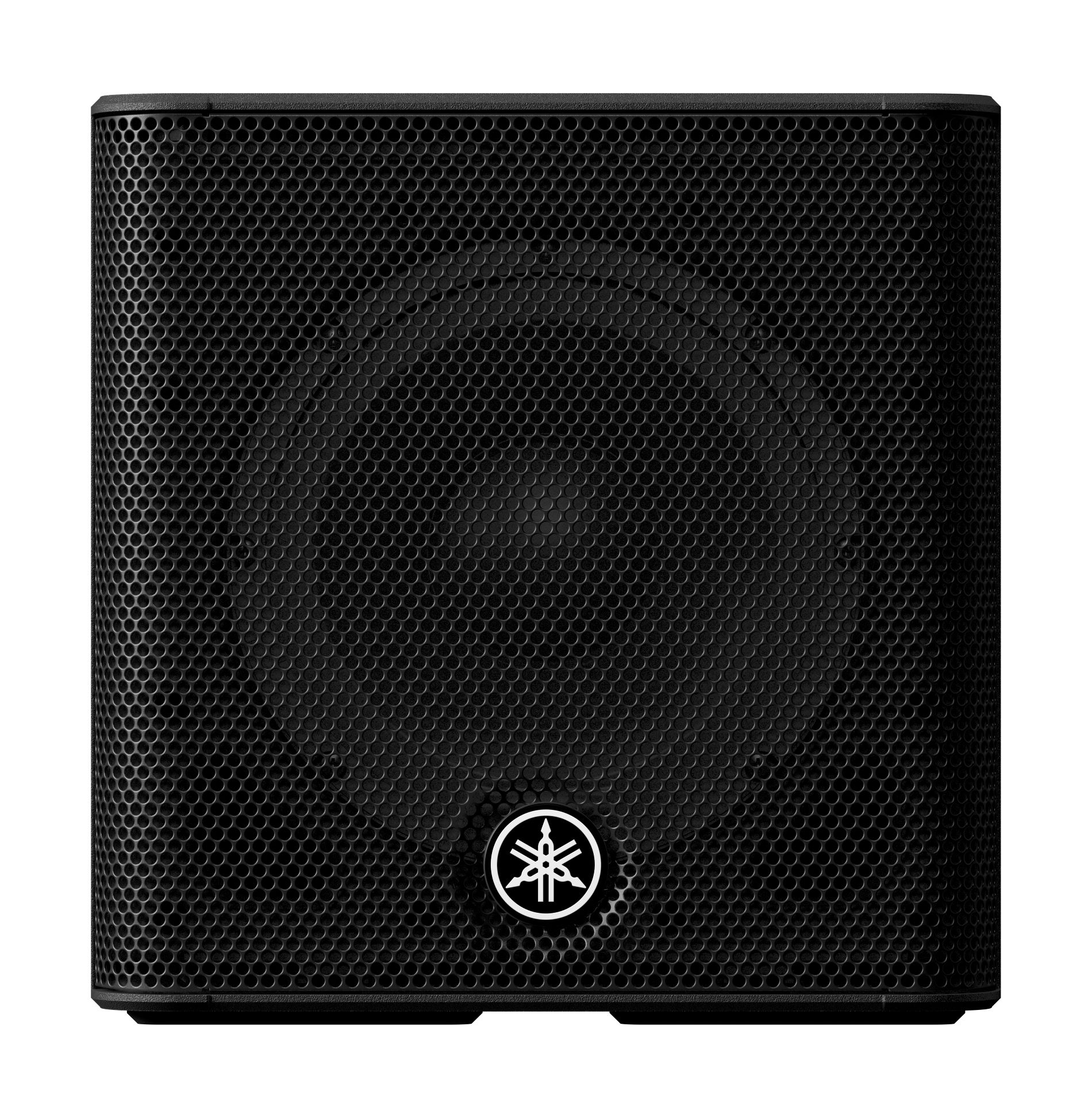

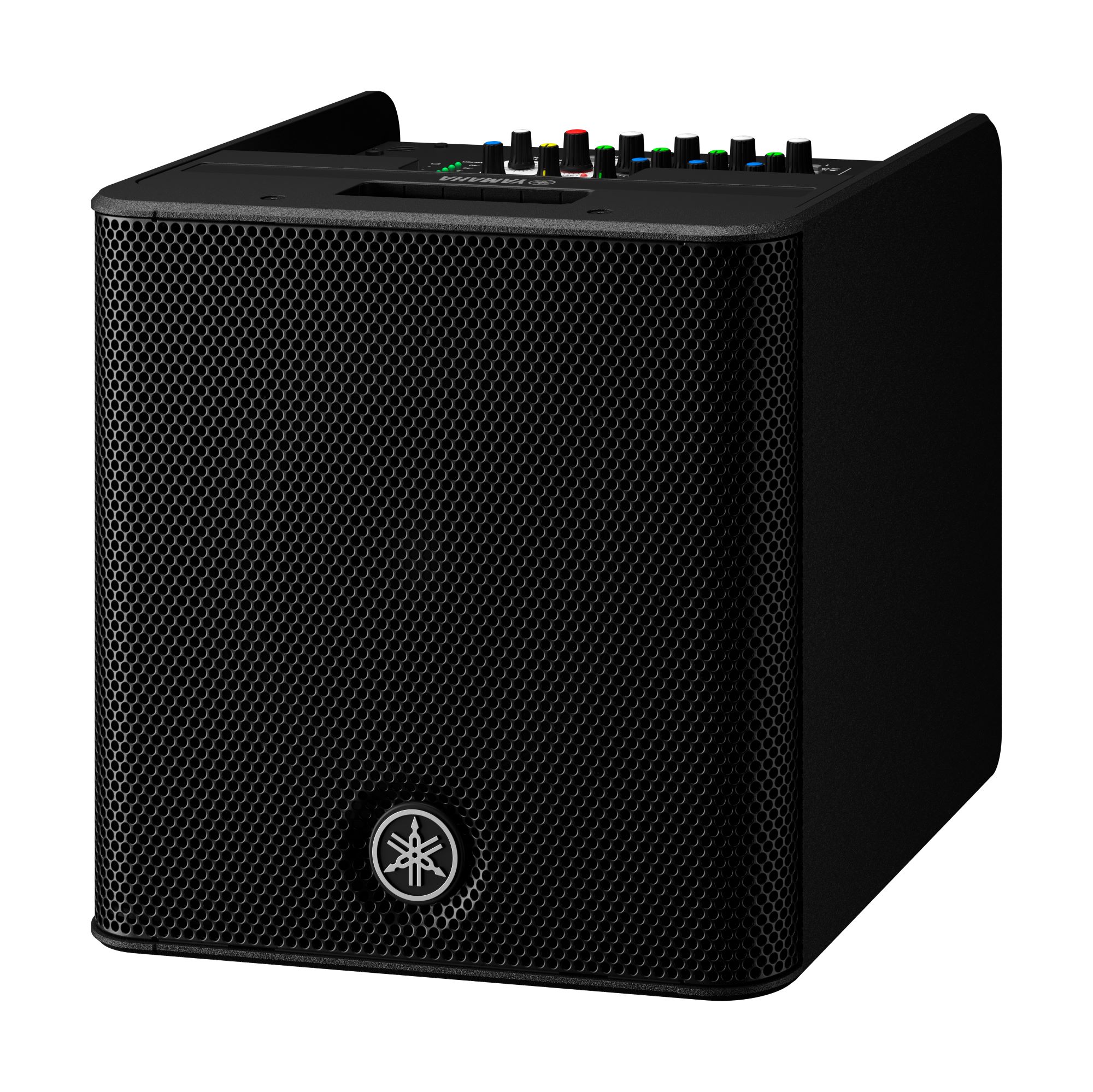

STAGEPAS 200 Portable PA System

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer.

  • 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
  • 1.4” HF + 8” LF high-quality coaxial compression driver

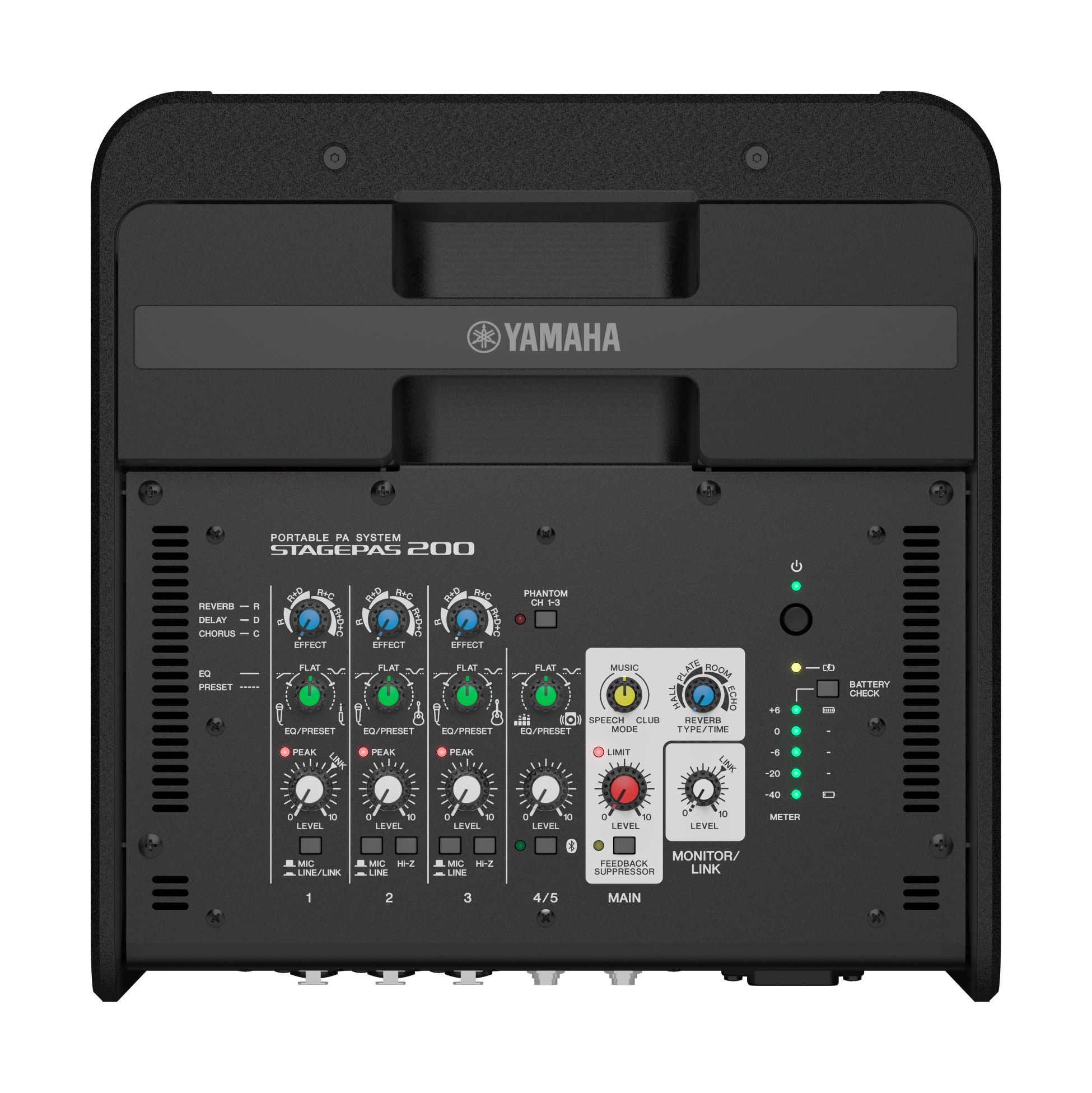

  • 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
  • Main output multi-band compressor “MODE”
  • 1-knob EQ/preset for each channel
  • High-grade SPX digital reverb (4 program, parameter control), delay, chorus
  • Hi-Z input
  • Equipped with link-out/monitor out

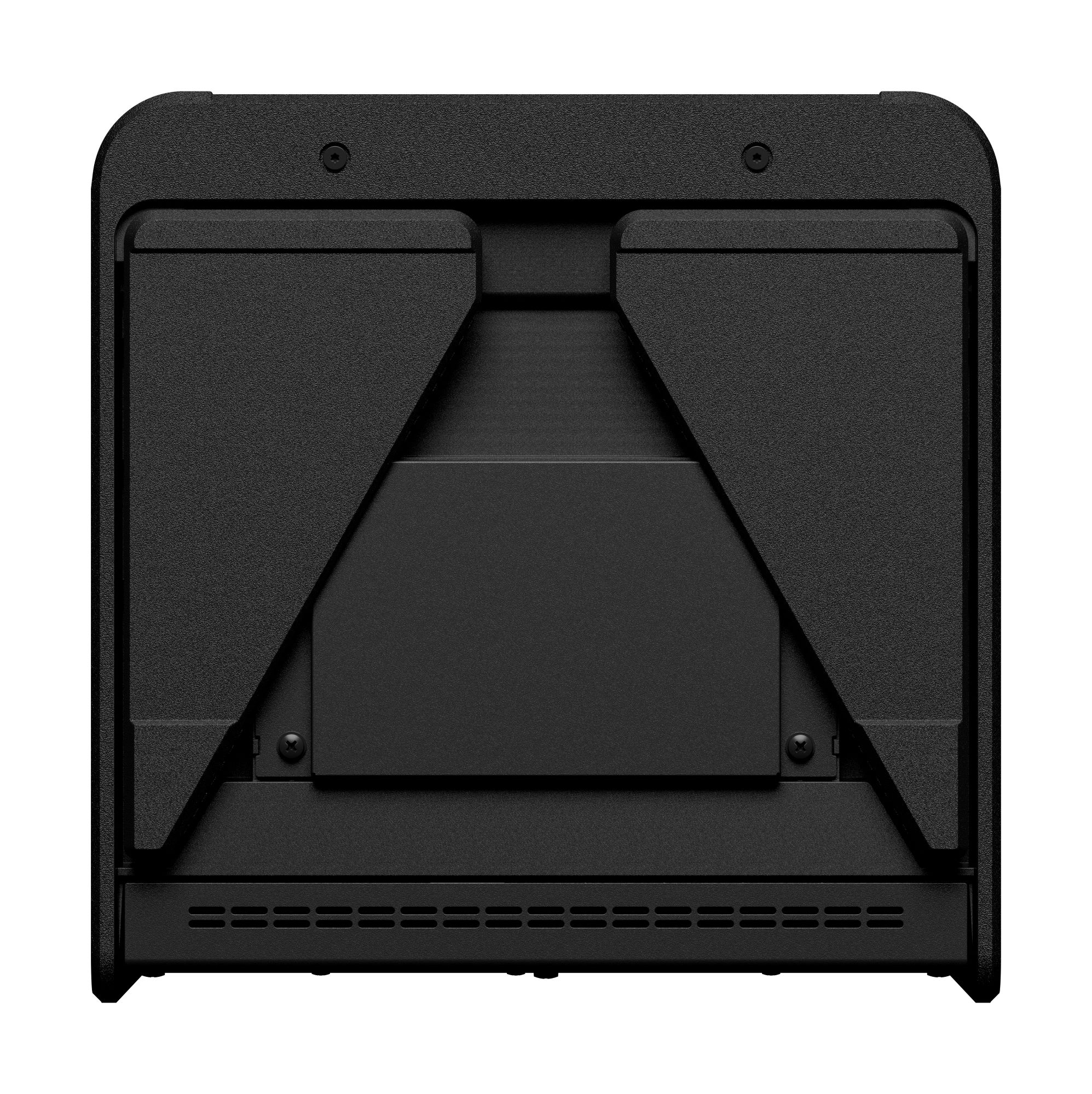

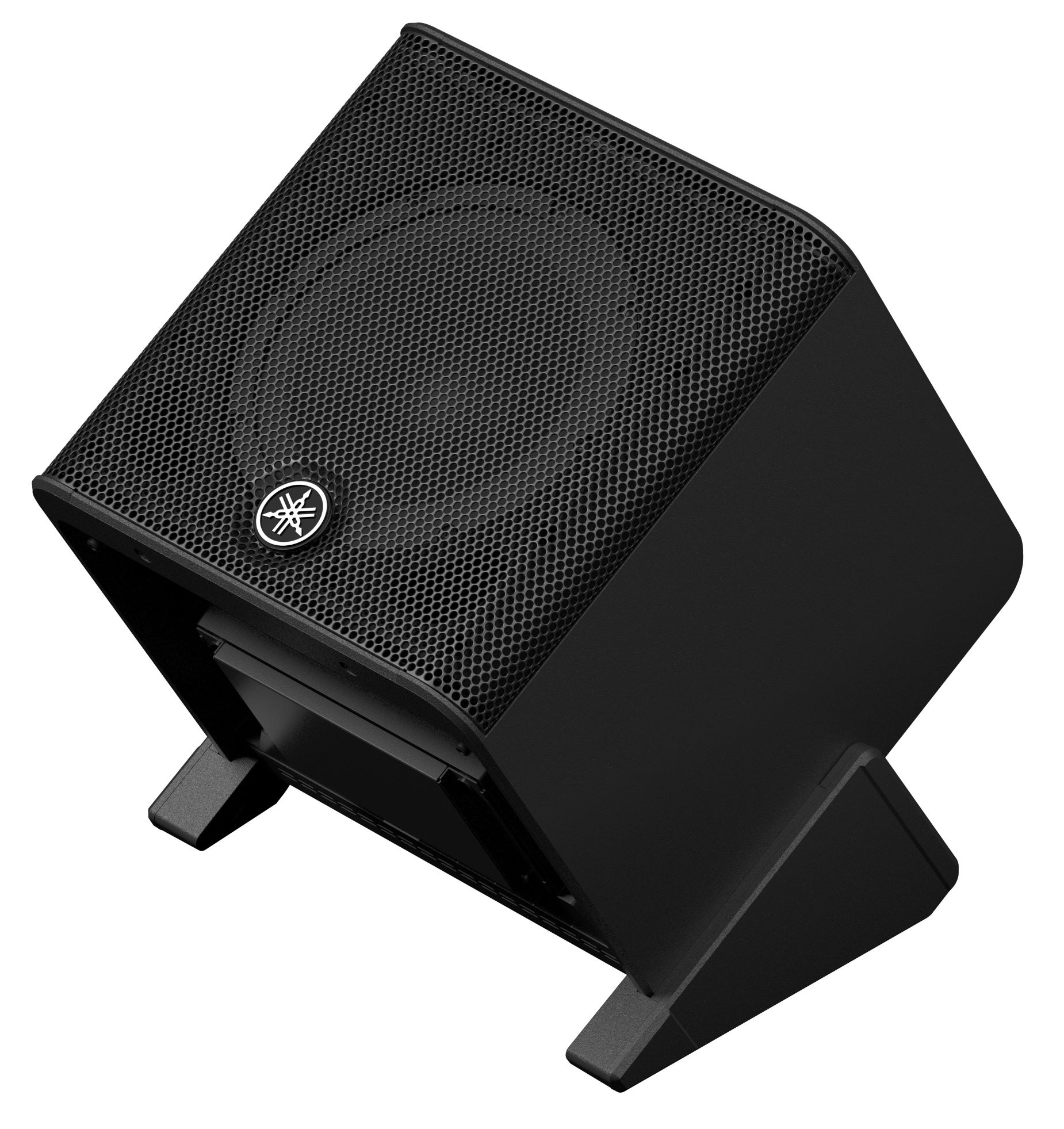

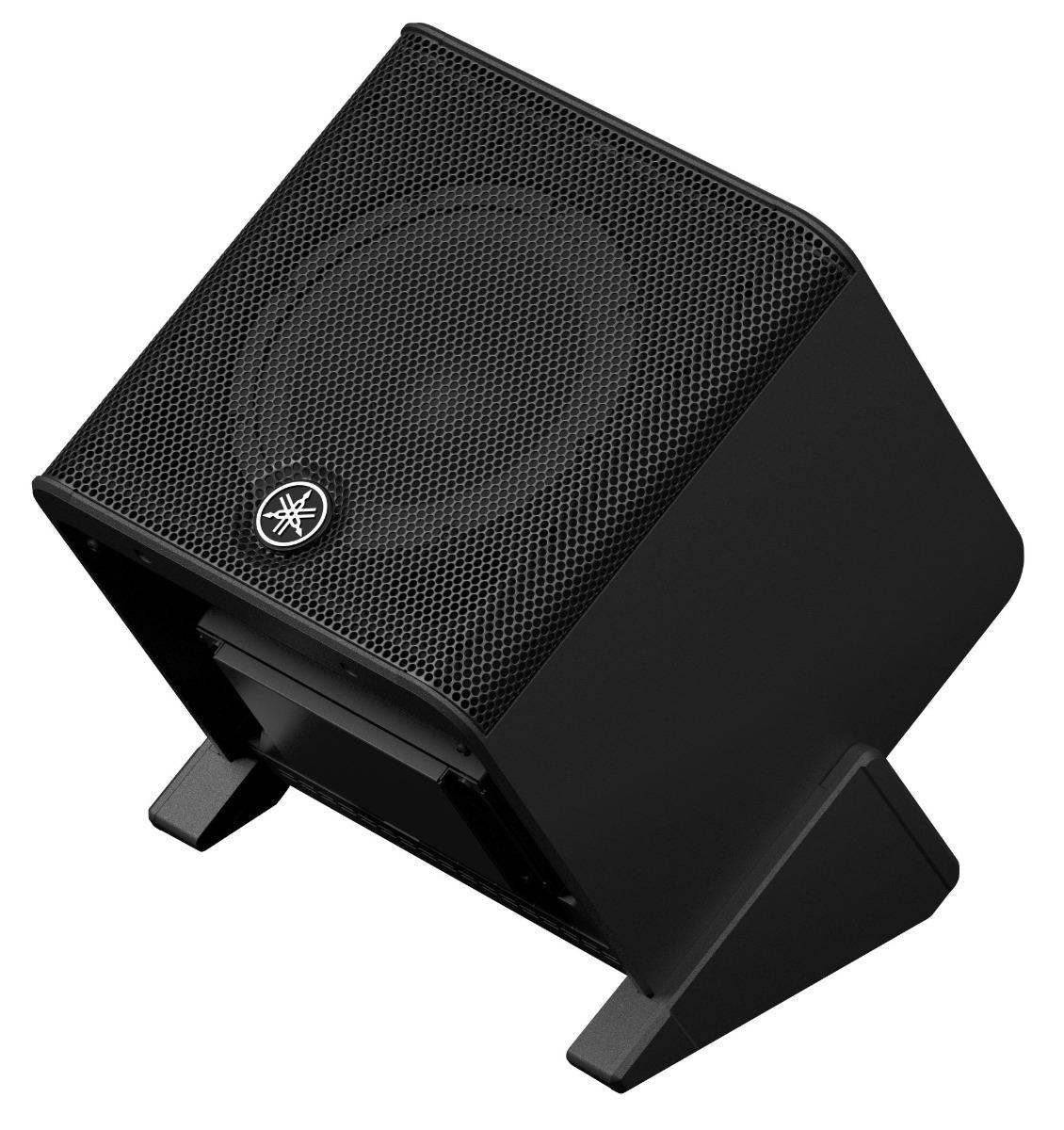

  • Supplied rubber stand allows inclining at 30 or 60 degrees
  • Compatible with audio streaming via Bluetooth
  • Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
  • Compatible with the optional BTR-STP200 battery
  • Optional CASE-STP200 carry case for convenient carrying

Finance

Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one

Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative



Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.

Specs

  • Type : 2-way Bi-amp Powered Speaker with mixer
  • Mixing capability - Mixing channels : 5 (Mono x3 + Stereo x1)
  • Mixing capability - Input channel functions : Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
  • Mixing capability - Output channel functions : MODE (SPEECH/MUSIC/CLUB)

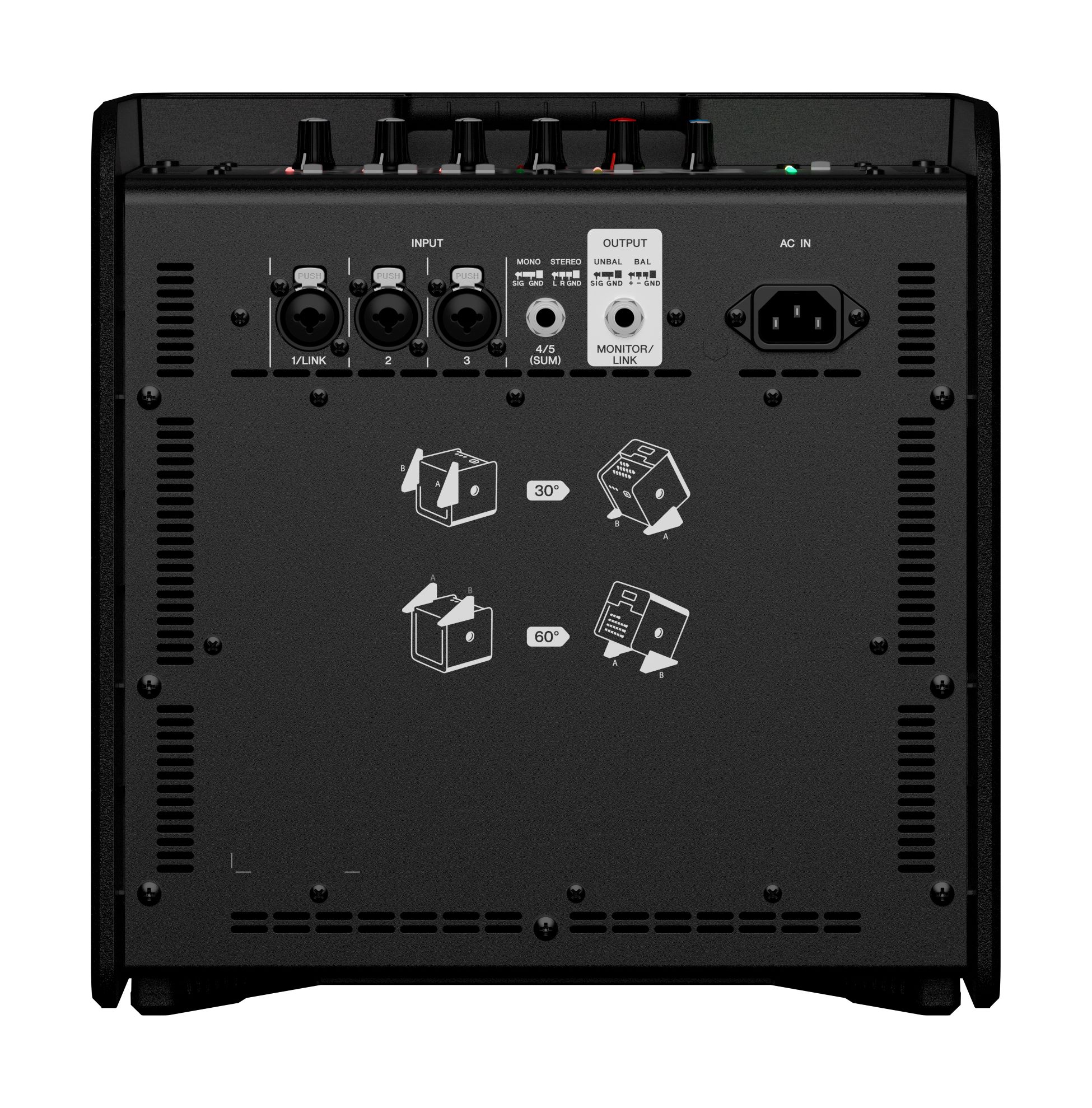

  • I/O - Inputs : Mono x3 (mic/line) + Stereo/Mono x1 (line)
  • I/O - Outputs : Monitor/Link out x1
  • I/O - Bluetooth : Ver.5.0, A2DP (SBC, AAC), Class 1
  • I/O - Control and others : STAGEPAS Controller (iOS/Android app)
  • On-board processors - DSP : SPX digital reverb (4 program, parameter control), delay, chorus

General specifications

  • Speaker type :  Coaxial speaker with compression driver
  • Frequency range (-10dB) : 60 Hz – 20 kHz
  • Coverage area : H90ﾟ x V90ﾟ
  • Crossover : 2.0 kHz
  • Maximum output level (1m; on axis) : 125 dB SPL *1
  • Components - LF : 8" Cone, 2.0" voice coil
  • Components - HF :  1" throat compression driver, 1.4" voice coil
  • Amplifier class : Class-D
  • Power rating - Dynamic : 180 W (LF: 150 W, HF: 30 W)
  • Cooling : Natural convection (no fan)
  • Power consumption : 10 W (Idle), 20 W (1/8 power)
  • Power requirements : 100-240 V 50/60 Hz, or 29.6 Vdc *2
  • BatteryType : N/A
  • Battery Capacity : N/A
  • Battery Operating Time : N/A
  • Battery Charging Time : N/A
  • Cabinet material : Plastic (ABS)
  • Handle : Top x1

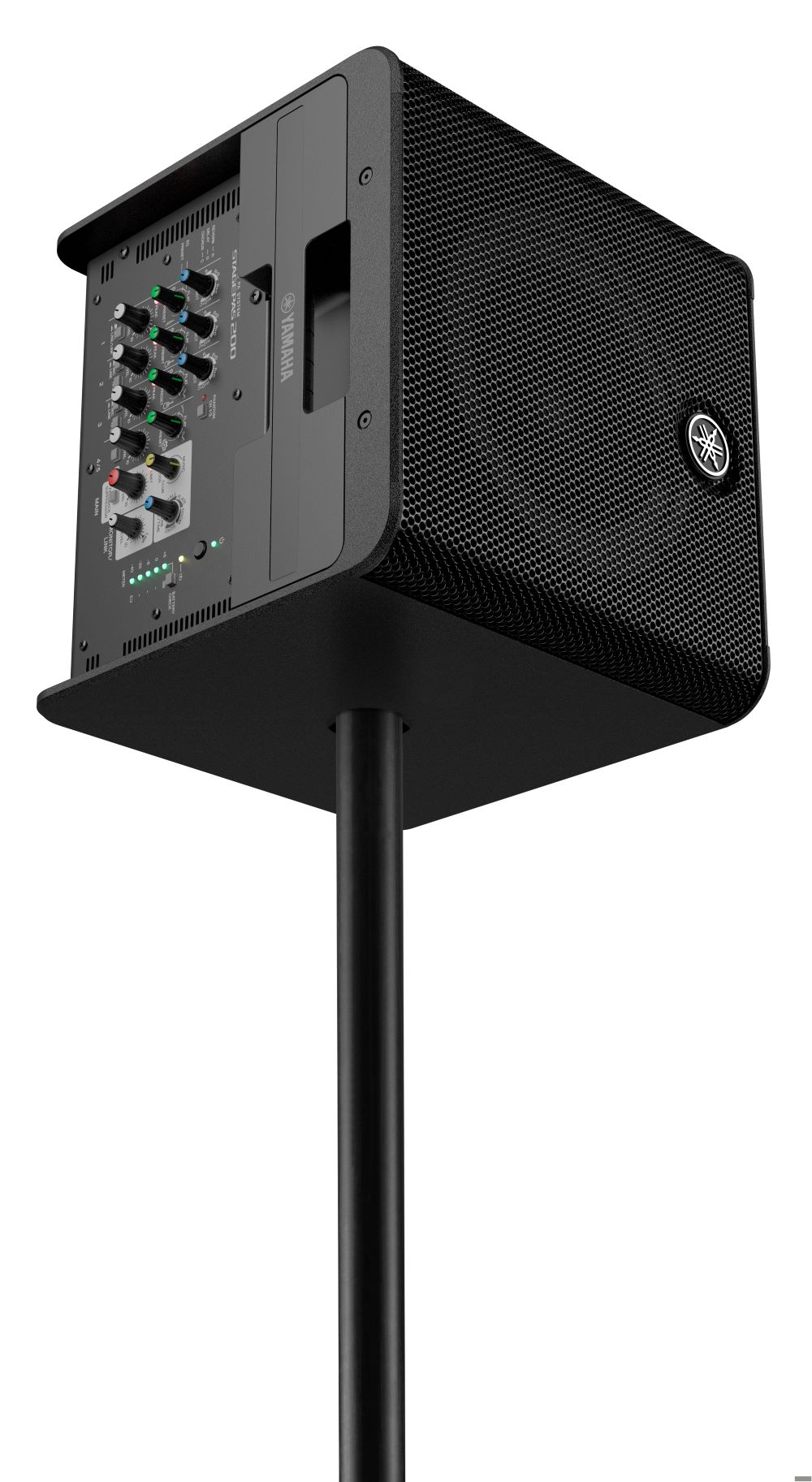

  • Pole socket :  ?35 mm x1 (Side)
  • Floor Monitor Angle : 30° or 60°
  • Dimensions (W x H x D) : 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
  • Weight : 12.0 kg (26.5 lbs)
  • Accessories : Power cord x 1
  • Options : Battery: BTR-STP200, Carry case: CASE-STP200

*1: Measured peak SPL with pink noise @1 m.
*2: When using optional battery (BTR-STP200)
