Overview

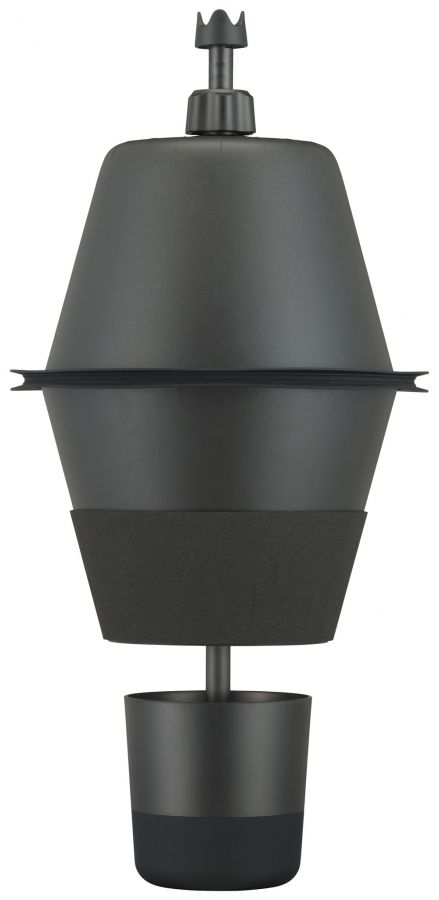

The new Silent Brass Pickup Mute is designed to be significantly smaller and lighter than previous models to improve the balance when playing, yet it offers approximately the same muting efficiency along with stable pitch over a wide range and unrestricted breath flow.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Lightweight and Compact
The new Silent Brass Pickup Mute is designed to be significantly smaller and lighter than previous models to improve the balance when playing, yet it offers approximately the same muting efficiency along with stable pitch over a wide range and unrestricted breath flow.
Adjustable Pitch and Playing Feel

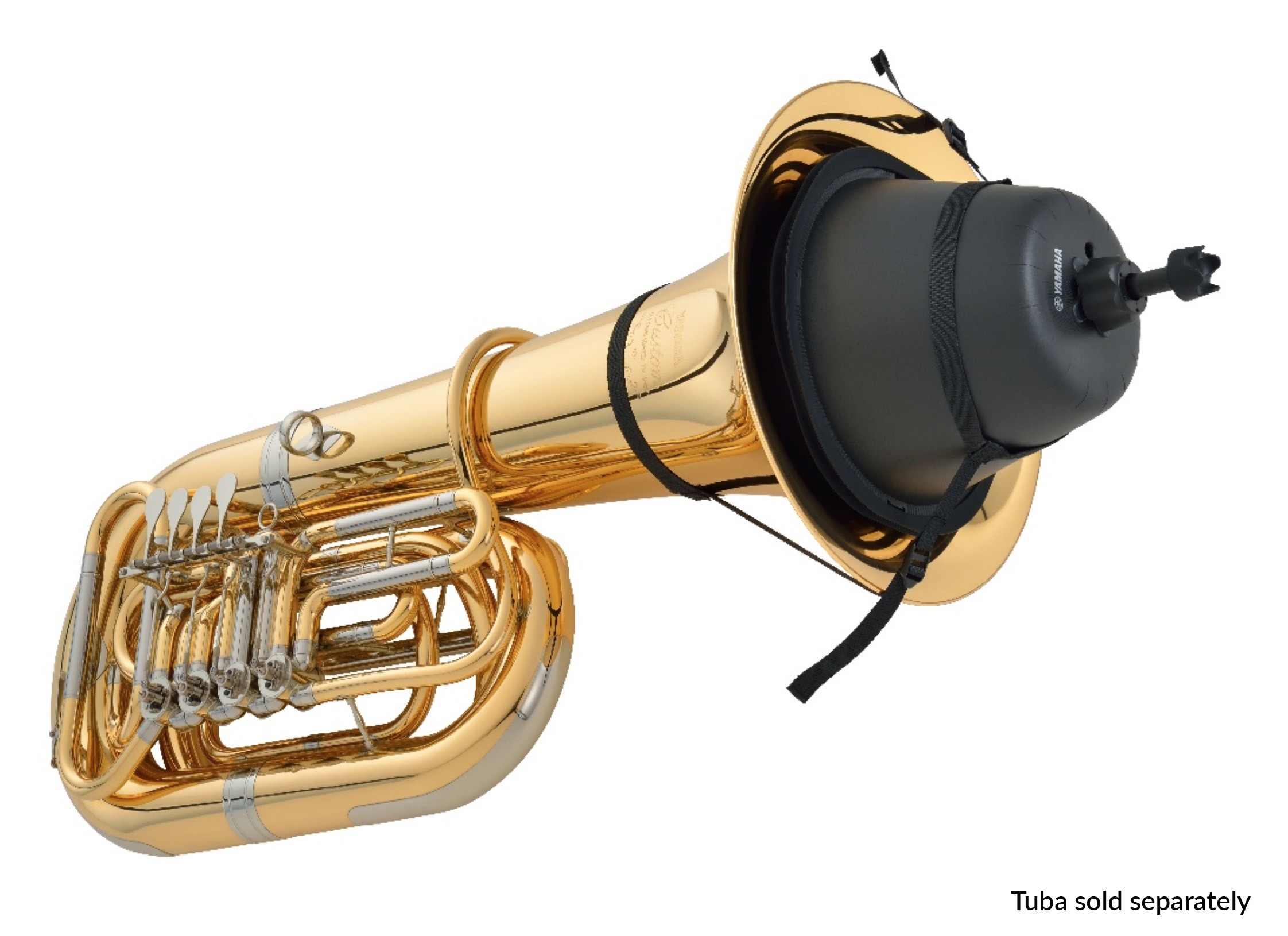

An adjustable rod allows the position of the mute head to be raised or lowered inside the bell while playing. This gives you the ability to customize the feel and the pitch to find the perfect fit for your own instrument and playing style. In addition, this allows the mute to be adjusted for a wide range of bell sizes, making the same tuba mute usable with with Bb, C, Eb, and F horns.
Disassemble to Compact Size
The disassembled mute body halves can be stacked for compact storage.
*Yamaha tubas will not fit in the supplied hard case with the tuba mute installed.
*The instrument may fit in roomy soft cases from some manufacturers with the mute installed. Please confirm the fitting independently.
*Do not stand the instrument on its bell when the mute is installed.
Specs
Pickup Mute™
| Dimensions (Diameter x Length) | 335 x 695mm (13-3/16" x 27-3/8") |
|---|
| Weight | 1800g (3 lbs. 15 oz.) |
|---|
| Internal Microphone | Electric condenser microphone |
|---|
| Pickup Output Jack | Mini phone jack |
|---|
| Nominal Level | -25dB～-35dB |
|---|
| Brass Resonance Modeling™ | Yes |
|---|
Accessories
| Included Accessories | Cable, Owner’s Manual, belt |
|---|
Please Note
- In some cases, the Pickup Mute may not fit instruments that have significantly different bell diameters and/or shapes. Please check before purchasing.
- The Pickup Mute is not compatible with Marching Mellophones, Marching French Horns, Alto (Tenor) Horns, or Baritones.
- The SILENT Brass mute for Trombone (SB5X) and the Pickup Mute (PM5X) are not compatible with Alto Trombones or Bass Trombones.
- The SILENT Brass mute for Euphonum(SB2X) and the Pickup Mute (PM2X) cannot be used with alto horn (tenor horn) and baritone.
- The SILENT Brass mutes for Flugelhorn (SB6X) and the Pickup Mute (PM6X) protrudes 3-4 cm from the bell.
- For information on compatibility with Yamaha brass instruments and cases please refer to the "Compatibility Table".
- Always remove the Pickup Mute from the instrument if the instrument is to be stored for an extended period of time.
- Do not connect the PHONE jack to a microphone input jack (or combined mic/line input) on a computer, etc., that also supplies power to the connected device (plug-in power).
- Please note that Brass Resonance Modeling is only available when the STX-2 Personal Studio is combined with a PM1X/2X/3X/5X/6X/7X Pickup Mute. It is not available with any other Personal Studio or Pickup Mute models.
