Overview

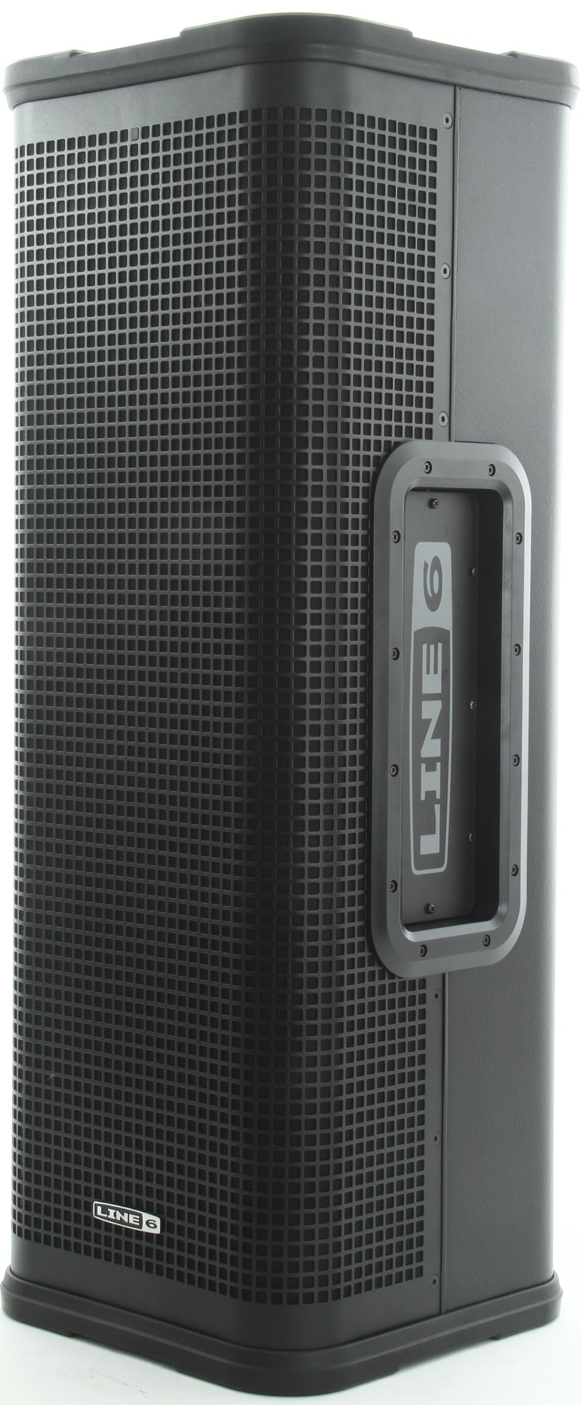

The line6 L3m Stagesource active PA speaker, is a speaker that automatically senses its position and adjusts its amplifier settings, including 6 preset user selectable EQ modes to provide intergrated professional live sound solutions for a variety of common scenarios.
- 3-Way Active PA Speaker
- Compact 1400W Tri-Amped Speaker
- On-Board Accelerometer
- Digital Networking via L6 LINK
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
The woofer/horn/woofer design of the L3m, a studio reference monitor configuration, reflects years of research and has multiple benefits over a traditional two-way 12” woofer and horn design. In the L3m, one 10” driver is optimized for low frequencies, and the other for low to mid-frequencies, delivering maximum detail and performance where needed. The combined radiating surface area of two 10” drivers is nearly 40% greater than a single 12”, resulting in the movement of more air. The lighter cone and mass of 10” drivers also result in more dynamic low frequency transient response overall.
With the 10” driver handling more of the critical vocal range, the output is incredibly smooth, musical and natural throughout the spectrum. The 10” driver in L3t and L3m has a greater mid-high frequency range than a typical 12” speaker, which allows a higher crossover point to the high-frequency driver. Finally, a dual 10” driver design improves thermal management, as heat is now dissipated from two voice coils rather than one, resulting in high-performance durability.
A precision-engineered 100x50-degree constant-directivity waveguide delivers consistent coverage throughout its entire frequency range, ensuring everyone in the audience gets the same acoustic experience. The 100-degree horizontal dispersion is wide enough for solo use yet controlled enough for arrayed pairs. The 50-degree vertical coverage reduces acoustic smear from reflective sound surfaces, as minimal energy is reflected off of ceilings and floors.
The high driver uses class AB amplification, which delivers analog tone and handles clipping gracefully. The low drivers utilize Class D amplification, which reproduces the bass with excellent dynamics and plenty of on-demand power.
Specs
- System Type: 1,400 watt, 3-way, tri-amped
- Speaker Configuration: 2 x 10” extended range woofers, 1” exit compression driver
- Max SPL: 132dB

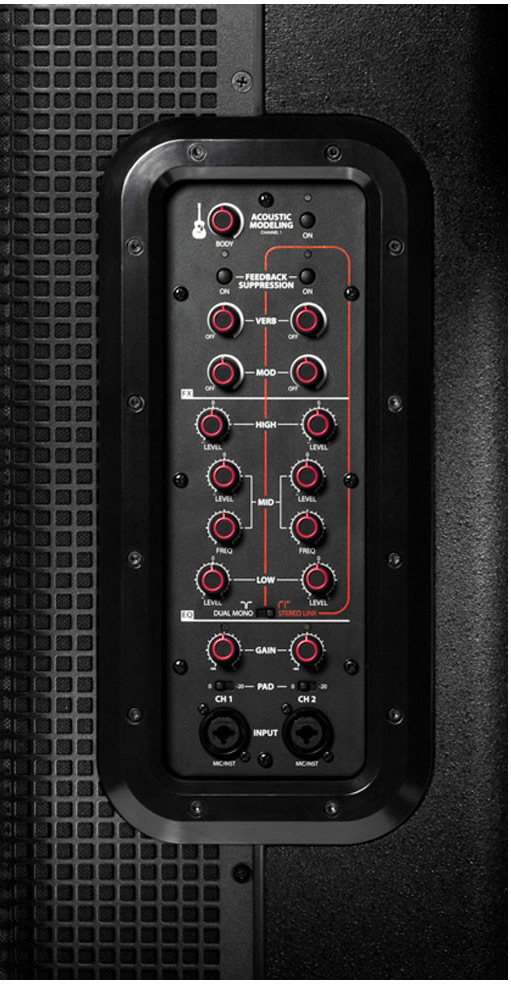

- Rear Control Panel:
- Line Input (Combi)
- Stereo Line Input (RCA)
- Loop Thru and Mix Outputs
- 12-band Feedback Suppression
- 6 Speaker Modes
- L6 LINK Digital Networking
- Additional Processing:
- Accelerometer
- Pole Mount Sensor
- Excursion and Thermal Limiting
- Weight 26.1kg
