Yamaha TIO1608-D2 DANTE enabled I/O rack

£2,015.00
incl. VAT
TIO1608-D2 DANTE enabled I/O rack
TIO1608-D2 DANTE enabled I/O rack TIO1608-D2 DANTE enabled I/O rack TIO1608-D2 DANTE enabled I/O rack TIO1608-D2 DANTE enabled I/O rack TIO1608-D2 DANTE enabled I/O rack

Overview

Yamaha Tio1608-D2 I/O Rack

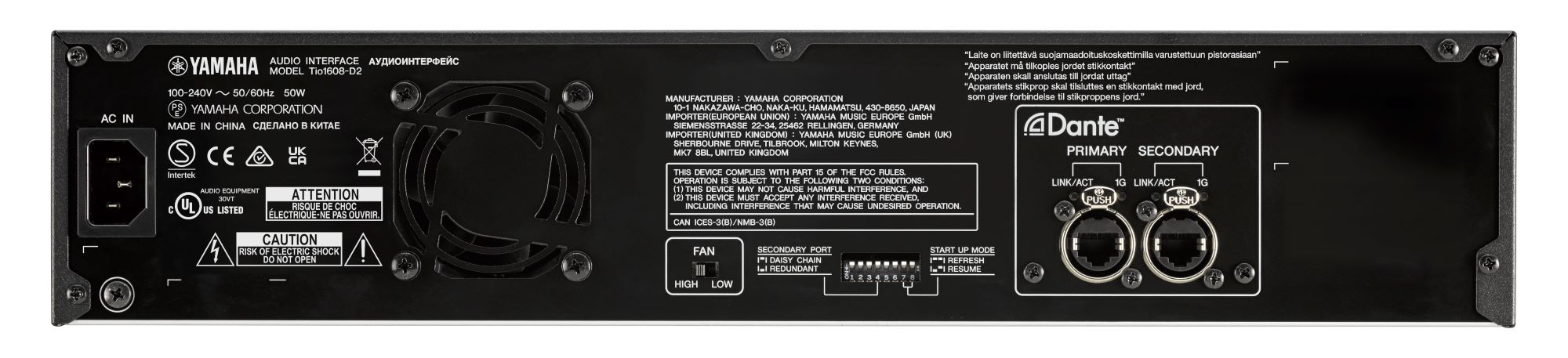

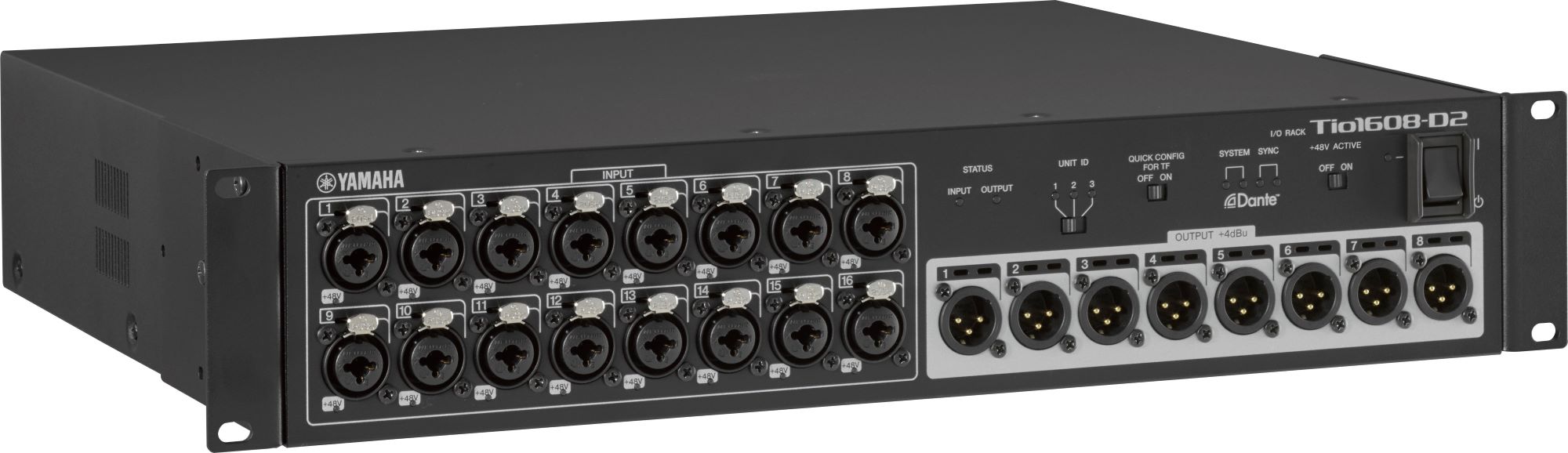

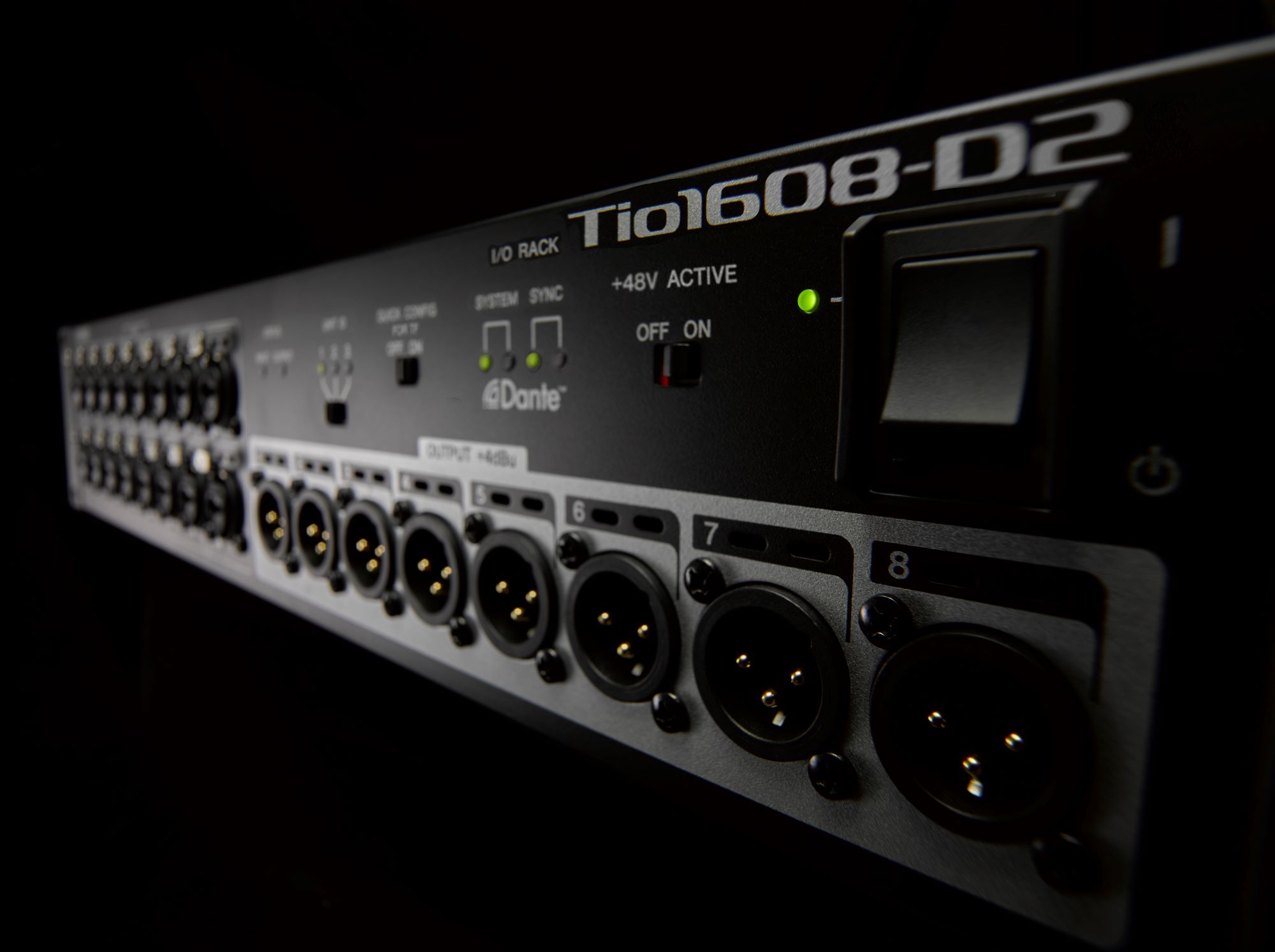

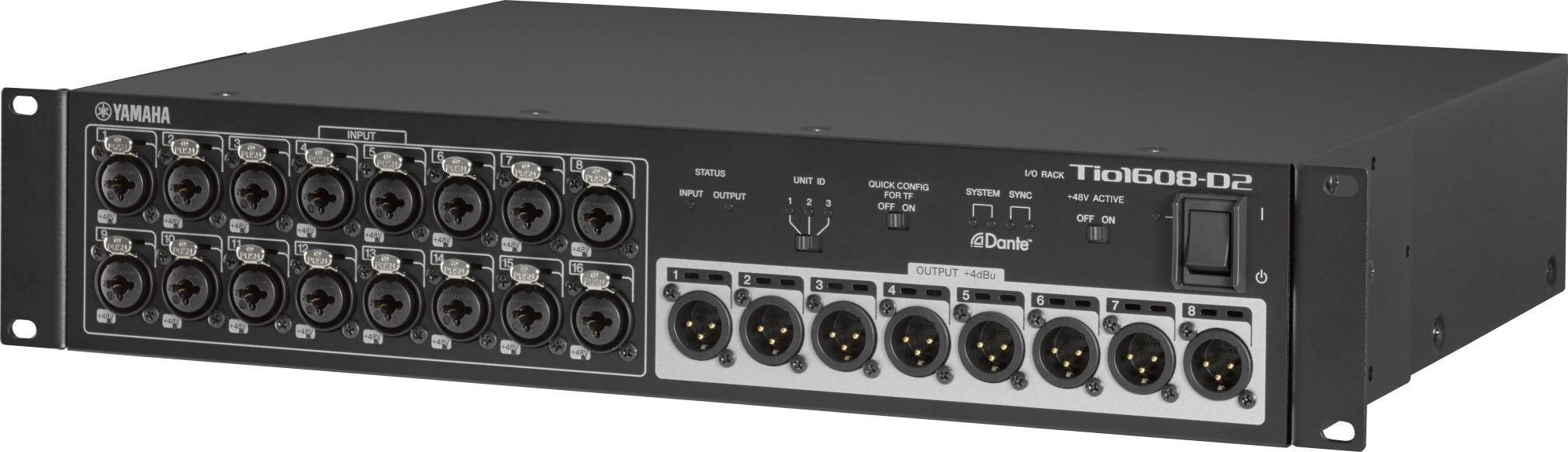

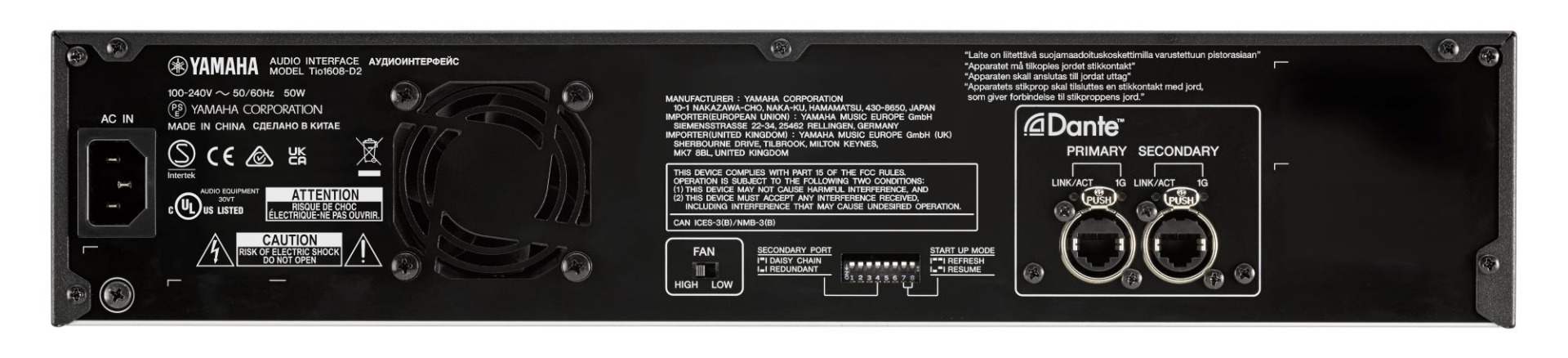

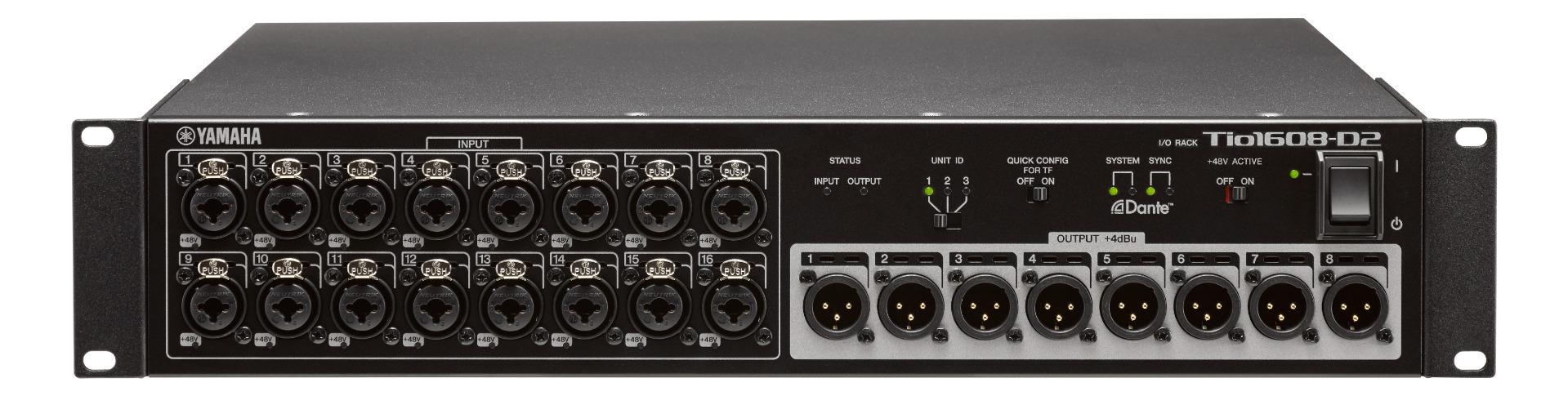

The Tio1608-D2 is a Dante-equipped I/O rack with 16 microphone/ line inputs and 8 line outputs.

Simple, versatile, high-definition Dante Stagebox
The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

The versatility and scalability of Dante
The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via “Dante Controller” while Remote HA can be controlled by “R Remote” software.

*Please note that Remote HA on the Tio1608-D2 can be implemented only via the Primary port. Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.

Finance

Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.

Click here for more information

Finance agreements are available to UK residents aged 18 or over, subject to status.

Deposit £0.00 (0%)

Duration - please choose one


Representative Example

Purchase Price:£2,026.00 Deposit:£239.00
Amount of Credit:£1,787.00 24 Monthly Payments:£89.44
Total Repayable:£2,385.56 Agreement Duration:24 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£2,289.00 Deposit:£260.00
Amount of Credit:£2,029.00 36 Monthly Payments:£73.64
Total Repayable:£2,911.04 Agreement Duration:36 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative
Purchase Price:£1,125.00 Deposit:£300.00
Amount of Credit:£825.00 6 Monthly Payments:£137.50
Total Repayable:£1,125.00 Agreement Duration:6 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£3,545.00 Deposit:£240.00
Amount of Credit:£3,305.00 9 Monthly Payments:£367.22
Total Repayable:£3,545.00 Agreement Duration:9 Months
Rate of Interest (Fixed):0% pa 0% APR Representative
Purchase Price:£1,260.00 Deposit:£200.00
Amount of Credit:£1,060.00 12 Monthly Payments:£92.93
Total Repayable:£1,315.16 Agreement Duration:12 Months
Rate of Interest (Fixed):9.89% pa 9.89% APR Representative
Purchase Price:£1,499.00 Deposit:£199.00
Amount of Credit:£1,300.00 18 Monthly Payments:£83.12
Total Repayable:£1695.16 Agreement Duration:18 Months
Rate of Interest (Fixed):19.89% pa 19.89% APR Representative



Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.

V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.

Features

A stagebox that enhances the convenience of your console
The Tio1608-D2 is the ideal stagebox for use with TF Series or DM3. The TF Series can use the optional NY64-D expansion card to connect to up to three Tio1608-D2 units, while DM3 can connect to a single unit. Connecting the console and Tio1608-D2 unites with a lightweight, durable CAT5e Ethernet cable in a daisy chain provides low-latency, high quality sound transmission without the time-consuming transport and installation required when using analog snakes.

Dante High Reliability Network Audio Protocol
Dante has been adopted by leading manufacturers and professionals in the sound reinforcement industry for its low jitter, low latency, and high sampling accuracy. Using the Tio1608-D2 you can easily configure a high-performance Dante stagebox system with little or no IT networking knowledge. Thanks to the flexibility of the Dante network protocol, TF Series or DM3 can be connected to an extensive range of Dante-enabled equipment such as R Series I/O racks.

Fast, easy configuration

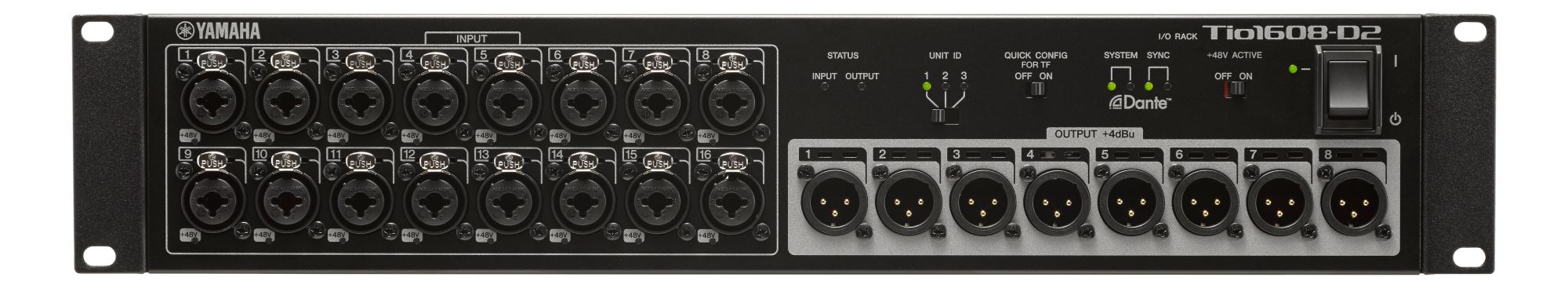

TF Series and DM3 are equipped with functions for automatic configuration of network settings and audio patching connections, making system configuration easy. After configuring the unit ID and QUICK CONFIG switches from the front panel of the Tio Rack, using the QUICK CONFIG function of the TF Series or the AUTO CONFIG function of the DM3 allows you to complete setup simply by connecting the console and Tio Rack with an Ethernet cable. Turn on the power and you're ready to go!

*Set the QUICK CONFIG switch to ON when using Quick CONFIG on the TF Series, and to OFF when using AUTO CONFIG on the DM3.

Simple and Flexible Input Selection
Once the basic configuration is completed you can easily assign inputs to best suit your system setup. All inputs can be assigned uniformly to the Tio Rack in an instant from the TF Series INPUT screen menu or the PATCH screen on a DM3. Users can also change each input to receive signal from multiple locations, allowing effective use of all inputs.

Recallable D-PRE preamplifiers
The Tio1608-D2 inherits the natural, musical sensibility that we pursued in the development of the TF Series. Mechanical construction, circuit board layout, power supply, grounding, and parts selection have all been executed with meticulous attention to detail and quality, combined with exhaustive performance and listening tests at each stage of development. The Tio1608-D2 features the same recallable D-PRE microphone preamplifiers as the TF Series to provide a consistent, natural, musical sound throughout the entire system.

System example with DM3
Tio1608-D2 allows you to easily connect a DM3 digital mixer system. System setup uses a Plug In & Play method. Simply connect Cat5e cable, select the device IDs and the system is ready. Remote HA control is available via Cat5e. StageMix App allows wireless remote control of the console from the arena, the stage or the audience etc.

Specs

General specifications
  • Sampling frequency rate - External - 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Signal delay - Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
  • Total harmonic distortion - Less than 0.2% +4 dBu@20Hz-20kHz into 600?, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600?, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600?, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600?, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
  • Frequency response -    +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
  • Dynamic range - 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
  • Hum & noise level - Equivalent input noise -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
  • Hum & noise level -  Residual output noise -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
  • Crosstalk -     -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
  • Heat dissipation - 100-240V, 50/60Hz, 43.5kcal/h
  • Power requirements-  100-240V, 50/60Hz
  • Power consumption - 50W
  • Dimensions - W 480mm (18.9”), H 88mm (3.5”), D 364mm (14.4”),
  • Net weight - 5.7kg (12.6lbs)
  • Accessories - Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
  • Others - Temperature Range: Operating temperature range: 0 - 40?, Storage temperature range: -20 - 60?
Analog Input Characteristics
  • Input Terminals - INPUT 1-16
  • GAIN - +66 dB -6 dB
  • Actual Load Impedance - 7.5k?
  • For Use With Nominal -  50-600? Mics & 600? Lines
Input Level
  • Sensitivity *1 - -82 dBu (61.6?V) +10 dBu (245mV)
  • Nominal - -62 dBu (0.616mV) +10 dBu (2.45V)
  • Max. before clip - -42 dBu (6.16mV) +30 dBu (24.5V)
  • Connector - Combo Jack (XLR-3-31 type *2 or TRS phone *3)
  • Balanced / Unbalanced - Balanced
In these specifications, 0 dBu = 0.775Vrms.
+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
*1. Sensitivity is the lowest level that will produce an output of +4 dBu (1.23V) or the nominal output level when the unit is set to maximum gain.
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND

Analog Output Characteristics
  • Output Terminals - OUTPUT 1-8
  • Actual Source Impedance - 75?
  • For Use With Nominal - 600? Lines
  • Output Level
  • Nominal - +4 dBu (1.23V)
  • Max. before clip - +24 dBu (12.3V
  • Connector - XLR-3-32 type *1
  • Balanced / Unbalanced - Balanced

In these specifications, 0 dBu = 0.775Vrms.
*1. 1: GND, 2: HOT, 3: COLD

Digital Input & Output Characteristics

  • Terminal - Primary / Secondary
  • Format - Dante
  • Data length - 24bit or 32bit
  • Level - 1000Base-T
  • Audio - 16ch (Tio1608-D2 to other devices), 8ch (Other devices to Tio1608-D2)
  • Connector - etherCON Cat5e
Product IDCTIO1608D2
