Overview

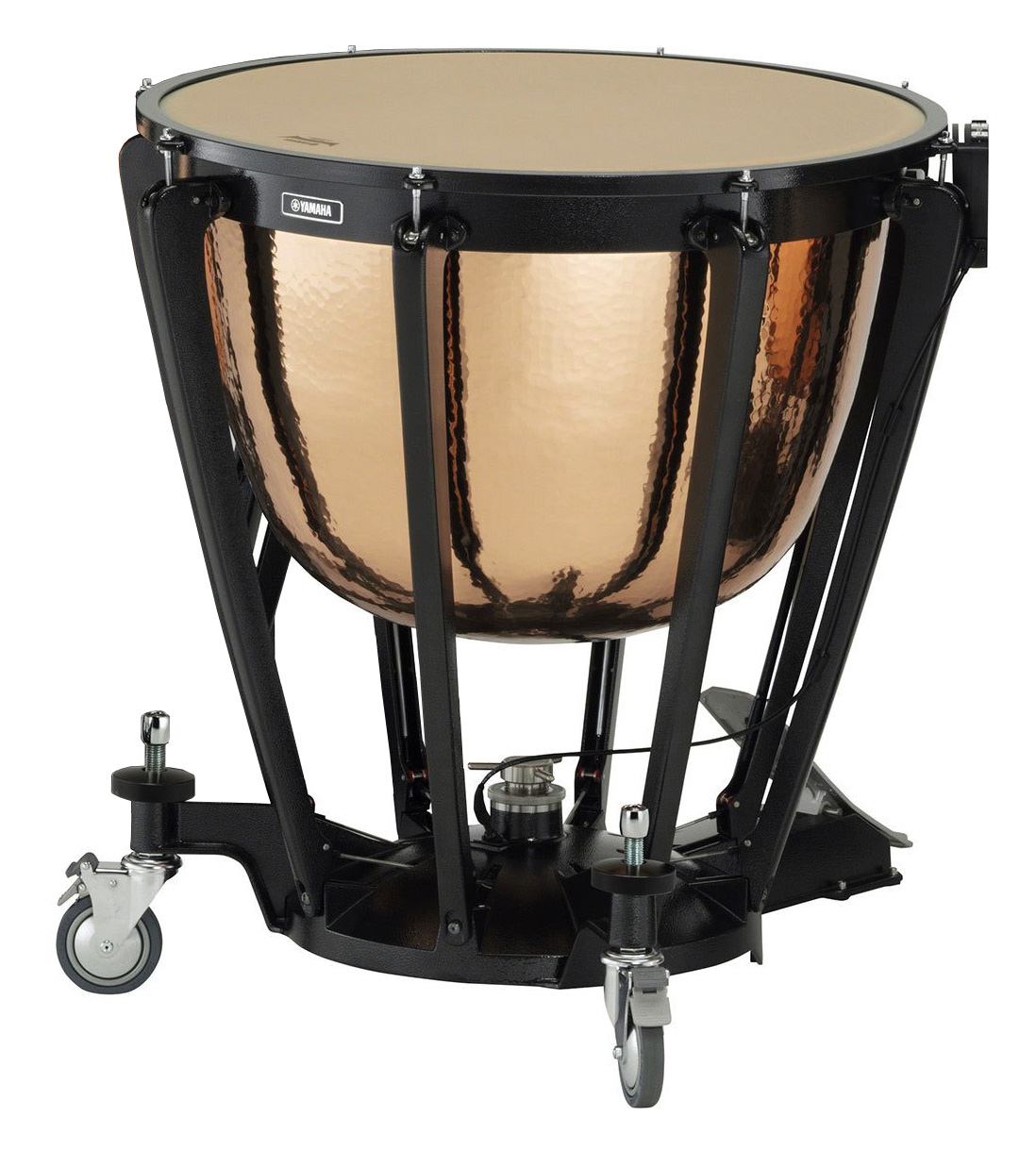

The 24" TP-8324R Cambered Hammered Copper Timpani is a top-of-the-line timpani featuring a cambered hammered copper bowl and our pedal balance spring system. The cambered bowl delivers ample volume as well as optimum resonance and decay.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Bowl Design
The hammered bowls in this series feature a squarer 'cambered' profile than conventional bowl designs. The most obvious benefits are ample volume, ideal timpani decay, and significantly improved mallet response. The most desirable qualities of copper are emphasised, with carefully thought out and proven refinements to bowl size, bearing edge shape (the edge that contacts the timpani head), the diameter of the aperture in the bottom of the bowl, and more. The overall result is rich, deep tone with superior playability.
Steel Caster Nuts
The nuts that hold the main casters in place are made of steel, adding to the weight and stability of the frame so that sound is effectively transferred to the floor and to every corner of the hall.

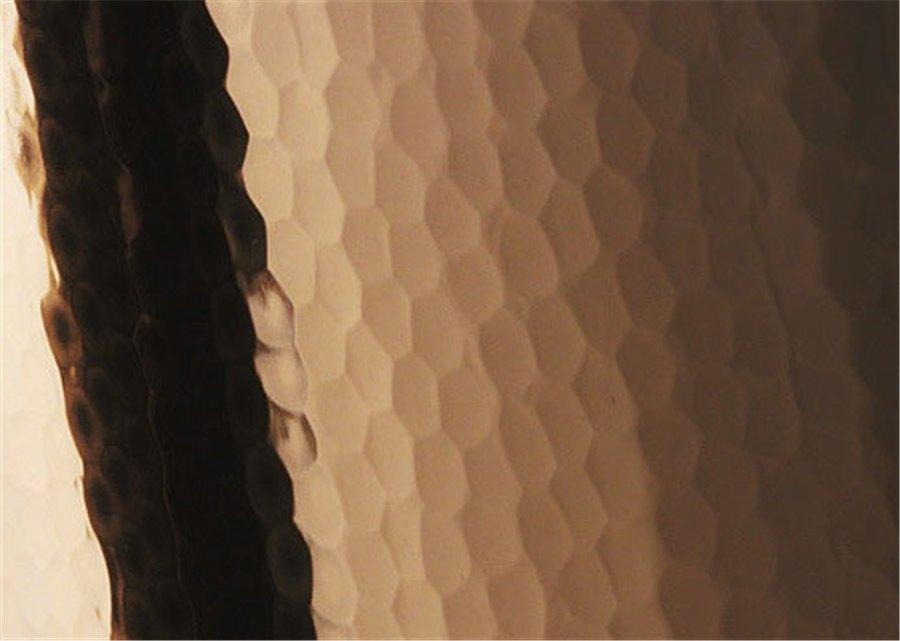

Machine Hammering
Specially designed hammering machines faithfully simulate the hand hammering process while eliminating the unavoidable inconsistencies of handwork. The goal was not only to improve efficiency, but more importantly to recreate the technique of master craftsmen. The result is bowls that exude hand-made warmth.

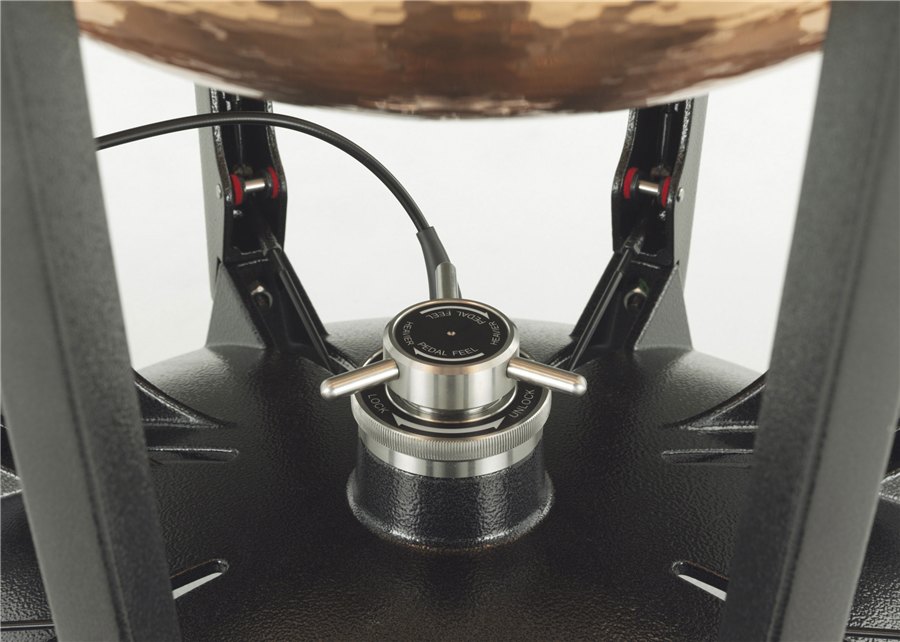

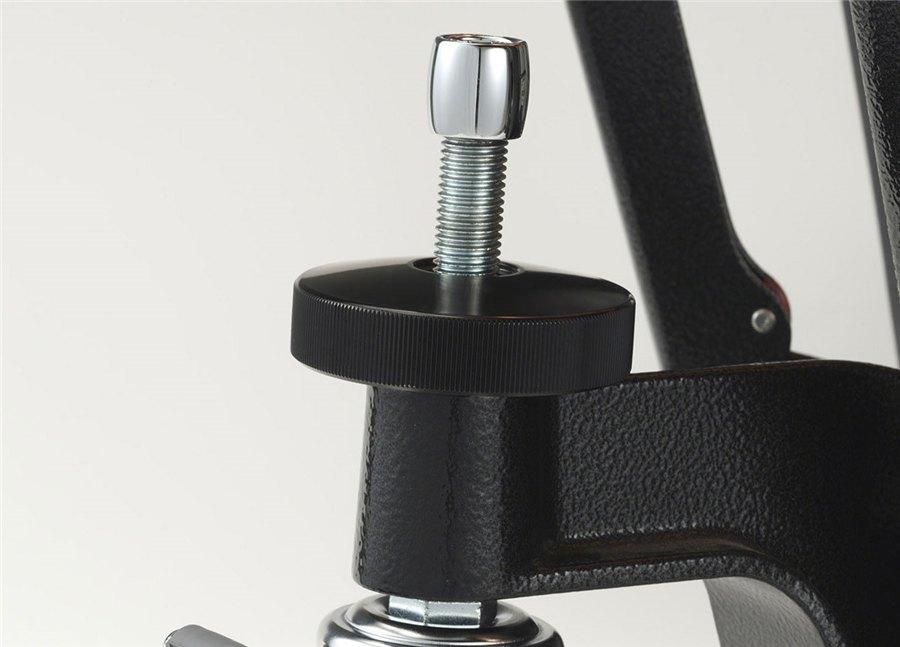

Pedal Adjustment Clutch (PAC) System
The PAC system allows pedal resistance to be adjusted while maintaining perfect pedal balance. A large knob makes adjustment easy too.

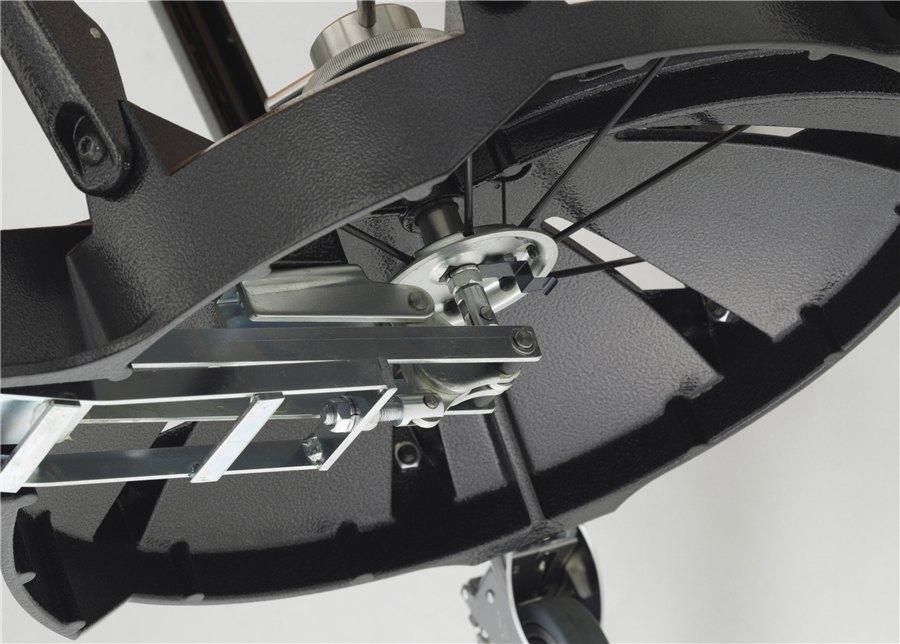

Pedal Balance Spring System
Pedal spring and head tension are balanced so the set pitch is maintained even if the player removes his or her foot from the pedal. Pitch changes across the entire range are smooth and easy. A wide pitch range of approximately a minor sixth per inch has been achieved.

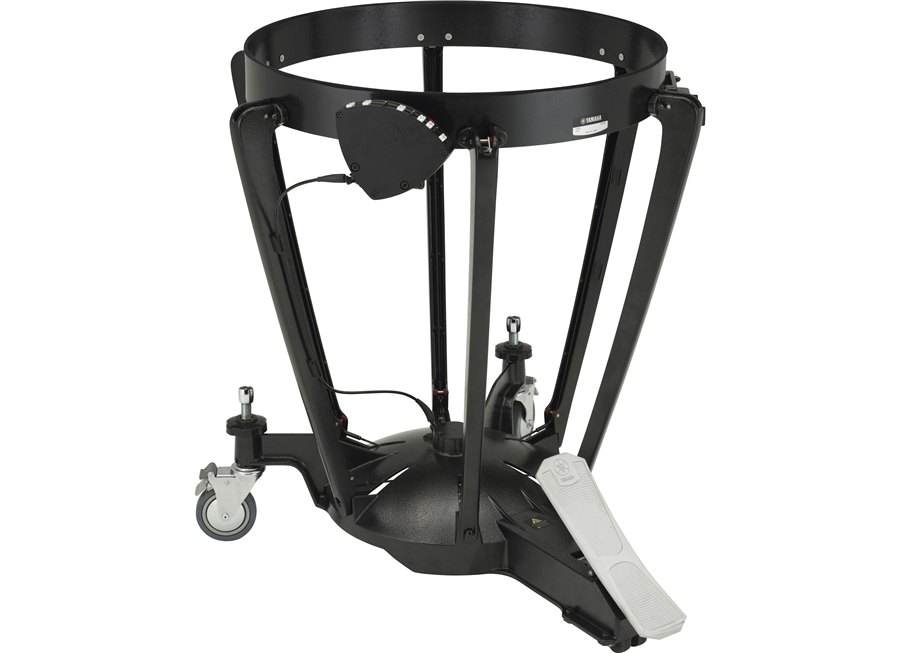

Frame
The timpani frame does more than just support the bowl. It plays a significant role in sound quality as well. In addition to offering outstanding strength and operability, the frames are designed to a weight that contributes to optimum acoustic response.
Smooth Mobility
Large main casters are supplemented by a third caster below the pedal, allowing the instruments to glide smoothly and easily.
Height Adjustment
The height of all casters can be adjusted over a 25mm range, allowing precise adjustments to the instrument height as well as head angle. The instruments can be ideally positioned for standing or seated playing, on any stage. Adjustment is carried out using the supplied tuning key or an appropriate allen wrench, and can be easily accomplished by one person.

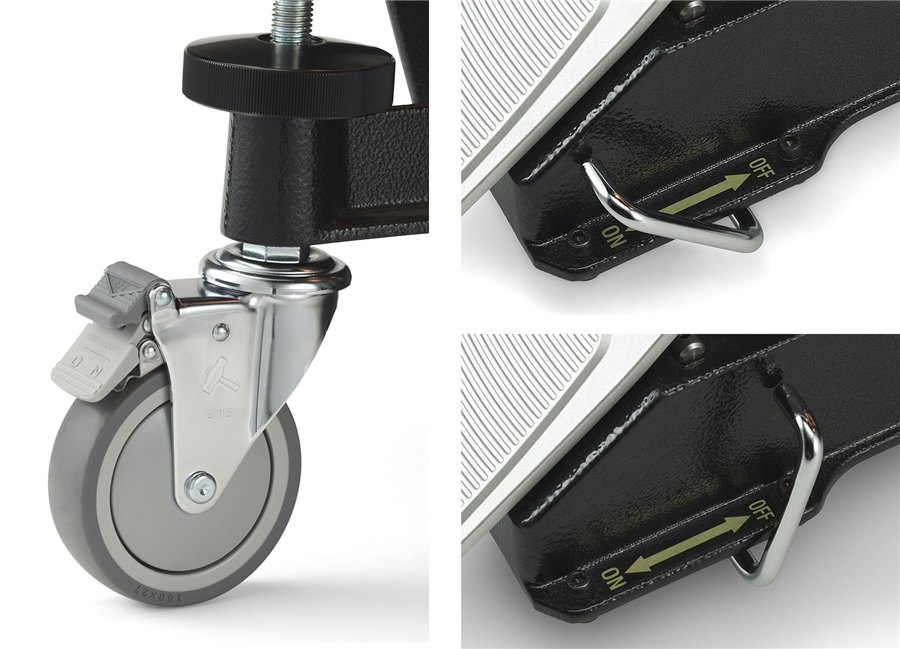

Caster Lock
The main casters include a one-touch lock mechanism that contributes to fast, sure setup. In addition to the main caster lock mechanism an auxiliary brake has been added to the pedal caster. The player can engage the auxiliary brake to securely lock the caster and prevent movement of the instrument.
Floating Mount
The bowl is seated in a 'Floating Mount' suspension ring and does not contact any other part of the instrument. This prevents distortion of the bowl and allows unrestricted head oscillation for superior tone, resonance, and pitch clarity. This frame design brings out the full musical potential of the bowl.

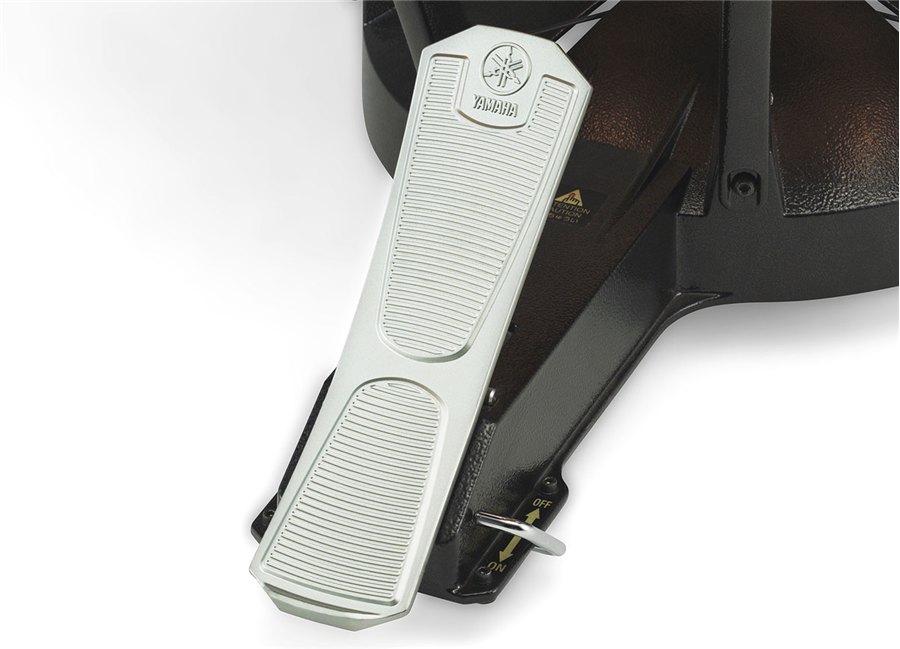

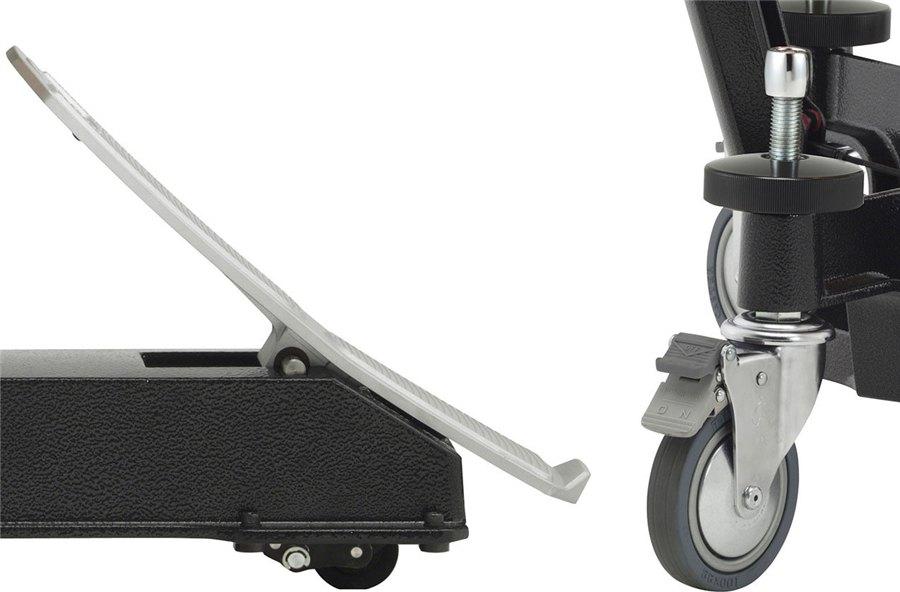

Large Pedal
Large pedals have been adopted for easier operation.

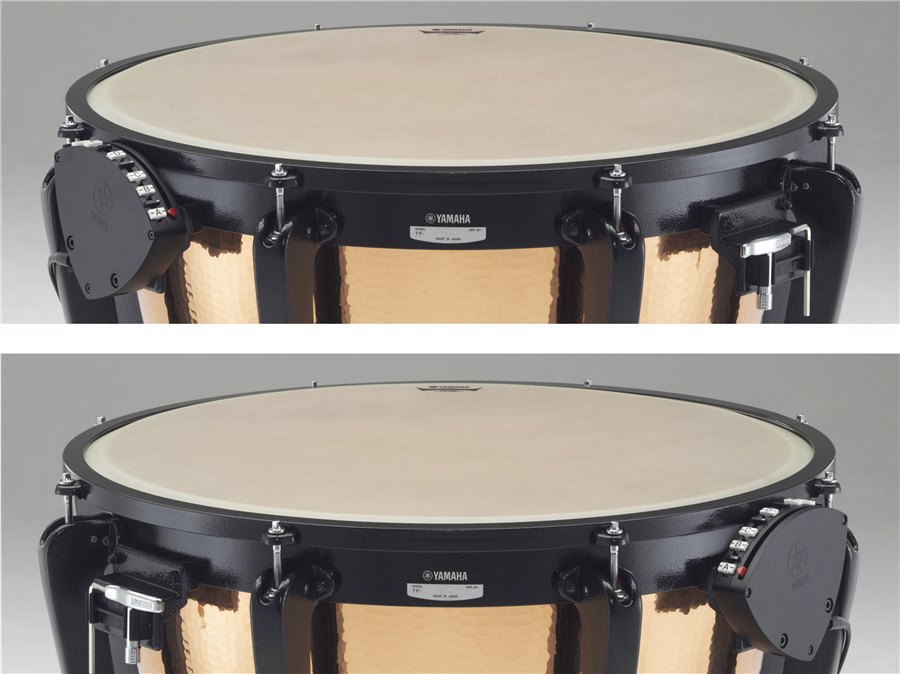

Tuning Indicator
The indicator can also be easily relocated to the left or right side of the instrument to facilitate German or American setups.

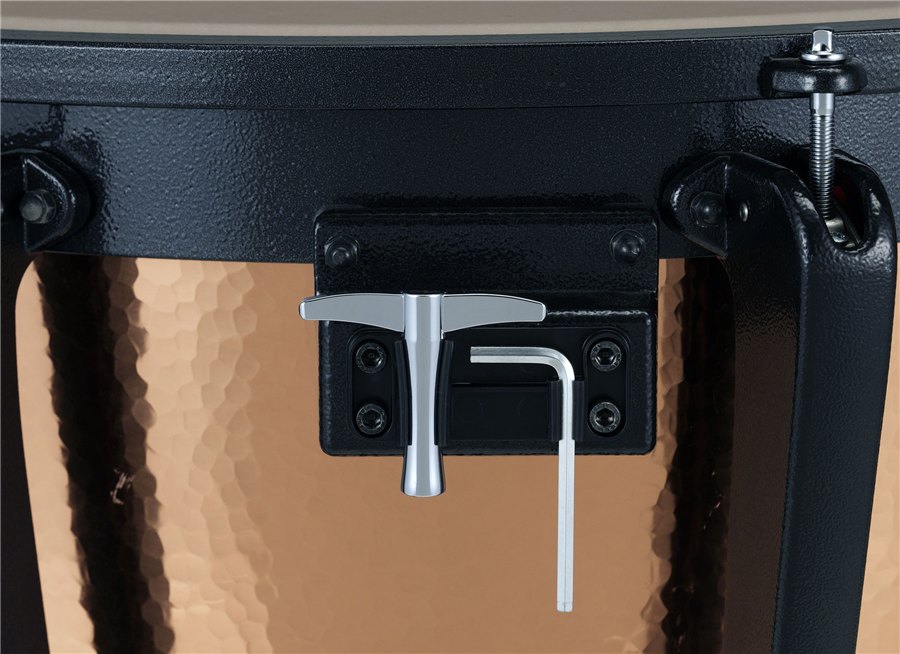

Key/Wrench Holder
A tuning key/wrench holder that attaches to the side opposite the tuning gauge is included.

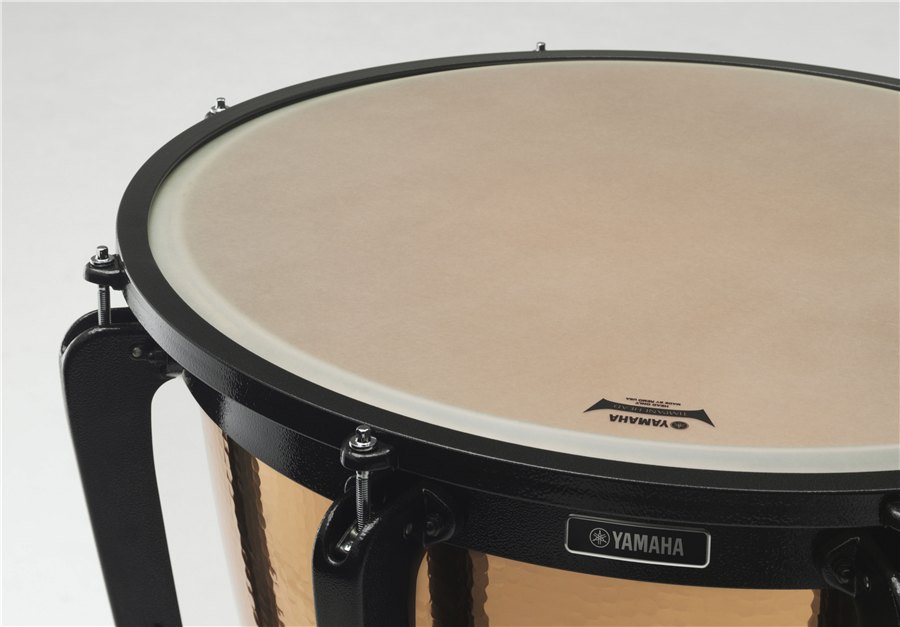

Yamaha Remo Renaissance Heads
Yamaha Remo Renaissance Heads with aluminum insert rings offer outstanding expression with stable pitch.
Specs
- Head Type: Yamaha Remo Renaissance
- Kettle: Cambered Hammered Copper
- Tuning Mechanism: Pedal Balance Spring System
- Included Accessories: Tuning Key, Allen Wrench, Head Protector
