Overview

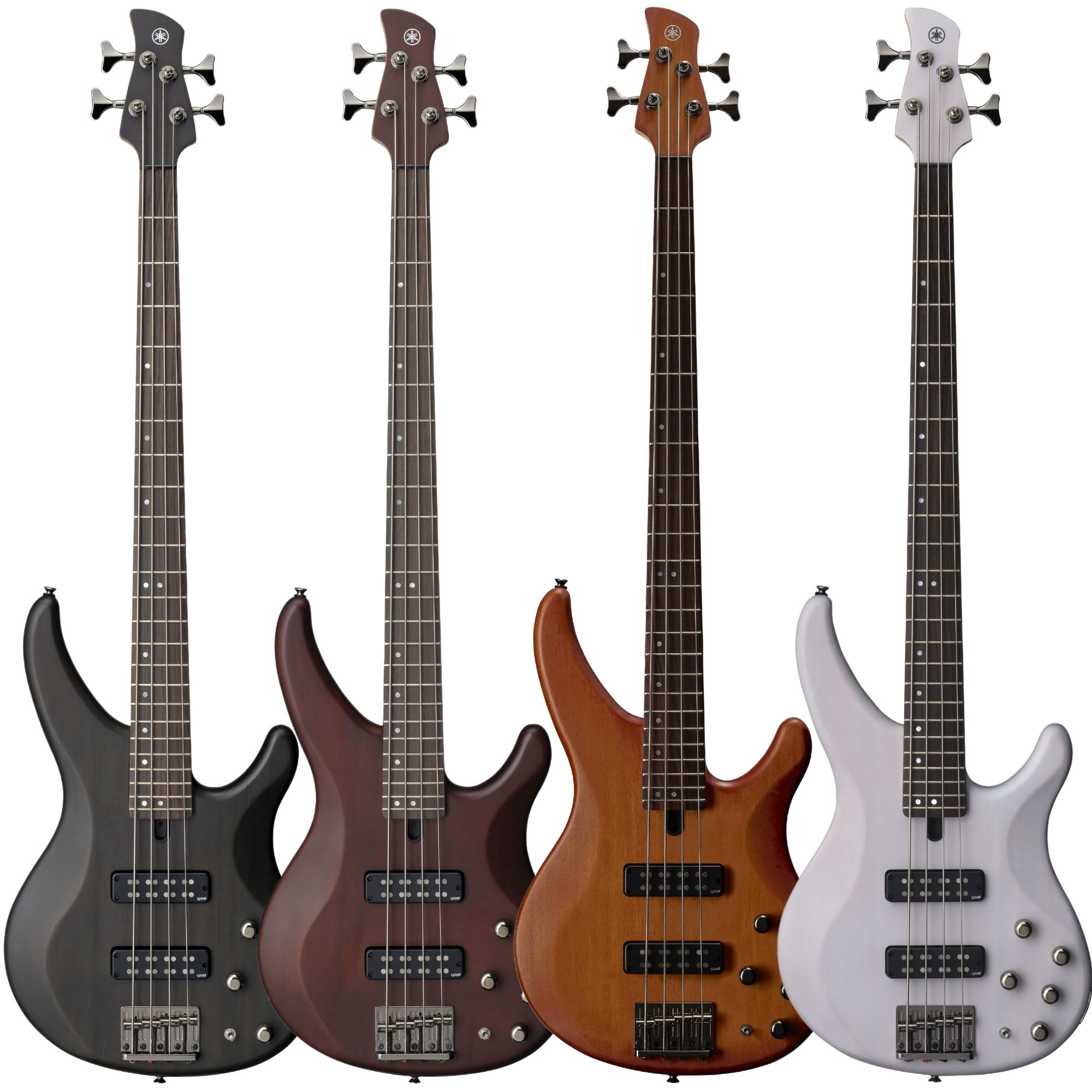

TRBX500 bass guitar is all about Tone.
Premium mahogany construction and an ultra-musical active/passive pre-amp design deliver the flexibility and sheer tonal quality to allow you to sculpt the perfect sound for your music.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Body
TRBX features a sculpted solid mahogany body, with a mass-optimized 3D design for the optimum balance between tone and comfort coupled with perfect weight distribution.
Neck
TRBX’s neck design combines a fast, ultra-comfortable profile with 5-pc maple/mahogany laminated construction for outstanding stability and excellent tone.
Pickups
YGD designed H5 pickups are defined by a clean, open tone that’s perfectly matched with the flexibility of the active/passive preamp design. Their quad-polepiece design and alnico magnets give them the power to drive the active circuit and the sensitivity and subtlety to capture every nuance in passive mode.
Electronics（Active/Passive selecter, Battery Alert）
TRBX500 models feature an audiophile-grade active/passive circuit for fine tonal control and extreme flexibility. The advanced design offers a level-matched output whether in passive or active mode and tone-switching circuitry that seamlessly moves from treble control to master passive tone. High-quality gold plated parts are used for key signal chain contacts, providing increased conductivity and reliability and a battery alert LED installed on the back panel gives instant indication of low power to eliminate sudden power loss during performance.
Neck Joint
TRBX uses a precision fitted bolt-on neck joint for maximum adjustability and clear, punchy tone. Developed through hundreds of hours of play-testing, the refined neck joint shape perfectly balances strength, vibration transfer and upper-fret access.
Bridge
A high-mass die-cast bridge efficiently transfers string vibrations to the body for full, rich tone combined with excellent adjustability and road-tested durability. 19mm string spacing on the 4-string model offers outstanding playability for technical slap or finger styles.
Headstock
Straight string pull from nut to machine head eliminates lateral tension, providing superior tuning stability and reducing overtones.
Nut
38mm (4-string) nut widths give fast, comfortable playability for any style.
Output Jack
Yamaha’s metal plate-mounted standard jack socket offers superior durability and easy maintenance.
Specs
- Scale Length 34'' (863.6mm)
- Neck Maple and Mahogany 5pc
- Fingerboard Rosewood
- Radius 10'' (250mm)
- Nut Width 38mm
- Body Solid Mahogany
- Tuners Die-cast
- Bridge Die-cast 19mm
- Pickups HHB5n (Alnico V), HHB5b (Alnico V)
- Controls Master Volume, Pickup Balancer, Bass, Middle, Treble and Active-Passive switch (Battery Alert LED on back)
- Hardware Color Black Nickel
