Overview

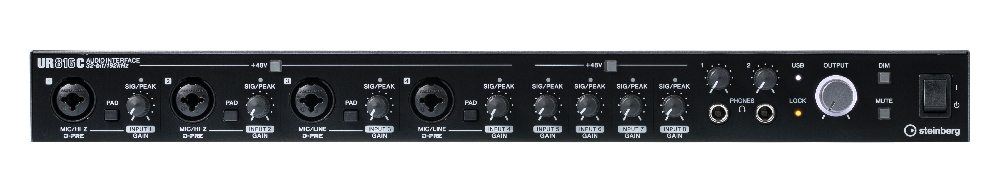

UR816C
16 X 16 USB 3.0 AUDIO INTERFACE
Quality should always be at the heart of your recording setup, which exactly sums up the UR816C. It has comprehensive inputs and outputs for making multitrack recordings, exceptional microphone preamps, professional features including Word Clock, digital inputs/outputs and mute/dim switches — everything that’s needed for a first class recording every time.
- Capture the subtlest nuance of every sound
- Record at the highest level
- Expandable with digital I/O
- Latency-free DSP effects
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
32-bit/192 kHz audio resolution
The industry-leading converters used in the UR-C series deliver exceptional audio quality, thanks to a maximum sampling rate of 192 kHz with 32-bit resolution. High-quality conversion is a crucial first step to a great audio production and, with the UR-C interfaces, Steinberg’s designers invested a huge amount of time, effort and meticulous research in choosing the very best combination of components for outstanding analog to digital conversion. In addition to the great build quality of the UR series, the sound quality of the UR-C models has been refined by carefully adjusting components and incorporating 32-bit converters. These set a new standard for precisely and transparently capturing the subtlest nuances of every recorded signal, ensuring even the tiniest audio detail is maintained throughout the entire production process.
Class-A D-PRE mic preamps
The UR-C series features D-PRE preamps, offering stellar recording quality unmatched in this price class. Yamaha’s highly acclaimed D-PRE preamps deliver truly transparent and beautifully detailed sound. A sumptuously detailed high end, immaculate dynamic response and rich, rounded low frequencies are the hallmarks of D-PRE, a very special, class-leading preamp which has been praised by industry professionals and media alike ever since its introduction. And to faithfully capture and replay that warm, transparent sound, the UR-Cs feature AD and DA conversion stages with up to 32-bit/192 kHz resolution.
Compatible with all major audio software
Our UR-Cs are compatible with all major audio software supporting the ASIO, Core Audio or WDM standard, providing a fully integrated, DSP-based monitoring setup wherever you are and with whichever DAW you use. Integrating seamlessly with Cubase and almost any other DAW, UR-Cs deliver latency-free monitoring with DSP-powered FX, via the onboard SSP3 DSP chip and latest dspMixFx technology.
Dim and Mute studio controls
For studio sessions, the UR816C features functionality needed to work in a professional studio situation. Dim and Mute controls for easy communication between recording engineer and artist. When you turn the Mute switch on, the signal from the main outputs will be muted. You can also individually mute the output signal of each of the line outputs. By turning the Dim switch on, the signal from the main outputs will be reduced by a definable dB value. You can also individually dim the output signal of each line output by the same amount.
HA mode
HA mode is a special mode that allows one of a pair of UR816Cs to be used as an eight-channel mic preamp and one set of monitors conveniently used with both units. When using two UR816Cs, with one set to HA mode, the optical in/out jacks are connected to route audio signals between them, with the Word Clock input of the UR816C in HA mode connected to the Word Clock output of the unit in normal mode.
Latency-free monitoring with DSP effects
With built-in DSPs, UR-C interfaces provide zero-latency monitoring with effects for every DAW, with straightforward control of all routings and settings. Powered by Yamaha’s custom-designed SSP3 DSP chip, you can enjoy all the benefits of dspMixFx technology. This offers latency-free monitoring, together with the highly acclaimed REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics for users of any DAW software. When using Cubase, all of the advanced monitoring capabilities are fully integrated into the application’s GUI by True Integrated Monitoring technology and users can choose to control the monitoring capabilities either from Cubase or the dspMixFx application, while the dspMixFx UR-C mixing application allows control of all effects when the interface is used with any other audio software.
Loopback function for streaming
The Loopback function of the UR-Cs offers an easy way of streaming performances live to the Internet. Often used by hosts of live online broadcasts, when the function is active, incoming audio signals to the UR-C (such as microphone, guitar or line source) are merged with the signal coming from audio playback software like Cubase or another DAW inside the computer. The merged signal will then be sent back to the computer for online streaming via your software of choice. And with the onboard effects of the UR-Cs you can tweak your sound, for example adding some reverb when doing online karaoke.
MIDI input and output
All UR-C audio interfaces are equipped with a MIDI I/O port to connect any MIDI device, making them extremely flexible for studio recording. Many studios and musicians still use MIDI input devices, classic sound modules, samplers and more as an integral part of their signature sound. The MIDI I/O on the UR-C series means that you can combine the latest audio interface technology with any MIDI device to ensure every aspect of your sound is just as you want it.
Optical digital connection

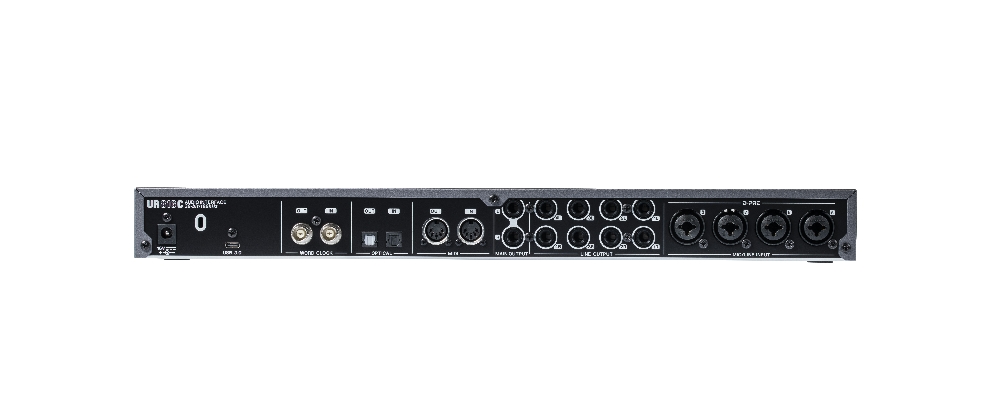

Alongside its array of XLR and 6.3mm audio connections, the UR816C features digital in/out ports which allow you to connect it (via optical cable) to digital audio devices. Switchable between ADAT and S/PDF format, up to eight channels of I/O can be accommodated. The possibility of expanding your studio setup with an additional eight-channel mic preamp makes the UR816C a perfect interface as your demands grow. You can, for example, use a second UR816C in HA mode as a stand-alone eight-channel mic preamp to grow your system.
Superspeed USB 3.1 with USB-C
UR-C interfaces feature the USB 3.1 Gen 1 SuperSpeed standard, which provides fast, reliable and seamless connectivity to Mac and PC computers, as well as iOS devices. Together with the enhanced low latency delivered by our newly designed SSP3 chip and latest, most refined drivers, the UR-C series gives you peace of mind wherever you are recording. Also being compatible with USB 2.0 standard, you can enjoy the benefits of enhanced low latency with computers that do not provide a USB 3 connection.
Ultra-rugged build
Built to the most exacting standards, with a robust metal casing, the UR-Cs are rugged enough to withstand all the rigors of the road. Location recording, or just transporting your gear from one place to another, always comes with the risk of bumps, bangs, drops or scrapes. The exceptional build quality of these interfaces means you don’t need to worry about the journey — they are tough enough to ensure that, when you set up to record, the high-quality internal components will work perfectly every time.
Word clock with SSPLL™ jitter reduction technology
The UR816C uses SSPLL™, currently the most advanced technology for minimizing audio band jitter and vital when creating a high-quality, professional audio network. As more devices with clocks are added to an audio system, each clock beats against the others, creating audio band jitter. The traditional solution is to add expensive master clocks but, with audio equipment becoming more affordable, some manufacturers use cheap clock solutions which can lead to equipment not working properly. Robust Super Suppression Phase Locked Loop (SSPLL) technology performs at the same level as professional clocking products, making all connected equipment work reliably and virtually jitter-free.
dspMixFx Remote Bridge
dspMixFx Remote Bridge is a Windows/Macintosh computer application which allows you to control the DSP functions of a connected UR44C or UR816C wirelessly from an iOS device using dspMixFx iOS, when connected to the same wireless LAN. By using the Remote Bridge a singer or musician can easily adjust the DSP monitor settings from the recording booth.
iOS ready via CC Mode
Combining UR-C units with an iOS audio application such as Steinberg’s Cubasis for iPad, provides you with a fully mobile audio recording solution. All UR-C interfaces automatically switch to Class Compliant (CC) mode when connected to an iPad or iPhone and the UR22C, UR24C and UR44C can even be bus powered by the USB-C equipped iPad Pro models. With Steinberg’s Cubasis iPad app or other iOS audio apps, UR-Cs offer an effortlessly intuitive production experience on iPad or iPhone.
Included software
Cubase AI
Based on Steinberg’s award-winning advanced music production system Cubase Pro, Cubase AI is a powerful, one-stop music software solution for studio-quality recording. Combining audio and MIDI recording, editing, mixing and scoring in a single, integrated software package, Cubase AI is the perfect entry into the world of computer-based music production. Featuring Steinberg’s advanced audio engine, flexible routing and full automatic delay compensation, it supports 48 MIDI, 16 instrument, 32 audio tracks and 16 physical inputs. Cubase AI comes with a range of high-quality audio effect processors, the HALion Sonic SE workstation instrument and MixConsole for a stellar mixing experience.
Cubasis LE
UR-C’s seamless integration with iPad is enhanced by the inclusion of Cubasis LE, for creating professional music productions on your iPad. Featuring the same look and feel of its bigger brother Cubasis, Cubasis LE is especially designed for quick and easy operation, making recording, editing and mixing a breeze, as well as opening up a new world of possibilities for your creativity. It supports up to four audio and four MIDI tracks, features a mixer with studio-grade effects processors and also includes MicroSonic, a virtual instrument with 25 virtual instrument sounds, a virtual keyboard, sample editor and key editor.
dspMixFx mixing application
UR-C interfaces provide zero-latency monitoring with effects for every DAW, with straightforward control of all routings and settings, thanks to the built-in DSP chip and the dspMixFx UR-C software. Powered by Yamaha’s custom-designed SSP3 DSP chip, dspMixFx technology offers latency-free monitoring, together with the highly acclaimed REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics for users of any DAW software. When using Cubase, all of the advanced monitoring capabilities are fully integrated into the application’s GUI by True Integrated Monitoring technology, with users able to choose to control the monitoring capabilities from either Cubase or the dspMixFx application.
Specs
| | UR816C |
| Connection Type | USB Type-C |
| Design | 19‘‘ rack unit, 1 HU |
| Casing | Full-metal casing |
| Power supply | External 16 V AC adaptor (Yamaha PA-300C) |
| | UR816C |
| AD/DA | 32 bit |
| Maximum sample rate | 192 kHz |
| Dynamic range input | 106 [dB] |
| Jitter reduction | SSPLL |
| | UR816C |
| Total number of inputs | 16 |
| Total number of indiviudal outputs | 16 |
| Total number of Outputs | 16 |
| Microphone preamp | D-PRE |
| Microphone inputs | 8 |
| Inputs with line level | 6 |
| Inputs with HI-Z | 2 |
| Analog inputs TRS | 0 |
| Analog inputs Combo | 8 |
| Analog outputs TRS | 10 |
| Phantom power | 8 |
| Headphone | With dedicated volume control |
| Headphones outputs | 2 |
| Digital In ADAT | 1 |
| Digital Out ADAT | 1 |
| Digital In S/PDIF Optical | 1 |
| Digital In AES/EBU RS422 | 0 |
| Digital Out S/PDIF Optical | 1 |
| Digital Out AES/EBU RS422 | 0 |
| WordClock I/O | |
| MIDI I/O | |
| | UR816C |
| Monitoring | Latency free monitoring with FX |
| Onboard DSP | SSP 3 |
| True Integrated Monitoring with FX in Cubase | |
| High-Pass filter | |
| REV-X Reverb | |
| Sweet Spot Morphing Channel Strip | |
| | UR816C |
| Weight | 2700 g |
| Width | 446.3 mm |
| Height | 45.6 mm |
| Depth | 225.8 mm |
| | UR816C |
| Operating systems (Mac) | macOS Sierra, macOS High Sierra, macOS Mojave, macOS Catalina |
| Operating systems (Windows) | Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit) |
| Operating systems (iOS) | iOS 10, iOS 11, iOS 12, iOS 13 |
| Port | USB Type-C, USB 3.0, USB 2.0 |
| CPU minimum | Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor |
| RAM minimum | 2 GB |
| Hard disk free space | 1200 MB |
| Display resolution recommended | 1280 x 800 |
| Internet connection for | account sign up and product registration, license activation, additional downloads, driver and tools, manuals and instructions, installer download |
