Overview

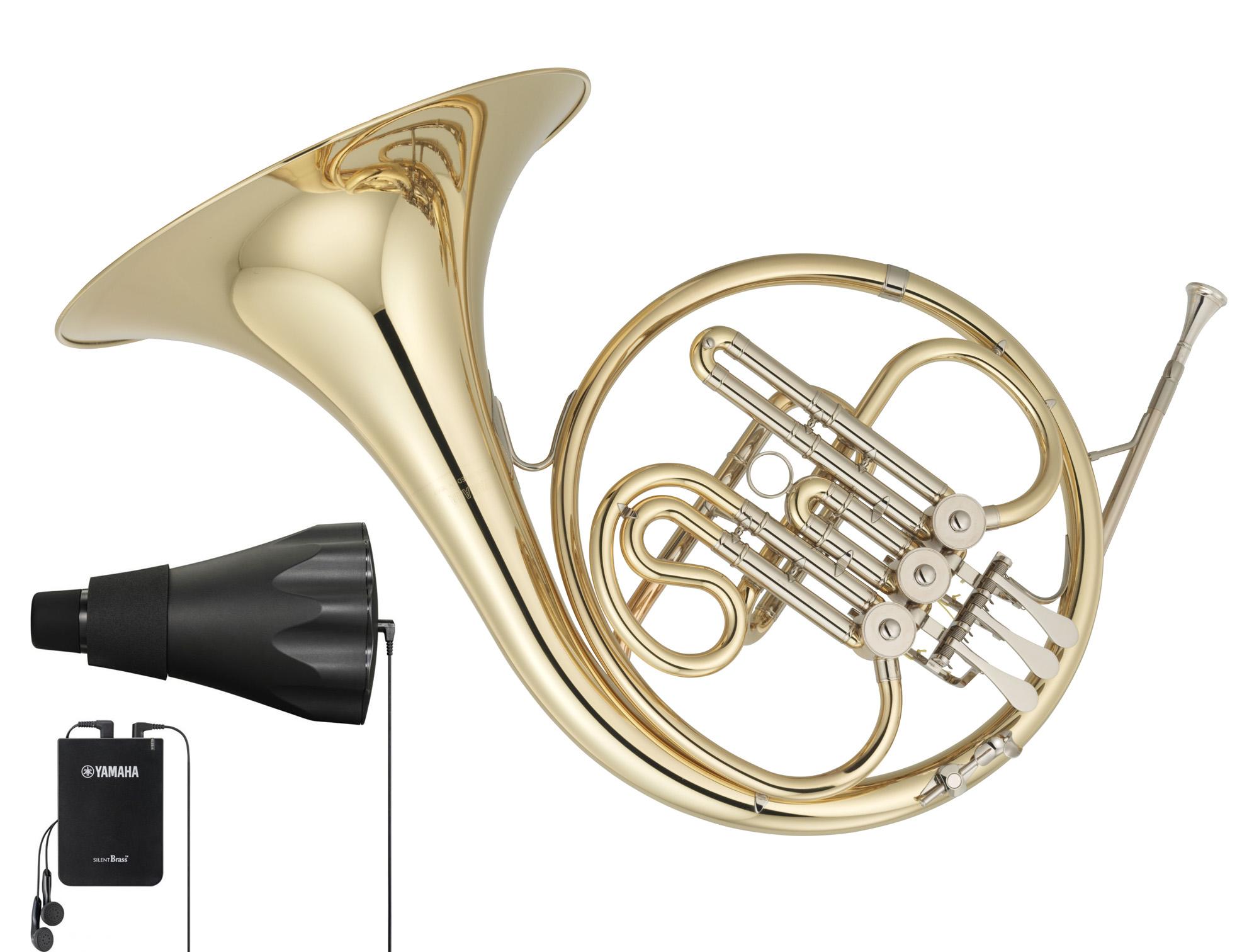

Perfect for student musicians, the YHR-320 inherits the hallmarks of Yamaha craftsmanship. This pack also includes the Silent Brass SB3X System - allowing you to significantly reduce the audible volume of the French horn to the people around you, whilst hearing it perfectly through the included earphones.
- Bb Single Horn
- Key: Bb
- Valves: 3 rotary valves
- Bell size: Medium
- Bell type: Fixed
- Bore: 12mm (0.472")
- Valve casings: Yellow brass
- Valve rotors: Solid
- Lever action: String
- Finish: Clear lacquer
- Included Mouthpiece: HR32C4
Silent Brass SB3X System:
Want to play when and where you like, without being confined to a time or place? Our next generation Silent Brass system makes it possible...
The new Silent Brass packs include a smaller, lighter, even more playable pickup mute which works together with the new Personal Studio module, which features our exclusive Brass Resonance Modeling. Used together, you'll feel and hear the natural acoustic tone and response of non-muted playing - without disturbing friends and family.
Features
Silent Brass System:
Silent Brass Pickup Mute
The Pickup Mute combines a high-performance mute with an internal microphone to pickup sound. Significantly smaller and lighter than previous versions, the mute offers superior muting performance, delivers excellent intonation over a wide pitch range, and natural playability. A new compact design now lets you put your instrument in its case with the mute in the bell.
Please note that the Pickup Mute may not fit some instruments with significantly different bell shapes or bell diameters. Please check before purchasing.
Brass Resonance Modelling
The Silent Brass Personal Studio module features our unique Brass Resonance Modelling technology, which recreates the sound of non-muted brass instruments to correct your instrument’s tone when the Silent Brass Pickup Mute is in place. The resulting sound is so realistic, it’s virtually indistinguishable from the un-muted tone.
The Silent Brass Offers More Enjoyment
Connect the output from an audio player, smartphone, et al to the AUX IN jack on the Personal Studio and enjoy playing along with your favorite recordings or 'minus one' practice aids. The headphone output can also be used as an output jack for recording and stage use.
Do not use the AUX IN jack when using the PHONES jack as an output jack.
Specs
- Bb Single Horn
- Key: Bb
- Valves: 3 rotary valves
- Bell size: Medium
- Bell type: Fixed
- Bore: 12mm (0.472")
- Valve casings: Yellow brass
- Valve rotors: Solid
- Lever action: String
- Finish: Clear lacquer
- Included Mouthpiece: HR32C4
Silent System:
- Pickup Mute:
- Model: PM3X
- Dimensions (Diameter x Length): 129 × 216mm (5-1/16" x 8-1/2")
- Weight: 195g (6.9 oz.)
- Internal Microphone: Electric condenser microphone
- Pickup Output Jack: Mini phone jack
- Nominal Level: -25dB～-35dB
- Brass Resonance Modelling: Yes
- Personal Studio:
- Model: STX
- Dimensions (W x D x H): 70 x 20 x 98mm
- Weight: 69g (2.4 oz) without batteries
- Jacks and Terminals: MUTE IN, AUX IN, PHONES
- Controls: VOL. (volume), Reverb type, Power ON/OFF
- Brass Resonance Modelling: Yes (It behaves correctly only when compatible Pickup Mute is connected to Personal Studio.)
- Power Supply: AA alkaline or nickel-metal hydride batteries x 2 (3V DC)
- Included Accessories:
- Cable
- Stereo Earphones
- Owner’s Manual
| Product ID | BYHR320II-SILENTPACK |
|---|
