Overview
Yamaha ZG01 Game Streaming Audio Mixer
Make It Your World.
The ZG01 is Yamaha’s first audio mixer designed specifically for game voice chat and game streaming.
This new mixer allows you to tailor the game audio, your voice, and the voice of the person you are chatting with to your own playback environment, while simultaneously providing the ideal audio signal to both your chat partner and the audience you are streaming to.
The ZG01 also features simple audio operation with carefully selected physical controls, a variety of DSP effects, such as a chat voice changer and authentic surround sound processing through stereo headphones, as well as 2-in/1-out HDMI ports that also work as an HDMI switcher and conversion adapter. The ZG01 offers a higher level of immersive game sound and a more comfortable gaming environment.
A game streaming audio mixer that provides a highly immersive gaming experience.
- Intuitive volume control designed for gamer and game streamer
- High resolution (24-bit, 48 kHz) USB audio recording and playback
- Flexible volume control with dedicated drivers that are recognized by Windows/Mac as virtual multiple devices
- ZG Sound Processing (ZG SURROUND, FOCUS MODE/EQ, 3D CHAT SPACE, Voice changer, Transceiver/Radio voice effect... and more)
- Effect button x 6 (3 for voice chat effects, 3 for game sound effects)
- HDMI connection port x 3 (2-in/1-out, Audio out: 2ch 24-bit/48 kHz fixed, Video signal: Pass-through)
- MIC input for condenser mics with +48 phantom power and mute button
- Independent inputs and outputs for headset/ microphone with headphones or desktop speakers
- 4-pole mini input/output (TRRS) for smartphones
- ZG Controller (Windows/Mac) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS and Android supported by 4-pole mini input/output (TRRS)
- USB-C Power input (5 V DC, 1.5 A)
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features

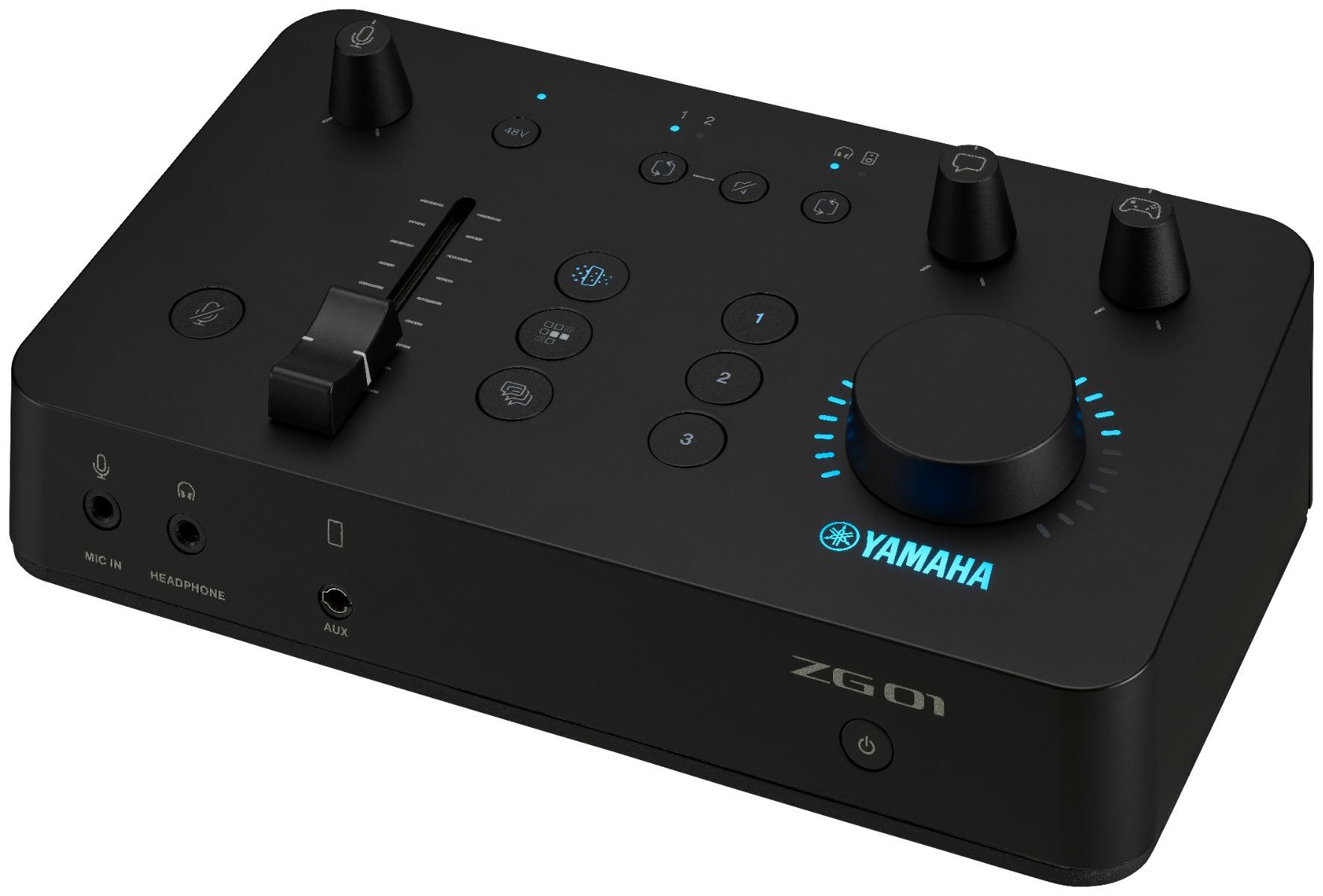

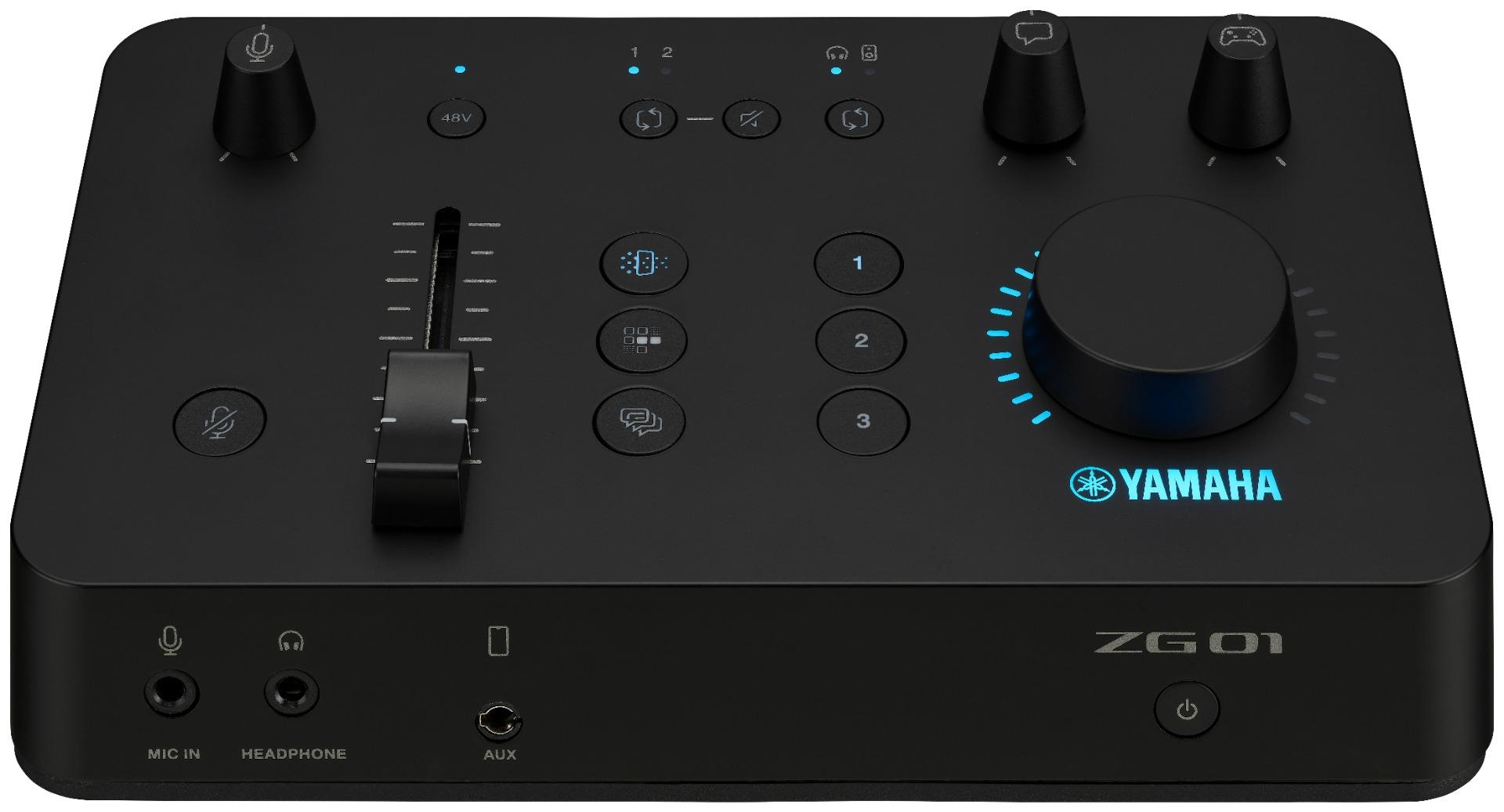

Simple, intuitive control for gaming and game streaming
The ZG01's physical controls designed for gaming, voice chat, as well as for streaming, provide simple, intuitive management of all your audio signals without detracting from your overall gaming experience.
ZG sound processing for ultimate immersion
ZG SURROUND: Experience virtual surround sound for stunning authenticity
Yamaha's new proprietary "ViReal™ technologies for headphones" has been further optimized for gaming to maximize your stereo headphones' 3D sound quality. Enjoy powerful game sound with unprecedented realism.
FOCUS MODE/EQ: Hone your game audio to enhance immersion
FOCUS MODE/EQ can suppress the sound of your own character's voice or emphasizes environmental sounds of the game audio. The settings can be configured to suit a variety of game titles, scenes, and playing styles. For example, you can focus on the sound of your opponent's footsteps for a more authentic experience.
3D CHAT SPACE: Clearly distinguish between game and chat audio
With 3D CHAT SPACE you will feel as if you were playing a game in the same room with your friends. By placing the other party's voice in a virtual 3D-space, it avoids overlap with game audio and voice chat, letting you hear all your audio signals clearly and comfortably.
Share your surround sound experience with your audience
Your multi-channel game audio is converted and processed by the ZG to reproduce a surround sound experience that you can stream to your listeners.
Even if they are not ZG users, as long as they listen with stereo headphones, you can deliver the same immersive authenticity to your audience.
Powerful DSP effects to enhance your gaming experience
Customize your voice and game audio with zero-latency DSP processing to adapt to various virtual environments during gameplay.
- For your voice: Voice changer, Transceiver/Radio voice effect, masking beep sound, and 1-Touch Echo
- For game audio: ZG SURROUND and FOCUS MODE/EQ allow sound customization to suit your taste and gaming scene
*Presets can be assigned to the three physical buttons for instant recall
ZG dedicated driver allows individual signals to be assigned to multiple client software applications
When you install the dedicated driver in your computer (Windows/Mac), the ZG01 is recognized as two virtual devices, and can send and receive two audio channels for different purposes. For example, you can set up a voice chat application to send only your voice audio, as well as a streaming application to broadcast your game and voice chat audio.
Practical, comprehensive connectivity for gamers
The ZG01 is equipped with an HDMI port for connecting consumer game consoles, as well as other ports necessary for building a more extensive gaming sound environment. The integrated features allow you to do away with the often complicated and cumbersome wiring or adapters that peripheral devices often necessitate.
- HDMI port: The 2-in/1-out HDMI ports allow direct connection to consumer game consoles, and can also function as a 2 input HDMI switcher and HDMI conversion adapter with audio extraction. (Audio out: 2ch 24-bit/48kHz fixed, Video signal: Pass-through)
*The ZG01 doesn't have a video capture function. Therefore game streaming live video will require a compatible external video capture device.
- Flexible audio input and output: The audio I/O jack provides flexibility for connecting the microphone, headphones, headset and desktop speakers of your choice.
- USB-C x 2: Ensures stable signal transfer and power supply. (USB2.0)

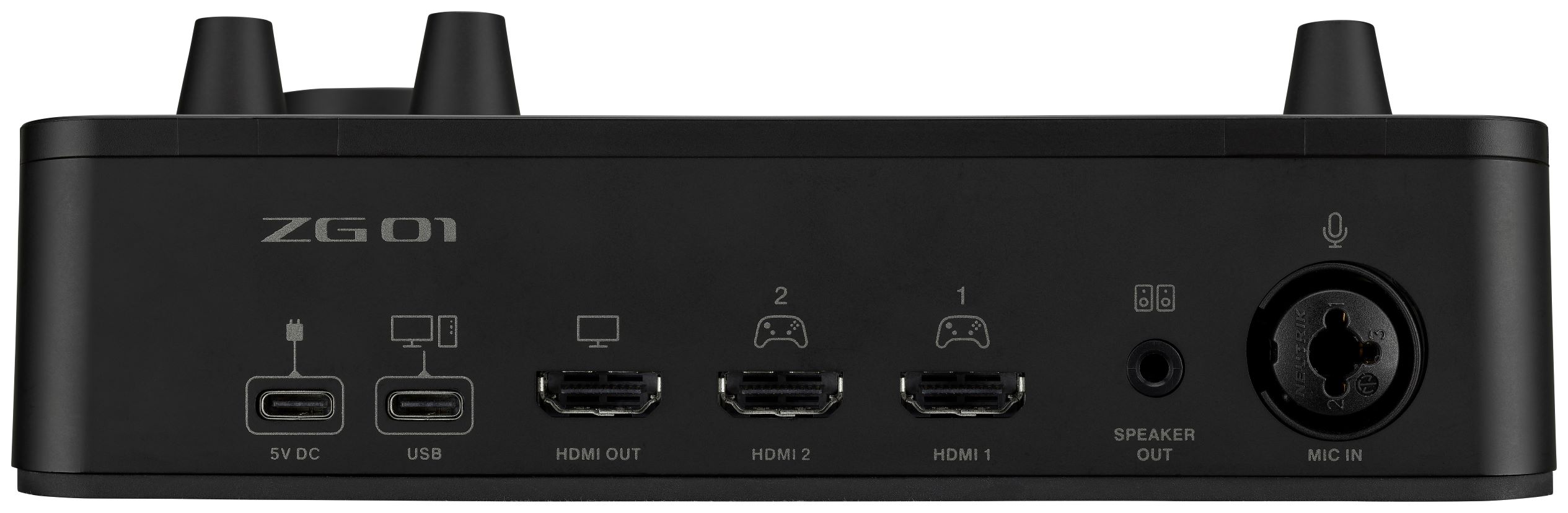

- Integrated terminal ports on the back: All connections that are rarely changed are concentrated on the rear panel, allowing for smart, unobtrusive wiring.
"ZG Controller" dedicated software
Yamaha ZG01: "ZG Controller" dedicated software
The ZG01's dedicated software application (Windows/Mac), ZG Controller, allows you to select and edit detailed volume and effect settings and assign them to presets for your game audio and headphones.
These presets can also be exported and imported as configuration files that will allow you to share them with friends that also use ZG consoles.
Specs
Outline
INPUT CHANNELS
- Microphone: 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- HDMI: 1 - Switchable input HDMI 1 or HDMI 2 by button *No video capture function
- USB: 2 - Virtual devices (Voice, Streaming)
OUTPUT CHANNELS
- PHONES: 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones)
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 1 - Stereo mini (Speaker out)
- HDMI: 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal: Pass-through
- USB: 2 - Virtual devices (Voice, Speaker)

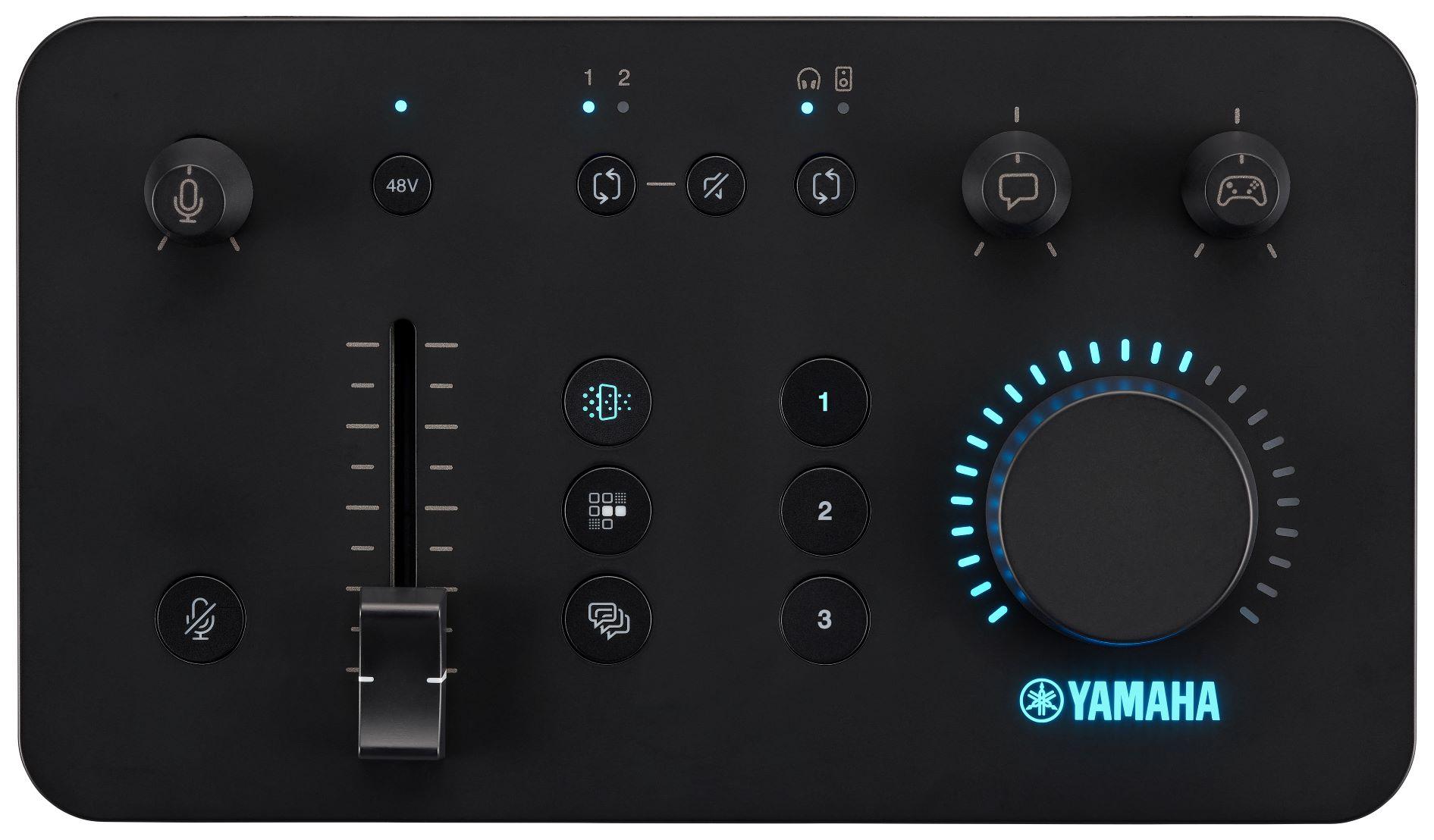

Functions: MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)
ON-BOARD PROCESSORS
- DSP: ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller
USB
- USB Audio: Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
- USB DC Power input: 1 - Type-C, 5 V DC, 1.5 A
GENERAL SPECIFICATIONS
- Power requirements: 5 V DC, 1.5 A
- Power consumption: Max. 7.5 W
- Dimensions: W: 195 mm (7.7") H: 47.5 mm (1.9") D: 110 mm (4.3")
- Net weight: 0.8 kg (1.8 lbs)
- Included Accessories: USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
- Others: Operating Temperature: 0 to + 40 ℃
