Overview
Single HS8 Monitor Speaker
Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process.
- 2-way bass-reflex bi-amplified nearfield studio monitor with 8" cone woofer and 1" dome tweeter
- 38Hz - 30kHz frequency response
- 75W LF plus 45W HF bi-amp system for high-performance 120W power amplification
- ROOM CONTROL and HIGH TRIM response controls
- XLR and TRS phone jack inputs accept balanced or unbalanced signals
Features
By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.
Specs
- Speaker type 2-way bi-amp powered studio monitor
- Frequency range (-10dB) 38Hz - 30kHz
- Components
LF 8" cone
HF 1" dome - Crossover 2kHz
- Output power 120W (LF:75W, HF:45W)

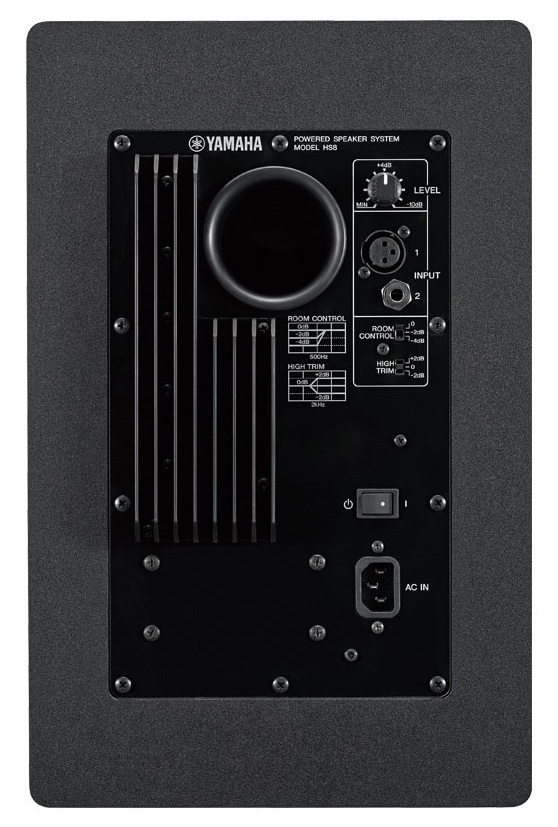

- I/O connectors XLR3-31 type (balanced), PHONE (balanced)
- Power consumption 60W
- Shape Bass-reflex type
- Cabinet material MDF
- Dimensions W 250mm (9.8") H 390mm (15.4") D 334mm (13.1")
- Net weight 10.2kg (22.5 lbs.)
- Others LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB
- Single unit
