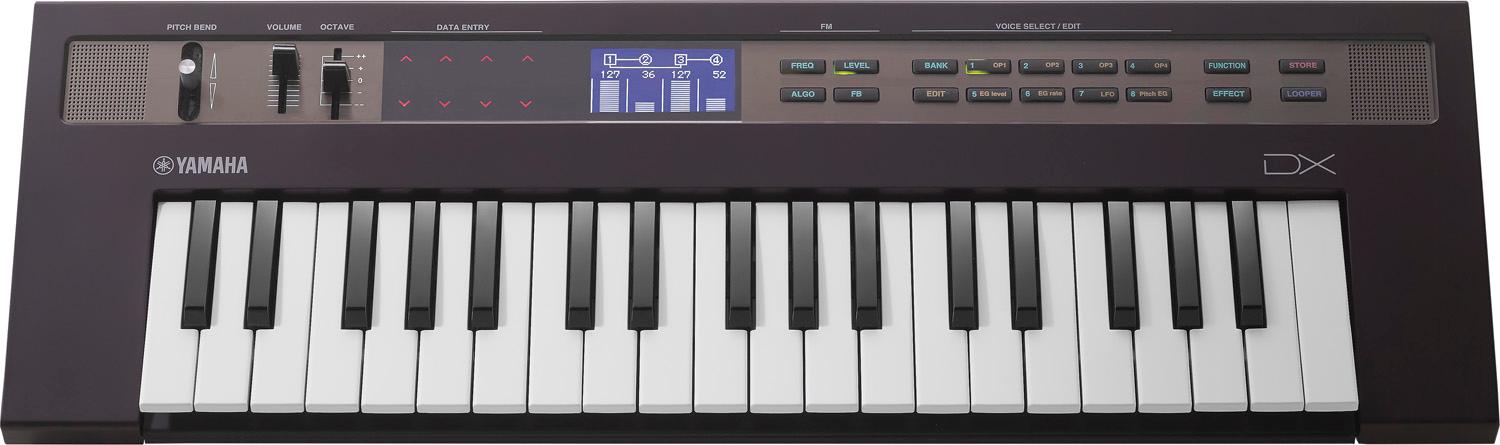

Yamaha reface DX Mini FM Synthesizer

Finance

Features

Sound

• 4-operator FM Sound Engine offers dynamic and expressive additive synthesis
• A new feature of this engine is continuously variable feedback on every operator allowing for a wide-range of sound creation
• Two programmable effects blocks with seven effect types per block:
  (The effect types are: VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb and Distortion)
• Multi-touch control interface gives direct access to four simultaneous parameters
• 32 Voice memory locations allow storing and recalling favorite Voices

Control

• Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
• Sustain pedal input allows the sustain function for all FM generated sounds

Looper

• Integrated Phrase Looper: capture song ideas or just jam.

Mobility & Connectivity

• Speakers - 2W 3cm stereo speaker system lets you play any place, any time.  Specially designed bass reflex port technology enhances bass response for full, rich sound.
• USB - USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device.
• Audio output - Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more.
• Audio input - A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument.
• Controller - Continuous controller pedal input for volume control.

Battery powered

• Uses six "AA" batteries with five hours of life.

Specs

Amplifiers and Speakers

• Amplifiers 2 W x 2
• Speakers 3 cm x 2

Power Supply

• Power Consumption 6 W (When using PA-130 power adaptor)
• Battery Life Approximately 5 hours
• Auto Power Off Yes
• Power Supply Adaptors PA-130 or an equivalent recommended by Yamaha
• Batteries Six “AA” size batteries or Ni-MH rechargeable batteries

Accessories

• Included AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale

Voices

• Number of types 4 Operators, 12 Algorithms
• Number of voices 32 (memorable)
• Effects Distortion/VCM Touch Wah/Chorus/VCM Flanger/VCM Phaser/Delay/Reverb

Size/Weight

• Dimensions Width 530 mm (20 7/8")
• Height 60 mm (2 3/8")
• Depth 175 mm (6 7/8")
• Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)

Keyboard

• Number of Keys 37 keys
• Type HQ mini (High-Quality mini)
• Initial Touch Yes

Tone generation

• Maximum Polyphony 8
• Engine FM

Other Features

• Phrase Looper Yes
• Display Type Full Dot LCD (128 x 64 dots)

Connectivity

• DC IN DC IN (12 V) jack
• Headphones PHONES (6.3 mm, stereo phone jack)
• MIDI MIDI (mini-DIN IN/OUT)
• AUX IN AUX IN (3.5 mm, mini stereo phone jack)
• OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced)
• USB TO HOST USB (TO HOST)
• Pedal Type SUSTAIN: FC3(A), FC4(A), FC5 (optional)
• Half damper NO (*Half damper's control message can be sent to external device via MIDI)
