Overview

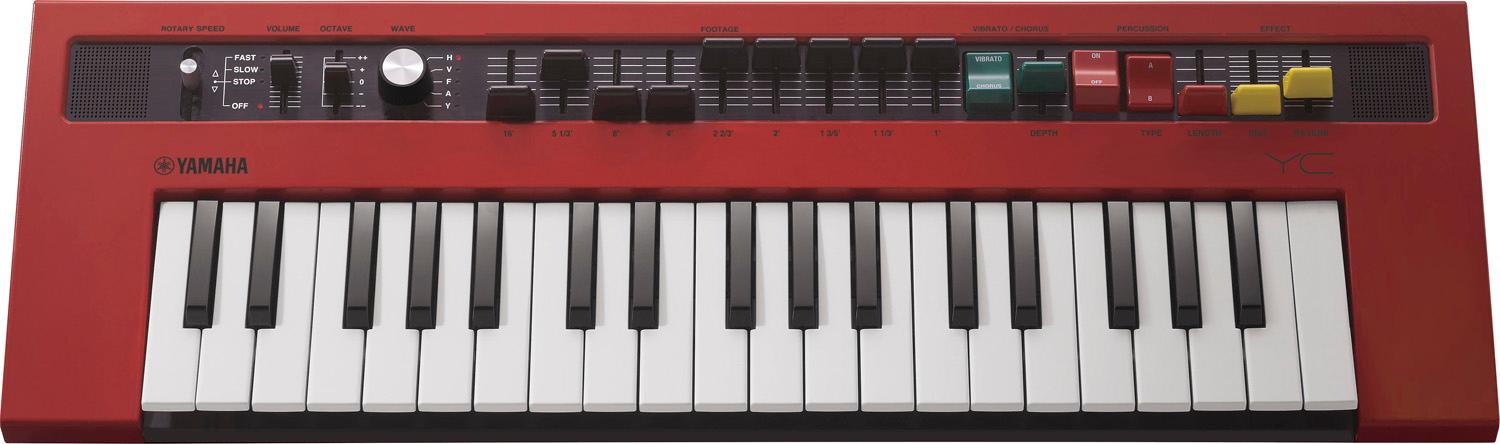

Rich, punchy sounds are its area of expertise: The reface YC offers additive synthesis paired with a unique power of expression using nine drawbars and virtual rotary speakers. The instrument combines five different models of organs, the sound created using a special organ flutes tone generator. In addition to the possibility to carry around five organs in a single piece of hardware without breaking your back, the reface YC delivers the authentic spirit of playing an organ using the smallest user interface possible.
Finance
Bring the dream within easier reach by spreading the cost with V12 Retail Finance. With a range of different finance schemes available, use the Finance Calculator below to choose a deposit amount and find out possible monthly payments.
Click here for more information
Finance agreements are available to UK residents aged 18 or over, subject to status.
Thank you for choosing V12 Retail Finance; you will now be taken to V12 Retail Finance's website to complete your finance application.
Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is registered in England and Wales BRO14498 at Sherbourne Drive, Tilbrook MK7 8BL. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London acts as a credit broker and offers credit products from Secure Trust Bank PLC trading as V12 Retail Finance. Yamaha Music Europe GmbH (UK) trading as Yamaha Music London is authorised and regulated by the Financial Conduct Authority. Yamaha Music Europe GmbH (UK) FCA registration number is FRN688040. Credit provided subject to age and status.
V12 Retail Finance is registered in England and Wales with company number 4585692. Registered office: Yorke House, Arleston Way, Solihull, B90 4LH. Authorised and regulated by the Financial Conduct Authority (FCA). V12 Retail Finance's FCA reference number is 679653.
Features
Sound
Combo Organ Sound Engine with five vintage organ Waves
The five organ Waves are:
- H - American tonewheel organ
- V - British transistor organ
- F - Italian transistor organ
- A - Japanese transistor organ
- Y - Yamaha YC-45D
9 Drawbars
- All the controls needed to play organ: Footage sliders, Percussion, Vibrato and Rotary speaker control
- Add character with two retro organ effects: Distortion and Reverb
- 128-note polyphony ensures dropout-free performance
Control
- Based on the FS action found on the flagship MotifXF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing
- Expression pedal input for foot volume control (organ expression)
Mobility & Connectivity
- Speakers - 2W 3cm stereo speaker system lets you play any place, any time. Specially designed bass reflex port technology enhances bass response for full, rich sound.
- USB - USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device.
- Audio output - Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more.
- Audio input - A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument.
- Controller - Continuous controller pedal input for volume control.
Battery powered
- Uses six "AA" batteries with five hours of life.
Specs
Amplifiers and Speakers
- Amplifiers 2 W x 2
- Speakers 3 cm x 2
Power Supply
- Power Consumption 6 W (When using PA-130 power adaptor)
- Battery Life Approximately 5 hours
- Auto Power Off Yes
- Power Supply Adaptors PA-130 or an equivalent recommended by Yamaha
- Batteries Six “AA” size batteries or Ni-MH rechargeable batteries
Accessories
- Included AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale
Voices
- Number of types 5 Organ types
- Effects Rotary Speaker, Distortion, Reverb
Size/Weight
- Dimensions Width 530 mm (20 7/8")
- Height 60 mm (2 3/8")
- Depth 175 mm (6 7/8")
- Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)
Keyboard
- Number of Keys 37 keys
- Type HQ mini (High-Quality mini)
- Initial Touch Yes
Tone generation
- Maximum Polyphony 128
- Engine AWM (Organ Flutes)
Connectivity
- DC IN DC IN (12 V) jack
- Headphones PHONES (6.3 mm, stereo phone jack)
- MIDI MIDI (mini-DIN IN/OUT)
- AUX IN AUX IN (3.5 mm, mini stereo phone jack)
- OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced)
- USB TO HOST USB (TO HOST)
- Pedal Type FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
